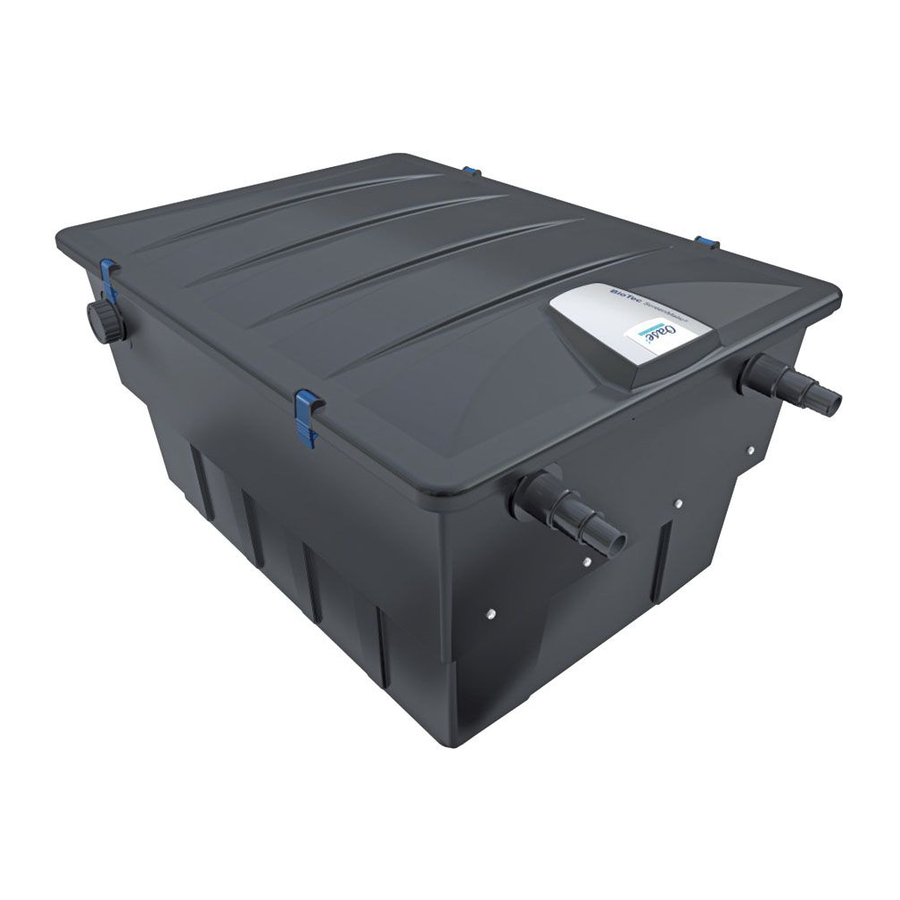

BioTec ScreenMatic²

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BioTec ScreenMatic2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Oase BioTec ScreenMatic2

Summary of Contents for Oase BioTec ScreenMatic2

  • Page 1 BioTec ScreenMatic²...
  • Page 2 -  - BTC0056 BTC0050 BTC0049...
  • Page 3 -  - BTC0051 BTC0052...
  • Page 4 -  - BTC0063 BTC0048...
  • Page 5 -  - BTC0058 BTC0059...
  • Page 6 -  - BTC0064 BTC0061...
  • Page 7 -  - BTC0062...
  • Page 8 -  - BTC0053...
  • Page 9 -  - BTC0055...
  • Page 10 -  - BTC0060 BTC0054...

  • Page 11: Table Of Contents

    - EN - - EN - Table of Contents Safety information ............................26 Electrical connection ........................26 Safe operation ..........................26 Information about these operating instructions ................... 27 Symbols used in these instructions ....................27 1.1.1 Warnings ........................... 27 1.1.2 Additional information .......................

  • Page 12: Safety Information

    - EN - Translation of the original Operating Instructions Safety information This unit can be used by children aged 8  and above and by per- sons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been instructed on how to use the unit in a safe way and they understand the hazards involved.

  • Page 13: Information About These Operating Instructions

    - EN - Information about these operating instructions Welcome to OASE Living Water. You made a good choice with the purchase of this product BioTec Screen- Matic² 40000/60000/140000. Prior to commissioning the unit, please read the instructions of use carefully and fully familiarise yourself with the unit.

  • Page 14: Properties

    • Convenient cleaning of the foam filters directly inside the filter. • Perfectly tailored to the OASE AquaMax Eco filter pumps. • Direct connection of the OASE UVC clarifiers of the Vitronic 18W/24W/36W, Bitron C and Bitron Eco series possible. • Use of different filter media to ensure optimum colonisation of bacteria for biological filtration.

  • Page 15: Opening The Container

    – The filter system and transformer must be located at a distance of at least 2 m from the water. • Ponds that cannot be accessed by persons, filter systems with OASE UVC clarifier of the Bitron Eco series: – The filter system may be installed directly next to the water No minimum distances apply. The trans- former must be located at a distance of at least 2 m from the water.

  • Page 16: Connecting The Inlet

    - EN - Optimum ambient and operating conditions Optimum operating results can be obtained with careful planning, taking the ambient conditions into account. • As the filter is very heavy when filled, it must be placed on a suitable base (at least on slabs, but preferably on a poured concrete base) to prevent it from subsiding.

  • Page 17: Connecting The Outlet

    • Thoroughly clean the pond before starting up the filter system for the first time to ensure that the filter sys- tem is not overloaded by excessively soiled water. OASE recommends using the PondoVac pond vacuum cleaner for cleaning the pond.

  • Page 18: Biological Filter Starter

    The foam filters take several weeks to reach their full biological cleaning effect. We recommend using the OASE filter starter Biokick to ensure fast growth of bacterial populations. Micro-organisms colonise the filter system, multiply and ensure an enhanced quality of the pond water by the decomposition of excess nutrients.

  • Page 19: Operation

    - EN - Operation Operating panel BTC0046 LED, 2 colours • Lit green The ScreenMatic rotating screen unit is operational • Flashes green Cleaning active Malfunction (→ System messages) • Flashes green/red Malfunction (→ System messages) • Flashes red (→ Manual cleaning) Button, start/stop manual cleaning Manual cleaning Proceed as follows Description...

  • Page 20: Time-Dependent Cleaning

    - EN - Time-dependent cleaning The ScreenMatic rotating screen unit executes a cleaning cycle after a set interval depending on the ambient temperature. This ensures cleaning at regular intervals • if the sensor is soiled or defective, • if there is very little soiling on the screen and/or low flow rates (e.g. when the SFC of the filter pump is acti- vated).

  • Page 21: Remedy Of Faults

    – If the ScreenMatic screen becomes clogged, clean the ScreenMatic screen downstream of the water dis- tributor using the brush. For this, manually activate the SceenMatic screen. (→ Manual cleaning) – Carry out intensive cleaning with the pump cleaning agent PumpClean from OASE: (→ Cleaning/replacing the ScreenMatic screen)

  • Page 22: Cleaning Foam Filters

    9. Hinge down the screen holder, insert the debris tray and switch on the filter pump. Cleaning/replacing the substrate tubes The substrate tubes are filled with zeolite on delivery. OASE recommends replacing the zeolite with Phosless when the bacteria are established and the foam filters are fully effective.

  • Page 23: Replacing Foam Filters

    – Thoroughly clean both sides of the ScreenMatic screen. Replace the ScreenMatic screen if necessary. – Use the pump cleaning agent PumpClean from OASE. 5. Reassemble the ScreenMatic rotating screen unit in the reverse order and place it into the screen holder.

  • Page 24: Wear Parts

    - EN - Wear parts The following components are wear parts and are excluded from the warranty: • Foam filters • Substrate tubes • ScreenMatic screen Disposal Do not dispose of this unit with domestic waste! For disposal purposes, please use the return system provided. Disable the unit beforehand by cutting off the cables.
  • Page 25 BTC0040...
  • Page 26 BioTec ScreenMatic² Pos. 40000/60000 42383 44178 44184 42325 44177 44183 42954 19512 19506 44337 25691 42949 44179 25000 45321 44182 34859 44308 42450 BTC0041 BTC0043 BTC0044, BTC0045...
  • Page 27 BioTec ScreenMatic² Pos. 40000 60000 34670 34670 42895 42896 26305 34733 25524 25524 42893 42894 BTC0042...
  • Page 28 BTC0034...
  • Page 29 BioTec ScreenMatic² Pos. 140000 42384 44178 44186 42326 44177 44183 42954 19512 19506 44338 25691 42949 44179 25000 44308 42450 34367 BTC0035 BTC0036...
  • Page 30 BioTec ScreenMatic² Pos. 140000 34670 42896 34733 25542 25922 25546 25547 25524 42894 BTC0039...
  • Page 31 BioTec ScreenMatic² Pos. 140000 19005 35255 24229 24230 34253 25996 34835 44188 BTC0037, BTC0038...
