Yudor YUC-HX30-O User Manual

Ip speed dome camera
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

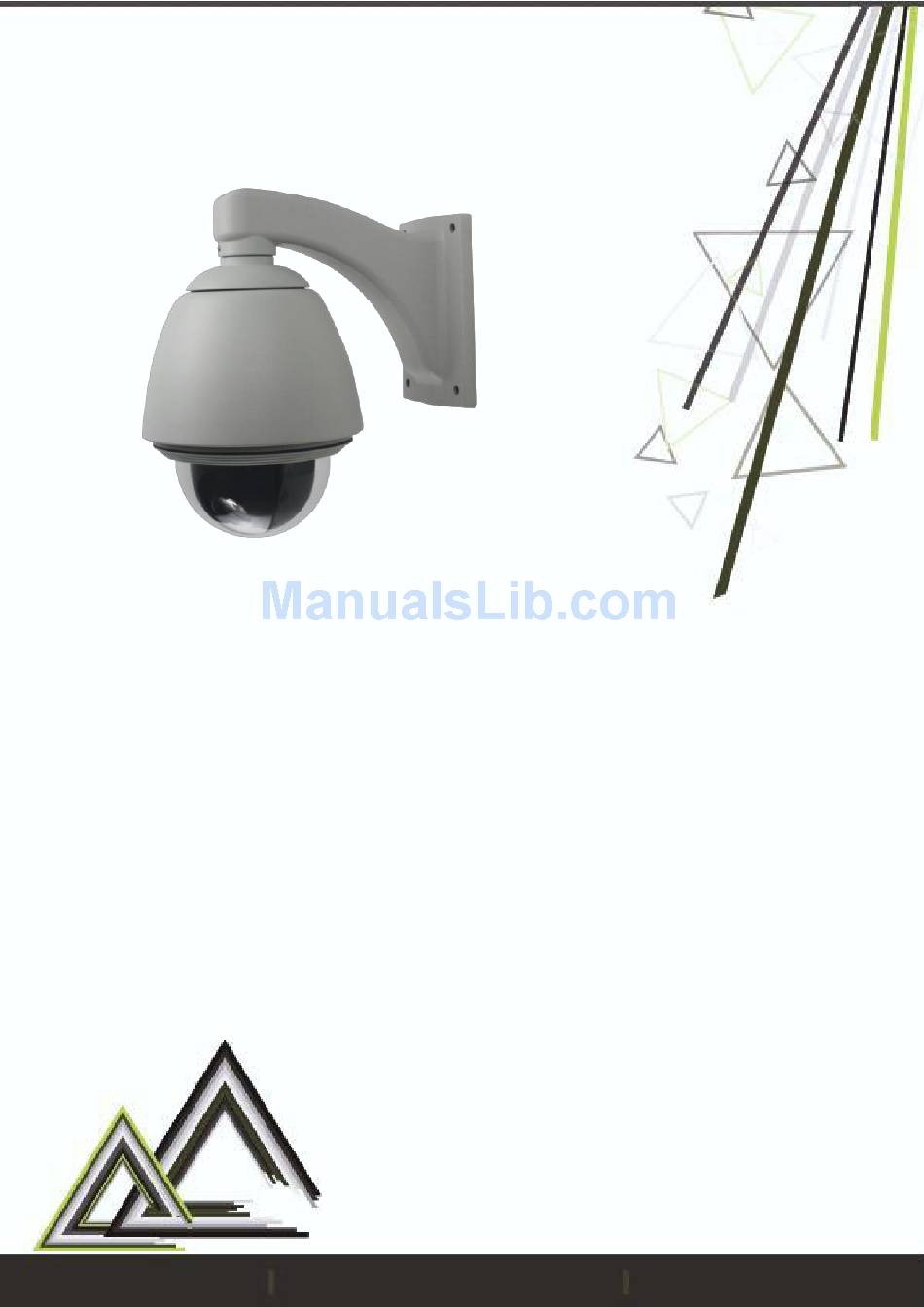

User Manual

IP SPEED DOME CAMERA
V1.3_1608
1

Advertisement

Table of Contents
loading

Related Manuals for Yudor YUC-HX30-O

Summary of Contents for Yudor YUC-HX30-O

  • Page 1: User Manual

    User Manual IP SPEED DOME CAMERA V1.3_1608...

  • Page 2: Table Of Contents

    DOME CAMERA IP SPEED This is a 1 / 2.8” 2M Type Exmor CMOS Sensor IP camera with a built-in web server. The user can view real-time video via IE browser. It supports H.264, M-JPEG, and MPEG4 video compression, providing smooth and high video quality.

  • Page 3: Warnings, Cautions And Copyright

    i. Warnings, Cautions and Copyright WARNING TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS. CAUTION CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.

  • Page 4: Product Specifications

    ii. Product Specifications Main Features:  2 Megapixel Real Time Sony 30X Zoom Module  Sense Up Adjustable  Support DIS and T-WDR  True Day/Night Function – IR Cut Filter (ICR)  360° Continuous Pan and 180° Tilt  Power over Ethernet(802.3at) ...
  • Page 5 Preset Accuracy < 0.15° Preset Points Preset Focus Mode Auto / Manual Patrol 8 groups with 24 point Auto Pan Auto Recovery Pending Time, Action Cruise Yes, 8 groups Home Position Point To Go Auto Electronic Auto / Iris / Shutter / Manual Mode Shutter AE –...
  • Page 6 Power Source AC24 / PoE 802.3at 24V AC Power consumption Max: 15.64W Power Consumption PoE Power consumption Max: 15.84W  219mm Dimensions Weight 3500g Operating -20℃ ~ +55℃ without heater Temperature Network Ethernet 10/ 100 Base-T IPv6, IPv4, HTTP, HTTPS, SNMP, QoS/DSCP, Access Network Protocol list, IEEE, 802.1X, RTSP, TCP/IP, UDP, SMTP, FTP, PPPoE, DHCP, DDNS, NTP, UPnP, 3GPP, SAMBA...
  • Page 7 Video Playback Delete Files Client System Requirement Windows 7, 2000, XP, 2003, Microsoft IE 6.0 or above, Chrome, Safari, Firefox Mobile Support iOS 4.3 or above, Android 1.6 or above. Hardware Intel Dual Core 2.53G, RAM: 1024MB, Graphic card: Suggested 128MB Minimum Intel-C 2.8G, RAM: 512MB, Graphic card: 64MB...

  • Page 8: Product Installation

    iii. Product Installation * Monitor Settings Right-Click on the desktop. Select Properties Change color quality to highest (32bit).

  • Page 9: Hardware Installation

    * Hardware Installation 1. Dome Installation Steps (The camera in the package is already assembled.) Mount the bracket before the installation. A. Assure the mounted Mounting surface is solid enough to Surface support the weight of the whole camera hardware B.
  • Page 10 2. Install the Camera Housing Coat the cables with the foam cylinder first before connecting the cables. The cylinder which coats the cables should be placed through the hole, joining the dome cover and the bracket for preventing insects or dust. See page 2 for more details.
  • Page 11 C. Loosen the screws A, C, D before mounting the camera device unto the bracket. Screw B is purposed to hold the strap, therefore it is meant to be tightened at all times. D. Keep the blue arrow side of the camera aiming at the blue arrow side of the dome housing.
  • Page 12 E. Follow the mini steps from the pictures: 1. Aim to make the gaps fit 2. Pull the edge against the 3. Tighten the screws with the screws. other side for avoiding the the screw driver. screws to get stuck in the gaps.
  • Page 13 4. Connector Instruction The camera connectors are as below. Connect the power and the Ethernet cable with the camera, and set it according to your network environment. 5. PoE (Power Over Ethernet) (Optional) 802.3af, 15.4W PoE Switch is recommended Power over Ethernet (PoE) is a technology that integrates power into a standard LAN infrastructure.

  • Page 15: Ip Assignment

    *IP assignment Open the software IP Scanner to assign the IP address of the IP Camera. Find this software in the Applications folder in the software CD attached to the product’s package. IP Scanner supports two languages: This manual is for English version. There are 3 kinds of IP configuration.
  • Page 16 IP Scanner configuration: IP Scanner will search for all the IP Cameras connected on the LAN. The user can click Search Device to search again. Click one of the IP Cameras listed on the left side. The network configuration of this IP camera will be shown on the right side once you highlight the device with your mouse.
  • Page 17 The same Subnet: IP Camera IP address: 192.168.1.200 PC IP address: 192.168.1.100 Different Subnets: IP Camera IP address: 192.168.2.200 PC IP address: 192.168.1.100 To Change the PC IP address: Control PanelNetwork ConnectionsLocal Area Connection PropertiesInternet Protocol (TCP/IP) Properties Make sure your IP Camera and PC are in the same Subnet. If not, change the IP Camera subnet or the PC IP subnet accordingly below.
  • Page 18 11. Enter admin for both Username and Password to gain access.

  • Page 19: Install Activex Control

    *Install ActiveX control 1. For users of IE 6.0 or above: When viewing the camera video for the first time via IE, the browser will ask you to install the ActiveX component. Choose ‘Allow’, Then choose ‘Install’. Start installing the ActiveX component. If the installation fails, please check the security settings in the IE browser.
  • Page 20 Starting from Internet Properties, proceeding step A and B: A. Security  Custom Level  Security Settings  Download unsigned ActiveX controls  Enable or Prompt (recommended). B. Security  Custom Level  Security Settings  Initialize and script ActiveX controls not marked as safe  Enable or Prompt (recommended).
  • Page 21 When popup the following dialogue box, click Yes. 2. You can choose another way: Go to: IE→Tools → Internet Options… → Security Tab → Trusted sites → Add the IP address and click OK. In the site list you can key one single IP address or a LAN address. For example, if you add 192.168.21.*, all the IP address under 21.* on the LAN will be regarded as trusted sites.
  • Page 22 2. To Non-IE Web Browser Users If you use Firefox or Google chrome to access the IP camera but fails to watch the live video, please follow the steps to install necessary tools: (The following pictures are based on chrome.) a.
  • Page 23 In the pop-up window, please tick the first and the third file as the picture below. Click Next to download both Microsoft .NET Framework 4 Client Profile (Web Installer) and Microsoft Visual C++ 2010 Redistributable Package (x64). After finishing downloading, execute the two files respectively to install them. The windows may ask you to reboot the PC when the installation is finished.
  • Page 24 After finishing downloading, execute the files to install ActiveX. Then restart the browser. c. If you execute the steps above but still cannot see live video normally, please try the following solution: Search for the file np_hoem_x.dll in your system disk. For Windows XP users, please go to Start →...
  • Page 25 Start your web browser, and repeat the step 2-b: Download the installation program which does not support IE browser to download and install ActiveX.

  • Page 26: Live Video

    iv. Live Video Start an IE browser, type the IP address of the IP camera in the address field. It will show the following dialogue box. Key-in the user name: admin and password: admin. A. Live Video The following interface shows up when the IP Camera access is granted. Note: Double-clicking on the live screen will change the direction of the view.
  • Page 27 1. Get into the administration page. 2. Video Snapshot. 3. Show the system time, video resolution, and video refreshing rate. 4. Full Screen: Clicking on the button to change the view to full screen mode. Press Esc or double-click the view again for returning to normal view.
  • Page 28 1. Snapshot: Save a JPEG picture. 2. Record Start: Record the video in the local PC. It will ask where to save the video. To stop recording, right-click again and Select Record Stop. The video format is AVI. Use Microsoft Media Player to play the recorded file.
  • Page 29 B. Performing PTZ 1. Move the camera view with 8-direction arrows. The bigger value selected in the faster each click with the arrow traveling time will be. 2. If you click on the icon, the camera will go back to its initial position.
  • Page 30 D. Setting a Patrol Group 1. Click on “Patrol”. The Group menu will 2. A window will pop up. appear right below. To build a new group, select a number under Patrol from the "Group" Key-in the Group Name, and select how drop-down list, and click "Edit".
  • Page 31 5. For starting patrol, select one group 6. If you select "All Point" the camera will move to every preset point in sequence. from the list, and press . The To edit a patrol group, select it from the camera will move according to the drop-down list and click "Edit".
  • Page 32 1. Select how long Auto Pan lasts. If you select "Always", the camera will keep performing the Auto Pan actions until someone stops it manually. 2. Set Stop Time, Focus Mode, Direction, and Pan Speed. 3. Press to start Auto Pan. Press to pause.
  • Page 33 Record End: Once you have finished making your preset points in Record Start, click on button to stop. Record Play: Click on button to view the camera move in movements you have recorded. Choose different group of numbers from Cruise Number to perform at a time. H.

  • Page 34: Camera Configuration

    v. Camera Configuration * System Click to get into the administration page. Click to go back to the live video page. System Information Server Information: Set up the camera name, select language, and set up the camera time. Server Name: This is the Camera name. This name will be shown on the IP Scanner.
  • Page 35 Select language: English, Traditional Chinese, and Simplified Chinese can be selected. When it changes, it will show the following dialogue box to confirm the language changing. OSD Setting: Select a position where the date & time stamp / text are shown on the screen. Moreover, click Text Edit for changing the OSD content, including text size and transparency.
  • Page 36 Server time setting: Select between the options NTP, Synchronize with PC’s time, Manual, The date and time remain the same for setting the time. User Management The IP Camera supports three different users: administrator, general, and anonymous user.
  • Page 37 a. Anonymous User Login: Select Yes for allowing everybody to watch live video without username and password. However, if you try to enter the configuration page the camera will ask you to key-in the username and password. Select No for requiring a username and login to access the camera. b.
  • Page 38 III. System update To update the firmware online, click Browse… to select the firmware. Then click Upgrade to proceed. Reboot system: re-start the IP camera Factory default: delete all the settings of this IP camera. Setting Management: The user can download the current settings to PC, or upgrade from previous saved settings.
  • Page 39 Upgrade from previous settings Browse  search previous settings  open  upgrade  Settings update confirm  click index.html. for returning to the main page.

  • Page 40: Network

    *Network Click to get into the administration page. Click to go back to the live video page. IP Settings IP Assignment The IP Camera supports DHCP and static IP.
  • Page 41 DHCP: The IP Camera will get all the network parameters automatically. Static IP: Type-in the IP address subnet mask, gateway, and DNS. IPv6 Assignment By enabling DHCPv6 you can configure the following IPv6 address settings:...
  • Page 42  Manually setup the IPv6 address: Key-in the Address, Gateway, and DNS.  DHCPv6: If you have a DHCPv6 server, enable it to assign the IPv6 automatically. The assigned IP address will be displayed beside the column.  Automatically generated IPv6 Address: Indicates a virtual IPv6 address generated automatically by the IP camera.
  • Page 43 UPnP This IP camera supports UPnP, if this service is enabled on your computer, the camera will automatically be detected and a new icon will be added to My Network Places. UPnP Port Forwarding ： Enable UPnP Port Forwarding for accessing the IP Camera from the Internet;...
  • Page 44 Select Add/Remove Windows Components and open Networking Services section Click Details and select UPnP to setup the service. The IP device icon will be added to My Network Places. The user may double click the IP device icon to access IE browser <Approach 2>...
  • Page 45 4. Now the IP device is displayed under the LAN. Double-click the icon to access the camera via web browser. To disable the UPnP, click Hide icons for networked UPnP devices in the tasks column. RTSP setting If you have a media player that supports RTSP protocol, you can use it to receive video streaming from the IP camera.
  • Page 46 RTSP Server: enable or disable Disable means everyone who knows your camera IP Address can link to your camera via RTSP. No username and password are required. Under Basic and Digest authentication mode, the camera asks for a username and password before allows access. The password is transmitted as a clear text under basic mode, which provides a lower level of security than under digest mode.
  • Page 47 Multicast is a bandwidth conservation technology. This function allows several users to share the same packet sent from the IP camera. For using Multicast, appoint here an IP Address and port. TTL means the life time of packet, the larger the value is, the more users can receive the packet.
  • Page 48 Under ONVIF connection, the video will be transmitted by RTSP. Be sure to enable the RTSP server in IP setting, otherwise the IP Camera will not be able to receive the video via ONVIF. 2. Security By selecting Disable, the username and password are not required for accessing the camera via ONVIF.
  • Page 49 The Bonjour function on Safari browser doesn't support HTTPS protocol. If on the camera you select https, the camera will appear on Safari's bookmarks but it cannot be accessed. Take as a reference the following image: LLTD If your PC supports LLTD, enable this function for allowing checking the connection status, properties, and device location (IP address) in the network map.
  • Page 50 If the computer is running Windows Vista or Windows 7, you can find LLTD through the path: Control Panel → Network and Internet → Network and Sharing Center → Click See full map. Advanced a. Https (Hypertext Transfer Protocol Secure) When the users access cameras via Https protocol, the transmitted information will be encrypted, increasing the security level.
  • Page 51 Select the connection type: • Http: the user can access the camera via the Http path but cannot access it via the Https path. • Https: the user can access the camera via the Https path but cannot access it via the Http path. •...
  • Page 52 • Remove the existing certificate: Before you generate a new certificate, please remove the installed one. Select the Http connection type and click Remove. If a dialog box pops up to ask you to confirm, click Yes. • Created Request: Fill-in the following form and click apply.
  • Page 53 • After generating a certificate request, if you choose to turn it and verified by a trusted third-party, click Content and copy all the request content. • According to the certificate source, there are two ways to install the certificate: If you had sent the certificate request for signing and receiving a signed certificate, click browse and find the certificate file in your computer.
  • Page 54 After finishing the installation, click on Content to call out and check the certificate content. To use Https to access the camera, open your browser, and key-in https:// (IP address)/ in the address bar. Now your data will be transmitted via encrypted communications. The browser will check your certificate status.
  • Page 55 Meaning that certificate is self-signed or signed by a distrusted institution. Click Proceed anyway for continuing to the camera page. b. SNMP (Simple Network Management Protocol) 1. SNMPv1 or SNMPv2: write the name of both Write Community and Read Community. 2.
  • Page 56 Please set what event needs to be detected. • Cold Start: The camera starts up or reboots. • Setting changed: The SNMP settings have been changed. • Network Disconnected: The network connection was broken down (The camera will send trap messages after the network is connected again).
  • Page 57 d. QoS/DSCP(Quality of Server/Differentiated Services Code- point): DSCP specifies a simple mechanism for classifying and managing network traffic; and provide QoS on IP networks. DSCP is a 6-bit in the IP header for packet classification purpose. Please define it for Live Stream, Event / Alarm and Management.
  • Page 58 e. IEEE 802.1x: IEEE 802.1x is an IEEE standard for port-based Network Access Control. It provides an authentication mechanism to a device on a LAN or WLAN. The EAPOL protocol support service identification and optional point to point encryption over the local LAN segment.
  • Page 59 III. PPPoE & DDNS a. PPPoE: Select Enabled to use PPPoE. Key-in the the Username and password for ADSL connection. Send mail after dialed: When connected to the internet, the camera will send a mail to a specific mail account. b.
  • Page 60 Enable this service Key-in the username. IP schedule update. Default: 5 minutes Click Apply. DDNS Status (1) Updating: Information update (2) Idle: Stop service (3) DDNS registration successful, can now log by http://<username>.ddns.camddns.com: Register successfully. (4) Update Failed, the name is already registered: The user name has already been used.
  • Page 61 Server settings There are three server types available: Email, FTP and SAMBA. Select the item for display detailed configuration options. You can configure either one or all of them. To send out the video via mail of FTP, please set up the configuration first.
  • Page 62 Samba Select this option to send the media files via a neighbor network when an event is triggered. Click Apply to save the setting, then use Test button to test the server connection. A message box will tell you OK! if it works, and a test document will be created in the location.

  • Page 63: A / V Settings

    *A / V Settings Click to get into the administration page. Click to go back to the live video page. 1. Image Setting...
  • Page 64 A. Camera There is a camera live mini screen on top of the page for users to preview any changes made in the setting before actually applying. Mouse Navigation Tool Your mouse cursor will appear to become the Mouse Navigation Tool when you move your mouse cursor on the live mini screen.
  • Page 65 a. Contrast, Saturation, Sharpness Different values of them can be adjusted and applied here. b. Auto Electronic Shutter  Auto: Both the iris and shutter are adjusted by the camera automatically.  Flickerless: This mode aims to balance the refresh rate to a human eye to avoid flicker effect of the video display when the camera display shifts between cycles.
  • Page 66  B/W: The video image will be displayed in black and white only.  Time Mode: Adjust the switch time between Color & BW modes according to the given time or simply choose Color or B/W. Click Save to keep the change. d.

  • Page 67: Video Setting

     Fine shade 7500K  Cloudy weather 6000K  Fluorescent lighting 4200K  Halogen light 3200K  Electric light bulb 2900K i. ExpComp Exposure Compensation. Assign levels of exposure to help lighten or darken the camera view. Assigning a bigger number creates a lighter image.
  • Page 68 Streaming 1 Setting: Basic Mode and Advanced Mode Streaming 2 Setting: Basic Mode and Advanced Mode 3GPP Mode (Max Video Frame Rate for both streaming combined is 30 FPS) A. Streaming 1 & 2 Basic Mode: Resolution: 1920x1080@30fps, 1280x720@30fps, 640x480@30fps, 320x240@30fps, 176x144@30fps Profile: Chose between High, Main or Baseline Quality: 5 levels...
  • Page 69 B. Streaming 1 & 2 Advanced Mode: Resolution: 1920x1080@30fps, 1280x720@30fps, 640x480@30fps, 320x240@30fps, 176x144@30fps Profile: Chose between High, Main or Baseline Bitrate Control Mode: There are CBR (Constant Bit Rate) and CVBR (Constrained Variable Bit Rate) CBR: 32Kbps~8Mbps (the higher the CBR is, the better the video quality is) CVBR: 1(Low) ~10(High) –Compression rate, the higher the compression rate, the lower the picture quality is;...
  • Page 70 Video Frame Rate (5~30 FPS): The video refreshing rate per second. GOP Size (1, 1/2, 2) X FPS: "Group of Pictures". The higher the GOP is, the better the quality is. Video Format: H.264 or JPEG RTSP Path: RTSP output connecting path C.
  • Page 71 3. Audio The IP CAMERA supports 2-way audio. The user can send audio from the IP Camera built-in microphone to the remote PC; the user can also send audio from remote PC to IP Camera’s external speaker. A. IP camera to PC: Select the audio type after choosing “Enabled” to start sending audio file from IP camera to local PC.

  • Page 72: Event List

    *Event List Click to get into the administration page. Click to go back to the live video page. 1. Event Setting A. Motion Detection...
  • Page 73 Tick "Motion Area" to enable motion detection. When motion is detected, the word "Motion!" will be displayed on the live screen. The camera will then send snapshots to assigned mail addresses, save snapshots to FTP/ Micro SD card/ Samba, or trigger the output device. Snapshots titled as “IP Camera Warning!”...
  • Page 74 Before Tampering Detection Tampering Triggered (Defocused) Before Tampering Detection Tampering Triggered (Lens Covered) Before Tampering Detection Tampering Triggered (Glare) Before Tampering Detection Tampering Triggered (Camera Moved)  Interval: The tampering detecting interval. Take the diagram below as example.
  • Page 75 The interval is set for 30 second; the camera lens is covered during 10 - 40 sec. At time point B, the camera compares the view with time point A, and sends an alarm when it founds that the lens is covered. At time point C, the camera compares the view with time point B, and sends an alarm when it founds that the lens is uncovered.
  • Page 76  JPEG File (Single File with Interval Setting): Save single JPEG picture file when the event occurs. D. Record Time Setting When an event occurs, the IP camera can record a video clip or take a snapshot, and then send it via mail/ FTP/ Samba. Select the video recording length before and after the event is detected.
  • Page 77 F. Network IP Check: After IP Check is Enabled, the IP camera can check if the network server is connecting. Tick the actions to follow if the IP checking fails. 2. Schedule Tick the grids on the calendar to manage the time of your schedule. After complete the schedule setup, the camera data will be recorded according to the schedule setup.
  • Page 78 a. Snapshot: After enabling the snapshot function; the user can select the storage position of the snapshot file, the interval time of the snapshot and the reserved file name of the snapshot. b. Interval: The interval between two snapshots. c. File Name: Enter the file name of the snapshot sent to you.
  • Page 79 A. Input Setting: The IP Cam supports input and output. When the input condition is triggered, a video will be sent to user mail addresses/FTP server/SAMBA. With the PTZ Action, select preset points from the drop-down list which have been assigned in Live Viewing Mode, and click Enable to perform.

  • Page 80: Log List

     Time Switch: The camera triggers the external device and lasts for certain time according to the internal setting, and the user is not allowed to break off the alarm manually. 4. Log List Sort by System Logs, Motion Detection Logs and I/O Logs. System Logs and I/O Logs won’t lose data due to power failure.
  • Page 81 Click the date listed on this page for showing the video list. The video format is AVI. Click the video to start Microsoft Media Player to play it. To delete the video, check it, and then click Del. B. SD Management...
  • Page 82  Auto Deletion: Choosing “The 1st day” means the recoding file will be kept for one day. Example: It is five o’clock now. Choose “The 1st day”. The files will be kept from five o’clock yesterday to five o’clock today. The oldest file will be deleted if the Micro SD card is full.
  • Page 83 (iii) FlashGet will show you the link list, and you can tick the files you want to copy to your PC. Give the directory path in the new download window, and remember to enable "Login to Server": key in the IP Camera username and password.

  • Page 84: Network Configuration

    vi. Network Configuration Configuration 1: a. Internet Access: ADSL or Cable Modem b. IP address: One real IP or one dynamic IP c. Only the IP Camera is connected to the internet d. For fixed real IP, set up the IP into IP Camera. For dynamic IP, start PPPoE.
  • Page 85 a. Internet Access: ADSL or Cable Modem b. IP address: More than one real IP or one dynamic IP c. IP Camera and PC connect to the internet d. Device needed: Switch Hub. e. For fixed real IP, set up the IP into IP Camera and PC. For dynamic IP, start PPPoE.

  • Page 86: O Configuration

    vii. I / O Configuration 1. I/O Connection a. Please connect the GND & ALARM_0 (DO) pin to the external relay (buzzer) device. b. Please connect the GND & ALARM_N (DI) pin to the external trigger device. When no event occurs, the DO output is 5V (DO and GND are disconnected).
  • Page 87 If you select "N.O" on "Input sensor setting", when the switch contacts are opened, the camera input alarm will be triggered and will execute the action user has set, for example, send a snapshot to E-mail address. If you select "N.C" in "Input sensor setting", when the switch contacts are closed, the camera input alarm will be triggered and will execute the action user has set, for example, send a snapshot to E-mail address.
  • Page 88 2. I/O Setup a. Input Setting Click I/O Setting from the system setup page via IE, and mark “Out1” to enable I/O signal. b. Output Test After the external input and output hardware are installed, you can enable the "Relay Out" function on the live video page to test if DO / Relay Out works.
  • Page 89 ii). Time Switch mode: Click "Pulse", the camera will trigger the external output device for several seconds; the duration length is according to the "interval" setting in Output Setting.

  • Page 90: Factory Default

    viii. Factory Default If you forget your password, please follow the steps to revert back to default value.  Remove power and Ethernet cables from the camera.  Press and hold the default button on the camera as the picture shows.

  • Page 91: Universal Password

    ix. Universal Password If you forgot the password of your IP camera, you can reset the camera to factory default, or follow the procedure below to generate a universal password. Note: Universal password will be valid only when you enable the function in User Management.
  • Page 92 2. Find the .html file named Universal Password in CD-ROM. Click to open it. 3. Key in the camera IP address IP Address column and MAC address in MAC column, and then click encoder, a set of username and password will appear, as shown in the picture below: The universal username and password are generated from the IP address and MAC address you key-in, so if you change the camera IP...
  • Page 93 5. Now you can login as administrator. Turn to User Management page. The use of universal password does not affect the previous user setting, so the administrator account password does not change until you edit it. Please click Edit to give a new administrator password.

  • Page 94: Package Contents

    x. Package Contents IP Speed Dome Camera Mounting bracket Foam Cylinder Quick Installation Guide • The CD includes user manual and software tools...

  • Page 95: Micro Sd Card Compatibility (Optional)

    xi. Micro SD Card Compatibility (Optional) The following are the recommended SD Cards: Transcend SDHC class4 16GB SD class4 16GB SDHC class4 32GB SD class4 32GB SD class6 4GB SDHC class6 4GB SD class6 8GB SDHC class6 8GB SD class6 16GB SDHC class6 16GB SDHC class10 4GB SDHC class10 8GB...

  • Page 96: Accessories (Optional)

    xii. Accessories (Optional) You can choose different accessories for your camera: Standard Camera Mounting Bracket 1...
  • Page 97 Mounting Bracket 2 Mounting Bracket 3 Mounting Bracket 4...
  • Page 98 Mounting Bracket 5 Mounting Bracket 6 Mounting Bracket 7...
