Fujitsu ASY30FBBJ Service Manual

Wall mounted type
Hide thumbs Also See for ASY30FBBJ:

Advertisement

Table of Contents

SPLIT TYPE

ROOM AIR CONDITIONER

WALL MOUNTED TYPE

Indoor unit
ASY30FBBJ
ASY30UBBJ
CONTENTS
SPECIFICATIONS . . . . . . . . . . . . . . . . . .
OUTLINE AND DIMENSIONS. . . . . . . . .
CIRCUIT DIAGRAM. . . . . . . . . . . . . . . . .
. . . . . . . . . . . . . . . . . .
PARTS (INDOOR UNIT) . . . . . . . . . . . . .
PARTS (OUTDOOR UNIT)

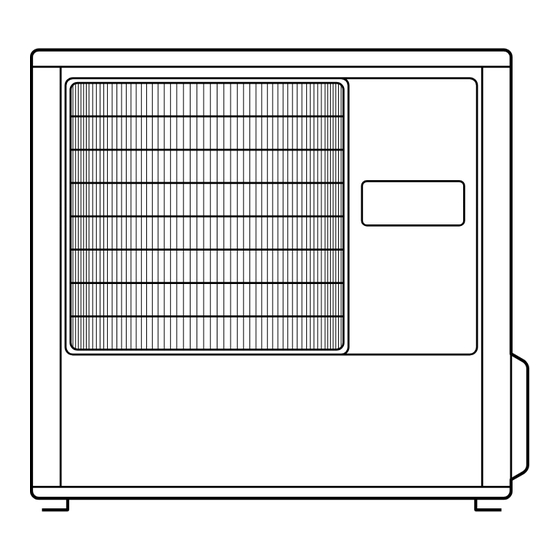

Outdoor unit
AOY30FNBDL
AOY30UNBDL
1
2
3
4
6
. . . . . . . . . . . .
8
9
1 5
. . . . . . . . . . .

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASY30FBBJ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fujitsu ASY30FBBJ

Summary of Contents for Fujitsu ASY30FBBJ

  • Page 1: Table Of Contents

    SPLIT TYPE ROOM AIR CONDITIONER WALL MOUNTED TYPE Indoor unit Outdoor unit ASY30FBBJ AOY30FNBDL ASY30UBBJ AOY30UNBDL CONTENTS SPECIFICATIONS ....OUTLINE AND DIMENSIONS..

  • Page 2: Specifications

    SPECIFICATIONS ELECTRICAL DATA COMPRESSOR AND REFRIGERANT Hermetic type, TYPE Cooling only Cool and Heat TYPE Deposit electrode condenser, INDOOR UNIT ASY30FBBJ ASY30UBBJ 2 poles, Single phase, OUTDOOR UNIT AOY30FNBDL AOY30UNBDL Induction motor, Rotary DISCRIMINATION 5JS315DAD 7.90 kW COOLING CAPACITY 7.90 kW WEIGHT (with oil) 24.6 kg...

  • Page 3: Outline And Dimensions

    OUTLINE AND DIMENSIONS Unit : mm INDOOR UNIT 1,120 OUTDOOR UNIT 2005.01.17...

  • Page 4: Refrigerant System Diagram

    REFRIGERANT SYSTEM DIAGRAM Refrigerant direction Cooling Heating Models : ASY30FBBJ / AOY30FNBDL INDOOR UNIT OUTDOOR UNIT Refrigerant pipe 9.52mm(3/8") Cappillary tube 2-Way valve Distributor Strainer Condenser Evaporater PRESSURE CHECK Charging valve VALVE Refrigerant pipe 3-Way Accumulator Condenser valve 15.88mm(5/8") Models : ASY30UBBJ / AOY30UNBDL...

  • Page 5: Circuit Diagram

    BLACK THERMISTOR BLACK (ROOM TEMP.) GREEN/ YELLOW MOTOR GRAY GRAY STEP MOTOR GRAY (RIGHT/ LEFT) GRAY CIRCUIT DIAGRAM PINK Model : ASY30FBBJ / AOY30FNBDL GRAY GRAY GRAY GRAY STEP MOTOR GRAY (UP/DOWN) GRAY GRAY GRAY GRAY GRAY GRAY GRAY GRAY...
  • Page 6 GRAY THERMISTOR GRAY (PIPE TEMP.) BLACK THERMISTOR BLACK (ROOM TEMP.) GREEN/ YELLOW MOTOR GRAY GRAY STEP GRAY MOTOR GRAY (RIGHT/ LEFT) PINK Models : ASY30UBBJ / AOY30UNBDL GRAY GRAY GRAY GRAY STEP GRAY MOTOR GRAY GRAY (UP/DOWN) GRAY GRAY GRAY GRAY GRAY GRAY...

  • Page 7: Pcb Circuit Diagram

    INDOOR PCB CIRCUIT DIAGRAM CONTROLLER PCB ASSEMBLY ASY30FBBJ : K05EF-050EWSE-C1 CN3 B3B-XASK-1-A THRMAL FUSE UL1430 INDICATOR PCB GRAY SW201 10K x 2 AWG26 EVQ-PAG-04K EZ-0018HSE-D <1/10W> R41 1.0K <1/10W> 201-8 GRAY GRAY D2SB20 7805 R42 47 <1/10W> D1F60 201-7 2SD1191...
  • Page 8 CONTROLLER PCB ASSEMBLY ASY30UBBJ : K05EF-0507HSE-C1 CN3 B3B-XASK-1-A THRMAL FUSE UL1430 INDICATOR PCB GRAY SW201 10K x 2 AWG26 EVQ-PAG-04K EZ-0018HSE-D R41 1.0K <1/10W> <1/10W> GRAY 201-8 GRAY D2SB20 7805 R42 47 <1/10W> D1F60 201-7 2SD1191 GRAY D202 R202 R2 10K 1000P <R>...

  • Page 9: Error Display

    ERROR DISPLAY The OPERATION, TIMER and SWING lamps operate as follows according to the error contents. Fast flashing Slow flashing Error display Error contents OPERATION TIMER SWING (RED) (GREEN) (ORANGE) Indoor unit circuit board error Indoor unit room temperature sensor wire 2 times opened Indoor unit room temperature sensor wire...

  • Page 10: Parts (Indoor Unit)

    PARTS INDOOR UNIT Front Panel Ref. Description Part number Decoration Plate F 9368757014 Intake Grille Assy 9369214011 Front Panel 9368540012 Air Filter 9373613015 Screw Cover 9368576011 Indicator PCB 9705801028 Display Cover 9368564001 Cover Display 9369264016 Cover Display B 9369594014 Cover Display C 9369683015 2010.10.25...
  • Page 11 INDOOR UNIT Control unit Ref. Description Part number Controller PCB (FBBJ) 9707212150 Controller PCB (UBBJ) 9707212082 Control Box 9368543006 Control Box Cover 9368611002 Control Box Cover R 9368570002 Cord Holder 9368566005 Power Transformer 9900069018 Capacitor (Fan Motor) 9704305060 Terminal 9900016029 Earth Plate 9368580001 Room Thermistor...
  • Page 12 INDOOR UNIT Ref. Description Part number Base Assy 9369209017 Cross Flow Fan Assy 9368586003 Bearing Assy 9368574000 Fan Motor Assy 9601388012 Motor Rubber 9603214012 Motor Holder A 9368550004 Motor Holder B 9368551001 Motor Holder C 9368769000 Kit (Pipe Holder) 9371168012 Fan Guard 9368588007 Kit (Fan Guard Holder)
  • Page 13 INDOOR UNIT Louver Ref. Description Part number Louver Rod 9368561017 Louver 9368560010 Louver Base A 9368558017 Louver Base B 9368559014 2012.08.28...
  • Page 14 Ref. Description Part number INDOOR UNIT Louver link sub assy Louver Link Sub Assy 9369347023 Motor base sub assy Link Holder 9368563004 Louver Spring 9368613006 Louver Link 9368562007 Step Motor 9900139032 Step Motor 9900139049 Motor Base Sub Assy 9369212024 Motor Base 9368555009 Sector Gear 9368556006...
  • Page 15 INDOOR UNIT Evaporator Drain Pan Ref. Description Part number Evaporator Sub Assy 9369202193 Joint Pipe Assy 9380350279 Water Plate 9368569006 Kit (Evaporator Bracket) 9371166018 Kit (Evaporator Support L) 9371165011 Kit (Evaporator Support R) 9371167015 Water Seal Plate 9369684005 Kit (Front Drain Pan) 9370932034 Drain Cap 9316552012...
  • Page 16 PARTS OUTDOOR UNIT AOY30FNBDL AOY30UNBDL Ref. Description Part number Protection Net 9375612009 Top Plate 9359799023 Rear Emblem 9371388014 Cabinet A Assy 9360268150 Cabinet B 9359798026 Grip 9374172016 Valve Cover 9359817017 Cabinet Left 9359840022 Base Assy 9359813019 Separate Wall 9359804017 Propeller Fan 9359837015 Fan Motor Assy 9601754015...
  • Page 17 OUTDOOR UNIT AOY30FNBDL AOY30UNBDL Control unit Ref. Description Part number Control Box 9359839019 Power Relay 9900074012 Capacitor (Fan Motor) 9900270049 Running Capacitor 9703107092 Capacitor Clamp 9351770013 Terminal 8P 9900203047 Thermostat Outdoor (FNBDL) 9900526030 2012.08.29...
  • Page 18 OUTDOOR UNIT AOY30FNBDL Ref. Description Part number Thermo Bracket 9372643013 Thermostat Cover 9358274002 Condenser Sub Assy 9360274137 Condenser Assy 9372866016 Valve Fixing Plate 9359806011 3-way Valve Assy (5/8) 9372205037 2-way Valve Assy (3/8) 9372204047 Check Joint 9372802014 Accumulator Sub Assy 9360276100 Discharge Pipe Assy 9372318034...
  • Page 19 OUTDOOR UNIT AOY30UNBDL Ref. Description Part Number Condenser Sub Assy 9360274137 Condenser Assy 9372866016 Valve Fixing Plate 9359806011 3-way Valve Assy (5/8) 9372205037 2-way Valve Assy (3/8) 9372204047 Check Joint 9372802014 Accumulator Sub Assy 9360276100 Solenoid 9900196011 4-way Valve 9900163013 Discharge Pipe Assy 9372873014 Capillary Assy...
  • Page 20 OUTDOOR UNIT AOY30FNBDL AOY30UNBDL Compressor Ref. Description Part number Compressor Sub Assy 9360275172 Compressor Assy 9372558034 Gasket Washer 9351053017 M5 Nut special 9300301015 Terminal Cover 9371511016 Cover Gasket 9371512013 Rubber Seat 9351049010 Special Nut 9355091008 Compressor Plate Assy 9362273060 Compressor Cover 9369093005 2012.08.29...
  • Page 21 Tapping screw 301463040100 9371190013 Remote control (AR-JW1) Drain pipe (ASY30UBBJ) 9303029015 (AOY30UNBDL) 9371190020 (AR-JW2) Drain cap (ASY30FBBJ) 313166024302 Battery (penlight) (AOY30UNBDL) 0600185534 Remote control holder 9305642014 Tapping screw (big) ( 4 x 20) 301141164200 Tapping screw (small) ( 3 x 12) 301141533125 2004.12.02...
  • Page 22 0701G3199...
