INVERTER MULTI
AIR CONDITIONER

WALL MOUNTED

Models
Indoor unit
ASY18LMA-W
ASY12LMACW
ASY9LMACW
ASY7LMACW
C O N T E N T S
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OUTLINE AND DIMENSIONS . . . . . . . . . . . . . . . . . . .
ERROR CONTENTS . . . . . . . . . . . . . . . . . . . . . . . . . .
REFRIGERANT SYSTEM DIAGRAM . . . . . . . . . . . . .
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . .
CIRCUIT DIAGRAM . . . . . . . . . . . . . . . . . . . . . . . . . . .
DISASSEMBLY ILLUSTRATION . . . . . . . . . . . . . . . . . 11
PARTS LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
STANDARD ACCESSORIES . . . . . . . . . . . . . . . . . . . . . 22
type
Outdoor unit
AOY24LMAM2
1
2
4
5
7
8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ASY18LMA-W and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fujitsu ASY18LMA-W

Summary of Contents for Fujitsu ASY18LMA-W

  • Page 1: Table Of Contents

    AIR CONDITIONER WALL MOUNTED type Models Indoor unit Outdoor unit ASY18LMA-W ASY12LMACW AOY24LMAM2 ASY9LMACW ASY7LMACW C O N T E N T S SPECIFICATIONS ......

  • Page 2: Specifications

    S P E C I F I C A T I O N S TYPE COOL & HEAT INDOOR UNIT ASY18LMA-W ASY12LMACW ASY9LMACW ASY7LMACW AOY24LMAM2 OUTDOOR UNIT COOLING CAPACITY (kW) HEATING CAPACITY (kW) ELECTRICAL DATA POWER SOURCE 230 - 240...

  • Page 3: Outline And Dimensions

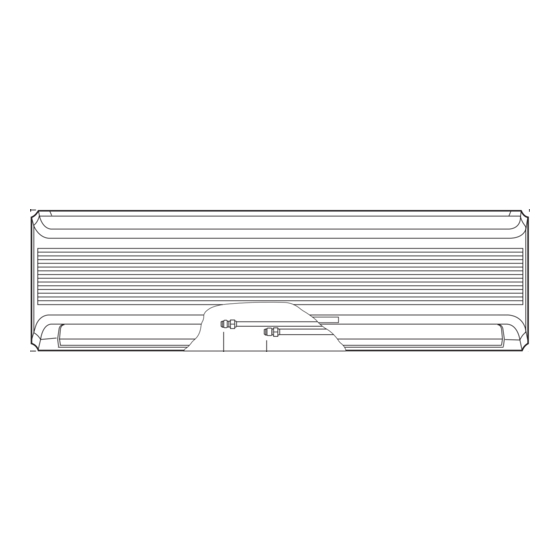

    O U T L I N E A N D D I M E N S I O N S INDOOR UNIT Unit : mm Model : ASY18LMA-W 1,120 Models : ASY12LMACW ASY9LMACW ASY7LMACW 2004.06.18...
  • Page 4 OUTDOOR UNIT Unit : mm Model : AOY24LMAM2 Air flow Bottom 2004.06.21...

  • Page 5: Error Contents

    E R R O R C O N T E N T S ASY18LMA-W ASY12LMACW ASY9LMACW ASY7LMACW 2004.06.18...

  • Page 6: Refrigerant System Diagram

    R E F R I G E R A N T S Y S T E M D I A G R A M Indoor 2004.06.22...
  • Page 7 CAUTION (AOY24LMAM2) There is a mistake printed in "LABEL WIRING", which is on the back of Top Plate in outdoor unit. When you reconnect this model you should do as the correct "CIRCUIT DIAGRAM" shows, which is in this service manual. See the next page.

  • Page 8: Circuit Diagram

    C I R C U I T D I A G R A M INDOOR UNIT OUTDOOR UNIT Model : AOY24LMAM2 Models : ASY7LMACW ASY9LMACW ASY12LMACW Model : ASY18LMA-W UNIT B UNIT A 2004.05.18...

  • Page 9: Indoor Printed Circuit Board

    I N D O O R P R I N T E D C I R C U I T B O A R D Models : ASY7LMACW C I R C U I T D I A G R A M ASY9LMACW ASY12LMACW POWER TRANSFORMER...
  • Page 10 Model : ASY18LMA-W INDICATOR PCB EZ-0018HSE-D CN17 CONTROLLER PCB ASSEMBLY ( MAIN PCB ) 3-XASK-1-A THERMAL FUSE 10K <1/10W> x 2 EZ-00319HSE-C UL1430 GRAY SW201 MANUAL AUTO 17-1 R37 1.0K AWG26 EVQ-PAG-04K SWITCH <1/10W> 10-9 GRAY 201-8 GRAY 17-3 7805...

  • Page 11: Circuit Diagram

    O U T D O O R P R I N T E D C I R C U I T B O A R D C I R C U I T D I A G R A M Model : AOY24LMAM2 CONTROLLER PCB ASSEMBLY ( MAIN PCB ) EZ-0037HUE-C...

  • Page 12: Disassembly Illustration

    D I S A S S E M B L Y I L L U S T R A T I O N Model : ASY18LMA-W 2004.06.23...
  • Page 13 Model : ASY18LMA-W 2004.06.23...
  • Page 14 Model : ASY18LMA-W 522-2 522-3 522-1 2004.06.23...
  • Page 15 Models : ASY12LMACW ASY9LMACW ASY7LMACW 2004.06.23...
  • Page 16 Models : ASY12LMACW ASY9LMACW ASY7LMACW 2004.06.23...
  • Page 17 Model : AOY24LMAM2 2004.06.23...
  • Page 18 2004.06.22...

  • Page 19: Parts List

    "Order" column. Part No. Part No. Ref. Ord. Ref. Ord. Description Description Q'ty Q'ty ASY18LMA-W ASY18LMA-W Capacitor (Fan Motor) 9704305060 Indicator PCB Assy 9702307011 Water S eal Plate 9369684005 Wall Hook Bracket 9368579005 Bracket (Evaporator)
  • Page 20 When you order parts, please make a photocopy of this page and fill the number of the parts in the "Order" column. IN DOOR U N IT Part No. Ref. Ord. Description Q'ty ASY12LMACW ASY9LMACW ASY7LMACW Capacitor (Fan motor) 9900089061 9900089061 9900089061 Front Panel Assy...
  • Page 21 When you order parts, please make a photocopy of this page OUTDOOR UNIT and fill the number of the parts in the "Order" column. Part No. Part No. Ref. Ord. Ref. Ord. Description Description Q'ty Q'ty AOY24LMAM2 AOY24LMAM2 Fan Guard 9371187013 S pecial Nut M8 9355091008...

  • Page 22: Standard Accessories

    S T A N D A R D A C C E S S O R I E S INDOOR UNIT ACCESSORIES Models : ASY12LMACW, ASY9LMACW ASY7LMACW Model : ASY18LMA-W Name and Shape Part No. Name and Shape Part No.
  • Page 23 0402G2536...
