Page 1: Service Manual

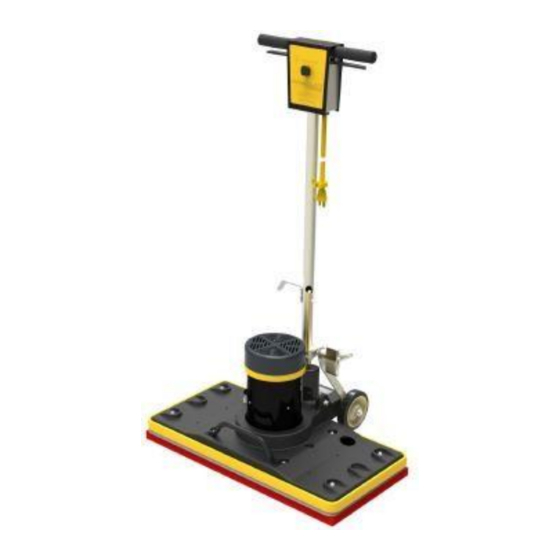

SERVICE MANUAL COMMERCIAL INDUSTRIAL FLOOR MACHINES MODEL: SP-2015 SP-2815 ABRIL-2016 KOBLENZ ELECTRICA S.A. DE C.V. LP-SP15-201604 Email: thorne_scsm@koblenz-electric.com Updated: ABRIL-2016... - Page 2 VIII.- HANDLE PARTS LIST SP-2015 AND SP-2815 IX.- MOTOR ASSEMBLY AND CHASSIS PARTS SP-2015 MOTOR ASSEMBLY AND CHASSIS PARTS SP-2815 XI.- MOTOR ASSEMBLY AND CHASSIS PARTS LIST SP-2015 AND SP-2815 XII.- PAD PARTS SP-2015 XIII.- PAD PARTS SP-2815 XIV.- PAD PARTS LIST SP-2015 AND SP-2815...
-
Page 3: Important Safety Instructions
Do not leave machine unattended when plugged in. Unplug the electrical cord when not in use or before servicing. Use only accessories recommended by Koblenz Do not use with damaged cord or plug. Do not pull or carry by cord, use cord as handle, close a door on cord, or pull a cord around sharp edges or corners. - Page 4 MODEL SP-15 SP-2815 IV. - HOW TO ASSEMBLE THE PAD Always unplug the machine before installing any accessory. 1. Unplug machine, secure handle tube in vertical position and lay down the machine turning it over wheels until the underneath side of the machine is vertical and fully exposed. 2.
- Page 5 REMOVE THE PIN AND SCREW AS REMUVE ALL NUTS OF THE TOP PLATE SHOWN IN FIG 1 ON PAGE 4 REMOVE THE BOTTOM PLATE, THE ISOLATORS UNSCREW EACH ISOLATORS TO AND THE ORBITAL WEIGHT STAY ON THE BOTTOM REPLACE PLATE Updated: ABRIL-2016...
-
Page 6: Trouble Shooting Char
MAKE SURE THAT BOTH THE ORBITAL WEIGHT AND THE BEARING ARE NOT DAMAGED OR WEAR, IF ARE DAMAGE OR WEAR, REPLACE IT VI. –TROUBLE SHOOTING CHAR FAILS POSSIBLE CAUSE SOLUTION CONNECTED CHECK CONNECTION LINE CORD DAMAGE CKECK LINE CORD AND REPLACE NECESSARY LINE... - Page 7 VII.-HANDLE PARTS SP-2015 AND SP-2815. Updated: ABRIL-2016...
- Page 8 VIII. - HANDLE PARTS LIST SP-2015 AND SP-2815. ITEM No. PARTE DESCRIPTION SP-2015 SP-2815 46-3168-00-2 HANDLE ASSEMBLY 05-3975-9 HANDLE COVER 17-3782-4 HANDLE LABEL 12-0830-5 HANDLE GRIP 17-3677-6 RESET LABEL 01-1256-5 BOLT 10-24 X 3/4 38-0338-4 CIRCUIT BREAKER 2O A 01-1732-5 SCREW 8-32X1/2"...
- Page 9 IX. -ASSEMBLY MOTOR AND CHASSIS PARTS SP-2015. Updated: ABRIL-2016...
- Page 10 X.-ASSEMBLY MOTOR AND CHASSIS PARTS SP-2815 Updated: ABRIL-2016...
- Page 11 XI.- ASSEMBLY MOTOR AND CHASSIS PARTS LIST SP-2015 AND SP-2815. ITEM No. PARTE DESCRIPTION SP-2015 SP-2815 46-3774-01-8 MOTOR ASSEMBLY 17-3550-5 CAUTION PLATE 03-0119-2 RIVET "U" TYPE # 4 17-5928-00-1 SPECIFICATION PLATE 01-1746-5 STEP BOLT 3/8 06-0404-01-1 PIPE CLAMP POSITION 04-0073-9...
- Page 12 XII. - PAD PARTS SP-2015. Updated: ABRIL-2016...
- Page 13 XIII. - PAD PARTS SP-2815 Updated: ABRIL-2016...
- Page 14 XIV. - PAD PARTS LIST SP-2015 AND SP-2815. SP-2815 ITEM No. PARTE DESCRIPTION SP-2015 01-1773-9 BOLT 3/8 X 1 04-0142-2 PRESSURE WASHER 3/8 02-0092-3 NYLON NUT 02-0034-5 HEX NUT ¼ -20 (02-0002) 25-1495-01-6 MOTOR SPACER 25-1495-03-2 MOTOR SPACER 46-3767-00-4 PAD DRIVER ASSEMBLY...
- Page 15 Thorne Electric Company 610 Lanark Suite 205 San Antonio TX, 78218 Tel (210) 590-1226 Fax (210)590-1258 1-800-548-5741 FACTORY KOBLENZ ELECTRICA S.A. DE C.V. AV. CIENCIA NO.28 CUAUTITLAN IZCALLI ESTADO DE MEXICO 54730 Web site: http://www.koblenz-electric.com KOBLENZ ELECTRICA S.A. DE C.V.
- Page 16 -15- Updated: ABRIL-2016...
- Page 17 -16- Updated: September-2013...
