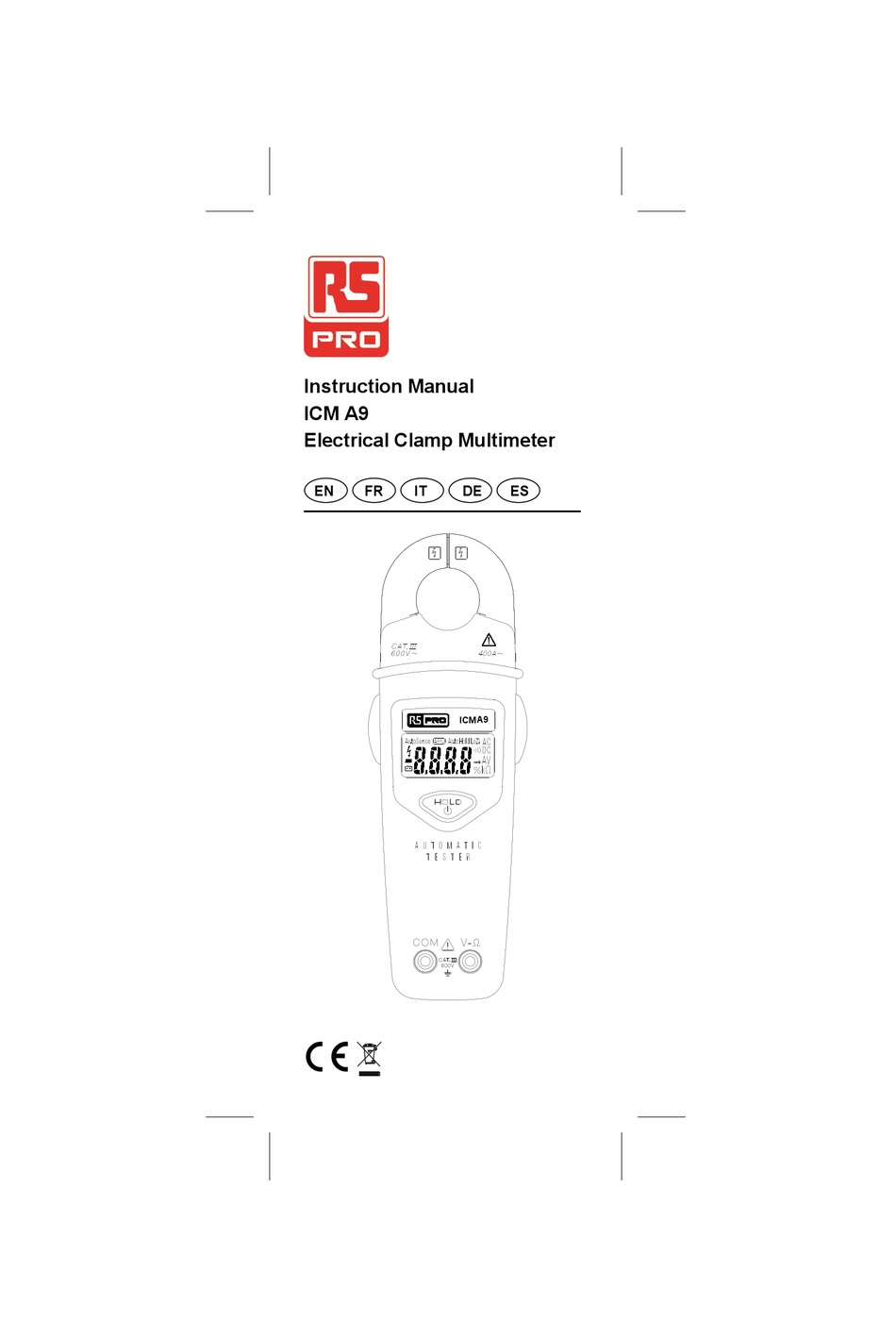

  • Page 1 Instruction Manual ICM A9 Electrical Clamp Multimeter ICM A9 ...
  • Page 2: Read First  Safety Information

     Warning  Safety   ........
  • Page 3: Auto Power Off

    Power On / Off • The tester displays Battery Capacity when powering up. Please replace the battery when 0% is shown.  Caution The Tester powers up in Ω / continuity mode. Auto Power Off Auto Power Off Enable / Disable...
  • Page 4 Auto Hold Enable / Disable Self-Testing Aid Fail of usage Ready to use • Do not measure while the tester powering up, it will cause Self-Testing failure.  Caution Do not use the tester when “FAIL” is shown. Undiscovered failure could exist even “FAIL” is not shown.
  • Page 5 AC V / DC V  Caution When connecting the test leads to the circuit or device, connect the black lead before the red lead ; when removing the test leads, remove the red lead before the black lead.
  • Page 6 Note : to measure batteries with voltage less than 2.1 Vdc the tester must be connected in reverse polarity see illustration above. • Input Impedance 4K for input voltage up to 30V. ≧ Impedance increases with input voltage to approximate 375KΩ at 600V. ...
  • Page 7: Data Hold

    AC A  CAT.Ⅲ.600V with respect to earth for the jaw. Barrier for Hand Guard  Do not hold the meter past the Barrier Data Hold 100A Data Hold is not available when “OL KΩ”is displayed with no input signals.
  • Page 8 Data Hold Beep Guard In Data Hold mode, the LCD will flash and the internal speaker will sound continuously in the following two situations: 1. The tester measures a different signal to that shown on the LCD. The measured signal is the same units as the LCD reading, but different by more than 50 counts to the LCD reading.
  • Page 9: Battery Replacement

    Priority of function The LCD display shows voltage mode when the input Terminal is satisfied by the following conditions: ACV 1.3V ~ 600.0V DCV 2.1V ~ 600.0V -0.7V ~ -600.0V The LCD display shows Ω mode when the input terminal is satisfied by the following conditions: 0 ~ ∞Ω...
  • Page 10: Maintenance

    Maintenance Do not attempt to repair this tester. It contains no user-serviceable parts. Repair or serving should only be performed by qualified personnel. Cleaning Periodically wipe the case with a dry cloth and detergent do not use abrasives or solvents. TEST EQUIPMENT RISK ASSESSMENT Users of this equipment and or their employ- ers are reminded that Health and Safety Leg-...
  • Page 11: Environmental Conditions

    1-2 Environmental Conditions Indoor Use. Calibration : One year calibration cycle. Operating temperature : 0°C ~ 30°C (≦80% RH) 30°C ~ 40°C (≦75% RH) 40°C ~ 50°C (≦45%RH) Storage temperature : -20 to +60°C, 0 to 80% RH (batteries not fitted).
  • Page 12: Electrical Specifications

    1-3 Electrical Specifications Accuracy is ±(% reading + number of digits) at 23°C ± 5°C < 80%RH. Temperature coefficient : 0.2 x (Specified accuracy) / °C, < 18°C, > 28°C . Voltage Function Range Accuracy ±(1.5%+ 3 dgt) 1.3V ~ 600.0V V...
  • Page 13 P.O. Box 12182, Vorna Valley, 1686 20 Indianapolis Street, Kyalami Business Park, Kyalami, Midrand South Africa www.rs-components.com Asia RS Components Pte Ltd. 31 Tech Park Crescent Singapore 638040 www.rs-components.com China RS Components Ltd. Suite 23 A-C East Sea Business Centre Phase 2 No.
