RS 1361C Instruction Manual

Datalogger with rs-232 interface, humidity / temperature meter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Enlarged version
RS
Humidity / Temperature Meter
Datalogger with RS-232 Interface
1361C
INSTRUCTION MANUAL
TEMP = - 20 C ~ 60 C
°
°
- 4 F ~ 140 F
°
°
HUMIDITY = 10 ~ 95 %RH
RS - 232

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1361C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RS 1361C

Summary of Contents for RS 1361C

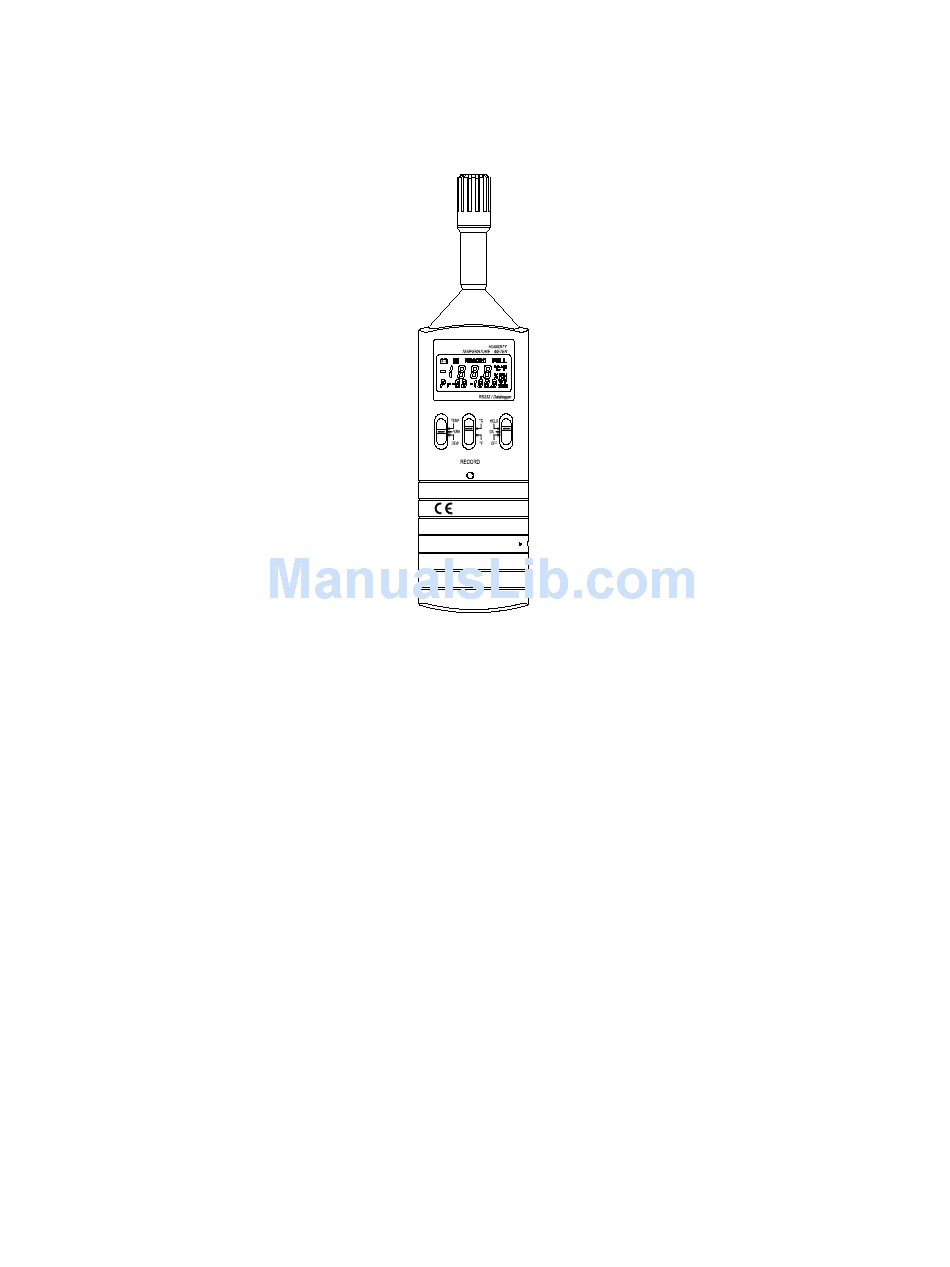

  • Page 1 Humidity / Temperature Meter Datalogger with RS-232 Interface 1361C INSTRUCTION MANUAL TEMP = - 20 C ~ 60 C ° ° - 4 F ~ 140 F ° ° HUMIDITY = 10 ~ 95 %RH RS - 232...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS TITLE PAGE 1. INTRODUCTION ............1 2. SPECIFICATIONS ............1 3. FRONT PANEL LAYOUT ..........3 4. LCD DISPLAY LAYOUT..........4 5. OPERATING INSTRUCTIONS........5 6. DATA RECORDING AND ERASING ......5 7. EXIT AUTO POWER OFF FUNCTION ....... 7 8.

  • Page 3: Introduction

    1. INTRODUCTION Read the following information carefully before attempting to operate or service the meter. Environmental conditions: Altitude; 2000 metres max. Relatively humidity; 95% max. Operating temperature; 0 to 60°C Indoor use only. Complies with EMC Directive 89/336/EEC 2. SPECIFICATIONS Measurement range: Humidity;...
  • Page 4 Storage temperature & humidity: -10 to 60°C, below 70% RH. Power supply: Qty 1 x 9V Battery type 006P 9V, or IEC 6F22,or NEDA 1604. Battery life: Approximately 100 hours. Dimensions: 270mm(L)×68mm(W)×25mm(H). 10.6” (L)×2.7” (W)×1.0” (H). Accessories: Instruction manual, Battery, Carry case, RS-232 cable, Data download software.

  • Page 5: Front Panel Layout

    ° ° - 4 F ~ 140 F ° ° HUMIDITY = 10 ~ 95 %RH RS - 232 OPEN Humidity & Temp. sensor cap Display Power ON/OFF & HOLD function switch. Measurement units select switch. LCD main display and secondary display...

  • Page 6: Lcd Display Layout

    RS-232 connection socket (3.5mm jack) Battery cover 4. LCD DISPLAY LAYOUT Minus Measuring value (main display) Time information Measured value (secondary display) Units “%RH” Unit “°C, °F” Memory full indicator Data recording indicator Hold function indicator Low-battery indicator...

  • Page 7: Operating Instructions

    5. OPERATING INSTRUCTIONS Push the power switch to the “ON” position Set units to °C or °F as required Change to main display or secondary display as required The humidity and temperature values will be displayed. 6. DATA RECORDING AND ERASING To record one set of data: Press the “RECORD”...
  • Page 8 To record data continuously: Press and hold the “RECORD” button for 3 seconds and “RECORD” will flash once per second. To stop recording: Press the “RECORD” button again to stop recording Resetting the “Data-logger” To erase all logged data in memory, first turn the instrument off.

  • Page 9: Exit Auto Power Off Function

    7. EXIT AUTO POWER OFF FUNCTION Turn off the meter. Set “ TEMP / %RH / DEW ” switch to DEW position. Turn on the meter, then LCD shows “P OFF”. 8. MAINTENANCE Battery replacement: When the LCD display shows “ ”, the batteries have insufficient power to give accurate readings.
