Model No. 831.104550
Serial No.
The serial number is found on a plas-
tic sign inside the spa behind the
access panel. Write the serial number
in the space above for reference.
Access Panel
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if there are
missing parts, we will guarantee
complete satisfaction through
direct assistance from our factory.
TO AVOID UNNECESSARY
DELAYS, PLEASE CALL DIRECT
TO OUR TOLL-FREE CUSTOMER
HOT LINE. The trained techni-
cians on our customer hot line
will provide immediate assis-
tance, free of charge to you.
1-877-897-7493
CUSTOMER HOT LINE:
Mon.–Fri., 6 a.m.–6 p.m. MST
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
V
USERʼS MANUAL
Visit our website at
www.workoutwarehouse.com
new products, prizes,
fitness tips, and much more!
®
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Image renew 455 831.104550
Summary of Contents for Image renew 455 831.104550

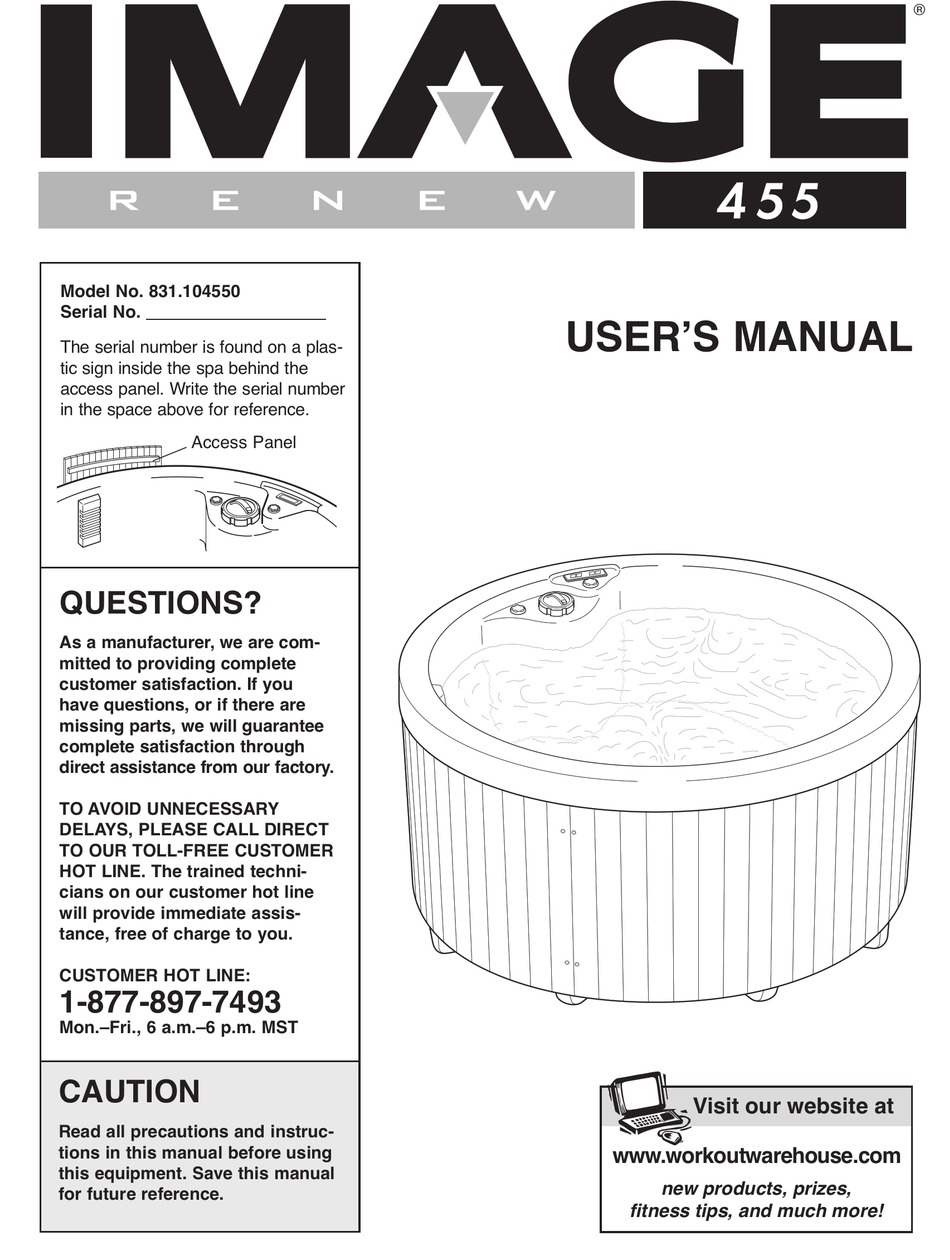

- Page 1 ® USERʼS MANUAL Model No. 831.104550 Serial No. The serial number is found on a plas- tic sign inside the spa behind the access panel. Write the serial number in the space above for reference. Access Panel QUESTIONS? As a manufacturer, we are com- mitted to providing complete customer satisfaction.
-
Page 2: Table Of Contents
If the spa is moved, the sign must also be moved and reposted near the spa. If the sign becomes lost or illegible, call our toll-free Customer Hot Line at 1-877-897-7493 to obtain a replacement sign. Post the sign as described above. IMAGE is a registered trademark of ICON Health & Fitness, Inc. -
Page 3: Important Safety Instructions
Important Safety Instructions WARNING: To reduce the risk of drowning, electric shock, or serious injury, read the fol- lowing important precautions before using the hydrotherapy spa. READ AND FOLLOW ALL INSTRUCTIONS 1. It is the responsibility of the owner to ensure spa shell. - Page 4 should shut off. Press the “reset” button. 100°F (38°C) may be injurious to your health. The spa should resume normal operation. If If you plan to remain in the hydrotherapy spa the spa continues to run after the “test” but- for more than 10 to 15 minutes, lower the ton is pressed, then the GFCI is damaged.
-
Page 5: Save These Instructions
32. WARNING—To avoid injury, exercise care 40. WARNING DECAL PLACEMENT: Locate the when entering or exiting the spa. decals shown below and familiarize yourself with the information on the decals. 33. WARNING—To reduce the risk of injury: It is especially important for persons over the age of 35 or persons with pre-existing health problems, such as obesity, heart disease, high or low blood pressure, circulatory prob-... -
Page 6: Before You Begin
Before You Begin For your benefit, read this manual carefully before Congratulations for selecting the new IMAGE ® using the RENEW 455. If you have additional ques- RENEW 455 hydrotherapy spa. The innovative RENEW 455 allows you to enjoy all the benefits of tions, please call our Customer Service Department hydrotherapy in the comfort and privacy of your home. -
Page 7: Choosing A Location For The Hydrotherapy Spa
Choosing a Location for the Hydrotherapy Spa There are many factors to consider when choosing a location to set up the hydrotherapy spa. These factors vary depending on whether you plan to use the spa inside or outside. We have listed several factors you may wish to consider as you decide where to set up the spa. -
Page 8: Assembly
Assembly Before beginning assembly, carefully read the • Read each assembly step before you begin. following information and instructions: • Tighten all parts as you assemble them, unless • Place all parts in a cleared area and remove the instructed to do otherwise. packing materials from the spa shell. - Page 9 4. Refer to the inset drawing. Set a Filter Gasket (33) on top of the Filter (16). Next, press the Filter Cover w/O-ring (8) into the spa until it is fully seated. Then, tighten the Locking Ring (19) onto the spa. Remove the two warning decals (not shown) from the spa shell.
-
Page 10: Using The Hydrotherapy Spa
Using the Hydrotherapy Spa The hydrotherapy spa is designed to seat five adults. The first time you use the spa, you should test and treat the water. You must also treat the water each The spa holds 225 gallons of water (270 imperial gal- time you refill the spa. -
Page 11: Spa Shell Diagram
Spa Shell Diagram H. The filter can be removed for cleaning or replace- Refer to the diagram above. The function of each component is explained below. ment (see CHECKING AND CLEANING THE FIL- TER on page 13). A. The ten hydrotherapy jets provide a relaxing mas- I. -
Page 12: Using The Controls
Using the Controls Air Control Light Temperature Diverter Button Button Buttons Refer to the diagram above. The function of each twenty minutes, the automatic mode will begin filtering or heating the water as needed. Note: To keep the control is explained below: filter and heat cycles from running, the power Air Control: Determines the amount of air flowing cord must be unplugged. -
Page 13: Maintenance
Maintenance MAINTAINING THE SPA COVER The hydrotherapy spa is designed to provide years of enjoyment. Please follow the guidelines below to properly maintain your spa. The spa cover should be cleaned monthly. To clean the spa cover, use water and a non-abrasive cleaner MAINTENANCE SCHEDULE on the entire cover. - Page 14 WATER CHEMISTRY ATTACHING AND REMOVING THE ACCESS PANEL The hydrotherapy spa comes with a starter chemical To locate the access panel, refer to the drawing on pack for maintaining the water in the spa. (See TEST- page 6. To remove the access panel, first remove the ING AND TREATING THE WATER on page 10.) four indicated screws.
- Page 15 WINTER USE AND CARE To drain the hydrotherapy spa, follow the steps below: 1. Using the console, adjust the temperature to the The hydrotherapy spa is designed for year-round use. lowest setting. If you decide to store the spa for the winter, store it in 2.
-
Page 16: Trouble-Shooting
Trouble-shooting Most problems can be solved by following the simple steps below. Find the symptom that applies, and follow the steps listed. If further assistance is needed, call our Customer Service Department toll-free at 1-877-897-7493, Monday through Friday, 6 a.m. until 6 p.m. Mountain Standard Time. 1. - Page 17 10. SYMPTOM: THE SPA JET UNIT CONTINUES 12. SYMPTOM: THE CONSOLE DISPLAYS THE TO RUN AFTER IT HAS BEEN SHUT OFF WORDS “COOL” OR “ICE” a. To turn the spa jets on low, press the jet button a. This is a normal function of the spa; no action once.
-
Page 18: Part List
Part List—Model No. 831.104550 R0600A Key No. Qty. Description Key No. Qty. Description Compression Fitting Assembly Diverter Knob Access Panel Push/Pull Movable Jet Whirlpool Jet Drain Plug Inflatable Cover Drain Plug O-ring #8 x 5/8” Screw Air Vent Removable Collar Buckle #6 x 1 1/4”... -
Page 19: Exploded Drawing
Exploded Drawing—Model No. 831.104550 R0600A... -
Page 20: Ordering Replacement Parts
Friday, 6 a.m. until 6 p.m. Mountain Standard Time (excluding holidays). To help us assist you, please be prepared to give the following information when calling: • The MODEL NUMBER of the product (831.104550) • The NAME of the product (IMAGE RENEW 455 hydrotherapy spa) ®...
