17 Input modes: Frequency meter

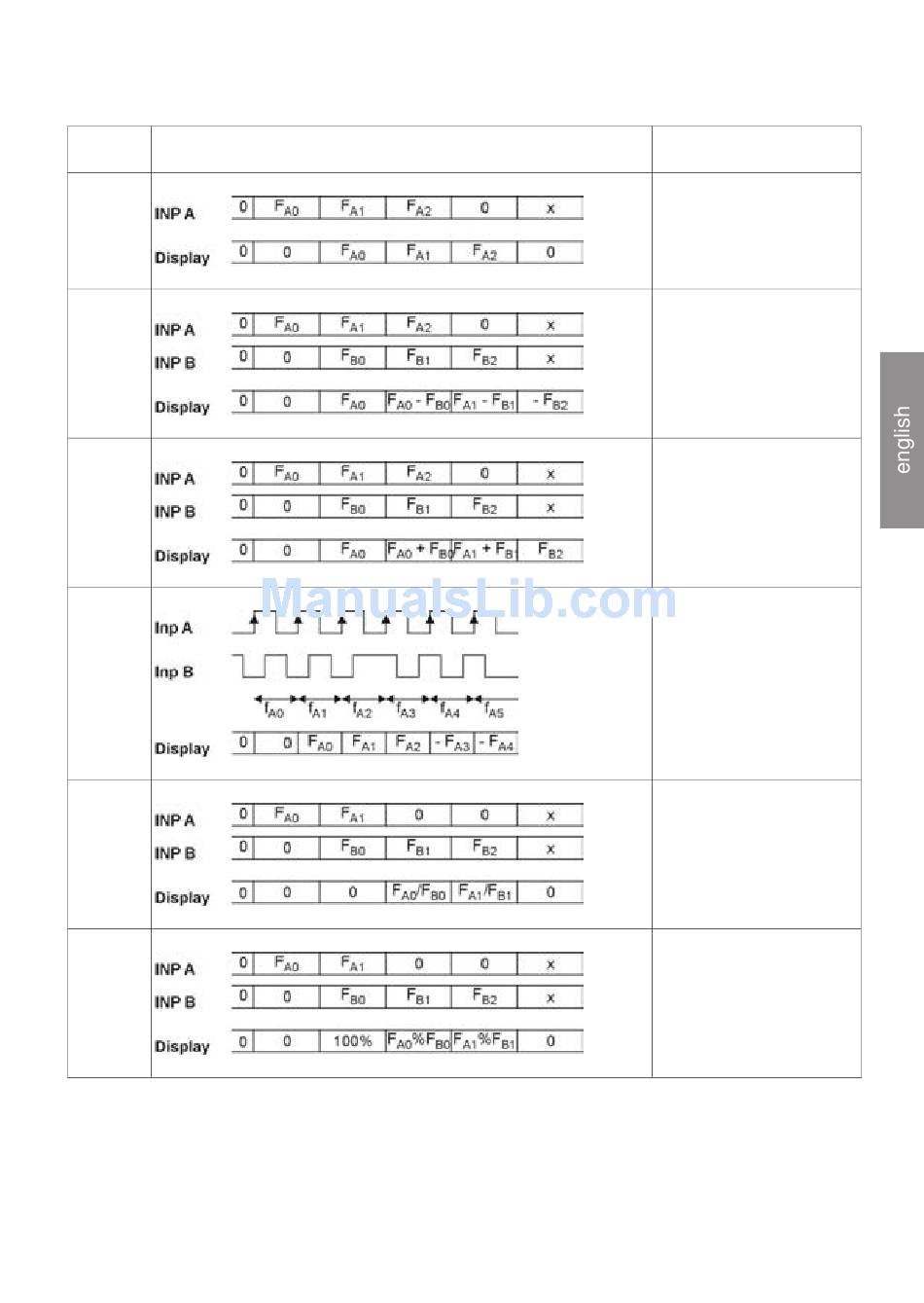

Function Diagram
A
A - B
A + B
QUAD
A / B
A % B
Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
PNP: Count on rising edge
NPN: Count on falling edge
Inp A: Frequency input
Inp B: no function
Inp A: Frequency input 1
Inp B: Frequency input 2
Formula:
A - B
Inp A: Frequency input 1
Inp B: Frequency input 2
Formula:
A + B
A 90° B
Inp A: Frequency input 1
Inp B: Reverse direction
Inp A: Frequency input 1
Inp B: Frequency input 2
Formula:
A / B
Inp A: Frequency input 1
Inp B: Frequency input 2
Formula:
(A – B)/A x100
