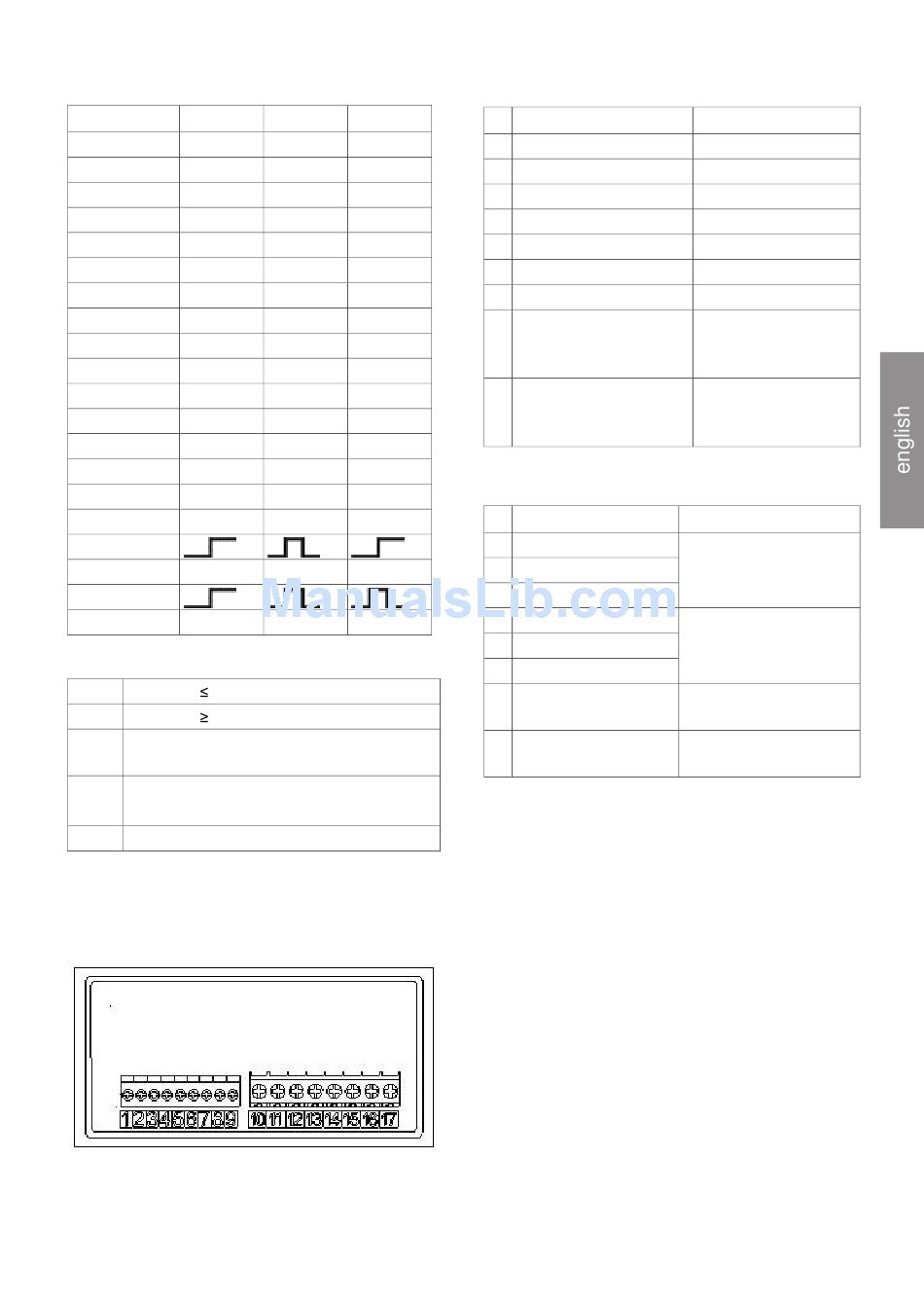

8.4.4 Parameter Set Table

P.SET1
HLP.TXT. ON
SL.LANG. EN
FUNCT COUNT
INP.POL. PNP
FILTER ON
COUNT CNT.DIR
MP.INP.1 LATCH
MP.INP.2 TEACH
LOC.INP. PROG
MODE ADD
FACTOR 01.0000
DIVISO. 01.0000
DP 0
SETPT. 000000
RES.MOD. MAN.EL
PRES.1 ON
PR.OUT1
T.OUT1
PR.OUT2
T.OUT2
9

Error Message

Err 1 Set value 0 not allowed
Err 2 Set value Preset 2 not allowed
Err 3 negative Teach-In value for Preset 1 not
permitted
Err 4 Zero or negative Teach-In value for
Preset 2 not permitted
Err 45 EEPROM error

10 Connections

Phone: 800.894.0412 - Fax: 888.723.4773 - Web: www.clrwtr.com - Email: info@clrwtr.com
P.SET2 P.SET3
ON ON
EN EN
COUNT COUNT
PNP PNP
OFF OFF
UP.DN QUAD
LATCH SET
SET TEACH
PROG PROG
SUB TRAIL
01.0000 01.0000
01.0000 01.0000
0 0.00
000000 0000.00
MAN.EL MAN.EL
ON ON
00.10
00.10 00.10
10.1

Signal and Control Inputs

N° Designation
1 INP A
2 INP B
3 RESET
4 LOCK
5 GATE
6 MPI 1
7 MPI 2
8 AC: 24 VDC/80 mA
DC: U connected
B
through
9 GND (0 VDC)
10.2

Supply Voltage and Outputs

N° Designation
10 Relay contact C.2
11 Relay contact N.O.2
12 Relay contact N.C.2
13 Relay contact C.1
14 Relay contact N.O.1
15 Relay contact N.C.1
16 AC: 90..260 VAC N~
DC: 10..30 VDC
17 AC: 90..260 VAC L~
DC: GND (0 VDC)

11 Technical Data

11.1

General Data

Display 6-digit, 14-segment LED
Digit height 14 mm
Overload/ Blinking, 1 sec., counter loses
Underload no pulses up to 1 decade
Data retention > 10 years, EEPROM
Operation 5 keys
11.2

Pulse Counter

Count frequency max. 55 kHz (see under 14.
Frequencies - typical)
Response time of the outputs:
Add;Sub;Trail
With automatic repeat
A/B ; (A-B)/A
11.3

Tacho/Frequency Meter

Frequency range 0.01 Hz to 65 kHz (see
under 14. Frequencies typ.
Function
Signal input A
Signal input B
Reset input
Keypad lock
Gate input
User input 1
User input 2
Sensor supply
voltage
Common connection
Signal and Control
inputs
Function
Output 2
Output 1
Supply voltage
Supply voltage
< 13 ms
< 13 ms
< 34 ms
