Phonic Ear HearIt Media User Manual

Hands-free, neck-loop solution for amplifying sound from bluetooth mobile phone and tv

Advertisement

Hands-free, neck-loop solution for amplifying sound
from Bluetooth mobile phone and TV
UK
Us er Gui d e

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HearIt Media and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Phonic Ear HearIt Media

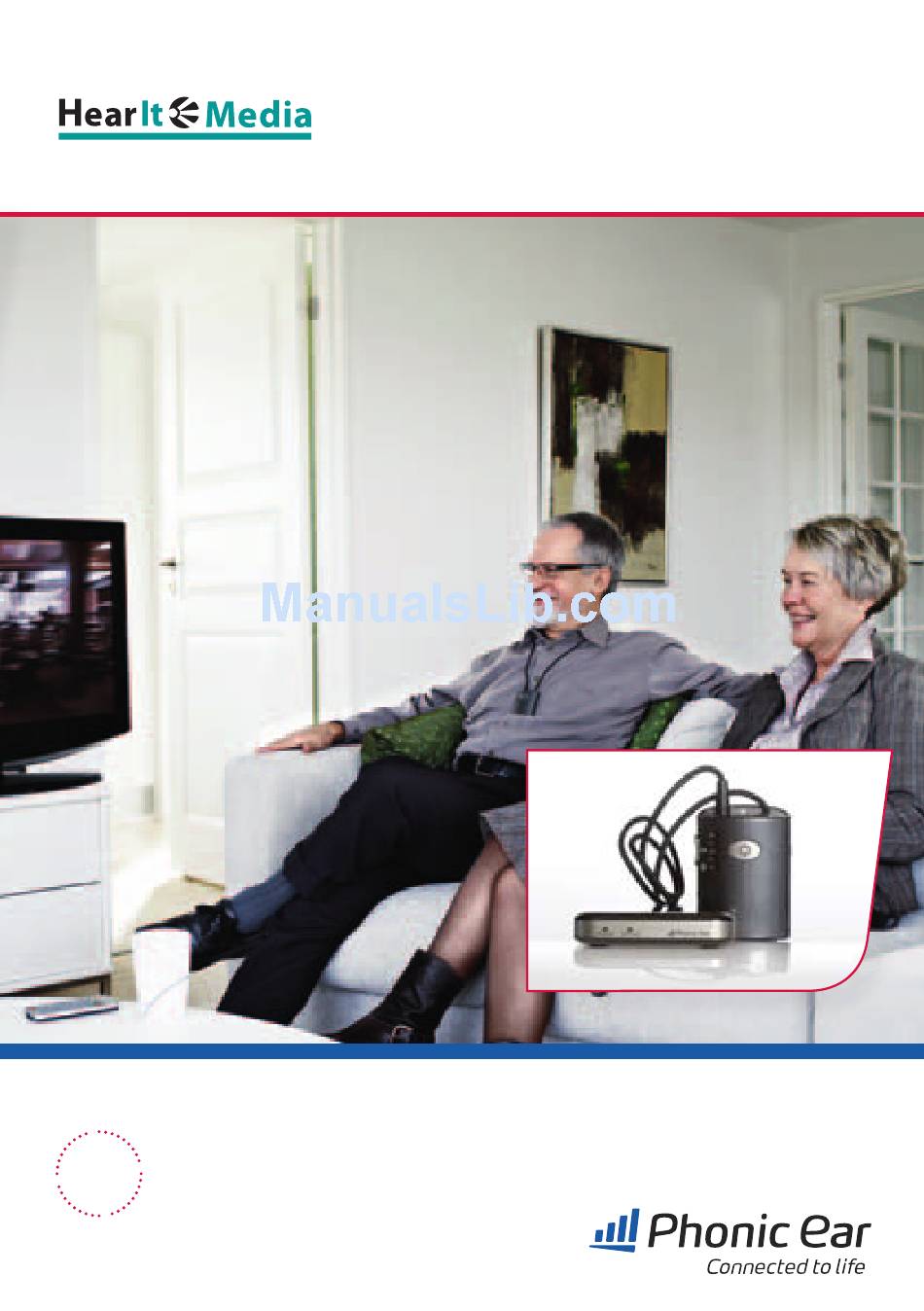

  • Page 1 Hands-free, neck-loop solution for amplifying sound from Bluetooth mobile phone and TV Us er Gui d e...
  • Page 2 – and without any compromise in sound quality. Before your HearIt Media can receive sound from the TV, the TV adapter must be connected to the TV and a power outlet. All needed parts for installation are included in...
  • Page 3: Table Of Contents

    Table of contents Table of contents Function Power and status indicators Mobile and TV general setup and operation Installing the neck loop for mobile and TV Adjusting the volume for mobile and TV Mobile receiver setup and operation Mobile wireless setup Accepting an incoming call Mobile receiver setup and operation Making an outgoing call...
  • Page 4: Function

    Function HearIt Media receiver On/off switch, answering button, and Bluetooth indicator Volume button +/- (up/down) Bluetooth and volume level 1 indicator Volume level 2 indicator Battery and volume level 3 indicator Volume level 4 indicator Volume level 5 indicator Headphone jack...
  • Page 5: Power And Status Indicators

    Status indicator Power connection TV connection Microhone connection (optional accessory required) Power and status indicators Overview of the light indicators on the HearIt Media TV adapter POWER indicator A1 Solid green: Power on Off (no light): Power off STATUS indicator A2...
  • Page 6: Mobile And Tv General Setup And Operation

    Detach the neck loop R10 on the HearIt Media receiver from receiver jack R9 by pulling the loop wire. Place the HearIt Media receiver on the chest and place the loop wire around the neck. Reattach the neck loop R10 to the receiver jack R9.
  • Page 7: Mobile Receiver Setup And Operation

    TV sound again by pressing the R1 button. When you press the R1 button and turn on the HearIt Media receiver, it goes into connection mode for the next 5 minutes. If you haven’t setup the wireless connection within 5 minutes, you have to turn off and turn on the receiver again.
  • Page 8: Mobile Receiver Setup And Operation

    Mobile receiver setup and operation connected or disconnected. If the HearIt Media receiver is turned off when a mobile phone call comes in, that specific call cannot be answered or ended using HearIt Media. Making an outgoing call Press the R1 button on the HearIt Media receiver for 5 seconds until the lights come on.
  • Page 9: Tv Connection (Option 1, Option 2)

    TV setup and operation Please note: If the TV has no “L – R” RCA Phono “OUTPUT” , an adapter should be used for connect- ing the TV cord. Then proceed to “optional adapters” . With optional adapters Option 1 - SCART Connect the audio cord to the red and white terminals on the SCART adapter and plug it into the TV’s SCART connection.
  • Page 10: Tv Setup

    Place the HearIt Media receiver right next to the HearIt Media TV adapter (less than 30 cm / 1 ft. between the devices). Connect the HearIt Media TV adapter to a mains wall outlet and turn the power on. 4. The two devices are now establishing a connection with each other. Wait one minute.
  • Page 11: Daily Use

    Daily use Sound ON/OFF Press the R1 button on the HearIt Media receiver once, to turn the sound on and off. Power The TV adapter uses very little power so it is not necessary to turn it off. TV sound range The TV adapter has a range of about 10 meters / 30 feet, depending on room furniture and placement.
  • Page 12: Charging

    We recommend fully charging batteries before use; however, partly charging the units does not inflict damage to it. Battery life (in use) until the HearIt Media receiver has to be recharged is up to 40 hours. Standby time is approx. 12 days.
  • Page 13: Test And Approval

    In developing and manufacturing your Phonic Ear product, we used high-quality materials and components that can be reused. Thus, when disposing of your waste electrical and electronic...
  • Page 14: Warranty

    Products damaged in transit unless investigated by the shipper and returned to the warrantor with the investigation report. Phonic Ear A/S reserves the right to make changes to the design or construction of any of its instruments at any time without incurring any obligation to make any changes whatsoever on units previously purchased.
  • Page 15: Warnings

    Warnings The TV adapter and the HearIt Media are not a toy and therefore should be kept out of the reach of children and anyone else who might swallow parts or otherwise cause injury to themselves. Special attention should be paid to the smaller components in order to prevent children from swallowing them and choking.
  • Page 16: Declaration Of Conformity

    radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:...
  • Page 20 Your local contact: © 2011 Phonic Ear A/S Produced by: Kongebakken 9 • 2765 Smørum • Denmark Tel: +45 3917 7101 • Fax: +45 3927 7900 mail@phonicear.com www.phonicear.com...
