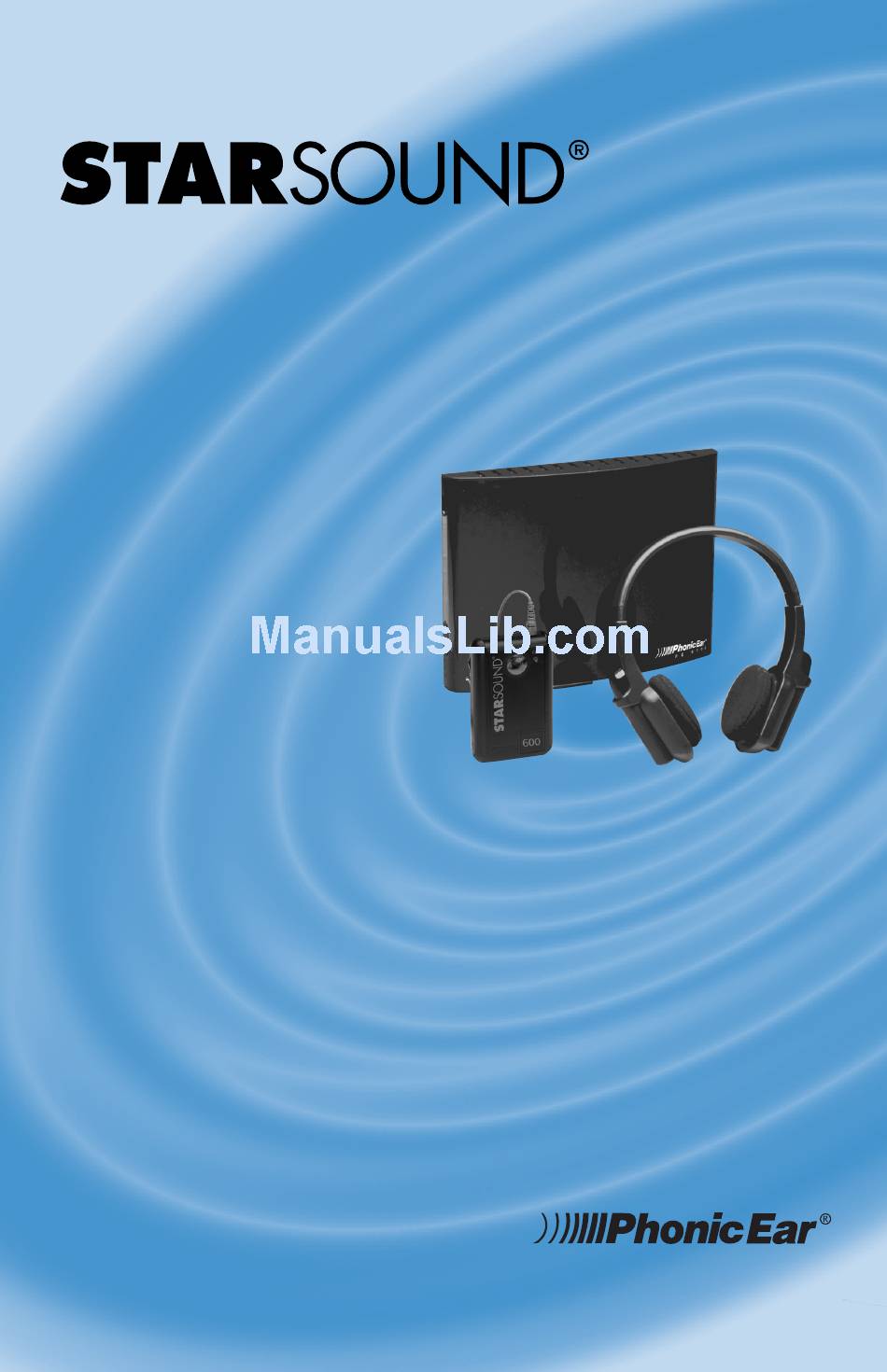

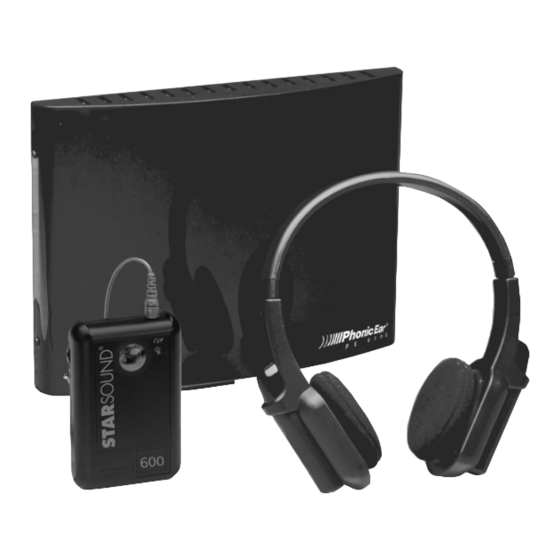

- Page 1 6 0 0 infrared hearing system u s e r g u i d e PE 600E emitter PE 601R receiver PE 602R receiver specs available on-line at www.phonicear.com...
-
Page 2: Table Of Contents
Emitter: PE 600E........ -
Page 3: Emitter: Pe 600E
PE 600E Front... -
Page 4: Emitter: Pe 600E
PE 600E (cont’d) mounting support sync in (Channel B/Right) Red input level detector (Channel B/Right) Red 10 sync in (Channel A/Left) Red input level detector 11 sync out (Channel A/Left) Green (Channel A/Left) White wall mounting hole 12 audio in... -
Page 5: Starsound 600 Setup And Operation
Starsound 600 setup and operation where to mount it Point emitter toward listening area 370m /4000 ft maximum floor/table mount AT0579-T-IR AT0579-IR AT0582-IR... -
Page 6: Direct Wall Mount
Starsound 600 setup and operation (cont’d) direct wall mount stereo installation (using PE 601R headset) Plug AT0701 AT0701 transformer into emitter Plug AT0701 transformer into Audio In (Left) wall socket AT0702 House sound system Audio In (Right) • Either color plug will work... -
Page 7: Stereo Installation (Using Pe 602R Headset)
Starsound 600 setup and operation (cont’d) stereo installation (using PE 602R headset) Plug AT0701 AT0701 transformer into emitter Plug AT0701 Audio In transformer into (Channel A) wall socket House Sound AT0702 System Audio In (Channel B) Mic In (Channel A)• Mic In (Channel B)•... -
Page 8: Daisy Chaining To Expand Coverage
Sync Sync NOTE: If more than one Master Slave 2 Slave 1 PE 600E is being used, the emitters must be daisy For coverage greater than 370m /4000ft you can daisy chain an unlimited number of emitters. House Sound System chained together. -
Page 9: Receiver Headset Battery Installation
Starsound 600 setup and operation (cont’d) receiver headset battery installation alkaline alkaline battery battery Battery Battery – door door – Push off Push off receiver headset operation Receiver lenses Receiver lenses (Do not block) (Do not block) Channel A Channel B NOTE: Headsets can work (Two-channel PE 602R only) On/Off... -
Page 10: Charging The Body-Worn Receiver
Starsound 600 setup and operation (cont’d) charging the body-worn receiver Plug AT0534-S charger into 600R AT0534-S receiver(s) Plug AT0534-S charger into wall socket NOTE: Never recharge PE 600R PE 600R alkaline batteries! replacing batteries in body-worn receiver Push off battery compartment door Place new batteries into battery... -
Page 11: Using Body-Worn Operation
Starsound 600 setup and operation (cont’d) using body-worn operation Place PE 600R around neck Receiver lens Plug headphones (Do not block) into PE 600R Turn PE 600R on PE 600R and adjust volume. Check channel setting on back. channel (on back) on/off volume... -
Page 12: Troubleshooting
troubleshooting (refer to previous pages for explanatory diagrams) input level detector not lighting • Increase output level on house sound system. (Light should flash when level peaks.) • Make sure house sound system is connected properly no sound • Make sure emitter powe cord is connected properly •... -
Page 13: Product Specifications
Infrared element with ambient light filter user control Power Left and right volume Channel (PE 602R only) color Black weight 200g/7.1 oz emitter: PE 600E transmitting frequency 2.3 MHz & 2.8 MHz (simultaneously) modulation FM wide-band supply voltage 28VDC current drain 700mA typical 18K Ω... -
Page 14: Warranty
Phonic Ear Inc. reserves the right to make changes in the design or construction of any of its This warranty will go into effect upon the date of instruments at any time without incurring any... -
Page 15: Service
(if different from billing address) or rechargeable alkaline batteries. 4. Contact name and phone number Before charging any Phonic Ear equipment make sure only NiCad or NiMH rechargeable 5. A P.O. number if the equipment is not batteries are installed. As an added precaution,... - Page 16 Call your local Phonic Ear dealer • website: www.phonicear.com © 2003 Phonic Ear Inc. Phonic Ear and the names of Phonic Ear products are trademarks 821-7142-101/Rev. E/3556 0803 or registered trademarks of Phonic Ear Inc. in the U.S. and other countries.
