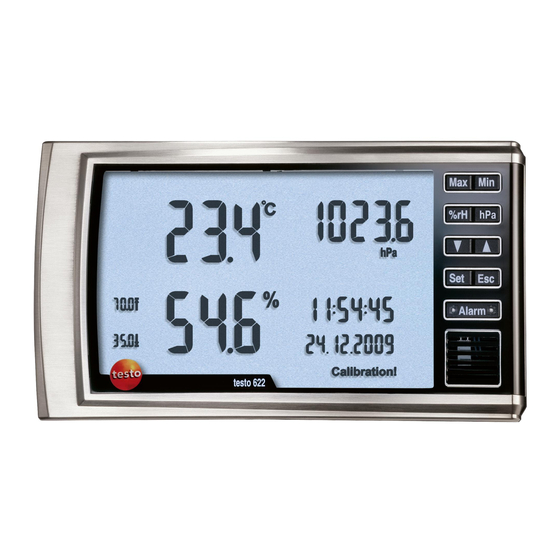

testo 622
Scientific Ambient Monitor
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 622 and is the answer not in the manual?

Questions and answers

Summary of Contents for TESTO 622

  • Page 1 622 Scientific Ambient Monitor Instruction manual...
  • Page 3: Table Of Contents

    1 Contents Pos: 1 /TD/Überschriften/1. Inhalt @ 0\mod_1177587817070_79.doc @ 1243 @ 1 Contents Contents ....................23 Safety and the environment..............24 2.1. About this document ..............24 2.2. Ensure safety.................25 2.3. Protecting the environment............25 Specifications ..................25 3.1.....................25 3.2. Scope of delivery ................26 3.3.
  • Page 4: Safety And The Environment

    2 Safety and the environment Pos: 2 /TD/Überschriften/2. Sicherheit und Umwelt @ 0\mod_1173774719351_79.doc @ 292 @ 1 Safety and the environment Pos: 3 /TD/Überschriften/2.1 Zu diesem Dokument @ 0\mod_1173775252351_79.doc @ 346 @ 2 2.1. About this document Pos: 4 /TD/Sicherheit und Umwelt/Zu diesem Dokument/Verwendung (Standard) @ 0\mod_1173775068554_79.doc @ 337 @ 5 >...
  • Page 5: Ensure Safety

    The parameters of temperature, humidity and pressure can be viewed at a glance on the display. The instrument can be mounted on the wall or placed on the workbench. Pos: 16 /TD/Leistungsbeschreibung/Lieferumfang/testo 622 Lieferumfang @ 4\mod_1254465079034_79.doc @ 50953 @ 2...
  • Page 6: Scope Of Delivery

    Guarantee card • 4 batteries (AA) Pos: 17 /TD/Überschriften/3.2 Technische Daten @ 0\mod_1176211088437_79.doc @ 704 @ 2 3.3. Technical data Pos: 18 /TD/Leistungsbeschreibung/Technische Daten/testo 622 Technische Daten @ 3\mod_1232712162691_79.doc @ 23526 @ Characteristic Values Parameters Temperature / Humidity / Absolute pressure Units °C/°F...
  • Page 7: Product Description

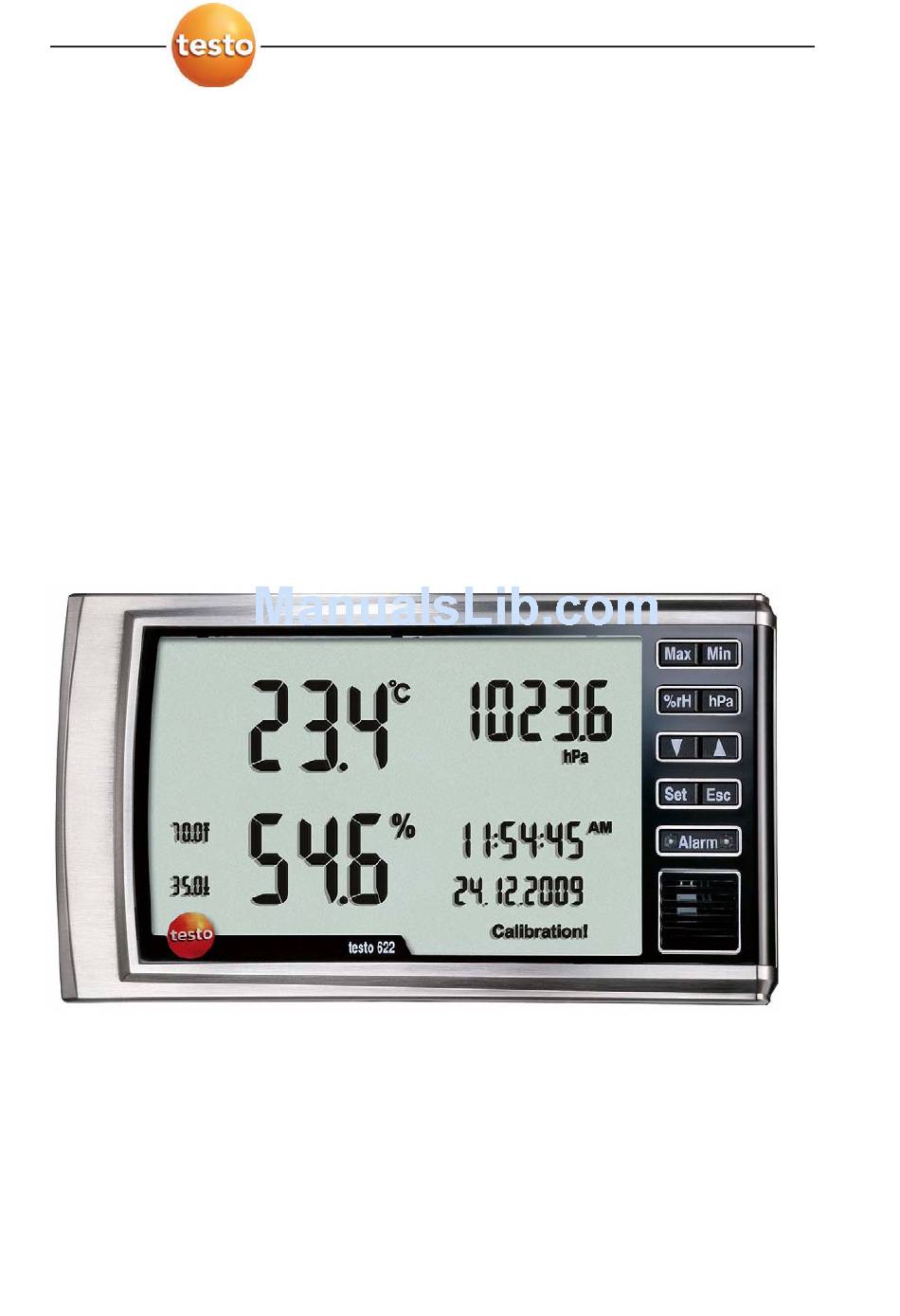

    Pos: 19 /TD/Überschriften/4. Produktbeschreibung @ 0\mod_1173774846679_79.doc @ 310 @ 1 Product description Pos: 20 /TD/Überschriften/4.1 Übersicht @ 0\mod_1176379946003_79.doc @ 733 @ 2 4.1. Overview Pos: 21 /TD/Produktbeschreibung/Übersicht/testo 622/testo 622 Bedienelemente @ 3\mod_1233908816085_79.doc @ 23743 @ ① Keypad Function Display max. value Display min.
  • Page 8 4 Product description Function Display pressure settings Change settings Change settings Confirm settings Cancel input Acknowledging an alarm ② Sensors ③ Attachment device ④ Battery compartment and instrument interface ⑤ Mounting clip and wall fixture (integrated into housing) Pos: 22 /TD/Überschriften/4.2 Grundlegende Eigenschaften @ 0\mod_1176380399692_79.doc @ 742 @ 2...
  • Page 9: Basic Properties

    The distance between the upper and lower drill hole is 63 mm. Pos: 25 /TD/Überschriften/5. Erste Schritte @ 0\mod_1173774895039_79.doc @ 319 @ 1 First steps Pos: 26 /TD/Erste Schritte/testo 622/testo 622 Schutzfolie entfernen @ 3\mod_1233927965698_79.doc @ 23802 @ 5 Removing the protective film > Remove the protective film from the display Pos: 27 /TD/Erste Schritte/testo 622/testo 622 Batterie einlegen @ 3\mod_1233927372010_79.doc @ 23783 @ 5...
  • Page 10: Using The Product

    6 Using the product Using the product Pos: 29 /TD/Produkt verwenden/testo 622/testo 622 Inbetriebnahme @ 4\mod_1254471440026_79.doc @ 51077 @ 2 6.1. Commissioning The date and time must be set on commissioning. 1. Select the required function with [Set]. If no button is pressed > 30 sec, the testo 622 changes to Measuring Mode.
  • Page 11: Setting The Limits

    6 Using the product Pos: 30 /TD/Produkt verwenden/testo 622/testo 622 Grenzwerte einstellen @ 4\mod_1254472450530_79.doc @ 51108 @ 2555 6.2. Setting the limits Temperature When changing the temperature unit from °C to °F, the set limit values are converted Humidity When changing the humidity unit (%, td, wb), the set limit values are not converted.
  • Page 12: Flowchart

    6 Using the product Pos: 32 /TD/Produkt verwenden/testo 622/testo 622 Ablauf_Ablaufdiagramm @ 4\mod_1254471256989_79.doc @ 51046 @ 2 6.4. Flowchart A detailed description of the points can be found on the following pages.
  • Page 13 6 Using the product Display Function Setting option/value Activate or Deactivate: °C/°F deactivate display light up, Activate: for upper flashes temperature limit alarm Only if Set value for upper selected temperature limit alarm Upper limit value flashes Activate or Deactivate: °C/°F deactivate display light up,...
  • Page 14 6 Using the product Display Function Setting option/value Altitude lights Select unit for up, height unit height above sea flashes level flashes Set value for height For unit in m: above sea level 0 to 9000 m For unit in ft: 0 to 29,527 ft Calibration! Activate or...
  • Page 15 6 Using the product Display Function Setting option/value Only if selected Month flashes Set month 01 - 12 Only if selected Day flashes Set day 01 - 31 Only if selected Set time format 24h/12h (AM/PM) flash Only if selected Hour flashes Set hour value 00 - 23 or 01 - 12...
  • Page 16: Measuring

    6 Using the product 6.5. Measuring Pos: 34 /TD/Produkt verwenden/testo 622/testo 622-Funktionen @ 3\mod_1234876894124_79.doc @ 26482 @ 55555 With max./min., the time that it occurred and the corresponding value (°C/% RH) is shown. Displaying max. values > Press [Max]. To reset the max. value: 1.
  • Page 17: Maintaining The Product

    Pos: 35 /TD/Überschriften/7. Produkt instand halten @ 0\mod_1173789831362_79.doc @ 397 @ 1 Maintaining the product Pos: 36 /TD/Produkt instand halten/testo 622/testo 622 Batteriewechsel @ 3\mod_1235383272827_79.doc @ 26544 @ 5 Changing batteries/rechargeable batteries CAUTION Incorrectly inserted batteries / rechargeable batteries can damage the instrument! >...
  • Page 18: Tips And Assistance

    11.3 % RH and 75.3 % RH at 25 °C Pos: 41 /TD/Überschriften/8.1 Fragen und Antworten @ 0\mod_1177402017078_79.doc @ 1093 @ 2 8.2. Questions and answers Pos: 42 /TD/Tipps und Hilfe/Fragen und Antworten/testo 622 Fragen un d Antworten @ 4\mod_1254486946825_79.doc @ 51139 @ Question Possible causes Instrument displays Below -20 °C...
  • Page 20 AG Postfach 1140, 79849 Lenzkirch Testo-Straße 1, 79853 Lenzkirch Telefon: (07653) 681-0 Fax: (07653) 681-100 E-Mail: info@testo.de Internet: http://www.testo.com 0970 6220 de en fr es 02 V01.00...
