Summary of Contents for ISDT BatteryGO BG-8S

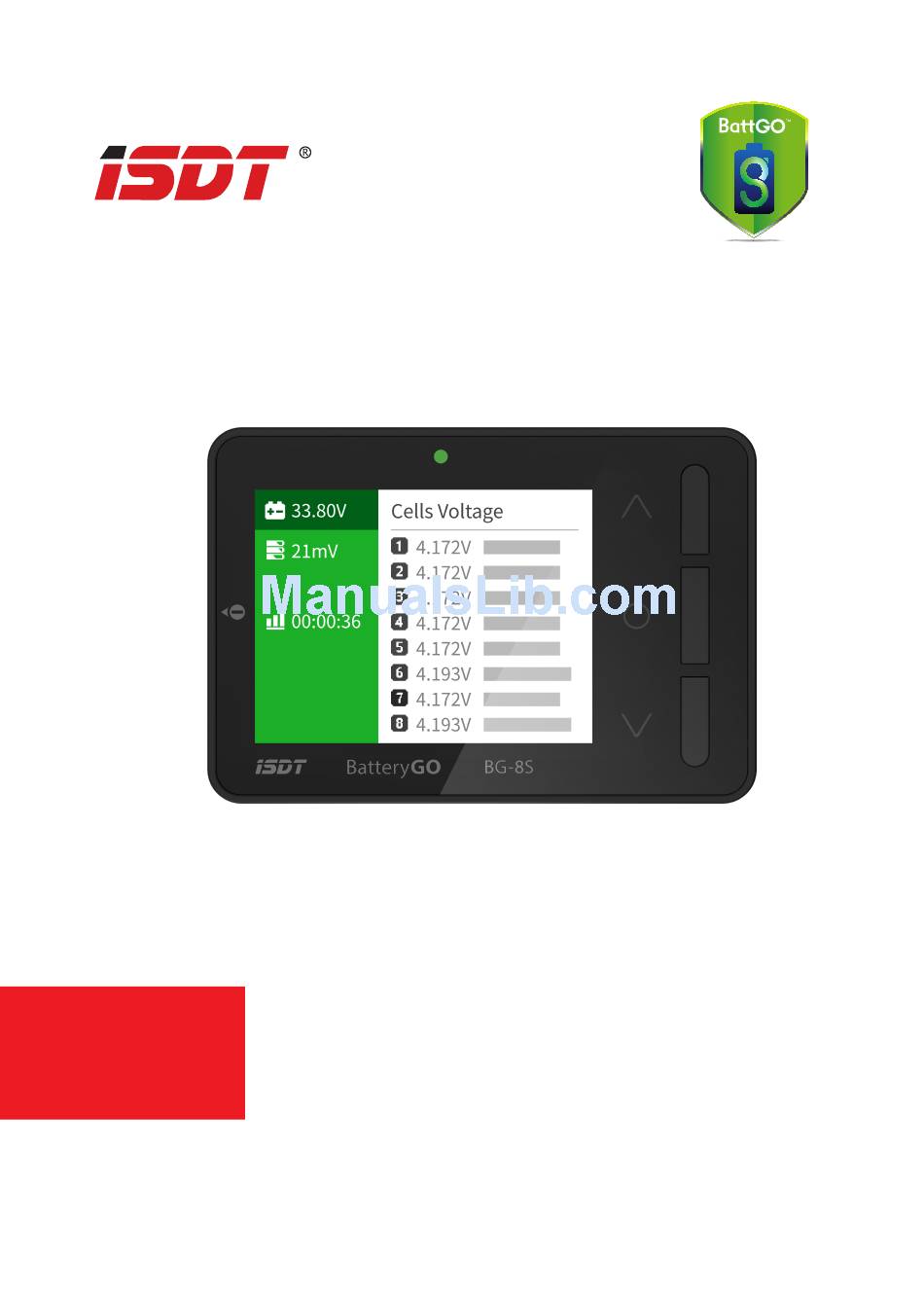

- Page 1 CH.9T!CbuufszHP Vtfs!nbovbm Wfs!2/2/289...
- Page 2 This product is specifically designed for RC, not appliance in other areas. We strongly recommend you read our user’ s guide before using BG-8S. ISDT accepts no liability for damage, injury or any legal responsibility incurred directly or indirectly from the use of this product.
- Page 3 Tqfdjgjdbujpot Working voltage : 5.0V - 36V Input voltage 1s : 0.8V - 15V Input voltage 2-8S : 0.8V - 4.8V 1-8s Battery cells : ±0.005V @ 4.2V Voltage measurement accuracy : < 0.005V Balancing cells accuracy : QC3.0, BC1.2, Maximum output 12V/2A Support USB charging : Charging and discharging setting, Support smart battery :...
- Page 4 Gvodujpo!cvuupo Csfbuif!mjhiu Nfov Epxo Tipsu!qsftt!up!foufs!tfuujoh!nfov/ Nfov!cvuupo Mpoh!Qsftt!up!foufs!tnbsu!cbuufsz!nfov Vq0Epxo!Cvuupo Hp!vq!epxo-!dipptf!ejggfsfou!tfuujoh!pqujpot/ Nfbtvsfnfou!ejtqmbz! 25.24V 22.93V BattGO 10mV 3.81V 3.82V 2017-07-28 100% 3.82V LiPo-6S 33℃ 34℃ 3.82V 4000 mAh 3.82V 3.82V -.--V -.--V Xifo!YU71j!dpoofdujoh!up!tnbsu!cbuufsz! In this mode, BG-8S can read smart battery info. After plug in XT60i, default display is 01， press down button go to 02 to read battery cells voltage...
- Page 5 25.24V XT60i Input voltage BattGO Battery brand Cells voltage difference 2017-07-28 100% Production date Remaining capacity LiPo-6S 33℃ Battery type 4000 mAh Battery temperature Battery capacity Max Charging C Max discharging C Battery circulation Over temperature Battery over charging Battery over discharging 22.93V 10mV 3.81V...
- Page 6 Xifo!cbuufsz!dpoofdujoh!up!!cbmbodf!qpsu! 23.19V Cells Voltage 3.855V 14mV 3.869V 3.868V 3.865V 3.861V 3.868V -.---V -.---V When battery connecting to balance port, BG-8S will show total battery voltage, max voltage differ- ence between each cell and each cell voltage PS: When only balance port is connected, short press menu twice, BattGo can initiate cell balancing task.
- Page 7 Language Support up to 7 languages Backlinght Back light adjustment, back light will automatically turn off in 2 minutes if no operation( In balancing 20 seconds) Volume Support high, middle, low and 0 volume. Alarm sound can not be turned off. System Information Show firmware version Receiver Tester...
- Page 8 Sfdfjwfs!tjhobm!uftujoh! S.Bus QXN!uftujoh RC control signal PWM protocol analysis, connect to servo receiver signal output, BG-8S will detect PWM output period and pulse width 5.10V 66Hz 1683us T/!Cvt!uftujoh! S.Bus protocol analysis, support up to 18 channels servo control data analysis, servo receiver failure protection testing.
- Page 9 VTC擄翄 When XT60i is connected to the battery, BG-8S could perform USB charging function. In USB charging, after 2 minutes without operation. display will turn off, and light up breath light to purple. If current is more than 3A or power is more than 26W it will turn off USB charging. If temperature is more than 60 °, it will stop charging until temperature is lower than warning level.
- Page 10 Dfmmt!cbmbodjoh! When balance port is connected, user can initiate cells balancing task. During task, display will turn off, breath light will turn on within 20s, if no operation is detected。 battery capacity percentage, temperature BattGo mark will only show when smart battery is connected, Cells Voltage 23.07V 3.846V...
- Page 11 Xbsojoh! This battery checker is suitable for :LiHv (1-8S) / LiPo (1-8S) / LiFe(1-8S) / Lilon (1-8S) / NiMH/C- d(1-10S); this battery checker is suitable for the connection with balance port of battery, While connect to the battery checker, negative electrode of the balance port must start from “BAT- “ . Reverse protection circuit is inside the BG-8S, no damage will cause to BG-8S while connect reversely.
- Page 12 XXX/JTEU/DP Shenzhen ISD Technology CO.,LTD Address:!5th Fl., Bldg. 9, Mabian Industrial Zone, Yangtian Rd., Block 72, Xin'An Street,Bao'An District, Shenzhen, PRC Email:hi@isdt.co Changes in speci cations and data will not be further noticed.
