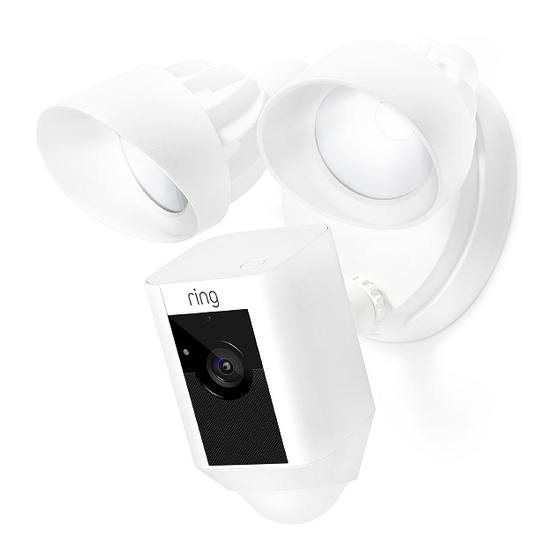

  • Page 1 Floodlight Cam...

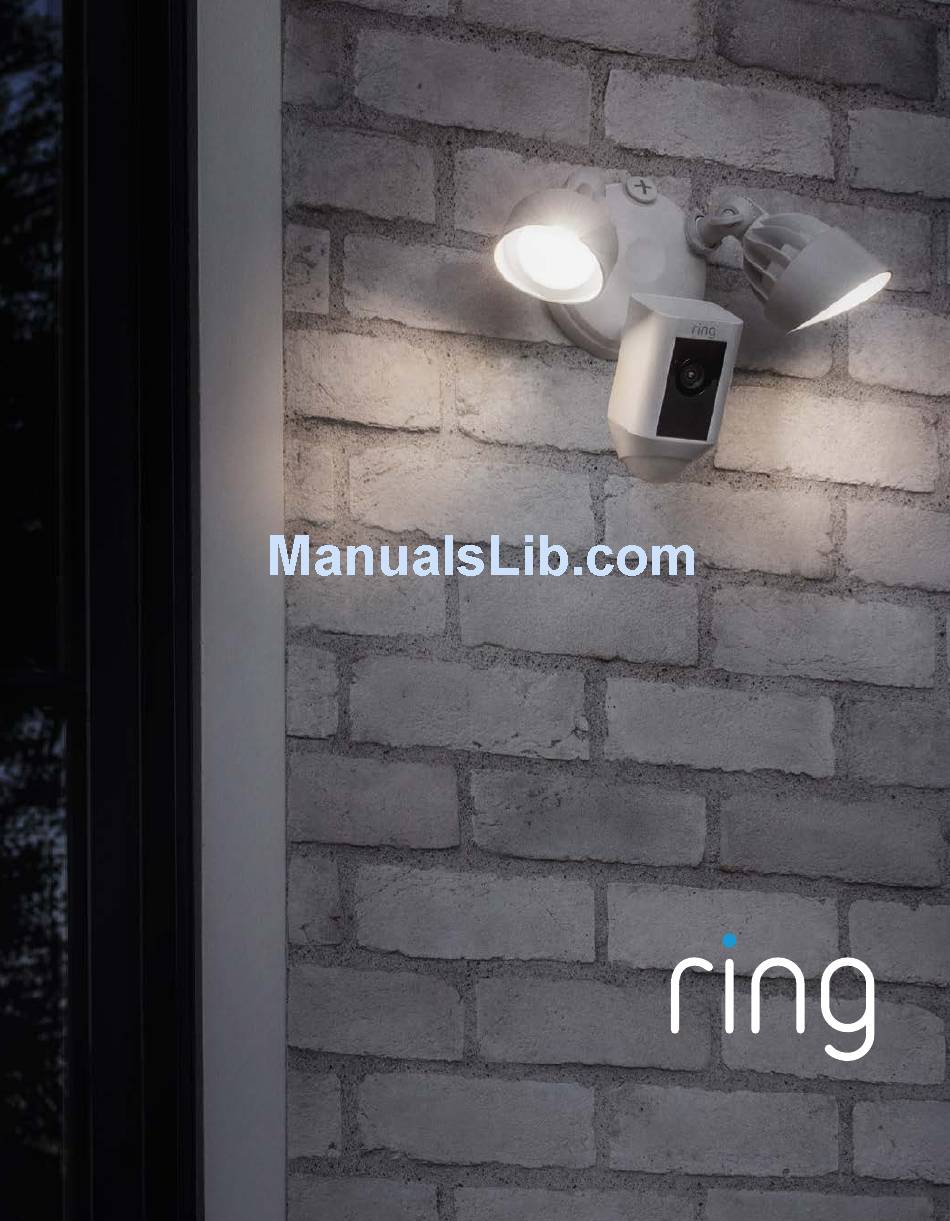

  • Page 3 Smart Security at Every Corner of Your Home Your new Ring Floodlight Cam lets you extend the Ring of Security around your entire property. Now, you’ll always be the first to know when someone’s on your yard, and you can watch over your home from anywhere.

  • Page 4: Before You Begin

    Use the screwdriver handle to tighten the cap nuts. Phillips Bit Use the Phillips bit for installing the mounting bracket, and the small end for securing the wires. Mounting Bracket Use this bracket to attach to your Floodlight Cam to your wall.
  • Page 5 Use this to drill holes if you’ll be using the anchors. Cap Nuts (3) Use these to secure your Floodlight Cam to the posts on the mounting bracket to complete the installation. Hook Hang your Floodlight Cam while connecting the wires.
  • Page 6 How it all fits together Mounting Light Posts Adjustment Collar Install Screws Mounting Camera Bracket Adjustment Collar...
  • Page 7 Light Adjustment Knob Cap Nuts Motion Detector (for lights)
  • Page 8 How installation height affects motion detection Parallel to ground 10 Meters...
  • Page 9 When mounted at 3 meters off the ground, with the motion detector parallel to the ground, the motion sensor is optimized to detect human-sized objects at up to 10 meters. 3 Meters...
  • Page 10 Shut power off at the fusebox Turn off power to your floodlight circuit at the fusebox to ensure no power is being sent.
  • Page 11 CAUTION: Risk of fire • Do not install near combustible or flamable surfaces. NOTICE • Do not connect this light fixture to a dimmer switch or timer. • Floodlight Cam must be installed on a wall and on a UL listed junction box.
  • Page 12 Prep your Floodlight Cam for installation Loosen the knobs on the light fixtures to rotate them out of the way and allow access to the mounting screws. Do not remove your Floodlight Cam from the ball socket on the base.
  • Page 13 Rotate the camera 180 degrees since Floodlight Cam ships with the camera upside down on the fixture.
  • Page 14 Remove your existing floodlight With power off at the fusebox, remove your existing floodlight from the wall and disconnect the wires. If there is a bracket attached to the wall, remove that as well.
  • Page 16 Install the mounting bracket Cut a hole in the gasket to fit your wires, and run them through.
  • Page 17 Install the mounting bracket with the two posts level with the ground (or level with your wall if mounting vertically on an overhang).
  • Page 18 Hang Floodlight Cam Use the provided hook to hang Floodlight Cam from the bracket while connecting the wires. Hook one end of the provided hook into one of the mounting holes on your Floodlight Cam. Hook the other end into the...
  • Page 20 Connect the earth wire Connect your earth wire to the earth post on Floodlight Cam, and secure it in place. For safety and the proper operation of your Ring Floodlight Cam, the fixture must be properly earthed.

  • Page 22: Connect The Power

    Connect the power wires Attach the live and neutral wires from your wall to the live and neutral wires on your Floodlight Cam. Secure them using the small end of the provided screwdriver bit.
  • Page 23 Snap the wire connector into place After securing the wires, snap the wire connector into the base of the mounting bracket.
  • Page 24 Place Floodlight Cam on the bracket Carefully secure all the wires behind your Floodlight Cam. Align the mounting posts with the holes on Floodlight Cam and press together, securing the screw cap nuts with the orange screwdriver handle.
  • Page 26 Restore power After restoring power, the lights will turn on and your Floodlight Cam will begin speaking to you to let you know it’s in setup mode.
  • Page 27 Perform the in-app setup In the Ring app, select Set Up a Device and follow the in-app instructions to connect Floodlight Cam to your Wi-Fi network.
  • Page 28 After setup, select your Floodlight Cam in the Ring app This will bring you to the Device Dashboard, where you can change settings and access various features.
  • Page 29 Manually control the lights. Toggle notifications for activity in any of the camera’s motion zones. Trigger the 110 decibel siren. It is loud and will be heard by your neighbors. Use it with care.
  • Page 30 Select Live View to open a live video stream...
  • Page 31 Two-way Talk – Speak to visitors and hear what they have to say. Siren – Activate the 110 decibel siren. Lights – Turn the lights on and off. Ring Neighborhoods – Share suspicious events with your neighbors.
  • Page 32 Select Motion Settings to customize your motion preferences...
  • Page 33 Allows you to adjust the amount of alerts you receive. Choose People Only to get motion alerts from humans only. Draw up to three custom areas where you’d like to receive motion alerts and trigger the lights. Schedule times when you don’t want to receive motion alerts.
  • Page 34 To detect motion, you will need to set up Motion Zones, which is a customizable area you want your Ring to monitor and receive alerts. To set up a Motion Zone, select Motion Settings. On this screen, create up to three Motion Zones.
  • Page 35 If your phone is locked when the camera captures a live event, you will receive a notification on your home screen. If your phone has a passcode, you’ll need to enter it to access the live event.
  • Page 36 Select Light Settings to set a schedule for your lights to stay on...
  • Page 37 Select Advanced Settings on the Light Settings screen to customize the areas that will trigger the lights and change how long they stay on for.

  • Page 38: Troubleshooting Tips

    If your Internet speed is sufficient, then look at Signal Strength in Device Health. If Signal Strength is not Good, you’ll need to boost the Wi-Fi signal to your Floodlight Cam, which can be done with our product, Chime Pro.
  • Page 39 Floodlight Cam and other Ring products. Learn more about Chime Pro by visiting: ring.com/chime-pro © 2017 Bot Home Automation, Inc. RING, ALWAYS HOME, and CHIME are trademarks of Bot Home Automation, Inc. Last updated: 10/06/17...
  • Page 40 For additional help, visit: ring.com/help Or give us a call… US 1 800 656 1918 UK 01727 263045 AU 1 300 205 983 NZ +64 9 887 9871 Mexico (D.F) 52 55 8526 5445 Worldwide +1 310 929 7085 For a list of all our customer support numbers, visit: ring.com/callus...
