8 Ultra AVR Key – User Manual

Audio EDID Mode Selection

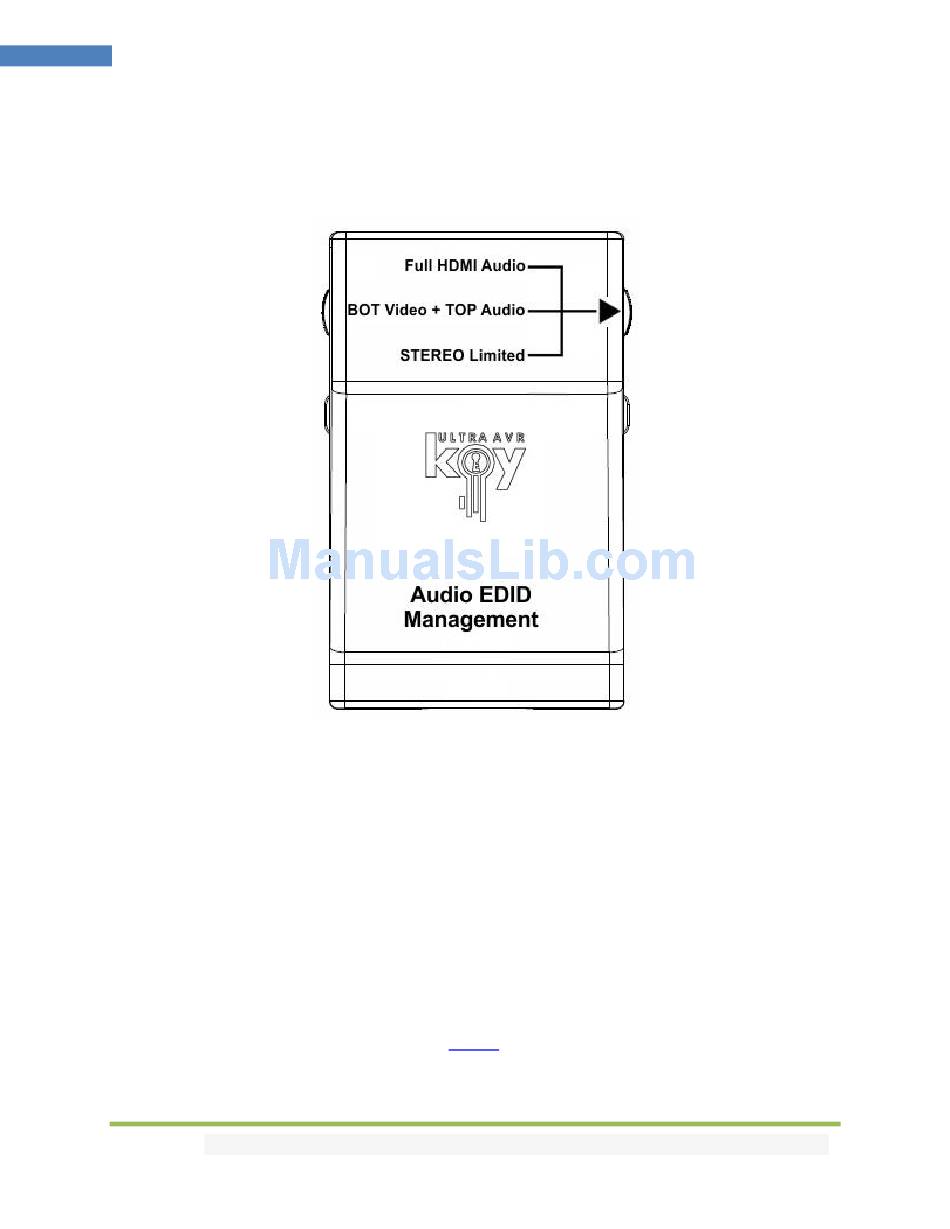

Audio EDID Mode slide switch has 3 positions.
Default/Factory setting is to the middle position to follow sink capabilities.
[Full HDMI Audio]: In this mode, no matter the connected sink audio capabilities, AVR-Key will always
present Full HDMI Audio capabilities to the source, including Atmos, DTS:X and all latest.
[BOT Video + TOP Audio]: Default setting that will use Audio capabilities of the connected AVR and mix
them with Video capabilities of the connected display (if any, see video options p.10)
[STEREO Limited]: In this mode, no matter the connected sink audio capabilities, AVR-Key will always
present L/R Audio capability to the source. It can be used as a testing mode to ensure sound in every
setup/situation.
Note: You can also switch Audio EDID mode and any others control from the USB GUI for Windows PC or
via the Android/iOS APP or IR using the optional GoBlue.
Audio slide will override the results even if nothing is connected to the TOP if audio slide is in the middle
and nothing is connected to the TOP, then a default EDID is used according to the Video switch position.
rd
Disclaimer: 3 party and/or custom firmware providing extra features are not covered in this manual.
