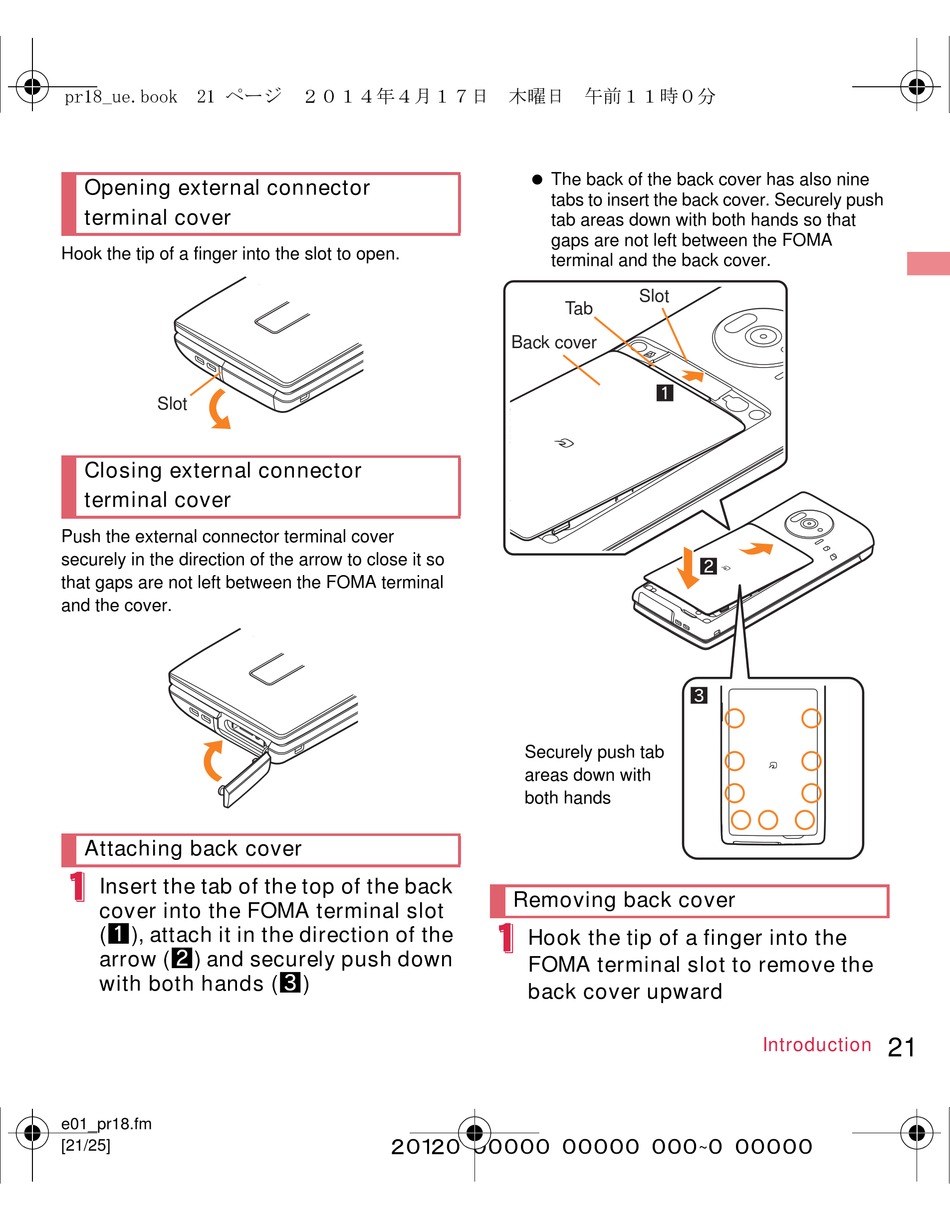

Docomo SH-07F Instruction Manual page 20

Opening external connector
terminal cover
Hook the tip of a finger into the slot to open.
Slot
Closing external connector
terminal cover
Push the external connector terminal cover
securely in the direction of the arrow to close it so
that gaps are not left between the FOMA terminal
and the cover.
Attaching back cover
1
Insert the tab of the top of the back
cover into the FOMA terminal slot
(1), attach it in the direction of the
arrow (2) and securely push down
with both hands (3)
The back of the back cover has also nine
tabs to insert the back cover. Securely push
tab areas down with both hands so that
gaps are not left between the FOMA
terminal and the back cover.
Slot
Tab
Back cover
Securely push tab
areas down with
both hands
Removing back cover
1
Hook the tip of a finger into the
FOMA terminal slot to remove the
back cover upward
21
Introduction
