Summary of Contents for Janam XM5
-

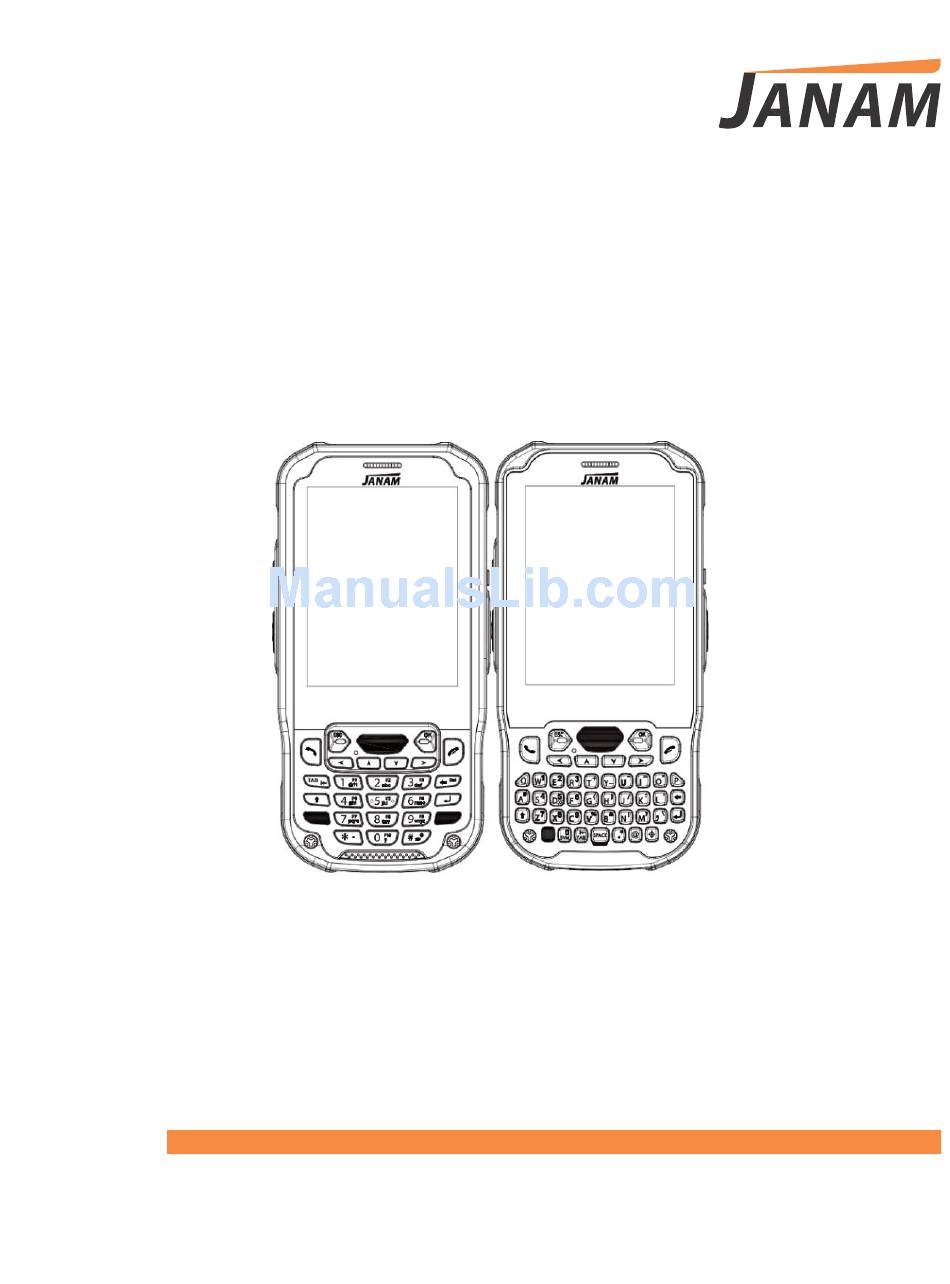

Page 1: User Manual
XM5 Android User Manual Technology at Work ®... -
Page 2: Table Of Contents
XM5 User Manual CONTENTS 1. INTRODUCTION ·················································································· 6 Trademarks ··································································································· 6 About the XM5 Mobile computer ······································································· 6 Accessories ··································································································· 7 2. SAFETY REGULATIONS ········································································ 8 2.1. General Safety Rules ········································································· 8 2.2. Power Supply···················································································· 8 2.3. Laser Safety ····················································································· 9 2.4. - Page 3 Suspend Mode ················································································· 41 4.21. Memory Allocation ············································································ 42 4.22. Care and Cleaning of the Products ······················································· 42 4.23. XM5 Technical Specifications ······························································ 42 5. USING THE KEYPAD ··········································································· 44 5.1. Numeric Keypad Layout ····································································· 44 5.2. Navigation Keys ··············································································· 44 5.3.
- Page 4 8. USING SCANWEDGE ··········································································· 55 8.1. Overview ························································································· 55 8.2. ScanWedge Enable/Disable ······························································· 55 9. USING CONTROL PANEL ····································································· 56 9.1. Settings ·························································································· 56 9.2. Wireless & Network Settings ······························································· 56 9.3. Ethernet Cradle Settings ···································································· 57 9.4. Device Settings ················································································ 59 9.5.
- Page 5 Answer or Divert a Call ······································································ 84 TOOLS ······································································································· 85 14.1. Properties ·························································································· 85 14.2. NoNaviBar ························································································ 86 14.3. NoSIP ······························································································ 86 USING THE XM5 DEMOS ··············································································· 87 15.1. Introduction ························································································ 87 15.2 GPS Demo--Overview ········································································· 87 15.3 Image Demo--Overview ······································································· 88 15.4.
-
Page 6: Introduction
The XM5 redefines productivity and is built to withstand the rigors of heavy-duty use in the field. It combines the latest technological advancements in mobile devices with a sleek and rugged design to provide the power and flexibility that enterprise and government customers demand. -
Page 7: Accessories
• LCD Screen Protection Film • Quick Start Guide ☞ NOTE: Keep the original packaging for use when sending products to the Janam Service Center. Damage caused by improper packaging is not covered under the warranty ☞ NOTE: Rechargeable battery packs are not initially charged or discharged. Before you begin to use the device you must... -
Page 8: Safety Regulations
Use only the components supplied by the manufacturer for the specific XM5 being used. Do not attempt to disassemble the XM5 mobile computer, as it does not contain parts that can be repaired by the user. Any tampering will invalidate the warranty. -
Page 9: Laser Safety
Use only Janam-approved power supply. Use of a non-Janam-approved power supply may be dangerous and the warranty does not cover damage to the device caused by non-Janam-approved power supply. The package includes international AC plugs. The AC plugs must be plugged in the power supply before the power supply itself is plugged on the wall outlet. - Page 10 If the above laser light label is attached to your device, it indicates the product contains a laser engine or laser aimer that emits laser light. The following information is provided to comply with the rules imposed by international authorities and refers to the correct use of the XM5 mobile computer. Laser Safety Statement This product has been tested in accordance with and complies with CDRH 21 CFR 1040.10 and 1040.11...
-
Page 11: Led Safety
Pursuant to part 15 of the FCC Rules, you are cautioned that changes or modifications not expressly approved by Janam could void your authority to operate the XM5 mobile computer. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 12: Radio Compliance
Radio Compliance 2.8. XM5 RF terminals are in conformity with all essential requirements of the R&TTE Directive (1999/5/EC). This device is marked with in accordance with the Class II product requirements specified in the R&TTE Directive, 1999/5/EC. The device is intended for use throughout the European Community;... -
Page 13: Weee Compliance
The following information applies when operating this equipment in hazardous locations: The XM5 marked “Class I, Division 2, Groups A, B, C and D” are suitable for use in Class I Division 2 Groups A, B, C, D, hazardous Locations and nonhazardous locations only. The XM5 is supplied with markings on the rating nameplate indicating the hazardous location temperature code. -
Page 14: Canadian Compliance
code of the system. Combinations of equipment in your system are subject to investigation by the local authority having jurisdiction at the time of installation. 2.12. Canadian Compliance This radio transmitter has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. -
Page 15: Getting Started
Install the Battery 3.1. The XM5 is shipped with the battery packaged separate from the unit. Follow the steps below to install the battery. 1. Remove the battery compartment door by moving the battery door’s lock to the up position while pulling up on the ribs of the battery door. -
Page 16: Charge The Batteries
3. To replace the battery door ensure the door tabs (1) face the bottom of the XM5 and the door lock tab (2) faces the locking mechanism. ☞ NOTE: The battery door must be installed prior to booting the unit. -
Page 17: Led Indicators
WARNING: Use only Janam-approved peripherals, power cables, and power adapters. Unauthorized peripherals, cables, or power adapters may cause batteries to explode or damage your device. DO NOT attempt to charge damp/wet mobile computers or batteries. All components must be dry before connecting to an external power source. - Page 18 If the battery pack is replaced with an improper type, there is risk of explosion. Use only a Janam approved power supply. The use of an alternative power supply will void the product warranty, may cause product damage and may cause heat, explode or ignite.
-
Page 19: Boot The Terminal And Access The Home Screen
3.5.1. Make yourself at home The first time you power up the XM5 terminal, a [Make yourself at home] screen appears after the boot process is finished. After the initial OK button is touched, the Home Screen appears. -
Page 20: The Home Screen
The Home Screen 3.6. The Android™ operating system provides space for user customization and control with five Home Screen panels Notification/Status Bar Search Bar Tools App Folder Home Screen Panel Swipe left or right with your finger to scroll Demos App Folder between five Home screen panels. -
Page 21: Status Bar
3.6.1. Status Bar The status bar located at the top of the touch screen displays notifications (on the left), the status of various system functions (on the right), and the current time (on the far right). Notifications Status Indicators and Time Display 3.6.2. - Page 22 Common Status and Notification Icons Icon Meaning Note: Status and notification icons are hardware and software dependent. Some of the icons listed below may not be relevant for your XM5 model. Open notification panel to see additional Sound is turned off notifications...
- Page 23 Icon Meaning Downloading data Ethernet status - disconnected Download finished Ethernet status - connected Synchronizing data Music player active Error with sync or sign-in Call in progress The terminal could not synchronize data Call in progress using a headset with with the computer Bluetooth technology GPS is turned on...
-
Page 24: Quick Settings
Quick Settings List Icon When touch Note: Status and notification icons are hardware and software dependent. Some of the icons listed below may not be relevant for your XM5 model. Brightness settings is opened. Settings is opened. Wi-Fi Connector is opened. -
Page 25: Search Bar
3.6.4. Search Bar You can search for an item on the terminal or the Internet using Google™ Search at the top of any Home screen panel. Touch inside the box to access the virtual keyboard for text entry. To modify the search settings: 1. -
Page 26: Turning Power On/Off
To move an item: 1. Tap and hold the item. 2. When the unit vibrates, drag and drop the item in the new location. ☞ NOTE: The next panel automatically opens if you drag the item to the edge of the touchscreen. Apps and Widgets Touch the All Apps icon located at the bottom of any Home screen to see all the apps... -
Page 27: Using The Stylus
Using the Stylus 3.8. The terminal comes with a stylus included in a loop on the lanyard. Use this stylus (or your finger) to select or enter information on the touch screen. The stylus functions as a mouse; generally, a tap is the same as a click. Tap the touch screen once to open menu items and select options. -
Page 28: Get To Know Your Device
4. Get to Know Your Device Features of Your Device 4.1. The following list outlines the hardware and a few of the features included in your device. XM5 Mobile computer 4.2. Operating Systems: Android 4.2.2(Jelly Bean) Micro Processor: Cortex-A8 1GHz ... - Page 29 Keyboards: Numeric, Qwerty Micro SDHC Expansion Memory Card Interface: Support up to 32 GB Power Supply : MicroUSB power adaptor Interfaces : Micro-USB connector : USB 2.0 High Speed Communications connector: USB 2.0 High speed Client, Host, Charging ...
-
Page 30: Front Panel Layout
Front Panel Layout 4.3. -
Page 31: Led Indicator
LED Indicator Lights when main battery is charging. Blinks, when the battery is very low (<10%), Lights when the battery is low (<20%), Blinks Red/ Green for battery fault Lights when a scan fails Lights when PDA suspends Green Lights, when the PDA resets Lights when main battery charging has completed. -
Page 32: Display
Using Screen Protectors 4.5. The XM5 ships with a screen protector and approved stylus. Screen protectors maintain the ongoing integrity (i.e., prevent scratching) of the touch panel. Use of the stylus included with the terminal is recommended at all times. - Page 33 ☞ NOTE: To reposition the screen protector, lift up gently and reapply. 5. Yellow tag with cover film: “Please peel off this mask after application is complete. 6. Press gently but firmly. Use the card as necessary to smooth out any air pockets or bumps after application...
- Page 34 7. Power ON the XM5 and check the touch panel with the stylus. 8. Verify that the screen accepts input from the stylus. If not, re-apply the screen protector. 9. Press the Power key to put the terminal back in suspend mode.
-
Page 35: Back Panel Layout
Camera window Battery cover Wrist Lanyard The XM5 comes with a Wrist Lanyard. See Back Panel Layout drawing for installation. Hand strap The XM5 comes with a Hand strap. See Back Panel Layout drawing for installation. Installed Battery For information about installing the battery, see Install the Battery (paragraph 3.1). -
Page 36: Left Side Panel Layout
• 4kHz–90dB Stylus and tether The XM5 is shipped with a stylus inserted in a loop on the tether. Store the stylus in the Lanyard when you’re not using it; see Using the Stylus on paragraph 3.8. Left Side Panel Layout 4.8. -
Page 37: Installing Memory Cards
Installing Memory Cards 4.9. The XM5 supports Micro Secure Digital (SD) memory cards up to 32GB. Sandisk, Kingstone and ATP micro SD recommended To access the Micro SD card slot and insert the card, proceed as follows: 1. Press the Power key to put the terminal in Suspend Mode; see Suspend Mode (paragraph 4.23). -
Page 38: Top Panel Layout
Top Panel Layout 4.11. Imager/scanner engine window Imager/scanner Engine Window The angled imager/scanner engine reads and decodes most popular bar code symbologies. For more information, see Using the Imager/scanner Engine (paragraph Bottom Panel Layout 4.12. I/O connector USB port... -
Page 39: Peripherals And Accessories
XM5 Connector The XM5 mechanical connector is designed to work exclusively with MOBILE COMPUTER peripherals and cables. This connector powers the terminal, charges the main battery, and facilitates communication. This connector supports High speed USB 2.0 communication (up to 480 Mbps). -
Page 40: Microusb Cable
• AC Power Supply to USB Port direct • Single slot docking cradle/Single slot Ethernet cradle • Four slot battery charger • Spare battery charging well in the back of either the XM5 USB single slot cradle or Ethernet cradle. Charging Time... -
Page 41: Managing Main Battery Power
If the main battery is low and the terminal is in Suspend Mode, pressing the button does wake the XM5 COMPUTER; you must replace the discharged battery with a fully charged battery or apply AC power to the terminal Checking Battery Power Tap app drawer >... -
Page 42: Resetting The Terminal
Resetting the Terminal 4.19. There are three types of system resets: a Soft Reset, a Hard Reset, or a Factory Reset. The soft and hard resets preserve all data stored in the file system. Contact a technical support representative for more information on how to perform a Factory Reset. Soft Reset (Warm Boot) A soft reset re-boots the terminal without losing RAM data, terminates all running applications, reloads the OS, and launches Autoinstall, which re-initializes any APK files in... -
Page 43: Memory Allocation
If the terminal does not wake when you press the Power button, the main battery might be too low to resume operation. To check, remove the battery and install a fully charged battery or connect the terminal to an XM5 charging peripheral. Memory Allocation 4.21. - Page 44 Expected Charge Time Capacity: 4000mAh – approx. 5 hours MicroUSB Adaptor Single Slot cradle–single-bay terminal charge/communicate Charging Peripherals Single Ethernet cradle–single-bay terminal charge/communication base (Via Ethernet connection) Quad Battery Charger WPAN Bluetooth Class II (10 m) v2.1 Enhanced Data Rate (EDR) with internal antenna. WLAN Dual Mode 802.11 a/b/g/n (11 Mbps/up to 72.2 Mbps) with internal antenna Wi-Fi Certified, 802.1X, WPA2, EAP, WEP, LEAP, TKIP, MSD, EAP-TLS, EAP-TTLS,...
-
Page 45: Using The Keypad
5. Using the Keypad Numeric Keypad Layout 5.1. Scan key Keyboard (27-key numeric) Navigation Keys 5.2. Located in the center of the keypad for easy access with either hand, the navigation keys enable you to move the cursor up and down lines and from character to character. Basic Keys 5.3. -
Page 46: Alpha/Numeric Modes
5.5. Buttons can be programmed to execute different functions using the Program Buttons app in Tools. The following buttons on the XM5 are programmed for the listed function. BLUE key modifies the next key pressed to perform specific functions. Key Combination... -
Page 47: Program Buttons
BLUE + 8 BLUE + 9 BLUE + 0 BLUE + # Target key Program Buttons 5.6. Buttons can be programmed to execute different functions using the Program Button program in the Control Panel. The following buttons on the MOBILE COMPUTER are programmed for the listed function. -
Page 48: Using The Imager/Scan Engine
Overview 6.1. The XM5 COMPUTER contains an N560X 2D imager engine that instantly reads all popular 1D and 2D bar codes and supports omni-directional aiming and decoding or a N4313 1D laser engine that reads all popular 1D bar codes. The image engine can also capture digital images, such as signatures and pictures. -
Page 49: Depth Of Field
Depth of Field 6.2. Depth of Field for N560X ☞ NOTE: Test Condition: Room Temperature (Approx. 23°C), 0 Lux. -
Page 50: Supported Bar Code Symbologies
Supported Bar Code Symbologies for 560X 6.3. Symbology Type Symbology Name Codabar 1D Symbologies Code 11 Trioptic Code Code 128 Code 32 Pharmaceutical (PARAF) Code 39 Matrix 2 of 5 Code 93 / 93i Telepen EAN-8 GS1-128 EAN-13 ISBT 128 Interleaved 2 of 5 Straight 2 of 5 (Industrial) Reduced Space Symbology... -
Page 51: Activating The Imager/Scanner
When a scanning application is open, press the Scan key to activate the imager/scanner. Using Demos 6.5. The XM5 comes preloaded with apps to demonstrate certain features of the device. There are two Demos that feature the imager/scanner engine: Image Demo and Scan Demo. To access these demos, tap All Apps >... -
Page 52: Sample Bar Codes
This is a live video image of what the imager is currently viewing and has a slightly degraded appearance compared to the captured image. This is normal; the captured image has a higher resolution. File Formats The XM5 supports BMP file format only. -
Page 53: Using The Laser Scanner
7. Using the Laser Scanner Overview 7.1. The XM5 (N4313 laser version) reads all popular 1D bar codes. See Overview (paragraph 6.1). ☞ NOTE: Performance may be impacted by bar code quality and environmental conditions Depth of Field 7.2. Depth of Field for N4313... -
Page 54: Supported Bar Code Symbologies
When a scanning application is open, press the Scan key to activate the laser scanner. Using Demos 7.5. XM5 demos are software utilities loaded on Mobile computers that demonstrate the advanced features of the terminal. To access these demos, tap All Apps >... -
Page 55: Scanning Positions
Scanning Positions 7.8. The aiming beam must be aimed across the entire bar code to provide the best scanning performance. The aiming pattern is smaller when the terminal is held closer to the code and larger when the terminal is held farther from the code. Barcodes with smaller bars or elements (mil size) should be read closer to the unit whereas larger bars or elements (mil size) should be read farther from the unit. -
Page 56: Using Scanwedge
The foreground application is the open software application whose window is currently active on the display. ScanWedge Enable/Disable 8.2. ScanWedge is enabled by default on the XM5. To enable or disable, tap/touch the barcode icon (disabled) (enabled) on the... -
Page 57: Using Control Panel
9. Using Control Panel Settings 9.1. Overview Settings allows you to verify and/or alter system parameters to customize your terminal to meet your specific needs. Touch All Apps > Settings or pull down the notification panel, and then touch the quick settings icon... -
Page 58: Wireless & Network Settings
Wireless & Networks Settings 9.2. Under the Wireless & Networks heading on the Settings screen there are options for turning the on board wireless radios in the terminal on or off and for configuring network connections. See 10.7.1. Wi-Fi Network Connections and 11. -
Page 59: Airplane Mode
Airplane Mode Turn On Airplane mode to disable all the XM5 radios that transmit voice or data. ☞ NOTE: Another way is to touch and hold the status bar, and then drag down to open the Notification Panel and touch the button on the top right of the Notifications panel. -
Page 60: Device Settings
5. Touch Save. ☞ NOTE: To delete a VPN, touch and hold the network name, and then touch Delete Network. To edit a VPN configuration, touch and hold the network name on the VPN screen, and then touch Edit network. Touch Save to retain your changes. Connecting to a VPN: 1. -
Page 61: Sound Setting
Sound Setting 9.5. Touch Sound from the Settings screen then select the configuration setting you want to modify. Volumes - Set the volume level used for music, • videos, games, other media, ring tones, notifications, and alarms. Call Ringtone & Vibrate - Set the phone ringtone, •... -
Page 62: Storage Settings
Storage Settings 9.7. Touch Storage from the Settings screen to view use and space statistics for the internal storage on the terminal and the installed SD card. Battery Settings 9.8. See 4.18 Managing Battery Power Apps Settings 9.9. Touch Apps from the Settings screen to view, evaluate, and modify how applications installed on the terminal utilize memory and storage resources. - Page 63 Touch the tabs at the top of the Apps screen to view lists organized into three categories: Downloaded Displays all apps downloaded to the terminal. To sort the list, press the Menu button at the top of the screen, and then touch Sort by size or Sort by name or touch the Reset app preferences to reset the App environment setting.
- Page 64 Uninstall Applications 1. Locate the app to uninstall, tap and drag the application to the uninstall Android trash can. 2. Touch the OK button to confirm. Stop Application Processes or Services 1. Touch Apps from the Settings screen. 2. Touch the Running tab. 3.
-
Page 65: Barcode Scanner Settings Settings
4. Touch Stop. Barcode Scanner Settings 9.10. Change the ScanSetting Section Option Description Specifies the trigger time out in seconds. If a barcode is not Trigger timeout (sec) decoded within the specified timeout, the default Notifier indicates that decoding is failed Enable Auto Scan with specified Enable Auto Scan interval. -
Page 66: Factory Default
Select Result Type : Result Type Keyboard Event Clipboard(default) Wedge mode Select the desired barcode end method from the pull down list. Terminator Values: None, CRLF, Space Power Save Options Power Save TimeOut 1~65535 (N4313 device only) (sec) Set enable/disable plays audio Enable Beep Beep sound. -
Page 67: Personal Settings
Personal Settings 9.11. Location access Settings 9.12. Toggle on/off the “Let apps that have asked your permission use your location information”. Security Settings 9.13. Touch Security from the Settings menu to manage terminal security parameters (e.g., authorization for device administration, setup a screen lock, setup a SIM card PIN, enable/disable visible passwords, load security certificates, and setup a password to protect the terminal's credential storage). -
Page 68: Device Administration
Screen Security The Screen Lock settings provide access to additional security features that enable you to prevent an unauthorized person from unlocking the touch screen and accessing the terminal. Select from five security options: None, Slide, Pattern, PIN or Password. To enable a screen lock: Touch on Pattern, PIN or Password to access additional dialogue screens that step you through setting up or updating the security feature. -
Page 69: Credential Storage
synchronize data between the terminal and an enterprise service. An enterprise service implements security policies on the terminal before allowing a connection (e.g. passwords and certificates). Touch Device administrators from the Security screen, and then touch the application name if you want to remove authorization for the app to act as a device administrator for the terminal. -
Page 70: Language & Input Settings
☞ NOTE: Once an encrypted certificate is installed on the terminal, it is automatically deleted from the SD card. Language & input Settings 9.14. Touch Language & input from the Settings screen to access options to modify the default language for the display, change the automatic spelling correction settings, manage your personal dictionary, configure keyboard &... -
Page 71: Factory Data Reset
> Language & input > Pointer Speed to adjust the sensitivity and speed of the touch screen response to your finger swipe. Factory data reset 9.15. Returns the XM5 to factory defaults by removing all custom settings, data and applications. Accounts Settings 9.16. -
Page 72: System Settings
Touch Accounts from the Settings screen to add, remove, and manage exchange accounts (e.g., e-mail) and allow apps to automatically schedule and sync data. To add an account: Touch All Apps > Settings > Accounts Touch Add account. Touch the type of account to add. 1. -
Page 73: Accessibility Settings
☞ NOTE: If the Automatic option is checked, the Set date, Select Time zone, and Set time menu options are grayed out. To modify how the time is displayed on the screen, check the Use 24-hour format box to switch from a 12-hour cycle to a 24-hour cycle. In a 24-hour time cycle, 1:00 pm displays as 13:00 pm. -
Page 74: Communication
When you connect your XM5 to the USB port on your computer, it is treated as a mass storage device, and transferring files is as simple as dragging and dropping or copying and pasting as... -
Page 75: Wireless Radios
XM5 does not provide all Bluetooth profiles. Connecting the Terminal to a Wireless Network 10.4. You connect the XM5 to a wireless network through the on-board radio (802.11a/b/g/n, Bluetooth and/or Phone). Each radio has its own configuration program and requires specific information about the wireless network to connect. - Page 76 > Settings > Wi-Fi. 2. Turn Wi-Fi 3. The terminal searches for available Wi-Fi access points within range of the device. If the XM5 was previously connected to a Wi-Fi network, it automatically reconnects to the same network. ☞ NOTE: To remove a Wi-Fi network the terminal was previously connected to, touch the network name, and then touch Forget network, to delete the stored network information.
-
Page 77: Advanced Wi-Fi Settings And Network Utilities
WPA/WPA2 PSK or 802.1xEAP). Enter any additional security information required by the type of security protocol selected. Touch Save. Advanced Wi-Fi Settings and Network Utilities 10.5. Advanced Wi-Fi Menu The Advanced Wi-Fi menu provides access to set network notifications, modify Wi-Fi radio activity during Suspend mode, or view the terminal MAC address and IP address. -
Page 78: Connecting To Other Devices
1. Tap All Apps > Settings 2. Tap the Bluetooth OFF/ON toggle box to turn the radio The Bluetooth icon appears in the status bar. ☞ All Apps > Settings NOTE: Bluetooth is off by default. The module must be powered on using ☞... -
Page 79: Setting Up A Bluetooth Printer
Once asked if you need to authenticate the device, 3. Enter 4 random digits and tap the Next button. 4. Enter the same digits on the other device when prompted. 5. After pairing, tap on the selected device / profile and select Active. Setting Up a Bluetooth Printer 11.4. -
Page 80: Camera Function
Specification: SAMSUNG S5K4ECGX is a highly integrated 5 megapixel camera. The image signal processor performs sophisticated image processing functions including color recovery and correction, false color suppression, lens shading correction, noise removal, edge enhancement, programmable gamma correction, image down scaling, auto defect correction, auto dark level compensation, auto flicker correction (50/60Hz), auto exposure (AE), auto white balance (AWB) and auto focus (AF). -
Page 81: Key Camera Adjustments And Options Overview
Video camera Mode Options Still picture camera mode control 12.4 Key Camera Adjustments and Options Overview A variety of still picture and video recording options are available. To make key camera adjustments and set options: ― From an active camera screen, touch Options Control icon. ―... -
Page 82: Camera Specifications
1. Flash control 2. White balance Compensation value. 3. Activates the Sub-settings menu (refer to Figure 5 on the following page), providing access to: Scene mode(s) (refer to Figure 5 page 6-6.): Auto (default) Best for everyday picture taking. ―... -
Page 83: Phone
Resolution (still mode) Flash (Auto, On, Off) – Picture quality/compression 320x240, 640x480, 1280x960 1MP – – 1600x1200 2MP High – – 2048x1536 3MP Normal – – 2592x1944 5MP Modes Full Screen (viewfinder) – File Options Normal (single shot still pictures) ... -
Page 84: Status Icons
To open the Phone app, touch the Phone icon on a Home or All Apps screen. There are three sections in the Phone app: Call log. The call log displays incoming, outgoing, and missed calls. Dialer. Let’s you dial manually. To make a call; type the number, then touch the Phone icon below the keypad. -
Page 85: Tools
When a call arrives, touch the white phone icon and slide over to one of the following icons: Answer call Start talking to the caller. Send to voicemail. Direct the caller to leave a voicemail message. Send a message. Opens a list of quick text responses. Touch one to send it to the caller immediately. -
Page 86: Properties
Bugreports in the root storage that can be sent to a Janam Service Center for analysis. Program Buttons To use the Program Button, tap All Apps > Tools > Program Buttons. 14.1 Properties To change the setting of the button: 1. -
Page 87: Nonavibar
14.2 NoNaviBar Hide / Show Navigation Bar Tap All Apps > Tools > NoNaviBar or Quick Settings Panel or you can use the Quick setting Panel 14.3 NoSIP Disable / Enable virtual Keyboard Tap All Apps > Tools > NoSIP or you can use the Quick setting Panel... -
Page 88: Using The Xm5 Demos
GPS signal may be completely unavailable. GPS performance can also be negatively affected if your vehicle has thermal glass windows, so position your XM5 where there is a clear view of the sky. -
Page 89: Image Demo--Overview
15.3 Image Demo – Overview The Imaging Demo demonstrates the imaging functionality of the on-board image engine, such as picture formatting, saving and printing. To Capture Images Tap Home > Demos > Image Demo. The Imaging Demo opens. The screen is blank until you press any of the three scan buttons. 2. -
Page 90: Ping Demo--Overview
1. Start the NFC Tag Demo from “Home”, “Demos”. 2. To read information from a passive tagged item hold the NFC tag close to the scanner window at the top of the XM5 3. Tap the “Nfc Start” button to read and populate the application data fields. -
Page 91: Print Demo--Overview
15.6 Print Demo – Overview The Print Demo test-prints a sample bar code or receipt to compatible Bluetooth printers. The bar code and receipt files that print are formatted for their respective printer hardware. 15.7 Scan Demo – Overview Upon successful decode provides the barcode type and scanned result. Allows setting of trigger mode, Auto/Continuous. -
Page 92: Single Slot Cradle/Single Ethernet Cradle Device
16.4 Front Panel Terminal Well Place the XM5 in the single slot cradle to communicate with a host device, power the terminal, and charge the terminal’s battery. Make sure that the device is securely seated. -
Page 93: Back Panel
16.6 Powering the Single Slot Cradle or Single Ethernet Cradle Device The terminal requires DC 5V input for communication and battery charging; the power adapter on the power cable converts the voltage from the power source to DC 5V. Only power adapter cables from Janam convert the voltage appropriately. -
Page 94: Charging The Battery
When a terminal is properly seated, the base powers the terminal, charges the terminal’s main battery pack, and launches MTP (see USB Communication on paragraph 10.4). Janam recommends that you leave the base connected to its power source at all times, so that it is always ready to use. -
Page 95: Technical Specifications For Cradle
16.8 Technical Specifications for Cradle CRD-P1-005U (XM5-Single Slot Cradle) Model CRD -P1-005E (XM5-Single Ethernet Cradle) Structural Dimensions 135.5mm(L) x 116mm(W) x 81mm(H) Single Slot cradle - 320g Weight Single Ethernet cradle - 325g Material Polycarbonate Color Black Environmental Operating Temperature -20°... -
Page 96: Slot Battery Charger
We recommend use of Janam peripherals, power cables, and power adapters. Use of any non- Janam peripherals, cables, or power adapters may cause damage not covered by the warranty. We recommend use of Janam Li-Ion battery packs. Use of any non- Janam battery may cause damage not covered by warranty. -
Page 97: Front Panel
17.3 Front Panel Battery connector Charging LED Charging Slots The charger contains four charging slots. Each slot holds one battery. When a battery is placed in a slot, it immediately begins charging and its Status LED lights. Charging LED If the LED is red, the unit is charging; if it is green, the charge is complete. 17.4 Back Panel Charging LED DC power jack... -
Page 98: Charging The Battery
17.5 Charging the Battery The base powers the terminal and fully charges the battery pack in 5 hours depending on the battery. Angle the battery as shown. Once the connectors engage, the LED lights. If the LED is red, the unit is charging;... -
Page 99: Technical Specifications
17.6 Technical Specifications for 4slot battery charger Model BC-P4-005 (XM5-4Slot Battery Charger) Structural Dimensions 256mm(L) x 105mm(W) x 37mm(H) Weight 4- Slot Battery Charger - 434g Material Polycarbonate Color Black Environmental Operating Temperature -20° to 55°C Storage Temperature -25° to +70°C Charging Temperature 0~45℃...
