Janam XM70 User Manual

Android
Hide thumbs
Table of Contents

Advertisement

Quick Links

XM70 Android
User Manual
Technology at Work®
© 2016 Janam Technologies LLC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XM70 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Janam XM70

Summary of Contents for Janam XM70

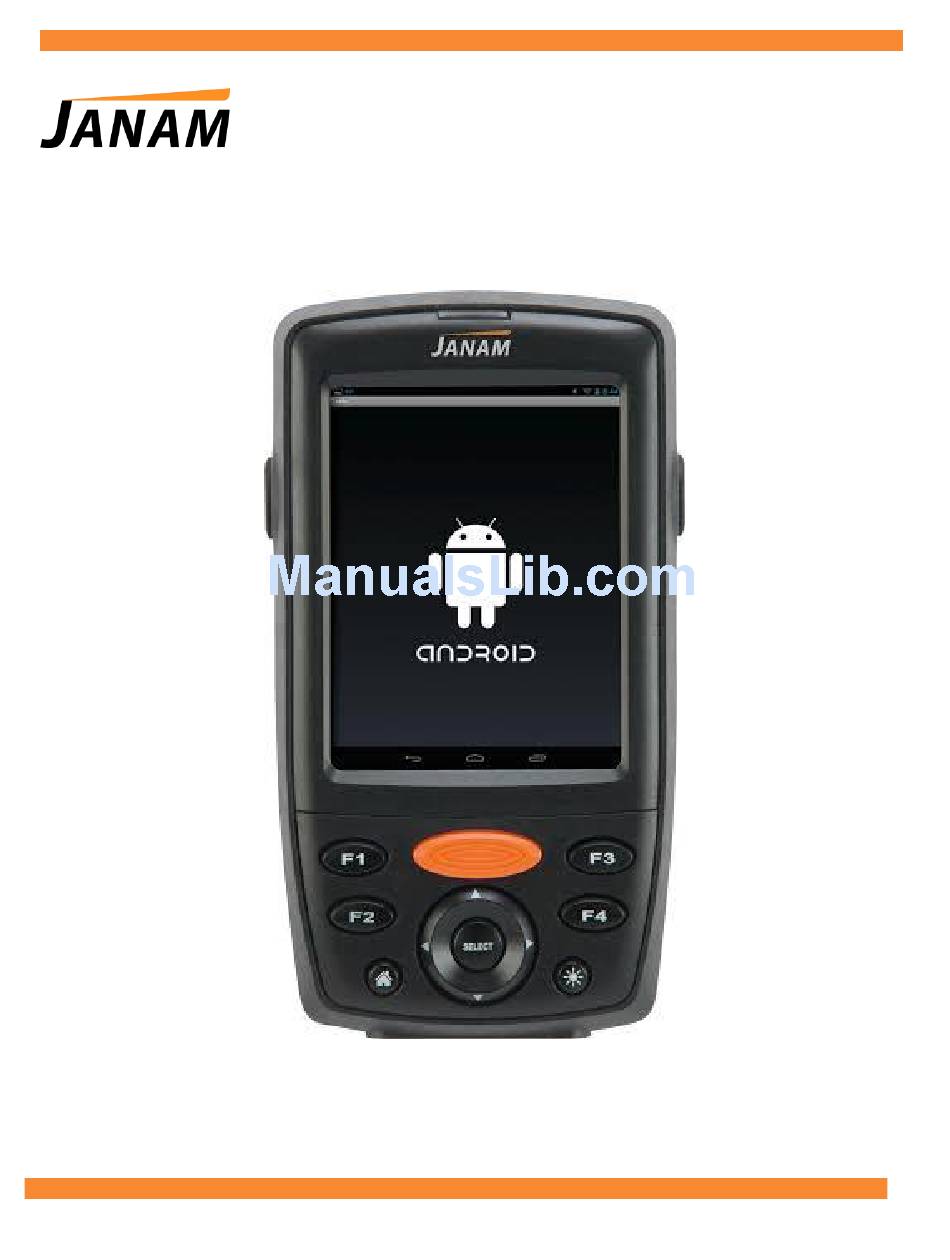

  • Page 1 XM70 Android User Manual Technology at Work® © 2016 Janam Technologies LLC. All rights reserved.

  • Page 2: Table Of Contents

    7 UPDATING THE ROM USING MICROSD CARD ROM U SD C PDATING THE SING THE ICRO 8 REGULATION AND MAINTENANCE EGULATORY INFORMATION ANADIAN OMPLIANCE ARE AND LEANING OF ERMINALS (WEEE) I ASTE LECTRICAL AND LECTRONIC QUIPMENT NFORMATION ATTERY WARNING ENERAL NFORMATION PERATING INSTRUCTIONS Janam Technologies LLC...

  • Page 3: Introduction

    Weighing less than 10 ounces and equipped with a full 3.5-inch display, the XM70 fits in the palm of the hand and can survive all-day use in challenging environments. The XM70 can withstand 4 foot/1.2 meter drops to concrete on all sides across a wide temperature range and is sealed...

  • Page 4: Hardware Overview

    Right trigger trigger Programmable Scan trigger Backspace Home Navigation Space Programmable Shift Front view PDA keypad Function Indicator Power on/off Enter Alpha/numeric shift Connector Left Right trigger trigger Scan trigger Function Function Navigation Home Enter Connector Brightness/contrast Janam Technologies LLC...
  • Page 5 User Manual XM70 Top view Bottom view Syncing/charging Barcode scan connector window Power on/off Janam Technologies LLC...

  • Page 6: Getting Started

    In most cases, a soft reset won't affect data on the device. To perform a soft reset: Press and hold the “Power” button until the display turns OFF. When the XM70 is powered off, press and release the power button. Janam Technologies LLC...

  • Page 7: Using The Pda Style Keypad

    XM70 Factory Data Reset: A Factory Data Reset returns the XM70 to factory settings, removing ALL applications and data stored on the device. Folders and files on a microSD card will remain intact. Be sure that all data is backed up before performing a Factory Data Reset.

  • Page 8: External Microsd Card

    Taking Screenshots To take screenshots of your device press the F4 and power button until you hear the camera shutter sound. The screens can be extracted by navigating using SD File Manager app. Touch “sdcard/,” “Pictures/” and “Screenshots/.” Janam Technologies LLC...

  • Page 9: Settings

    User Manual XM70 Settings Sound Touch “Settings,” “Sound” Touch “Volumes” Customize your sound preferences Display Brightness Default Full Brightness Janam Technologies LLC...

  • Page 10: Bluetooth

    The timer setting for the unit to suspend with no user interaction. The default is 1 minute. Bluetooth Pairing and printing to a Zebra MZ320 thermal printer: Turn Bluetooth ON Select the Zebra MZ320 Enter the pairing pin Janam Technologies LLC...

  • Page 11: Battery

    If successful you will see the Download and copy the Press F1 to select the paired Network icon below in Zebra Utilities and install. MZ printer then choose a orange. print job. Battery Displays uptime and current battery capacity. Janam Technologies LLC...

  • Page 12: Security

    User Manual XM70 Security Check “Unknown sources” to allow installation of custom developed applications. Backup and Reset Returns the XM70 back to factory defaults and removes all apps and user data Janam Technologies LLC...

  • Page 13: Barcode Scanning

    XM70 Barcode Scanning Janam’s XM70 rugged mobile computer offers advanced 1D and 2D barcode scanning with Zebra’s SE4500 scan engine. With extraordinary scanning speed and outstanding motion tolerance, the XM70 improves productivity across a broad array of industries including retail, hospitality, healthcare, transportation and logistics and ticketing.

  • Page 14: Installing Applications

    Installing applications using USB cradle Connect the CKT-P1-002U single slot cradle to a PC. Tap the XM70 ”Turn on USB storage.” The XM70 will appear as an external drive on the PC. Copy and paste your Android Package (APK) to the “Download” folder.
  • Page 15 User Manual XM70 From the App Drawer select SD File Double tap you APK. Manager and tap Download. If blocked from the install go to “settings,” “Security” and check mark “Unknown Sources.” Janam Technologies LLC...

  • Page 16: Installing Applications Using Microsd Card

    User Manual XM70 Install the app. Open the app. Installing applications using microSD card Install microSD card Janam Technologies LLC...
  • Page 17 User Manual XM70 From the App Drawer select SD File If blocked from the install, go to “settings”. Manager. Double tap your APK. Check mark “Unknown sources”. Install the app. Janam Technologies LLC...
  • Page 18 User Manual XM70 Open the app Janam Technologies LLC...

  • Page 19: Eclipse Adb & Wireless Configuration

    1. From the XM70 go to “Settings,” “Developer Options” and turn on “USB Debugging.” 2. Insert the XM70 into the single slot cradle and start “Device Manager” on the PC. You should see the XM70 as an “Android ADB Interface” device.
  • Page 20 “Let me pick from a list of drivers on this computer.” Select “USB Composite Device.” 4. Device Manager will refresh and show the XM70 as an “Android Composite ADB Interface.” 5. Eclipse ADB Devices will show the XM70 connected and ID.

  • Page 21: Wireless Configuration

    User Manual XM70 Wireless Configuration Open the Laird Communications Manager. Tap the “Configuration” tab and Wi-Fi “Disabled” check box to enable. Tap “Scan” or “Manage Profiles” to enter your Select your broadcast SSID. unbroadcasted SSID. Janam Technologies LLC...
  • Page 22 User Manual XM70 Enter your pre-shared key. “Save” and “Exit.” Tap “Enabled.” Screenshot has already Tap “Disabled.” Screenshot has already transitioned to “Disabled.” transitioned to “Enabled.” Janam Technologies LLC...
  • Page 23 CCX (disabled) – Cisco Extensions for managing power and roaming PowerSave – On Fast – allows the radio to sleep based on the DTI settings for extended battery life. Janam Technologies LLC...

  • Page 24: Updating The Rom Using Microsd Card

    Updating the ROM build requires the use of a microSD card (Kingston, Toshiba, Transcend, Sandisk up to 8GB max). Copy the .zip file on to the root of the microSD card and install into the XM70 microSD card slot. Janam Technologies LLC...
  • Page 25 Release all buttons; wait for an Exclamation Android screen. 2. Press [F1] button to enter the menu. 3. Press [F3] or [Up], [F4] or [Down] key to select “apply update from SD Card.” 4. Press 5-way key [Select] to CONFIRM the selection. Janam Technologies LLC...
  • Page 26 7. The update process will be started. Once it is finished it will return the main menu. 8. Select “wipe data/factory reset.” 9. Select “Yes – delete all user data” and press the [Select] key to confirm. Janam Technologies LLC...

  • Page 27: Regulation And Maintenance

    Regulatory information © Copyright 2016 Janam Technologies LLC. All rights reserved. XM Series, XM70, Janam and the Janam logo are trademarks of Janam Technologies LLC. Other product and brand names may be trademarked or registered trademarks of their respective owners.

  • Page 28: Care And Cleaning Of Terminals

    RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Use only Janam-approved batteries such as the BA-XP-1 and recharge batteries using only Janam-approved chargers. Use only easily accessible wall outlets that are reached with the length of the supplied power cables.

  • Page 29: General Information

    2. After use, always unplug the charger from the outlet. 3. Ensure that your local power supply system complies with the technical data of the standard charger. For more battery safety and charger safety guidelines, refer to the XM70 Quick Start Manual. Janam Technologies LLC...
