Janam XM70 WEH 6.5 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

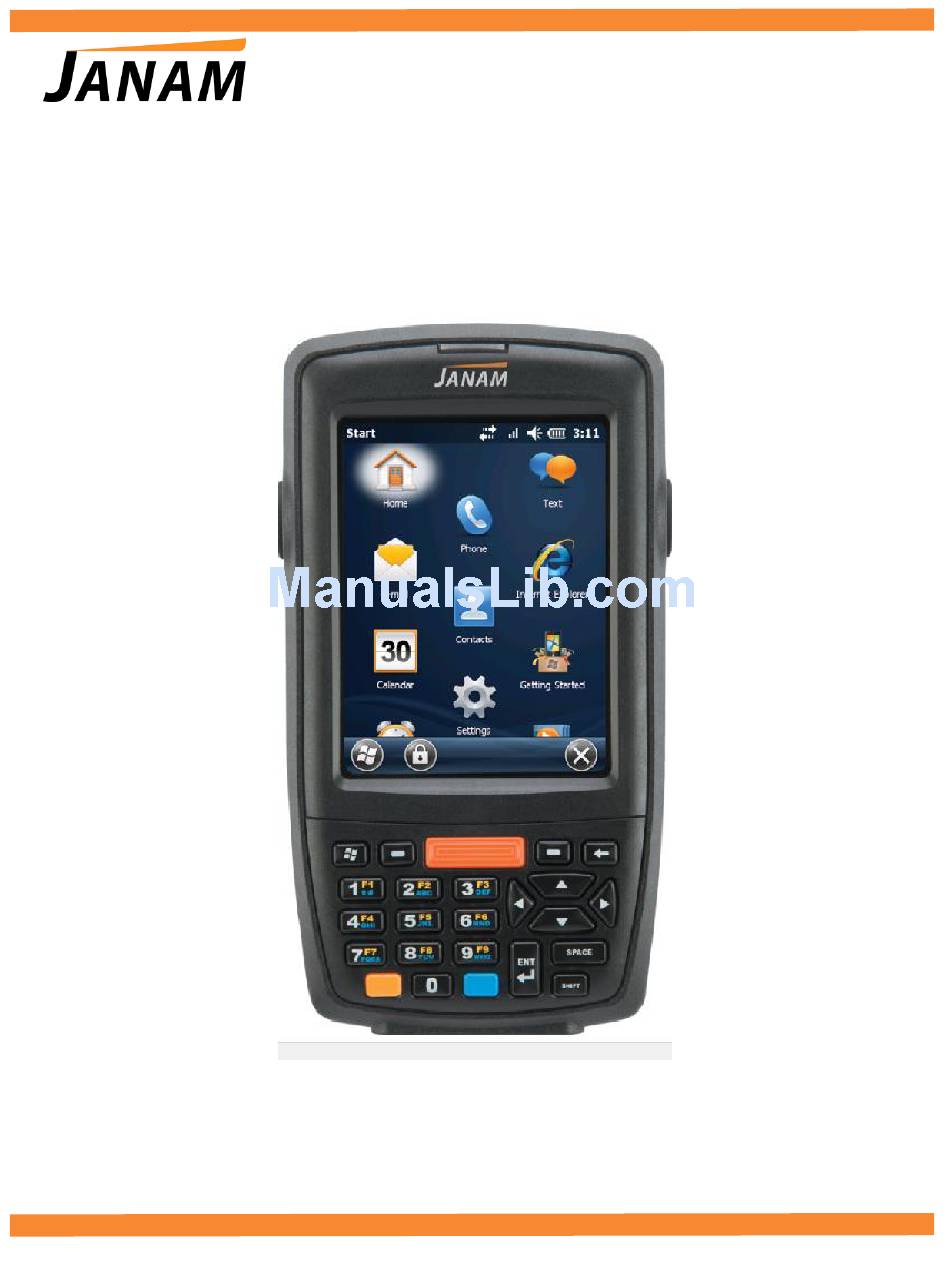

XM70 WEH 6.5

User Manual

Technology at Work ®.
© 2016 Janam Technologies LLC. All rights reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XM70 WEH 6.5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Janam XM70 WEH 6.5

Summary of Contents for Janam XM70 WEH 6.5

  • Page 1: User Manual

    XM70 WEH 6.5 User Manual Technology at Work ®. © 2016 Janam Technologies LLC. All rights reserved.

  • Page 2: Table Of Contents

    ECOMMENDED HOST COMPUTER CONFIGURATION REQUIREMENTS TTACHING THE HANDSTRAP NSTALLING CHARGING THE BATTERY XM70 URNING ON THE NDERSTANDING THE TODAY SCREEN 3 SETTING UP YOUR JANAM XM70 EYBOARD CONTROLLED SCREEN NAVIGATION SCREEN OPTIONS AND CALIBRATION ETTING ASIC REFERENCES ETTING BACKGROUND ASSWORD PROTECTION...
  • Page 3 LUETOOTH CONFIGURATION 10 REGULATION AND MAINTENANCE 10-1 10-1 EGULATORY INFORMATION 10-1 ANADIAN OMPLIANCE 10-2 ARE AND LEANING OF ERMINALS (WEEE) I 10-2 ASTE LECTRICAL AND LECTRONIC QUIPMENT NFORMATION 10-2 ATTERY WARNING 10-3 ENERAL NFORMATION 10-3 PERATING INSTRUCTIONS Janam Technologies LLC...

  • Page 4: Introduction

    Janam’s global customer base to reuse existing technology while cost-effectively upgrading to the latest mobile computing platform. Janam’s XM70 rugged mobile computer offers advanced 1D and 2D barcode scanning with Zebra’s SE4500 scan engine. With extraordinary scanning speed and outstanding motion tolerance, the XM70 improves productivity across industries including retail, hospitality, healthcare, transportation and logistics and ticketing.

  • Page 5: Hardware Overview

    Right trigger trigger Programmable Scan trigger Backspace Home Navigation Space Programmable Front view PDA keypad Shift Function Indicator Power on/off Enter Alpha/numeric shift Connector Left Right trigger trigger Scan trigger Function Function Navigation Home Enter Brightness/contrast Connector Janam Technologies LLC...

  • Page 6: Bottom View

    XM70 User Manual Top view Bottom view Syncing/charging Barcode scan connector window Power on/off Janam Technologies LLC...

  • Page 7: Getting Started

    USB cable with AC adapter Serial cable with AC adapter Recommended host computer configuration/requirements The Janam XM70 Development Kit assists programmers with the development of applications for Janam XM70 rugged barcode scanners running the Microsoft ® Windows Embedded Handheld 6.5 operating system.

  • Page 8: Attaching The Handstrap

    2. Position the battery lift strap against the back of battery well, ensuring tab extension is on left side. 3. Place a Janam Lithium-ion rechargeable battery in and snap into place. 4. Replace the battery cover by positioning the top prongs first and sliding into place. Tighten locking screw by turning clockwise.

  • Page 9: Turning On The Xm70

    To calibrate, simply follow the onscreen instructions and remember to save your settings. Note: If your XM70 came pre-loaded with a custom software application, the home screen shown below may not appear. Follow the onscreen instructions. Janam Technologies LLC...

  • Page 10: Understanding The Today Screen

    XM70 User Manual Understanding the Today Screen Connectivity Volume Battery Status Date/Time Wi-Fi Status Start Janam Technologies LLC...

  • Page 11: Setting Up Your Janam Xm70

    XM70 User Manual Setting Up Your Janam XM70 IMPORTANT NOTE! Always use the stylus for tapping or making strokes on the handheld computer screen. DO NOT use a pen, pencil or any other object on the touch screen display. Keyboard-Controlled Screen Navigation The keyboard offers additional navigational controls, including the Screen Scroll Up/Left and Screen Scroll Down/Right buttons.
  • Page 12 1 through 3 and tap Align Screen. Follow the on-screen instructions. Continue to tap each changing crosshair position with the stylus until the screen exits the align screen function and returns automatically to the Screen Orientation screen. Janam Technologies LLC...

  • Page 13: Setting Basic User Preferences

    User Manual Setting Basic User Preferences Janam XM70 devices can be customized in many ways to suit task requirements, security and/or individual user preferences. The following is an overview of a selection of key XM70 device settings with instructions on how to make changes. The general navigations and actions used to affect these changes are instructive to other similarly controlled settings.

  • Page 14: Password Protection

    It is recommended that the “Prompt if device unused” time strike a practical balance between security and convenience.  Selecting a delay of 0 minutes will result in a condition requiring password input every time the device is used. Janam Technologies LLC...
  • Page 15 Passwords may be changed by following the same procedure used to set the initial password. However, the process will be interrupted with the password entry screen. Entering the current password will enable continuation of the password change process. Janam Technologies LLC...

  • Page 16: Screen/Keyboard Lock

    Settings. XM70 devices are shipped with regional, language and input settings pre-set to English (United States). To change Regional settings: 1. From the Windows Mobile desktop Start screen; Tap Settings (icon) > System > (folder) > Regional Settings (icon). Janam Technologies LLC...
  • Page 17 XM70 User Manual Select the desired setting from the Regional Settings pull-down menu. Janam Technologies LLC...

  • Page 18: Owner Information

    2. Select the Identification tab and enter Owner Information. 3. Select the Notes tab to enter additional owner information-related text such as “Reward if Found." To display owner information: From the Windows Mobile Start menu, tap Settings > Personal > folder > Owner Information. Janam Technologies LLC...

  • Page 19: Screen Orientation

    The default Screen Orientation is Portrait. If preferable, orientation can be changed to Landscape (right-handed or left-handed). Changing screen orientation: 1. From the Windows Mobile Start Screen, Tap Settings (icon) > System (folder) > Screen (icon). 2. Select the preferred screen orientation and tap OK. Landscape Screen Example Janam Technologies LLC...

  • Page 20: Device Name

    3. Enter a Device name. The Device name cannot exceed 15 characters. It must begin with a letter, consist of letters from A to Z, numbers from 0 to 9 and cannot contain spaces. Use the underscore character to separate words. Janam Technologies LLC 3-10...

  • Page 21: Volume And Alert Adjustments

    To adjust the volume, tap the speaker icon. Additional Sounds and Notifications Additional sound-related settings are available, making it possible to adjust select device functions to suit the user’s preference. 1. Tap Settings > Sounds & Notifications. Janam Technologies LLC 3-11...

  • Page 22: Battery Power

    On external power timers control the selected action only when the device is being used with an external power supply. Janam Technologies LLC 3-12...

  • Page 23: Screen Off Function

    4. Turn off any wireless functionality ( Wi-Fi, Bluetooth or GPS) when not in use Screen OFF Function To adjust Screen Off function (device suspend mode): 1. Tap Settings, system on the Windows Mobile Start desktop. 2. Tap Power on the Windows Mobile Settings desktop. Janam Technologies LLC 3-13...

  • Page 24: Backlight/Brightness

    Shorter off delays will increase battery power conservation. To adjust backlight brightness function: 1. Tap Settings (icon) on the Windows Mobile Start desktop. 2. Tap System > Backlight (tab) 3. Adjust the brightness level using the sliding bar. Janam Technologies LLC 3-14...

  • Page 25: Xm70 Panel

    1. Wake Up – default set to the power button. 2. External Power – to power external MSR or RFID 3. Keypad Light – illuminates the keypad. 4. Keypad Type – Selects PDA or numeric style. Janam Technologies LLC 3-15...
  • Page 26 To remove a program: 1. From the Start screen, tap Settings (icon)> System (folder) > Remove Programs (icon). 2. From the Remove Programs screen, select (tap) the program to be removed. 3. Tap the Remove button. Janam Technologies LLC 3-16...

  • Page 27: Resetting The Xm70

    However, any data that has not been saved will be lost during a soft reset. To perform a soft reset on numeric keypad device: 1. Simultaneously press the blue key and the power button until the display goes dark. 2. Release both the blue key and the power button. Janam Technologies LLC...
  • Page 28 It will recall and resume from the user’s most recent screen when the battery door is fully in place. Janam Technologies LLC...

  • Page 29: Hard Reset

    To perform a hard reset on numeric keypad device: 1. Simultaneously press the yellow key and the power button and hold for five seconds. 2. When the Janam logo appears on the display, release both the yellow key and the power button.
  • Page 30 It will recall and resume from the user’s most recent screen when the battery door is fully in place. Janam Technologies LLC...

  • Page 31: Barcode Scanning

    Barcode Scanning Demonstration and Setup To run the demo: Tap the Start menu, then scroll down and tap Tap ScanStamp2. scan. Tap “Codes” to enable or disable select symbology types; tap “Scan” to activate scanner and decode barcodes Janam Technologies LLC...

  • Page 32: Enabling The Scanwedge Feature

    4. Tap OK. Note: The ScanWedge function will be disabled if manual scanning is initiated either by a command API or by using the Janam Barcode Test progra Janam Technologies LLC...

  • Page 33: Entering Data

    User Manual Entering Data Entering information on the XM70 You can enter data into your Janam mobile computer several ways: Using the Barcode Scanner You can capture data and images by scanning barcodes into the handheld computer. See chapter 5...

  • Page 34: Keyboard Shortcuts

    Using the Onscreen Keyboard To enter text: You can enter text by tapping keys on the keyboard that is displayed on the screen. The onscreen keyboard is available when text entry is possible. Janam Technologies LLC...

  • Page 35: Importing Data

    If you have data stored in computer applications (e.g. spreadsheets, databases), or if you want to import data from another device, you can transfer the data to your Janam XM70 handheld computer without having to key it in manually. See chapter 7 for more details on how to transfer files and applications.

  • Page 36: Exchanging And Updating Data

    PC. To synchronize data, you must connect your XM70 and PC directly using a cable or cradle or use a modem or network. Creating a User Profile You can create a user profile to load data into a Janam XM70 without associating that data with a user name. To create a user profile: 1.

  • Page 37: Managing Partnerships

    User Manual Managing Partnerships There are two types of partnerships that you can create with your Janam XM70. You can automatically synchronize the files on your handheld device with your PC when you start your device or you can establish a guest connection and manually copy the files you want to synchronize.
  • Page 38 Then tap Next. 7. Note: when you select Files, an additional screen appears (shown below) with further information. Read carefully before proceeding, because your files may be converted. Tap OK proceed. Janam Technologies LLC...
  • Page 39 XM70 User Manual 8. Synchronization Options window appears again. Tap Next to proceed. 9. Allow Wireless Connections window appears. Check the checkbox for Allow wireless data connections. Janam Technologies LLC...
  • Page 40 Microsoft ActiveSync window appears with the device name XM70 (in this example) and status shows as Synchronized. File synchronization will be carried out automatically when there is file added or remove from the \My Document folder of the device. Janam Technologies LLC...
  • Page 41 Documents folder of the device and Remove button to delete files \My Documents folder of the device. 13. After adding and removing files, automatic file synchronizing is performed. 14. After synchronization is completed, the status of Microsoft ActiveSync window changes from Synchronizing to Synchronized again. Janam Technologies LLC...
  • Page 42 2. Go to File > Delete Partnership in the ActiveSync manager. 3. Click Yes when confirmation screen appears. 4. If there is a Synchronized Files folder, confirmation for folder deletion screen will appear. Click Yes to proceed. Janam Technologies LLC...
  • Page 43 User Manual 5. Microsoft ActiveSync window shows No partnerships. 6. You will need to re-establish the partnership when you connect your Janam XM70 to your PC, or you will need to connect as a guest. To set up a guest partnership: 1.
  • Page 44 Windows Explorer will appear with the folders and files on your mobile device. 6. Select the file or file(s) you want to move or copy. 7. Choose copy files and select a destination folder on your PC. Janam Technologies LLC...

  • Page 45: Partnership Settings

    To change partnership connection settings: 1. Click the ActiveSync icon in your Windows system tray (bottom right corner of taskbar). 2. Choose File > Connection Settings from the ActiveSync manager menu. 3. The Connection Settings window appears. Tap OK. 7-10 Janam Technologies LLC...

  • Page 46: Wlan 802.11 Wireless Configuration

    XM70 User Manual WLAN 802.11 Wireless Configuration Wireless Local Area Network Access Tap the Summit folder. Tap “lcm.” Tap “Configuration.” Tap “Scan.” Janam Technologies LLC...
  • Page 47 XM70 User Manual Tap your SSID. Enter the default password “SUMMIT.” Verify A/P broadcast capabilities and tap Tap “Passphrase” and enter the key, then “Yes.” tap “Commit” and “OK.” Janam Technologies LLC...
  • Page 48 XM70 User Manual Tap “Configuration” then select your profile Connected. and “OK.” Tap “Diagnostics” and “Advanced.” Shows the current WiFi channel IP and MAC address of the XM70. Janam Technologies LLC...
  • Page 49 XM70 User Manual Tap the drop down for “Ping Tools.” Janam Technologies LLC...

  • Page 50: Using Bluetooth

     Use a Bluetooth service. Once you connect to another device or computer using Bluetooth, you can locate and use any of the services available on that device. Bluetooth Configuration Tap Bluetooth. Tap “Mode” and select “Turn on BT.” Janam Technologies LLC...
  • Page 51 XM70 User Manual Tap “Add new device.” Select your device and tap “Next.” Enter BT Passcode. Connected. Janam Technologies LLC...
  • Page 52 XM70 User Manual For Serial Port Profile tap “COM Ports.” Add “new Outgoing Port.” COM 5 and 6 are available ports. Configure your app to print on COM 5 and print. Janam Technologies LLC...

  • Page 53: Regulation And Maintenance

    Janam Technologies LLC assumes no responsibility for any damage or loss resulting from the use of this manual. Janam Technologies LLC assumes no responsibility for any loss or claims by third parties which may arise through the use of this product.

  • Page 54: Care And Cleaning Of Terminals

    RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. Use only Janam-approved batteries such as the BA-XP-1 and recharge batteries using only Janam- approved chargers. Use only easily accessible wall outlets that are reached with the length of the supplied power cables.

  • Page 55: General Information

    2. After use, always unplug the charger from the outlet. 3. Ensure that your local power supply system complies with the technical data of the standard charger. For more battery safety and charger safety guidelines, refer to the XM70 Quick Start Manual. Janam Technologies LLC 10-3...
