Part Description - Seecode SEEFreeKit User Manual

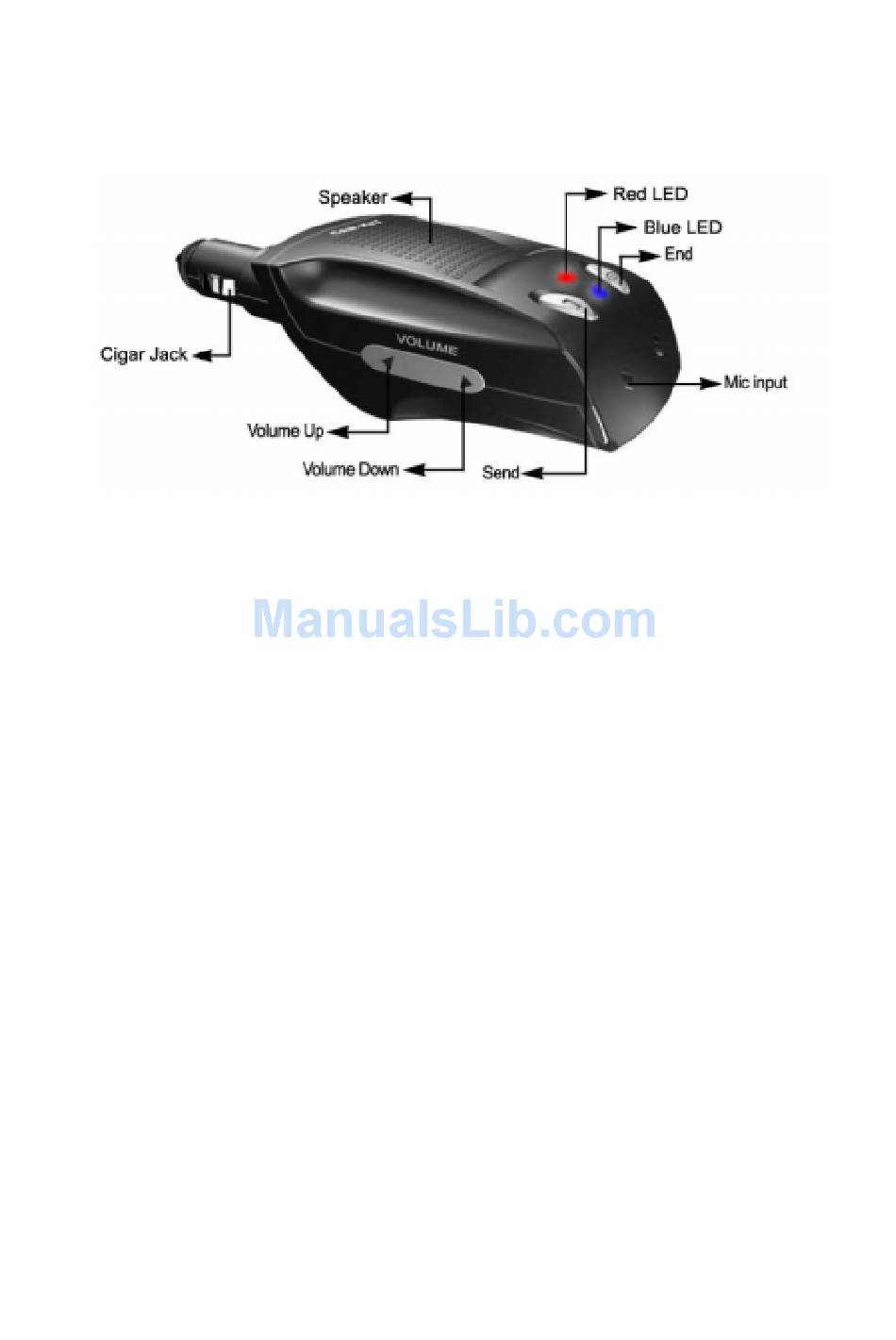

Part Description

- Volume Up : Used for volume up
- Volume Down : Used for volume down
- Send : Used for calling, Answering, Voice call, Audio transfer, etc.
- End : Used for entering pairable mode, Hanging up a call
- LED Red : After impressig power, this lamp becomes on and indicates a sta
te
which is ready
(See LED indication section below for additional information)
- LED Blue : Used for showing a state the line is busy
(See LED indication section for additional information)
- Mic input : A port for connecting a microphone.
(A microphone outside is used for the handsfree)
- Earphone : Insert a earphone for a private call.
Power On
1. After installing the CarKit to cigar jack, start the car to impress power.
2. After impressing power, the Carkit plays a melody notifying it is booted.
3. If there is at least one device registered(paired) the Carkit will operate in th
e Ready mode - in which mode you can connect the Carkit and the registe
