Summary of Contents for Seecode Startrec SFK509

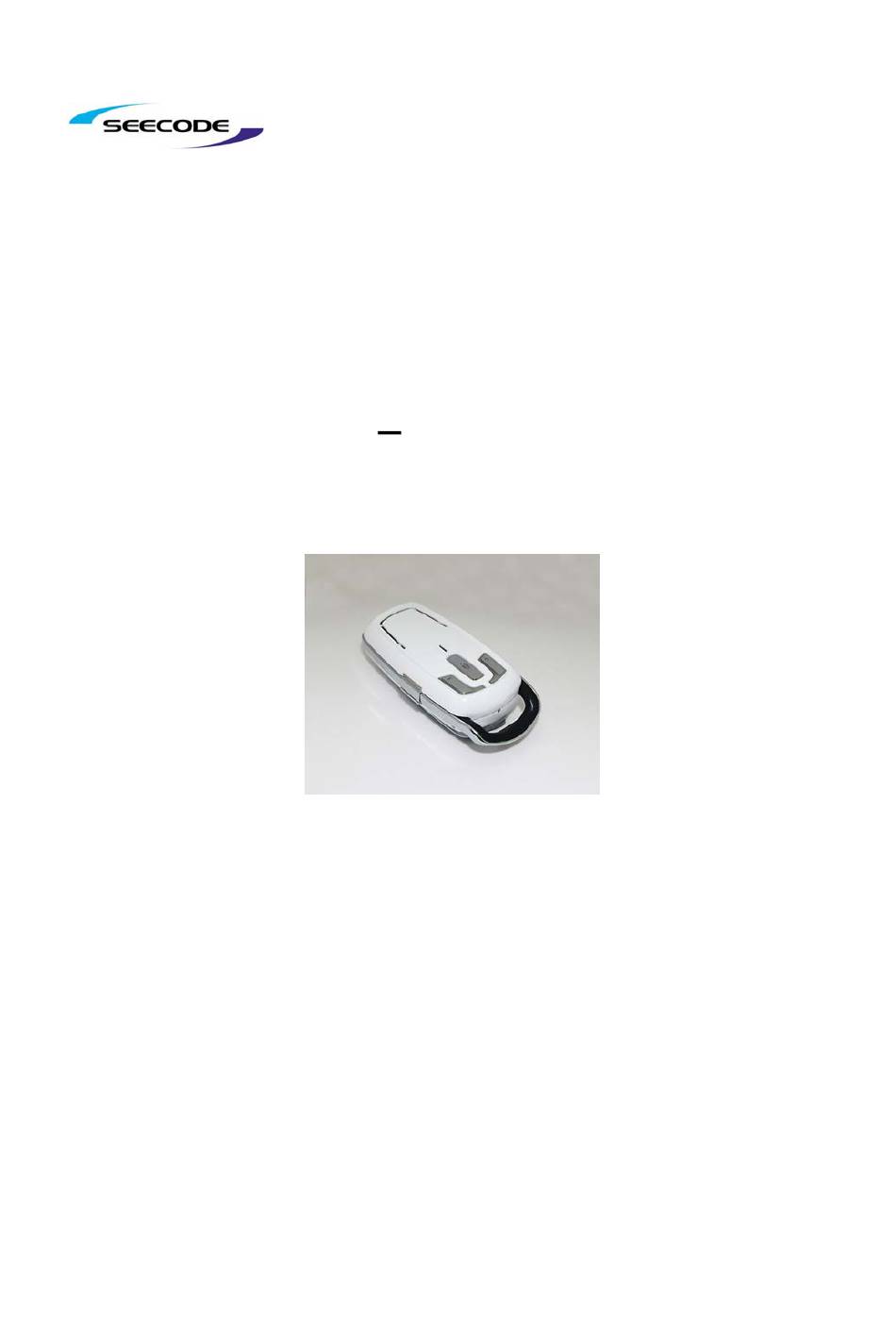

- Page 1 ® Bluetooth Pendant type Handsfree Kit STARTREC Model No : SFK509 User Manual...
- Page 2 In the Package STARTREC User Manual Charging Adapter (TA ) Necklace Type Earphone Part Description * Front Charging(RED) &State LED(Blue) 2. Call/Power Button 3. Volume Up/down 4. Mic 5. Power Connector & Earphone Outlet 6. Speaker 7. Reset * Rear 1.
- Page 3 1. How to Use a. Charging Open the Power Connector Outlet cover. Connect the supplied charger to the Power Connector Outlet. When the Charger is plugged in, the LED light of the SFK509 will be Red. When fully charged, which may take up to 3 hours, the Red LED light will be turned off.
- Page 4 e. Adding Mutiple Handsets The SFK509 can store up to 3 different handsets in its memory. However it can only connect up to one Bluetooth device at a time. In the case of adding a 4 handset, the first unused registered handset will automatically be removed.
- Page 5 Speaker Volume Control Press the Volume (+) Button to increase the speaker sound, and the Volume (-) Button to lower the sound. The volume level can be adjusted from 1 to 8. k. Transferring Audio a) Handset to SFK509 To switch from the handset to the SFK509 while on a call, press the Call/Power Button.
- Page 6 2. LED Indication Function Startrec Status LED Status Power off LED off Booting LED On until initialization Idle On(0.5 sec) Off(10 sec. repeatedly) Operating Discoverable On(1 sec) – Off(1 sec) repeatedly until (BLUE LED) discovered Connecting Blinks until connection is established Ringing Blinks (3 times) &...
- Page 7 Specifications Item Description Bluetooth Specification Ver 1.2 Supported Profile Handsfree, Headset, A2DP,AVRCP,GAVDP Rx.Sensitivity Typ. 72dBm Battery 3.7V, 200mAh Li-ion 8 Ω / 0.5W(normal) Speaker 44dB / Omni directional Standby Time < 200 hours Talking Time < 7 hours Music Play Time <...
-
Page 8: Fcc Notice To Users
FCC NOTICE TO USERS : This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation.
