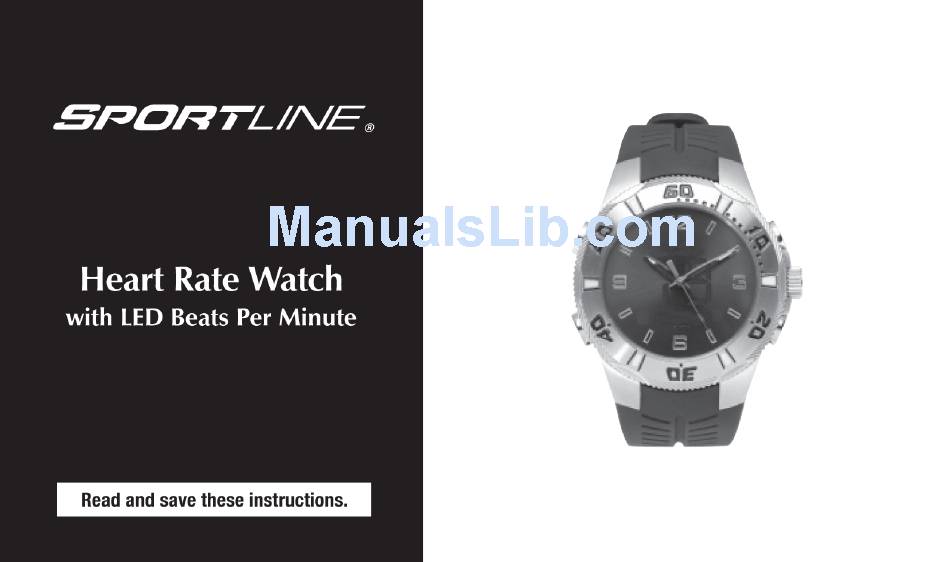

Sportline SL708 Instructions Manual

Heart rate watch with led beats per minute
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the SL708 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sportline SL708

Summary of Contents for Sportline SL708

  • Page 2: Table Of Contents

    Table of Contents Introduction ........................3 Caution ..........................3 Button Overview ......................4 Operation ......................... 6 Specifi cations ........................14 Battery Usage ......................... 15 Display Viewing ......................15...

  • Page 3: Introduction

    Head H1 or H2 Introduction ® The Sportline Heart Rate Watch with LED Beats Per Minute accurately measures ECG heart rates without a chest strap. It operates as a basic analog watch and features digital time, calendar and heart-rate monitor functions.

  • Page 4: Button Overview

    Button Overview • Time Button • Heart Rate Button • Crown • Daily Alarm Button • Sensor Contact 1 • Back Cover (Sensor Contact 2)
  • Page 5 Button Overview Head H1 or H2 Heart Rate Time Button Button Crown Sensor Daily Alarm Contact 1 Button Time Button: Press to view Current Time Display, date, day of week and seconds. Hold down to enter the Current Time Setting mode. Heart Rate Button: Hold down in conjunction with the Sensor Contacts to measures heart rate.

  • Page 6: Operation

    Button Overview Daily Alarm Button: Displays alarm setting. Press to increase/change setting value. Sensor Contact 1: Heart-rate sensor contact. Hold down button in conjunction with Heart Rate button to measure heart rate. Back Cover (Sensor Contact 2): Heart-rate sensor contact. Battery door. Operation Setting the Analog Watch 1.
  • Page 7 Head H1 or H2 Operation 4. Once the time is set, to resume normal operation, gently push the Crown back to its original position. Setting Date and Time 1. Press and hold down the TIME button until the digital display starts to fl ash. 2.
  • Page 8 Operation Note: The watch exits setting mode and shuts off automatically after 60 seconds of inactivity. Synchronizing Analog and Digital Time The analog and the digital time of the LED Heart Rate Watch will differ because they are two independent systems. You will need to set both time functions manually to synchronize the time.
  • Page 9 Head H1 or H2 Operation Heart-Rate Mode (Precautions and Tips) • There are two heart-rate sensor contacts on the watch: Sensor Contact 1 and the Back Cover (Sensor Contact 2). The Back Cover must make fi rm contact with the user’s skin (wrist) during measurement.
  • Page 10 Operation • Hold the watch fi rmly when taking measurements in motion. • Avoid awkward motions during measurement. They may create inaccurate heart- rate readings. Heart-Rate Measurement 1. To measure heart rate, press the HEART RATE button with your index fi nger for about 5 seconds.
  • Page 11 Head H1 or H2 Operation Getting a Heart-Rate Reading 1. Ensure the watch sits securely on your wrist. 2. Hold down SENSOR CONTACT 1 and the HEART RATE button with your thumb and index fi nger, respectively. The “Heart” icon appears on the display. 3.
  • Page 12 Operation Heart-Rate Mode During heart-rate reading, if you get no reading or experience long response times, refer to the section below: 1. Cause: Dry skin. Solution: Moisten fi ngers and wrist area with water or conductive gel. 2. Cause: Fingers are not placed fi rmly over the sensors. Solution: Make sure the pads of your fi...
  • Page 13 Head H1 or H2 Operation 4. Cause: Dead skin on wrist. Solution: Rub it off to promote solid contact with the Back Cover. 5. Cause: A thin layer of the body’s natural oil can insulate the ECG signal and prevent the Back Cover from picking up user’s ECG.

  • Page 14: Specifi Cations

    Specifi cations Timekeeping (Analog) Movement: Quartz Hands: 3 Hand (hour, minute and second)/2 Hand (hour, minute) Timekeeping (Digital) Time System: AM/PM, Hour, Minute, Second Calendar: Month/Date/Day-of-Week Display Time Format: Selectable 12-hour/24-hour Calendar Format: Selectable Month-Date/Date-Month Heart-Rate Monitor Range: 40 ~ 240 bpm Power Runs on one 3V CR2032 lithium battery.

  • Page 15: Battery Usage

    Head H1 or H2 Battery Usage To save power, the LED display turns off automatically if there is no activity for 3 seconds. If the LED intensity is getting weak or looks faded, you may need to replace the battery. Display Viewing When viewing under a strong light source such as the sun, to increase visibility use your hand to shade the screen.
  • Page 16 Alternatively return it to the address shown below for a repair/replacement: StarCase (UK) Ltd, Berkeley Business Park, Wainwright Road, Worcester WR4 9FA www.sportline.com Sportline® is a trademark of SPORTLINE, a division of EB Sport Group, Yonkers, NY 10701 SP4425IS01ENB Distributed in the UK by StarCase (UK) Ltd., Worcester, WR4 9FA...
