- Page 1 INSTALLATION INSTRUCTIONS (English) WWW.BRINKAIRFORLIFE.NL 612054-D...
-
Page 3: Installation Instructions

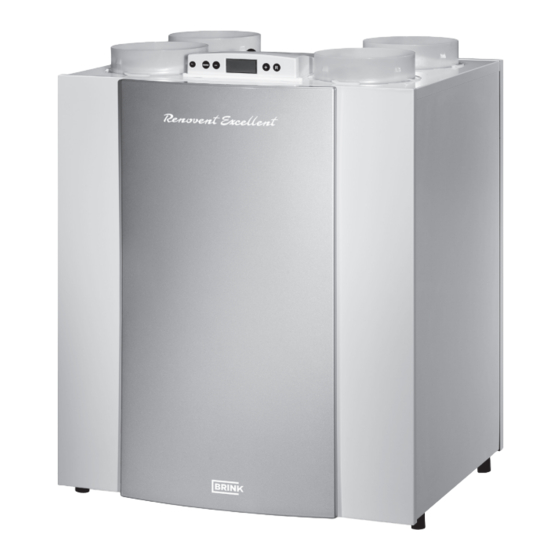

Installation instructions Heat recovery appliance Renovent Excellent 300/400 (Plus) STORE NEAR THE APPLIANCE This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. -
Page 4: Table Of Contents
Table of contents Delivery............Maintenance ..........Scope of delivery ..........Filter cleaning ..........Accessories Renovent Excellent ....Maintenance ..........Application ............ Electric diagrams........10.1 Basic diagram ..........Version............Technical information ........Electric connections accessories ..... Connections and dimensions ......11.1 Connections connectors ....... -
Page 5: Delivery
Chapter 1 Delivery 1.1 Scope of delivery Before starting installation of the heat recovery unit, check that it has been supplied complete and undamaged. The scope of delivery of the heat recovery unit Renovent Excellent includes the following components: Heat recovery appliance type Renovent Excellent Wall mounting bracket kit containing: PVC condensate discharge connection containing: Documentation set consisting:... -
Page 6: Accessories Renovent Excellent
Chapter 1 Delivery 1.2 Accessories Renovent Excellent Article Article description code Splitter RJ12 510472 sensor eBus surface-mounted (only for Plus version) 512126 Transmitter wireless remote control 2 positions (with. battery) 532170 Transmitter wireless remote control 4 positions (with. battery) 532171 Receiver wireless remote control (for battery version) 532172 Kit wireless remote control 2 positions (1 transmitter &... - Page 7 Chapter 1 Delivery Article description Article code 531771 Filter kit 1x G3 & 1x F7 (1 pcs/ 1 pcs) 531773 RH-sensor 310657 Mounting support Excellent 300/400 217035 Enthalpie heat exchanger 532059 Servicetool 531961 Renovent Excellent 300/ 400 Rev. D...
- Page 8 Renovent Excellent 300/ 400 Rev. D...
-
Page 9: Application
Chapter 2 Application The Brink Renovent Excellent is a ventilation unit with heat These installation instruction describe both the standard Renovent Excellent and the Renovent Excellent Plus. capacity of 300 or 400 m /h and low-energy fans. Features The Renovent Excellent (Plus) is available in the left-handed Renovent Excellent: indication on the multiple switch;... -
Page 10: Version
Chapter 3 Version 3.1 Technical information Renovent Excellent 300 Supply voltage [V/Hz] 230/50 Protection degree IP30 Dimensions (w x h x d) [mm] 677 x 765 x 564 Duct diameter [mm]] Ø160 External diameter condensate discharge [mm] Ø32 Weight [kg] Filter class G3 (F7 optional for supply) Fan setting (factory setting... - Page 11 Chapter 3 Version Renovent Excellent 400 Supply voltage [V/Hz] 230/50 Protection degree IP30 Dimensions (w x h x d) [mm] 677 x 765 x 564 Duct diameter [mm] Ø180 External diameter condensate discharge [mm] Ø32 Weight [kg] Filter class G3 (F7 optional for supply) Fan setting (factory setting)) Ventilation capacity [m Permissible resistance ducts system [Pa]...
-
Page 12: Connections And Dimensions
Chapter 3 Version 3.2 Connections and dimensions Renovent Excellent 300/400 3.2.1 Renovent Excellent right-handed version Renovent Excellent Right-handed 2/2 Renovent Excellent Right-handed 4/0 1 = To dwelling 2 = To atmosphere 3 = From dwelling 4 = From atmosphere 5 = Electric connections 6 = Connection condensate discharge 7 = Wall mounting bracket (note the correct position of the rubber strip, washers and caps) -
Page 13: Renovent Excellent Left-Handed Version
Chapter 3 Version 3.2.2 Renovent Excellent left-handed version Renovent Excellent left-handed 2/2 Renovent Excellent left-handed 4/0 10 mm Mounting wall suspension kit Renovent Excellent left-handed 3/1 Renovent Excellent 300/ 400 Rev. D... -
Page 14: Exploded View Appliance
Chapter 3 Version 3.3 Exploded view appliance Rear view display cover (Plus version) 1 Service connector Computer connection for service purposes. 2 Display and 4 control buttons Interface between user and control electronics. 3 Control board Contains the control electronics for the basic functions. 5 Preheater Heats up the outdoor air when there is a risk of freezing for the heat exchanger 6 Heat exchanger... -
Page 15: Operation
Chapter 4 Operation 4.1 Description The appliance comes plug and play and operates fully auto- matically. The extracted indoor air heats up the fresh, clean outdoor air. That saves energy and fresh air is sent to the re- quired rooms. and extract fans is realised independent of the duct pressure. -
Page 16: Installation
5.3 Connecting the condensate discharge The condensate discharge line for the Brink Renovent HR is fed through the lower panel. The condensate must be discharged through a drainpipe. - Page 17 We recommend to use the Brink supply valves. possible to replace them in due course. A = Spacing 10 mm above roof deck B = Roof insulation...
-
Page 18: Electric Connections
Chapter 5 Installation 5.5 Electric connections 5.5.1 Connecting the power plug The appliance can be connected to an easily accessible, earthed Warning wall socket with the plug that is mounted to the appliance. The The fans and control board carry a high volta- electric installation must comply with the requirements of your ge. -
Page 19: Display
Chapter 6 Display image 6.1 General explanation control panel The LCD display shows what the operating situation of the appliance is. Four control keys can be used to call up be used to select from three different menus, including: and modify settings in the control unit program. When the mains power to the Renovent Excellent is Settings menu (SET);... -
Page 20: Operating Mode
Chapter 6 Display 6.2 Operating mode In operating mode the display may simultaneously show 4 dif- ferent situations/values. = Status fan situation, image coupled appliances (see § 6.2.1) (see § 6.2.2) = Message text nal switch contact etc. (see § 6.2.3) = Fault symbol (see §... -
Page 21: Message Text For Operating Mode
Chapter 6 Display 6.2.3 Message text for operating mode This part of the display may show a message text. The other message texts. The following message text may appear during operating mode. Message text Description on display FILTER cleaned or replaced; for detailed information, see §... -
Page 22: Settings Menu
Warning: Because changes may affect the proper performance of the appliance, changes of settings not described here require consultation with Brink. Incorrect settings may seriously affect the proper perfor- mance of the appliance! Use keys ‘-‘ and ‘+’ key to modify selected set value. -
Page 23: Readout Menu
Chapter 6 Display 6.4 Readout menu The readout menu can be used to call up a number of 3. Activate the readout menu. current sensor values to obtain more information on the appliance's performance. Modifying values of set- tings is not possible in the readout menu. The readout menu can be displayed as follows. -
Page 24: Service Menu
Chapter 6 Display 6.5 Service menu The service menu shows the most recent 10 fault messages. Use the ‘+’ and the ‘-’ key to scroll through the messages in the service menu. In the event of a locking fault, the settings menu and the re- adout menu are blocked and only the service menu can be opened;... -
Page 25: Putting Into Operation
Chapter 7 Putting into operation 7.1 Switching the appliance on and off There are two methods to switch the appliance on or off. - Switching on and off by inserting or pulling the power plug. - Switching on and off through software on the appliance display. Switching off: Switching on Switching off through software... -
Page 26: Setting The Air Quantity
Chapter 7 Putting into operation The factory supplies the Renovent Excellent for the Renovent /h and for the Renovent Excellent 400 set to 50, 100, 200 and 300 m respectively. The performance and the energy consumption of the Renovent Excellent depend on the pressure drop in the Important: Mode : is 0 or 50 m... -
Page 27: Fault
Chapter 8 Fault 8.1 Trouble shooting When the appliance control system detects a fault, it is indi- cated on the display with a spanner symbol, possibly together with a fault code. The appliance makes a distinction between a fault at which the appliance keeps running (limitedly) and a serious (locking) fault at which both fans are switched off. - Page 28 Chapter 8 Fault Fault Cause Action appliance Action installer code Pressure sensor supply fan Take the voltage from the appliance. - Switches to constant rpm control. E100 defective. - The preheater switches on at outdoor Red pressure hoses blocked pressure tubes) for fouling, kinking (non-locking temperatures below 0°C.
-
Page 29: Maintenance
Chapter 9 Maintenance 9.1 Filter cleaning User maintenance is limited to periodically cleaning or repla- out. indicated on the display (it shows the text "FILTER LED at the switch lights up. - Press the ‘-’ key for 5 seconds. - Switch on the appliance by pressing the key ‘-’ during 5 seconds. -
Page 30: Maintenance
Chapter 9 Maintenance 9.2 Maintenance Remove the heat exchanger. Be careful not to damage the Installer maintenance includes cleaning the heat exchanger foam parts in the appliance. and fans. Dependent on the conditions, this must done about once every three years. Switch off the appliance on the control panel (Press the ‘-’... - Page 31 Chapter 9 Maintenance Remove 4 pressure hoses and 3 connectors from the 11 Clean the fans with a soft brush. board. Make sure the balancing weights do not shift! Slide the fan assembly out of the appliance. 12 Replace the separated part of the fan assembly and recon- nect the loose pressure hoses to the pressure tubes.
-
Page 32: Electric Diagrams
T = Input 0-10 V (or make contact) (Plus version) K = Valve motor bypass U = Make contact or input 0-10 V)(Plus version) L = Renovent Plus version Z = RH-sensor (option) M = Brink Air Control Renovent Excellent 300/ 400 Rev. D... -
Page 33: Electric Connections Accessories
Chapter 11 Electric connections accessories 11.1 Connections connectors Connector X1 EBus or. OpenTherm connector X1 Two-pole screw connector. Set ex factory as eBus connector; after modifying parameter 8 in the Settings menu, also suitable as OpenTherm connector (see §11.3). Only suitable for low voltage. Not suitable for 230V! Note:... -
Page 34: Connection Examples Multiple Switch
Chapter 11 Electric connections accessories 11.2 Connection examples multiple switch A multiple switch can be connected to the modular connector X2 of the Renovent Excellent. This modular connector X2 is directly accessible at the rear of the display cover (see §11.1) without having to take it off. 230 V 50 Hz Wire colours C1 - C6 may vary dependent on... - Page 35 Chapter 11 Electric connections accessories 11.3 Couple through eBus contact; Important: Because of polarity sensitivity, always connect contacts X1-1 to X1-1 and contacts X1-2 to X1-2. Never connect X1-1 and X1-2. A maximum of 10 appliances (1 Master + 9 Slave max.) 230V 230V 230V...
- Page 36 Chapter 11 Electric connections accessories 11.5 Wiring diagram postheater connection (only possible for Renovent Excellent Plus) The electrical connections of the postheater and the extra preheater are the same; the only difference is that the postheater has an additional temperature sensor that must be wired to connector X15. Please refer to the mounting instructions that came with the heater for more extensive information regarding installation of the postheater or the extra preheater.
- Page 37 Chapter 11 Electric connections accessories 11.6 Connection example geo heat exchanger (only possible for the Renovent Excellent Plus) A geo heat exchanger can be connected to the Renovent Excellent Plus. 30°C A geo heat exchanger can be connected to connection no. 5 (GND) and no. 9 (+) of 9-pole connector X15;...
- Page 38 Chapter 11 Electric connections accessories 11.7 Connecting external switch contact (only possible for Renovent Excellent Plus) An external switch contact (e.g. switch or relay contact) can be connected to the Renovent Excellent Plus. This external switch contact can be connected to connections no. 1 and no. 2 of 9-pole connector X15; this 9-pole connector is directly accessible at the rear of the top without having to dismount the display cover (see also §11.1).
-
Page 39: Connection To 0-10 V Input (Only Possible For Renovent Excellent Plus)
Chapter 11 Electric connections accessories 11.8 Connection to 0-10 V input (only possible for Renovent Excellent Plus) The Renovent Excellent Plus can be equipped with an external provision with 0-10 volt control) (e.g. humidity sensor or CO sensor). This external provision can be connected to pins no. 3 and no. 4 of 9-pole connector X15; this 9-pole connector is directly accessible at the rear of the top without having to dismount the display cover (see also §11.1). -
Page 40: Service
Chapter 12 Service 12.1 Exploded view When ordering parts, in addition to the article code number Example (see exploded view), please state the type of the heat recovery Appliance type : Renovent Excellent 4/0 R appliance, the serial number, the year of production and the name of the part: Serial number : 420020174501... -
Page 41: Service Articles
EPS set (3 pieces) incl. condensate outlet connection 531798 Filter door left 531934 Filter door right 531935 The mains cable has a print connector. When replacing it, always order a replacement mains cable Brink without prior notice. Renovent Excellent 300/ 400 Rev. D... -
Page 42: Setting Values
Chapter 13 Setting values STEP DISPLAY TEXT + FACTORY DESCRIPTION ADJUSTING RANGE STEP SETTING SYMBOLS 50 m /h or 50 m 50 m /h or 50 m 100 m 50 m /h - 300 m 100 m 50 m /h - 400 m 150 m 50 m /h - 300 m... - Page 43 Chapter 13 Setting values STEP FACTORY SETTINGS DISPLAY TEXT + DESCRIPTION ADJUSTING RANGE STEP REN. EXC. PLUS SYMBOLS 0 (= Extract fan off) 2 (= Flow rate mode 1) Extract fan mode 3 (= Flow rate mode 2) 4 (= Flow rate mode 3) switching input 1 5 (= Multiple switch) 7 (= no fan activation)
- Page 44 100% 90% - 110% Default position switch 0 - 1 STEP NO. DESCRIPTION FACTORY SETTING ADJUSTING RANGE STEP Brink Connect function (ex- tern, Brink Connect no RHT Brink Connect sensor) Brink Connect (intern ) Renovent Excellent 300/ 400 Rev. D...
-
Page 45: Declaration Of Conformity
Chapter 14 Declaration of conformity DECLARATION OF CONFORMITY Manufacturers : Brink Climate Systems B.V. Address: P.O. Box 11 NL-7950 AA Staphorst, The Netherlands Product: Heat recovery unit type: Renovent Excellent 300/400 Renovent Excellent 300/400 Plus The product described above complies with the following directives:... -
Page 46: Erp Values
Chapter 14 ERP-values Productdatasheet conform Ecodesign (EU), nr. 1254/2014 (Annex IV) Supplier: Brink Climate Systems B.V. Model: Renovent Excellent 300 (Plus) The annual electricity The annual heating saved SEC-Value Energyclass Climate zone Type of control consumption (AHS) in kWh/m²/a (SEC) - Page 47 Chapter 14 ERP-values Productdatasheet conform Ecodesign (EU), nr. 1254/2014 (Annex IV) Supplier: Brink Climate Systems B.V. Model: Renovent Excellent 400 (Plus) The annual electricity The annual heating saved SEC-Value Energyclass Climate zone Type of control consumption (AHS) in kWh/m²/a (SEC)
- Page 48 BRINK CLIMATE SYSTEMS B.V. P.O. Box...
