VeEX UX400 User Manual

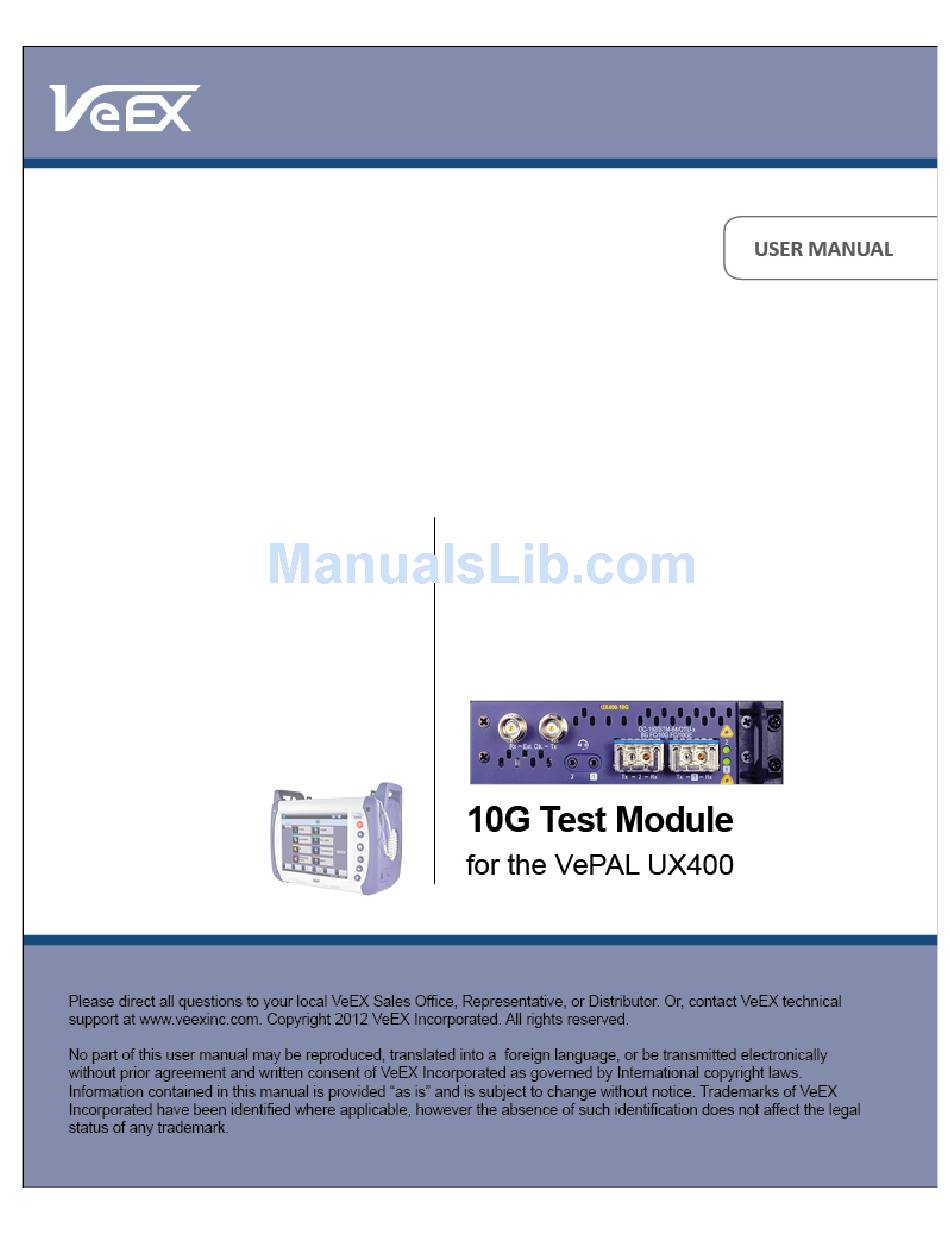

10g test module for the vepal ux400
Hide thumbs Also See for UX400:
Table of Contents

Advertisement

Quick Links

Download this manual
UX400 10G e-Manual D07-00-058P RevA00
Page 1 of 209

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UX400 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VeEX UX400

Summary of Contents for VeEX UX400

  • Page 1 UX400 10G e-Manual D07-00-058P RevA00 Page 1 of 209...

  • Page 2: Table Of Contents

    UX400 10G e-Manual D07-00-058P RevA00 Page 2 of 209 Table of Contents 1.0 About This User Manual 2.0 Introduction to UX400 3.0 Safety Information 4.0 Platform Overview 4.1 Keypad 4.2 Touch Screen Display 4.3 Battery 4.3.1 Using the Built-in Battery Backup System 4.3.2 Battery Overdraw Protection...
  • Page 3 UX400 10G e-Manual D07-00-058P RevA00 Page 3 of 209 6.0 10G Ethernet Test Application 6.1 Setup 6.1.1 Port Setup 6.1.2 Measurement Setup 6.2 BERT 6.2.1 BERT Setup 6.2.1.1 Header Settings 6.2.1.2 Traffic Settings 6.2.1.3 Error Injection 6.2.1.4 Alarm Injection Settings 6.2.1.5 Starting/Stopping a BERT...
  • Page 4 UX400 10G e-Manual D07-00-058P RevA00 Page 4 of 209 6.3.2.4 Events 6.3.2.5 Throughput 6.3.2.6 Latency and Jitter 6.3.2.7 Frame Loss 6.3.2.8 Burst 6.3.3 Saving RFC2544 Results 6.4 V-SAM 6.4.1 V-SAM Setup 6.4.1.1 Header Settings 6.4.1.2 Service Attributes 6.4.2 Results 6.4.2.1 Configuration Tests 6.4.2.2 Performance Test...
  • Page 5 UX400 10G e-Manual D07-00-058P RevA00 Page 5 of 209 6.6.2.2 Signal 6.6.2.3 Errors 6.6.2.4 Alarms 6.6.2.5 Events 6.6.2.6 Traffic 6.6.2.7 Delay 6.6.2.8 Rates 6.6.2.9 PCS 7.0 OTN/ SDH/ SONET (OTU2/STM-64/OC-192) Test App 7.1 Setup 7.1.1 Signal Overview 7.1.1.1 Heirarchy 7.1.1.2 Interface 7.1.1.3 Structure...
  • Page 6 UX400 10G e-Manual D07-00-058P RevA00 Page 6 of 209 7.2.7.4 Evaluation According to ITU-T G.829 7.2.7.5 Evaluation According to ITU-T M.2100 7.2.7.6 Evaluation According to ITU-T M.2101 7.2.8 Alarm Error Definitions for SDH, SONET and OTN 7.2.8.1 SDH 7.2.8.2 SONET 7.2.8.3 OTN...
  • Page 7 UX400 10G e-Manual D07-00-058P RevA00 Page 7 of 209 7.4.5 Payload Labels 7.4.6 APS Tasks 7.4.7 Tandem Connection Monitoring (TCM) 7.4.8 Tributary Scan 7.4.9 Round Trip Delay 7.4.10 One Way Delay 7.5 SDH Tools 7.5.1 Overhead Analyzer 7.5.1.1 Section Overhead 7.5.1.2 Path Overhead Layer...
  • Page 8 UX400 10G e-Manual D07-00-058P RevA00 Page 8 of 209 7.6.1.3 Optical Data Unit (ODU) Analysis 7.6.1.4 Optical Payload Unit (OPU) Analysi 7.6.2 Payload Label (Payload Structure Identifier) 7.6.3 Trace Identifier (Trail Trace Identifier) 7.6.4 TCM Tasks (Tandem Connection Monitoring) 7.7 PDH Tools 7.7.1 E1 APS Testing...

  • Page 9: About This User Manual

    © Copyright 2012 VeEX Inc. All rights reserved. VeEX is a registered trademarks of VeEX Inc and/or its affiliates in the USA and certain other countries. All trademarks or registered trademarks are the property of their respective companies.

  • Page 10: Introduction To Ux400

    VeEX® UX400 is the industry’s most flexible, compact, and future-proof test solution for OTN, SDH, SONET, PDH, T-Carrier, Carrier Ethernet, Mobile Backhaul, Core, and Storage Area Networks. VeEX UX400 is the first truly robust portable platform to offer test capabilities ranging from DS1/E1 to 100GE and beyond, allowing any combination of test modules tailored for each particular application or set of requirements.

  • Page 11: Safety Information

    Optical Connectors The UX400 displays a laser warning icon when the laser source is active to alert the user about a potentially dangerous situation. It is recommended to: 1. Deactivate the laser before connecting or disconnecting optical cables or patchcords.
  • Page 12 UX400 battery pack is also fitted with a safety connector to prevent accidental short circuits and reverse polarity. Always charge the UX400 battery pack inside the UX400 battery bay using the UX400 AC/DC adapter supplied by VeEX. Do not charge or use the battery pack if any mechanical damage is suspected (shock, impact, puncture, crack, etc).

  • Page 13: Platform Overview

    UX400 10G e-Manual D07-00-058P RevA00 Page 13 of 209 4.0 Platform Overview The unit is powered on and off from the red key on the keypad area. To power on the unit, hold the Power key down until a beep is heard.

  • Page 14: Touch Screen Display

    Clean the surface of the touch screen using a soft cloth and mild detergent only. Do not use alcohol. Go back to top Go back to TOC 4.3 Battery The UX400 chassis is equipped with an intelligent Li-ion rechargeable battery pack, which is located in the rear of the unit. The...

  • Page 15: Using The Built-In Battery Backup System

    - If the UX400 is being used while charging and a full charge (100% capacity) can not be achieved within three hours, the charging will automatically stop. - To resume charging, unplug the AC/DC adapter and let the UX400 work on battery power for a minute or two and plug the AC/DC back in. This would reset the charging circuity.

  • Page 16: Battery Overdraw Protection

    Inactive modules (not assigned to a test application) do not consume power. When working on battery-only mode, the UX400 notifies users when the maximum battery capacity has been reached or it is not enough to support the new module user is trying to activate.
  • Page 17 UX400 10G e-Manual D07-00-058P RevA00 Page 17 of 209 Single slot (up to 6 modules per UX400 > 12 ports) Test Interfaces/Applications 10/100/1000Base-T 100Base-FX/1000Base-X 1/2/4G Fiber Channel Test modes Single and Dual Port Bi-directional Passthrough monitoring RFC2544, V-SAM per ITU-T Y.1564...
  • Page 18 UX400 10G e-Manual D07-00-058P RevA00 Page 18 of 209 Single Slot (Up to 6 x 10G modules per UX400 i.e. 12 test ports) Dual 10G ports Dual Port, Single Port, Bi-directional line/payload through & monitor Applications (same as TX300e) STM-64: VC-4-64c down to VC12...

  • Page 19: Interface

    The Ethernet and USB ports are located on the top of the unit. RJ45, 10/100/1000Base-T Port Ethernet applications include: IP connectivity testing Net Wiz testing Transfer measurement results and test profiles between the instrument and a computer using ReVeal UX400 software...

  • Page 20: Leds

    Note: Make sure the new software image is the only file on the USB stick. Verify that the UX400 unit is powered off and that the DC adaptor connected to the unit is charging the battery. Insert the USB stick on the top left side of the unit.
  • Page 21 UX400 10G e-Manual D07-00-058P RevA00 Page 21 of 209 Release the Power key when the unit starts to boot up. Keep the Backlight key pressed down until one beep is heard. The unit should now show all the new software packages on the USB. Select the ones that apply.

  • Page 22: Basic Set Up And Common Tasks

    5.0 Basic Set up and Common Tasks When the UX400 unit is powered on, its system boots up and the first screen displayed shows an image of all the modules installed in the unit. Up to six tests can be assigned at any given time to be run on the unit.
  • Page 23 UX400 10G e-Manual D07-00-058P RevA00 Page 23 of 209 3. Select the technology option best suited for the test you wish to run and then click Accept. The screen will show the progress as the unit is configured for the selected test module.
  • Page 24 UX400 10G e-Manual D07-00-058P RevA00 Page 24 of 209 The test tab to which the application was assigned will change color and the details of the test module's location on the unit and the technology selected will be displayed in the tab. The test tab color indicates the status of the respective test: Red: Indicates that at least one alarm/error has occurred during the test Yellow: History - Use the History button on the left side of the screen to acknowledge the status and reset the history indication.
  • Page 25 UX400 10G e-Manual D07-00-058P RevA00 Page 25 of 209 System Configuring Test Module Application Home Screen (100GE) Note: Depending on the type of test module (single or dual port) one or two test tabs can be assigned to a test module.

  • Page 26: Platform Settings

    UX400 10G e-Manual D07-00-058P RevA00 Page 26 of 209 Dual port test modules usually allow two fully independent tests (e.g. one 10GE test in port 1 and another SONET/SDH test on port 2) or dual port applications. Test ports are identified by their position nomenclature. For example, L-C-2 identifies the port 2 of the test module located on the left column and C row.
  • Page 27 UX400 10G e-Manual D07-00-058P RevA00 Page 27 of 209 IP Tools Setup Advanced Tools The Home menu can be accessed at anytime during operation by pressing the Home key. Go back to top Go back to TOC 5.3.2 Utilities The Utilities tab on the settings home screen offers the following options:...
  • Page 28 UX400 10G e-Manual D07-00-058P RevA00 Page 28 of 209 Settings The following options are available under settings: About Backlight Global Date & Time Remote Access Power Utilities Settings Go back to top Go back to TOC About: Gives information about the unit - the serial number, the version of the software running on the unit, customer care number, Management MAC address, options installed on the unit, and also information about the different modules installed on the unit.
  • Page 29 UX400 10G e-Manual D07-00-058P RevA00 Page 29 of 209 Utilities Settings - About Page 3 Utilities Settings - About Page 4 Go back to top Go back to TOC Backlight: The Backlight tab, which can also be accessed directly from the Utilities menu on the left side of the screen, shows information about the Battery Power, AC Power, and Brightness adjustment tool.
  • Page 30 UX400 10G e-Manual D07-00-058P RevA00 Page 30 of 209 Utilities Backlight Brightness Go back to top Go back to TOC Global: The Global tab offers the following options to configure: General Settings: Language, Unit, Audible Alarm, Show Password Storage Setting: How the system should work while performing operations that deal with storage of files and data: File Name Prefix, Profile Deleting, Profile Saving, Result Saving, Advanced Saving.
  • Page 31 UX400 10G e-Manual D07-00-058P RevA00 Page 31 of 209 Utilities - Save Screen Go back to top Go back to TOC Date & Time: The date and time settings for the unit can be set through this tab. Date & Time Configuration...

  • Page 32: Files

    UX400 10G e-Manual D07-00-058P RevA00 Page 32 of 209 Go back to top Go back to TOC Remote Access: Remote Access Configuration Go back to top Go back to TOC Power: The Power tab displays the source of the power to the unit and status of the battery.
  • Page 33 UX400 10G e-Manual D07-00-058P RevA00 Page 33 of 209 Go back to top Go back to TOC...

  • Page 34: Ethernet Test Application

    UX400 10G e-Manual D07-00-058P RevA00 Page 34 of 209 6.0 10G Ethernet Test Application Follow the steps to assign the test module to a test tab as described in Chapter 5 of this manual. Select the 10G Ethernet Testing Application (Single Port or Dual Port) and click "Accept".
  • Page 35 Stop All: Once the test starts on both ports, the Start All button will change to Stop All. Tapping on this button will simultaneously stop the test on both ports. Go back to top Go back to TOC 6.1 Setup 6.1.1 Port Setup Port setup configuration is accessed from the Setup menu located on the home page of 10GE Test App. UX400 10G Ethernet Test App Setup...
  • Page 36 UX400 10G e-Manual D07-00-058P RevA00 Page 36 of 209 The following configurations are available: 10G port profile: Default 10GE Mode: LAN / WAN WIS Mode (for WAN): SDH / SONET Flow Control: Enable Clock Offset (ppm): Can be configured; range is +/- 150ppm Go back to top Go back to TOC 6.1.2 Measurement Setup...
  • Page 37 UX400 10G e-Manual D07-00-058P RevA00 Page 37 of 209 Go back to top Go back to TOC...

  • Page 38: Setup

    6.1 Setup 6.1.1 Port Setup Port setup configuration is accessed from the Setup menu located on the home page of 10GE Test App. UX400 10G Ethernet Test App Setup The following configurations are available: 10G port profile: Default 10GE Mode: LAN / WAN...
  • Page 39 UX400 10G e-Manual D07-00-058P RevA00 Page 39 of 209 Measurement Mode Measurement TX Start Go back to top Go back to TOC...

  • Page 40: Bert

    UX400 10G e-Manual D07-00-058P RevA00 Page 40 of 209 6.2 BERT 6.2.1 BERT Setup Overview: BER testing at Layer 2, 3 and 4 is supported. The BERT can be configured to use either regular PRBS test patterns, stress patterns (specifically for 10Gigabit Ethernet) or user defined test patterns to simulate various conditions.
  • Page 41 UX400 10G e-Manual D07-00-058P RevA00 Page 41 of 209 Go back to top Go back to TOC 6.2.1.1 Header Settings BERT Profile: Load a previously configured test profile or create a new profile from existing settings. Currently its set to "Default".
  • Page 42 UX400 10G e-Manual D07-00-058P RevA00 Page 42 of 209 Go back to top Go back to TOC VLAN Tab: In the VLAN tab the following parameters are configured: VLAN ID: Configurable in the range 1 to 4094. VLAN ID is the identification of the VLAN, which is basically used by the standard 802.1Q.
  • Page 43 UX400 10G e-Manual D07-00-058P RevA00 Page 43 of 209 Go back to top Go back to TOC MPLS Tab (Only for Layer 3 & 4): In the MPLS tab the following parameters are configured: MPLS label: Configurable in the range 16 through 1,048,575 (labels 0 to 15 are reserved).
  • Page 44 UX400 10G e-Manual D07-00-058P RevA00 Page 44 of 209 1000 - Minimize Delay 0100 - Maximize Throughput 0010 - Maximize Reliability 001 - Minimize Monetary Cost 0000 - Normal Service DSCP (Differentiated Services Code Point): The first six bits of the IP TOS can be edited to provide more granular service classification.
  • Page 45 UX400 10G e-Manual D07-00-058P RevA00 Page 45 of 209 Go back to top Go back to TOC RX Filter Tab: Allows the user to filter incoming streams. When checked, the incoming traffic flows not matching these criteria will not be considered for these results.
  • Page 46 UX400 10G e-Manual D07-00-058P RevA00 Page 46 of 209 UDP/TCP (Layer 4 only): Input Source Port and Destination Port. BERT Setup - UDP/TCP (Layer 4) Go back to top Go back to TOC 6.2.1.2 Traffic Settings Traffic tab: The user configures the traffic profile for the stream, including traffic flow, frame size, frame type, and transmit rate.
  • Page 47 UX400 10G e-Manual D07-00-058P RevA00 Page 47 of 209 BERT Setup - Burst Traffic BERT Setup - Single Burst Go back to top Go back to TOC 6.2.1.3 Error Injection Error injection can be performed during testing. The error type and injection rate are configured in the Error Injection tab.
  • Page 48 UX400 10G e-Manual D07-00-058P RevA00 Page 48 of 209 Error Injection After pressing Start, error injection can be enabled by pressing the Error Inj. button on the right side of the screen. Go back to top Go back to TOC 6.2.1.4 Alarm Injection Settings...

  • Page 49: Summary

    Note: If testing on the fiber ports, make sure the LASER is turned on before starting the test. End-to-End Testing Connect the UX400 to another unit that supports BERT testing. After configuring test settings on both units, start the tests.

  • Page 50: Errors

    UX400 10G e-Manual D07-00-058P RevA00 Page 50 of 209 BERT Results - Signal (Page 3) Go back to top Go back to TOC 6.2.2.2 Errors Errors tab: The following errors (Current and Total) are displayed: PCS Errored Block Bits: Indicates errors related to test pattern (Bit Error or LSS [Pattern Loss])

  • Page 51: Alarms

    UX400 10G e-Manual D07-00-058P RevA00 Page 51 of 209 Go back to top Go back to TOC 6.2.2.3 Alarms Alarms tab: The following Alarms (Current and Total) are displayed: LOS (ms): Loss of Signal LOSync: Loss synchronization Pattern Loss: Indicates errors related to test pattern...

  • Page 52: Traffic

    UX400 10G e-Manual D07-00-058P RevA00 Page 52 of 209 Go back to top Go back to TOC 6.2.2.6 Traffic Traffic tab: The following Traffic statistics are displayed: Frame type: Test and non-test frames Traffic type: Layer 2 and Layer 3 Unicast, Broadcast, and Multicast frame percentage Frame size distribution Tap on the graph for detailed screens.
  • Page 53 UX400 10G e-Manual D07-00-058P RevA00 Page 53 of 209 Go back to top Go back to TOC Traffic Type: The following Traffic distribution statistics are displayed in Count (#) and Percentage (%): Layer 2 Unicast frames: Number of Unicast frames received without FCS errors.

  • Page 54: Delay

    UX400 10G e-Manual D07-00-058P RevA00 Page 54 of 209 Go back to top Go back to TOC 6.2.2.7 Delay Delay measures the interpacket gap, start of the frame, and preamble duration. Frame arrival statistics are displayed in tabular format: Current...

  • Page 55: Saving Bert Results

    UX400 10G e-Manual D07-00-058P RevA00 Page 55 of 209 BERT Results - Rate Details Go back to top Go back to TOC 6.3.3 Saving BERT Results Once the test has been stopped the results can be saved by pressing the Save key on the platform's keypad.
  • Page 56 UX400 10G e-Manual D07-00-058P RevA00 Page 56 of 209 Once the results are saved, they can be viewed or renamed by going to Tools / System Settings screen> Files. Please see Chapter 5.3.3 Files section. Go back to top Go back to TOC...

  • Page 57: Rfc2544

    UX400 10G e-Manual D07-00-058P RevA00 Page 57 of 209 6.3 RFC2544 Overview: RFC 2544 recommendations are well accepted in the test and measurement industry for network performance testing. The RFC 2544 test suite consists of and performs a set of four automated tests (throughput, latency, frame loss, and burst or back-to-back) to qualify the performance of a network link under test. The tests are especially popular for the verification of network links with certain service level agreements (SLA).
  • Page 58 Ethernet Type: Can be configured for Layer 2 RFC2544 Setup MAC Layer 2 RFC2544 MAC Editing Data: No payload selection is possible for Layer 2. The payload area is populated with a VeEX signature field and other proprietary data. RFC2544 Data Layer 2...
  • Page 59 UX400 10G e-Manual D07-00-058P RevA00 Page 59 of 209 RX Filter: Allows to filter streams by: MAC Destination address MAC Source address RFC2544 Setup RX Filter Layer 2 VLAN: If VLAN tag was selected on the setup main screen for Layer 2, then the VLAN Frame will be visible on the Frames figure. Tap on the VLAN frame to configure the...
  • Page 60 UX400 10G e-Manual D07-00-058P RevA00 Page 60 of 209 Go back to top Go back to TOC Layer 3 MAC/IP: Tap the MAC or IP block on the Frame image to access the setup menus. MAC Source: Use the default source address of the test set or configure a new or different address. See MAC address editing screen shot above.
  • Page 61 UX400 10G e-Manual D07-00-058P RevA00 Page 61 of 209 Data: No payload selection is possible. The payload area is populated with a VeEX signature field and other proprietary data. RX Filter Tab: Allows to filter streams by: MAC Destination address...
  • Page 62 UX400 10G e-Manual D07-00-058P RevA00 Page 62 of 209 VLAN: If VLAN tag was selected on the setup main screen for Layer 3, then the VLAN Frame will be visible on the Frames figure. Tap on the VLAN frame to configure the...

  • Page 63: Frames Settings

    UX400 10G e-Manual D07-00-058P RevA00 Page 63 of 209 RFC 2544 Header Setups The MAC, VLAN, MPLS, and IP configuration procedures are the same as in BERT mode. Please refer to the BERT Application section for details. Go back to top Go back to TOC 6.3.1.2 Frames Settings...

  • Page 64: Threshold Settings

    UX400 10G e-Manual D07-00-058P RevA00 Page 64 of 209 Go back to top Go back to TOC 6.3.1.3 Threshold Settings Threshold settings can be enabled or disabled for the throughput and latency tests. When enabled, threshold settings can be configured for all of the test frames selected in the frame settings tab.
  • Page 65 UX400 10G e-Manual D07-00-058P RevA00 Page 65 of 209 Go back to top Go back to TOC Latency: The following parameters can be configured: Test Rate: Throughput Rate or Custom Rate. The default value is Throughput. Throughput rate: Latency test will be performed at the Throughput rate found for each of the tested frame sizes.

  • Page 66: Starting/Stopping A Rfc 2544 Measurement

    UX400 10G e-Manual D07-00-058P RevA00 Page 66 of 209 RFC2544 Frame Loss Settings Go back to top Go back to TOC Burst (Back-to-Back): The following parameters can be configured: Max Rate: The default value is 100%. In the burst test, frames are always transmitted at the maximum rate for a given minimum and maximum burst duration.

  • Page 67: Status

    UX400 10G e-Manual D07-00-058P RevA00 Page 67 of 209 The progress and current result of the RFC 2544 can be viewed as the test is in progress. Navigate the respective sub-tabs (throughput, latency, frame loss, or burst) to view the results for each test. For the burst test, the results can be viewed in summary table format or test log format.
  • Page 68 UX400 10G e-Manual D07-00-058P RevA00 Page 68 of 209 RFC2544 Results Signal Page 2 RFC2544 Results Signal Page 3...
  • Page 69 UX400 10G e-Manual D07-00-058P RevA00 Page 69 of 209 Go back to top Go back to TOC 6.3.2.4 Events: A time stamped log of each test is displayed. RFC 2544 Results Events Go back to top Go back to TOC 6.3.2.5 Throughput: The Throughput tab displays the maximum throughput rate of the link under test.
  • Page 70 UX400 10G e-Manual D07-00-058P RevA00 Page 70 of 209 RFC2544 Results Throughput Rx Graphical RFC2544 Results Throughput Test Log...
  • Page 71 UX400 10G e-Manual D07-00-058P RevA00 Page 71 of 209 Go back to top Go back to TOC 6.3.2.6 Latency and Jitter Latency and frame jitter measurements results are displayed under the Latency tab in the following formats: Graphical: Latency results displayed in line graph form (Latency [us] vs Frame size [bytes]).
  • Page 72 UX400 10G e-Manual D07-00-058P RevA00 Page 72 of 209 RFC2544 Jitter Results Graphical RFC2544 Jitter Results Summary...
  • Page 73 UX400 10G e-Manual D07-00-058P RevA00 Page 73 of 209 RFC2544 Jitter Results Test Log Go back to top Go back to TOC 6.3.2.7 Frame Loss Frame loss displays the percentage of frames not received. Use the drop-down menu to select the Frame Loss format: Summary and Test log tables display test frame length, byte size, frame loss (%) from received traffic, and rate (%) transmitted.
  • Page 74 UX400 10G e-Manual D07-00-058P RevA00 Page 74 of 209 RFC2544 Results - Frame Loss Summary RFC2544 Results - Frame Loss Test Log...
  • Page 75 UX400 10G e-Manual D07-00-058P RevA00 Page 75 of 209 Go back to top Go back to TOC 6.3.2.8 Burst Burstability (back-back) results are the number of frames successfully transmitted/received at the line rate. It is displayed in the following formats:...
  • Page 76 UX400 10G e-Manual D07-00-058P RevA00 Page 76 of 209 Once the results are saved, they can be viewed or renamed by going to Tools / System Settings screen> Files. Please see Chapter 5.3.3 Files section. Go back to top Go back to TOC...
  • Page 77 Page 77 of 209 6.4 V-SAM V-SAM (VeEX Service Activation Methodology) is an automated Ethernet service activation test feature conforming to the ITU-T Y.1564 standard, created to address and solve the deficiencies of RFC 2544: • RFC 2544 was limited to test at the maximum throughput line rate for a single service. SAM is able to run multiple services on a single 10/100/1000 or 10G Ethernet line at a bandwidth ranging from 0 to the line rate, allowing for more realistic stream testing •...
  • Page 78 UX400 10G e-Manual D07-00-058P RevA00 Page 78 of 209 Phase 2: Service Performance Test Services running on the same line are tested simultaneously over an extended period of time, to verify network robustness. Service Acceptance Criteria (SAC) including Frame Transfer Delay (FTD), Frame Delay Variation (FDV), Frame Loss Ratio (FLR) and Availability (AVAIL) are verified for each service.
  • Page 79 UX400 10G e-Manual D07-00-058P RevA00 Page 79 of 209 CIR Test Configuration CIR Test Config.: Select Simple Test, Step Load Test, or Simple and Step. Simple Test: Starts the tests at the CIR. Step Load Test: Starts the test below the CIR and continues in steps until it reaches the CIR.
  • Page 80 UX400 10G e-Manual D07-00-058P RevA00 Page 80 of 209 Go back to top Go back to TOC 6.4.1.2 Service Attributes Bandwidth Profile Parameters The Bandwidth Profile specifies how much traffic the customer is authorized to transmit and how the frames are prioritized within the network. In the Bandwidth table, the user specifies the following bandwidth criteria: CIR: Committed Information Rate.
  • Page 81 UX400 10G e-Manual D07-00-058P RevA00 Page 81 of 209 Enabling/Disabling Tests A check next to the parameters in the Service Attributes table indicates that the test for the corresponding service is set to run. Tap on the box to remove the check and cancel the test for that service.
  • Page 82 UX400 10G e-Manual D07-00-058P RevA00 Page 82 of 209 Copying Services Tap on the Copy button on the bottom of the Header or Service Attributes tabs to copy frame parameters specific to that tab to other services. For example, pressing Copy on the Header tab will only transfer header parameters to other services.
  • Page 83 UX400 10G e-Manual D07-00-058P RevA00 Page 83 of 209 CIR/EIR test: The test passes if the received IR value is between the CIR (minus the margin allowed by the FLR) and CIR+EIR. CIR/EIR Test - Service 1 Policing test: The test passes if the received traffic rate is at least at the CIR (minus the margin allowed by the FLR) but does not exceed the allowed CIR+EIR.
  • Page 84 UX400 10G e-Manual D07-00-058P RevA00 Page 84 of 209 Summary: The Summary tab displays the status of each service and test as Pass, Failed, Pending, or Disabled. Results - Config. Tests - Summary Go back to top Go back to TOC 6.4.2.2 Performance Test...
  • Page 85 UX400 10G e-Manual D07-00-058P RevA00 Page 85 of 209 Go back to top Go back to TOC 6.4.2.3 Signal The Signal tab displays the optical level measured by the SFP or XFP transceiver. Signal Page 1 Signal Page 2 Signal Page 3...
  • Page 86 UX400 10G e-Manual D07-00-058P RevA00 Page 86 of 209 Go back to top Go back to TOC 6.4.2.4 Event Log A time stamped record or log of test types and test statuses (start/stop). Event Log Go back to top Go back to TOC...
  • Page 87 UX400 10G e-Manual D07-00-058P RevA00 Page 87 of 209 6.5 Throughput Testing Overview: The Throughput application performs the following measurements: Throughput performance, Frame Loss analysis, Delay analysis, Frame/Packet arrival analysis, received Traffic Type analysis, and received Traffic Frame Size analysis. On the transmit side, the Throughput application currently allows only one stream with its MAC and IP address, VLAN tags (up to 3), bandwidth/rate, frame size, and L2 and/or L3 quality of service (QoS) parameters.
  • Page 88 UX400 10G e-Manual D07-00-058P RevA00 Page 88 of 209 Go back to top Go back to TOC 6.5.1.2 Header Settings The configurable parameters and procedure for the Header settings in Layer 2, 3 and 4 are the same as for RFC2544 - Chapter 6.4...
  • Page 89 UX400 10G e-Manual D07-00-058P RevA00 Page 89 of 209 Traffic Flow: Only Constant is available Frame Size (Type): Fixed Frame Size (bytes): Enter the frame size. Frame sizes can be from 64bytes to 1518bytes, in addition to jumbo frames up to 9k bytes.
  • Page 90 UX400 10G e-Manual D07-00-058P RevA00 Page 90 of 209 Alarm injection can be performed during test. The type of alarms and alarm injection are configured in the Alarm Injection tab. Once the test is running, alarm injection can be performed by pressing the Alarm Inject button on the right side of the screen.
  • Page 91 UX400 10G e-Manual D07-00-058P RevA00 Page 91 of 209 When the test is first started, the screen automatically changes to the Global/Aggregate results screen. Go back to top Go back to TOC 6.5.2.1 Global Results The Global results pages display measurements for all traffic streams as well as non test traffic.
  • Page 92 UX400 10G e-Manual D07-00-058P RevA00 Page 92 of 209 (Classes 4-7) Go back to top Go back to TOC The Aggregate screen displays these parameters: Line Rate (bps): Negotiated rate of the interface (10M, 100M, or 1000M). This value is always fixed since it depends on the maximum capacity of the link under test, hence the test interface that is configured.
  • Page 93 UX400 10G e-Manual D07-00-058P RevA00 Page 93 of 209 Throughput Results - Global Signal Page 3 Go back to top Go back to TOC The Global Errors screen displays the Current and Total error count of all streams: PCS Errored Block...
  • Page 94 UX400 10G e-Manual D07-00-058P RevA00 Page 94 of 209 Go back to top Go back to TOC The Global Alarms screen displays the Current and Total alarm count of all streams: LOS (ms): Loss of Signal Link Down (ms) Service disruption associated with loss of signal:...
  • Page 95 UX400 10G e-Manual D07-00-058P RevA00 Page 95 of 209 The Global Traffic screen displays: Frame Type of all streams Traffic Type of all streams Frame size of all streams Throughtput Results - Global Traffic Go back to top Go back to TOC Tap on the graph to view the details for Frames distribution, Traffic Type and Frame Size.
  • Page 96 UX400 10G e-Manual D07-00-058P RevA00 Page 96 of 209 Go back to top Go back to TOC Traffic Type: The following Traffic distribution statistics are displayed in Count (#) and Percentage (%): Layer 2 Unicast frames: Number of Unicast frames received without FCS errors.
  • Page 97 UX400 10G e-Manual D07-00-058P RevA00 Page 97 of 209 Go back to top Go back to TOC The Global Delay tab: Delay measures the interpacket gap, start of the frame, and preamble duration. Frame arrival statistics are displayed in tabular format:...
  • Page 98 UX400 10G e-Manual D07-00-058P RevA00 Page 98 of 209 Go back to top Go back to TOC The Per Stream Errors screen displays the Current and Total error count of each stream. Bit: Indicates errors related to test pattern (Bit Error or LSS [Pattern Loss])
  • Page 99 UX400 10G e-Manual D07-00-058P RevA00 Page 99 of 209 Go back to top Go back to TOC The Per Stream Traffic screen displays the frame type and frame size distribution pertaining to each stream. Throughtput Results - Per Stream Traffic Tap on the graph to see details for Frames (RX and TX) and Frame Size distribution.
  • Page 100 UX400 10G e-Manual D07-00-058P RevA00 Page 100 of 209 Go back to top Go back to TOC The Per Stream Delay screen displays the frame delay information pertaining to each stream. Throughtput Results - Per Stream Delay Go back to top Go back to TOC The Per Stream Rates screen displays the frame rate and data rate pertaining to each stream.
  • Page 101 UX400 10G e-Manual D07-00-058P RevA00 Page 101 of 209 Go back to top Go back to TOC 6.5.3 Saving Throughput Results Once the test has been stopped the results can be saved by pressing the Save key on the platform's keypad.
  • Page 102 UX400 10G e-Manual D07-00-058P RevA00 Page 102 of 209 6.6 Loopback The Loopback application in the main menu allows the user to establish a manual loopback on the test set. The loopback function is used when an end-to-end test needs to be performed with one of the test partners in software loopback mode.
  • Page 103 UX400 10G e-Manual D07-00-058P RevA00 Page 103 of 209 Press Start to begin loopback. indicates that loopback is in progress. Go back to top Go back to TOC 6.6.2 Results The Results tab displays current test results. Go back to top Go back to TOC 6.6.2.1 Summary...
  • Page 104 UX400 10G e-Manual D07-00-058P RevA00 Page 104 of 209 Results Signal Page 3 Go back to top Go back to TOC 6.6.2.3 Errors The following errors (Current and Total) are displayed: FCS/CRC: Number of received frames with an invalid FCS IP Checksum (Layer 3 &...
  • Page 105 UX400 10G e-Manual D07-00-058P RevA00 Page 105 of 209 Go back to top Go back to TOC 6.6.2.4 Alarms The following alarms (Current and Total) are displayed: LOS (ms): Loss of Signal LOSync: Pattern Loss: Indicates errors related to test pattern...
  • Page 106 UX400 10G e-Manual D07-00-058P RevA00 Page 106 of 209 Go back to top Go back to TOC 6.6.2.6 Traffic The following Traffic statistics are displayed: Frame type: Test and non-test frames Traffic type: Layer 2 and Layer 3 Unicast, Broadcast, and Multicast frame percentage Frame size distribution Tap on the graph for detailed screens.
  • Page 107 UX400 10G e-Manual D07-00-058P RevA00 Page 107 of 209 Frames: The following Frame distribution statistics are displayed in Count (#) and Percentage (%): Received (RX) frames: Total frames VLAN tagged frames VLAN stacked frames Pause frames: RX Total number of received Ethernet pause flow-control frames...
  • Page 108 UX400 10G e-Manual D07-00-058P RevA00 Page 108 of 209 Results Delay Go back to top Go back to TOC 6.6.2.8 Rates Rate statistics are displayed in a graph format. Tap on either gauge to see rate details in table form. The table shows received (Rx) current, minimum, maximum and average frame rates (FPS) and Data Rates (Mbps).
  • Page 109 6.7 Advanced Tools Advanced Tools The UX400 platform features two Advanced Tools menus--one that offers test applications common to all modules across the platform and one specific to different test applications. Please note the IPTV, Net Wiz, and Packet Capture functions are not supported in this release.
  • Page 110 UX400 10G e-Manual D07-00-058P RevA00 Page 110 of 209 VLAN ID The VLAN Stack tab displays detected SP and CE VLAN tags (if stack VLAN tags are used). VLAN Stack Monitoring Traffic To only receive traffic streams meeting specific criteria, stop the scan and go to the Monitor tab to configure filter criteria.
  • Page 111 UX400 10G e-Manual D07-00-058P RevA00 Page 111 of 209 Monitor Global Results Aggregate Monitor Global Results Stream Summary Monitor Per Stream Results Summary Monitor Per Stream Results Errors...
  • Page 112 UX400 10G e-Manual D07-00-058P RevA00 Page 112 of 209 Note: If no stream information is displayed in the Per Stream tab, return to the VLAN ID tab (Results > Scan > VLAN ID) and verify that the VLAN ID boxes are checked.
  • Page 113 UX400 10G e-Manual D07-00-058P RevA00 Page 113 of 209 7.0 OTN/ SDH/ SONET (OTU2/STM-64/OC-192) Test App Follow the steps to assign the test module to a test tab as described in Chapter 5 of this manual. Select the OTU2/STM-64/OC-192 Testing Application (Single or Dual Port) and click "Accept".
  • Page 114 UX400 10G e-Manual D07-00-058P RevA00 Page 114 of 209 Signal and Frame on the left side of the screen. OTU2/STM-64/OC-192 Testing Home Screen For safety reasons the transmitter laser is OFF by default. After making all the right connections, tap the Laser On/Off button on the right side of the screen.
  • Page 115 UX400 10G e-Manual D07-00-058P RevA00 Page 115 of 209 Dual Port Operation When the dual port interfaces and software options are enabled, the test module can operate a combination of two ports at the same time. Start All: The Start All button is located on the right side of the dual port operation mode screen. Tapping this button will simultaneously start a test on both ports.
  • Page 116 UX400 10G e-Manual D07-00-058P RevA00 Page 116 of 209 7.1 Setup The Setup tab allows the user to select SDH, SONET, OTN and PDH and all the other related configurations under the following menus: Signal Measurements General Setup Home Go back to top Go back to TOC 7.1.1 Signal Overview...
  • Page 117 UX400 10G e-Manual D07-00-058P RevA00 Page 117 of 209 Rx=Tx: Rx blocks will copy the settings made in the Tx blocks Changes to the Setup are applied immediately unless an invalid parameter has been selected. When the TX and RX signal structures need to be independent or asymmetrical, uncoupling the transmitter and receiver is possible. For example, the TX could be sending a PRBS of 2^23-1 in a VC12 carried within an optical STM-64, while the RX could be expecting to receive a PRBS of 2^23-1 in a 2Mbps E1 signal.
  • Page 118 UX400 10G e-Manual D07-00-058P RevA00 Page 118 of 209 Go back to top Go back to TOC 7.1.1.2 Interface: Allows the user to select the following: Clock source: Internal: The clock for the transmitter is derived from the internal clock. The internal clock has an accuracy of +/- 3.5ppm conforming to G.812 recommendations.
  • Page 119 UX400 10G e-Manual D07-00-058P RevA00 Page 119 of 209 For SDH: Both AU-4 and AU-3 signal mappings per G.707 recommendations are supported. The multiplexing structure is shown below. SDH Multiplexing Structure AU4 Mapping: VC4-64C, VC4-16C, VC4-4C, VC4, VC3, and VC12 are available.
  • Page 120 UX400 10G e-Manual D07-00-058P RevA00 Page 120 of 209 For STM-1 using AU-3 mapping: [A] convention is used For STM-1 using AU-4 mapping: [0] convention is used The low order paths are named using a K, L, M convention as follows:...
  • Page 121 UX400 10G e-Manual D07-00-058P RevA00 Page 121 of 209 In VC12 mapping mode, the Low Rate options are 2M or Fractional E1 (N x64) where: 2M: Configures the transmitter for full rate testing at 2.048Mbps Fractional E1: Configures the transmitter for fractional testing using N or M 64kbps timeslots (contiguous or non-contiguous timeslots)
  • Page 122 UX400 10G e-Manual D07-00-058P RevA00 Page 122 of 209 Measurements tab Go back to top Go back to TOC 7.1.2.1 Timer Setup Configure a test to run for a fixed duration or a delayed start. Mode: Manual, Timed, and Auto selections are available Manual Timed: The test duration can be set by the user.
  • Page 123 UX400 10G e-Manual D07-00-058P RevA00 Page 123 of 209 The recommendations are briefly defined as follows: G.821: Error performance of an international digital connection operating at a bit rate below the primary rate and forming part of an Integrated Service Digital Network (ISDN)
  • Page 124 UX400 10G e-Manual D07-00-058P RevA00 Page 124 of 209 APS Protocol: Linear or Ring architectures are selectable. This determines how the APS bytes (K1/K2) are decoded in the SDH Overhead Analyzer or how they are generated in the SDH Overhead Generator. It also determines how the APS measurement will be made.
  • Page 125 UX400 10G e-Manual D07-00-058P RevA00 Page 125 of 209 7.2 Results Accessing Results To access measurements for SDH, SONET, and OTN, tap on Start, which starts testing and takes the user to the Results screen, or tap on Results on the home screen.
  • Page 126 UX400 10G e-Manual D07-00-058P RevA00 Page 126 of 209 Page 2 lists the SDH Errors in logical order that are associated with the signal under test. All errors are evaluated and stored. The Elapsed Time [ET] is shown in the right hand corner of the header.
  • Page 127 UX400 10G e-Manual D07-00-058P RevA00 Page 127 of 209 Go back to top Go back to TOC Errors/Alarms (Page 5) For SDH and SONET Page 5 lists the Bit Error Performance (BERT) associated with the signal under test. Errors/Alarms - BERT (SDH/ SONET Page 5) For OTN Page 5 &...
  • Page 128 UX400 10G e-Manual D07-00-058P RevA00 Page 128 of 209 Errors/Alarms (Page 7) - (For OTN Only) For OTN the Error/ Alarms tab has 7 pages. Page 7 lists the Bit Error Performance (BERT) associated with the signal under test. Errors/Alarms - OTN Page 7 Go back to top Go back to TOC 7.2.3 Event Log...
  • Page 129 UX400 10G e-Manual D07-00-058P RevA00 Page 129 of 209 Go back to top Go back to TOC 7.2.4 Signal The signal tab displays the Level and Frequency screen. Page 1: Displays Level measurements in electrical units (volts) for SDH and SONET, and in dBm for OTN. Loss of Signal (LOS) and the Saturation levels is shown both graphically and in dBm.
  • Page 130 Low quality clock sources that deviate from the nominal value cause problems in the operation of network elements. It is necessary and recommended to measure the signal frequency at all hierarchies to reduce synchronization risks. To measure line frequency in service, the UX400 unit must be connected to a Protected Monitoring Point (PMP).
  • Page 131 UX400 10G e-Manual D07-00-058P RevA00 Page 131 of 209 including BER. Scroll through the various pages to display the anomalies of interest. Histogram (Page 1) The alarms and errors presented will depend on the signal type and structure selected. A graphical timeline on the horizontal axis indicates when the event occurred since the test was started.
  • Page 132 UX400 10G e-Manual D07-00-058P RevA00 Page 132 of 209 Page 5: Displays BERT Alarms / Errors. LSS (Loss of Sequence Synchronization) and BIT errors. Histogram - BERT Alarms/Errors (Page 5) Go back to top Go back to TOC 7.2.6 Graph The Graph tab brings up a screen displaying a log of the errors recorded during the measurement interval.
  • Page 133 UX400 10G e-Manual D07-00-058P RevA00 Page 133 of 209 A graphical timeline on the horizontal axis indicates when the event occurred while the vertical axis indicates the logarithmic scale of errors. The upper left and right arrows allow the user to scroll through the measurement period, while the + and – keys allow zooming in/out of the time axis.
  • Page 134 UX400 10G e-Manual D07-00-058P RevA00 Page 134 of 209 Go back to top Go back to TOC 7.2.7.2 Evaluation According to ITU-T G.826 G.826 recommendation makes provision for higher bit rates and allows in-service measurement using the evaluation of block errors.

  • Page 135: Evaluation According To Itu-T

    UX400 10G e-Manual D07-00-058P RevA00 Page 135 of 209 G.828 evaluation can be performed on the following events: MS-REI HP-REI LP-BIP LP-REI Bit errors (TSE) Evaluation of the near end and far-end is possible, however far-end evaluations can only be made if REI is available.

  • Page 136: Evaluation According To Itu-T M.2100

    UX400 10G e-Manual D07-00-058P RevA00 Page 136 of 209 Go back to top Go back to TOC 7.2.7.5 Evaluation According to ITU-T M.2100 M.2100 applies to commissioning and maintenance. Commissioning consists of a 15-minute line up phase followed by a 24-hour in-service measurement. Once the line up phase is completed successfully, errors may occur within certain limits.

  • Page 137: Evaluation According To Itu-T M.2101

    UX400 10G e-Manual D07-00-058P RevA00 Page 137 of 209 Go back to top Go back to TOC 7.2.7.6 Evaluation According to ITU-T M.2101 M.2101 is very similar to M.2100 except it deals with SDH systems only. ES, SES, BBE, SEP and UAS are evaluated.
  • Page 138 UX400 10G e-Manual D07-00-058P RevA00 Page 138 of 209 SDH Error and Alarm defection criteria per ITU-T G.707 and O.150 recommendations: SDH Error and Alarm defection criteria per ITU-T G.707 and O.150 recommendations:...

  • Page 139: Sonet

    UX400 10G e-Manual D07-00-058P RevA00 Page 139 of 209 Go back to top Go back to TOC 7.2.8.2 SONET: SONET Error and Alarm definitions per Bellcore GR.253 and ANSI T1.105 recommendations:...
  • Page 140 UX400 10G e-Manual D07-00-058P RevA00 Page 140 of 209 SONET Error and Alarm defection criteria per Bellcore GR.253 and ANSI T1.105/231:...

  • Page 141: Otn

    UX400 10G e-Manual D07-00-058P RevA00 Page 141 of 209 Go back to top Go back to TOC 7.2.8.3 OTN: OTN Error and Alarm definitions per ITU-T G.709 recommendations:...
  • Page 142 UX400 10G e-Manual D07-00-058P RevA00 Page 142 of 209 Go back to top Go back to TOC...

  • Page 143: Alarm / Error Injection

    UX400 10G e-Manual D07-00-058P RevA00 Page 143 of 209 7.3 Alarm / Error Injection Alarms and Errors can be injected into different signals. At any time during the test process, tap the Error Injection or Alarm Injection buttons to inject errors or generate alarms.

  • Page 144: Sdh Alarms

    UX400 10G e-Manual D07-00-058P RevA00 Page 144 of 209 7.3.2.1 SDH Alarms The following SDH Alarms can be generated: STM-1/4/16/64 (depends on signal structure): LOS, LOF, MS-AIS, MS-RDI, RS-TIM, AU-LOP, AU-AIS, HP-UNEQ, HP- PLM, HP-RDI, HP-TIM Go back to top Go back to TOC 7.3.2.2 SONET Alarms...

  • Page 145: Error Generation

    UX400 10G e-Manual D07-00-058P RevA00 Page 145 of 209 Go back to top Go back to TOC 7.3.3 Error Generation OTN, SDH, and SONET errors can be generated. Go back to top Go back to TOC 7.3.3.1 SDH Errors The following SDH errors can be generated:...

  • Page 146: Sonet Errors

    UX400 10G e-Manual D07-00-058P RevA00 Page 146 of 209 Go back to top Go back to TOC 7.3.3.2 SONET Errors The following SONET errors can be generated: FAS, Section BIP, Line BIP, Line REI, Path BIP, Path REI SONET Error Type...

  • Page 147: Otn Errors

    UX400 10G e-Manual D07-00-058P RevA00 Page 147 of 209 7.3.3.3 OTN Errors OTU-2 signals: FAS, MFAS, BIP, BEI, Corrected FEC errors, Uncorrectable FEC ODU-2 signals: BIP, BEI OTN Error Type Go back to top Go back to TOC 7.3.4 Error Flow OTN, SDH, SONET signals Injects different anomalies into the transmit signal.

  • Page 148: Pattern Error

    UX400 10G e-Manual D07-00-058P RevA00 Page 148 of 209 Go back to top Go back to TOC 7.3.4 Pattern Error Errors can also be inserted in Pattern mode. Pattern Error Type: BIT Pattern Mode Go back to top Go back to TOC...
  • Page 149 UX400 10G e-Manual D07-00-058P RevA00 Page 149 of 209 Alarm Generation/Error Insertion At any time during the test process, tap the Error Injection or Alarm Generation buttons to inject errors or generate alarms. Note: Please refer to the tables in Chapter 7.2.8...

  • Page 150: Sonet Tools

    UX400 10G e-Manual D07-00-058P RevA00 Page 150 of 209 7.4 SONET Tools SONET Tools can be accessed by tapping the SONET/SDH Tools tab on the home screen. SONET test type will need to be selected in Setup to view SONET parameters under the Tools.
  • Page 151 UX400 10G e-Manual D07-00-058P RevA00 Page 151 of 209 The following is a partial list of SOH bytes and their corresponding functions: Section Layer Framing Bytes (A1/A2) The A1/A2 bytes indicate the beginning of the STS-N frame and provide a frame alignment pattern...
  • Page 152 UX400 10G e-Manual D07-00-058P RevA00 Page 152 of 209 Order Wire Byte (E1) Local order wire channel for voice communication between regenerators, cross connects, hubs and remote terminal locations F1 Byte Section user channel Byte is allocated for user purpose to carry proprietary messages...
  • Page 153 UX400 10G e-Manual D07-00-058P RevA00 Page 153 of 209 Go back to top Go back to TOC Line Layer B2 Byte A 24-bit interleaved even parity code used to determine if transmission errors have occurred over the Section Layer Its calculated over all the bits of the STS-3 frame except those in the Section overhead...
  • Page 154 UX400 10G e-Manual D07-00-058P RevA00 Page 154 of 209 1111 Extra traffic channels K1 Byte (APS-Linear) K1 Byte (APS-Ring) Used to activate and deactivate the switching between the main and protection paths on a multiplexer section APS message type conforms to ITU-T G.841/ Bellcore GR.253 Ring Network architectures...
  • Page 155 UX400 10G e-Manual D07-00-058P RevA00 Page 155 of 209 111 AIS-L Others Not used K2 Byte (APS-Linear) Data Communications Channel (DCC) Bytes (D4-D12) Data Communications Channel (DCC) – together these nine bytes form a 576kbps message channel for OAM purposes.

  • Page 156: Path Overhead Layer (Poh)

    UX400 10G e-Manual D07-00-058P RevA00 Page 156 of 209 The relief byte is used for ring protection Go back to top Go back to TOC 7.4.1.2 Path Overhead Layer (POH) The following is a partial list of POH bytes and their corresponding functions:...
  • Page 157 UX400 10G e-Manual D07-00-058P RevA00 Page 157 of 209 C2 byte (STS path signal label) Indicate the type of payload being transported in the STS, SPE, including the status of the mapped payloads. The table below indicates the standard C2 binary values: C2 Byte (STS Path signal label) C2 byte structure per GR.253 recommendations...
  • Page 158 UX400 10G e-Manual D07-00-058P RevA00 Page 158 of 209 STS-1 payload with 9 VT-x payload defects STS-1 payload with 10 VT-x payload defects STS-1 payload with 11 VT-x payload defects STS-1 payload with 12 VT-x payload defects STS-1 payload with 13 VT-x payload defects...
  • Page 159 UX400 10G e-Manual D07-00-058P RevA00 Page 159 of 209 Z3/Z4 byte (STS Path) Allocated for future use. Have no defined value. The receiver is required to ignore their content. Z5 byte (STS Path TCM) Allocated to provide a STS Path Tandem Connection monitoring function for contiguously concatenated STS-3 levels.

  • Page 160: Summary

    UX400 10G e-Manual D07-00-058P RevA00 Page 160 of 209 Bits 5-7 provide the VT signal label 000 Unequipped 001 Equipped (non-specific) 010 Asynchronous mapping for DS1 011 Bit synchronous mapping for DS1 100 Byte synchronous mapping for DS1 Bit 8 is the VT path RDI-V normally set to zero unless there is an error condition (AIS)
  • Page 161 UX400 10G e-Manual D07-00-058P RevA00 Page 161 of 209 Go back to top Go back to TOC 7.4.2 Overhead Generator Tap the Overhead Generator icon to display the OH screens shown below. There are three tabs: SOH TX, which allows editing of select bytes associated with the Section Overhead. Editing of J0, K1, K2, S1 is permitted as follows: Hexadecimal value using pop-up keypad.

  • Page 162: Overhead Generator

    UX400 10G e-Manual D07-00-058P RevA00 Page 162 of 209 POH TX, which allows editing of select bytes associated with the Path Overhead. Editing of J1, C2, H4, G1, Z5, and J2, V5, Z6 is permitted as follows: Hexadecimal value using pop-up keypad Binary values using simple on-screen bit toggle or pop-up keypad Convenient drop-down selections.

  • Page 163: Pointer Generator

    UX400 10G e-Manual D07-00-058P RevA00 Page 163 of 209 frames however the actual rate should be slower. The Administrative Unit (AU) and the Tributary Unit (TU) each has its own pointer and the unit has two tabs for displaying the values and measurements.

  • Page 164: Pointer Sequences

    UX400 10G e-Manual D07-00-058P RevA00 Page 164 of 209 Go back to top Go back to TOC 7.4.3.3 Pointer Sequences The Pointer generator is also able to generate Standard ITU-T G.783 and ANSI T1.105.03 and Bellcore GR-253 pointer sequences as follows:...

  • Page 165: Trace Identifier

    UX400 10G e-Manual D07-00-058P RevA00 Page 165 of 209 Pointer Sequence Testing It is recommended to run one sequence with positive adjustments followed by a sequence with negative adjustments. Performing the measurement at the maximum positive and negative frequency offset applicable to the line rate increases the stress on the pointer processor.

  • Page 166: Received Traces (Rx)

    UX400 10G e-Manual D07-00-058P RevA00 Page 166 of 209 Go back to top Go back to TOC 7.4.4.2 Received Traces (RX) J0 [Section]: Regenerator section trace/Section Layer trace Program a 1, 16-byte or 64-byte identifier to set and check the expected trace Enable or disable the TIM (Trace Identifier Mismatch) alarm J1 [STS Path]: High order path section trace/STS path section trace.
  • Page 167 UX400 10G e-Manual D07-00-058P RevA00 Page 167 of 209 V5 [VT Path]: Path signal label Program the TX and RX label by editing the hexadecimal value or by using the convenient drop-down menu selection For the RX label, you can enable or disable the Payload Mismatch (PLM) Alarm...
  • Page 168 The measurement will be triggered by an Alarm Indication Signal (AIS) The UX400 measures how long the AIS event remains present after the event is first recognized and will continue to measure the total disruption time in the event of multiple disruptions.
  • Page 169 UX400 10G e-Manual D07-00-058P RevA00 Page 169 of 209 TCM Standards The Tandem paths are defined in ITU recommendation G.707 Annex D and Annex E. ITU-T recommendation G.707 defines a tandem connection source and sink and describes the responses of each when defect (alarm) and error conditions are detected. Tandem connection maintenance signals are carried in the Z5 byte for STS-N and in the Z6 byte for VT's.
  • Page 170 UX400 10G e-Manual D07-00-058P RevA00 Page 170 of 209 Go back to top Go back to TOC 7.4.9 Round Trip Delay Round Trip Delay Results The Round Trip Delay (Propagation Delay) measurement works by sending a test pattern. An error is transmitted in the pattern. The time it takes for the error to reach the receiver is the propagation time through the network.

  • Page 171: Sdh Tools

    UX400 10G e-Manual D07-00-058P RevA00 Page 171 of 209 7.5 SDH Tools SDH Tools can be accessed by tapping the SDH/SONET Tools tab on the home screen. SDH test type will need to be selected in Setup to view SDH parameters under the Tools.
  • Page 172 UX400 10G e-Manual D07-00-058P RevA00 Page 172 of 209 Tapping the applicable byte enables an automatic decode – a byte description including the Hexadecimal and Binary value is provided. For some bytes, an advanced decode of the various bits is also available.
  • Page 173 UX400 10G e-Manual D07-00-058P RevA00 Page 173 of 209 Order Wire Byte (E1) Local order wire channel for voice communication between regenerators, cross connects, hubs and remote terminal locations F1 Byte Section user channel Byte is allocated for user purpose to carry proprietary messages...
  • Page 174 UX400 10G e-Manual D07-00-058P RevA00 Page 174 of 209 Go back to top Go back to TOC K1 Byte (APS-Ring) Used to activate and deactivate the switching between the main and protection paths on a multiplexer section APS message type conforms to ITU-T G.841/ Bellcore GR.253 Ring Network architectures...
  • Page 175 UX400 10G e-Manual D07-00-058P RevA00 Page 175 of 209 K2 Byte (APS-Linear) Go back to top Go back to TOC Data Communications Channel (DCC) Bytes (D4-D12) DCC – together these nine bytes form a 576kbps message channel for OAM purposes.
  • Page 176 UX400 10G e-Manual D07-00-058P RevA00 Page 176 of 209 Go back to top Go back to TOC 7.5.1.2 Path Overhead Layer The following is a partial list of POH bytes and their corresponding functions: J1 byte (STS Path Trace) High Order VC-N path trace byte A unique message is assigned to each path in a SDH network –...
  • Page 177 UX400 10G e-Manual D07-00-058P RevA00 Page 177 of 209 Go back to top Go back to TOC G1 byte (Path status) High Order path status byte Used to convey the path terminating status back to the originating path, thus allowing bidirectional monitoring of the complete path...
  • Page 178 UX400 10G e-Manual D07-00-058P RevA00 Page 178 of 209 Allocated to provide a High Order (HP) Tandem Connection monitoring function for contiguously concatenated VC-4, VC-4 and VC-3 levels. Bits 1-4: Used as an Incoming Error Count (IEC) per G.707 Bit 5: Operates as the TC-REI to indicate errored blocks occurring within the tandem connection Bit 6: Operates as the OEI to indicate errored blocks egressing the VC-n Bits 7-8: Operate in 76 multi-frame structure;...
  • Page 179 UX400 10G e-Manual D07-00-058P RevA00 Page 179 of 209 Go back to top Go back to TOC 7.5.1.3 Summary The Summary tab displays the summary screen listing the major bytes of the received SDH signal. Displays the Path Trace Identifiers (J0, J1, J2), APS (K1, K2), Synchronization status (S1), and HP (C2) and LP (V5) Signal Label bytes.
  • Page 180 UX400 10G e-Manual D07-00-058P RevA00 Page 180 of 209 Tap the Overhead Generator icon to display the OH screens shown below. There are three tabs: SOH TX, which allows editing of select bytes associated with the Section Overhead. Editing of J0, K1, K2, S1 is permitted as follows: Hexadecimal value using pop-up keypad.

  • Page 181: Overhead Generator

    UX400 10G e-Manual D07-00-058P RevA00 Page 181 of 209 Overhead Generator Programming most overhead bytes is possible using the OH Generator feature, however dedicated test functions are available for Pointer Tasks, Payload Labels, Trace Identifier, APS Testing, TCM testing. In some instances, more advanced editing is possible using the dedicated functions.

  • Page 182: Pointer Generation

    UX400 10G e-Manual D07-00-058P RevA00 Page 182 of 209 For TU pointers: Pointer value LOP (Loss of Pointer) PJE and NJE NDF or New Data Flags Difference and Sum Analysis - TU Go back to top Go back to TOC 7.5.3.2 Pointer Generation...

  • Page 183: Trace Identifier

    UX400 10G e-Manual D07-00-058P RevA00 Page 183 of 209 The Pointer generator is also able to generate Standard ITU-T G.783 and ANSI T1.105.03 and Bellcore GR-253 sequences as follows: Sequence: Decide how to affect the pointer sequence Basic: Specify whether the pointer is increasing or decreasing...

  • Page 184: Received Traces (Rx)

    UX400 10G e-Manual D07-00-058P RevA00 Page 184 of 209 J0 [RS]: Regenerator section trace Program a 1 or 16-byte identifier to check the connection between regenerators J1 [HP]: High order path section trace Program a 16 or 64-byte identifier to check the high order transmission path...

  • Page 185: Payload Labels

    UX400 10G e-Manual D07-00-058P RevA00 Page 185 of 209 7.5.5 Payload Labels This function is used to set the C2 and V5 Path Signal Labels which indicate the content of the High order and Low order VCs. Tap the Payload Label icon to display the payload label screens. There are dedicated tabs for Transmitted and Received payload labels and setups:...
  • Page 186 Page 186 of 209 APS Test Procedure: The UX400 unit should be connected to a tributary port of network element or transmission system to ensure that the switching time is measured for the service transported by the SDH network Ensure that no errors or alarms are present on the transmission system because this will impact the measurement...

  • Page 187: Tributary Scan

    UX400 10G e-Manual D07-00-058P RevA00 Page 187 of 209 TCM Standards The Tandem paths are defined in ITU recommendation G.707 Annex D and Annex E G.707 Annex D for VC4 and VC3 G.707 Annex E for VC2 and VC1 G.707 defines a tandem connection source and sink and describes the responses of each when defect (alarm) and error conditions are detected...

  • Page 188: Round Trip Delay

    UX400 10G e-Manual D07-00-058P RevA00 Page 188 of 209 Go back to top Go back to TOC 7.5.9 Round Trip Delay The Round Trip Delay (Propagation Delay) measurement works by sending a test pattern with an error. The time it takes for the error to reach the receiver is the propagation time through the network.
  • Page 189 UX400 10G e-Manual D07-00-058P RevA00 Page 189 of 209 Go back to top Go back to TOC...

  • Page 190: Otn Tools

    UX400 10G e-Manual D07-00-058P RevA00 Page 190 of 209 7.6 OTN Tools OTN Tools Menu Overhead Analyzer: Displays the Optical Channel Transport Unit (OTU) Displays Optical Channel Data Unit (ODU) Displays Optical channel Payload Unit (OPU) bytes of the received channel...

  • Page 191: Otn Frame Analysis

    UX400 10G e-Manual D07-00-058P RevA00 Page 191 of 209 The Overhead is color coded for simplified viewing. Decoding Bytes Tapping the applicable byte enables an automatic decode – a byte description including the Hexadecimal and Binary value is provided. For some bytes, an advanced decode of the various bits is also available.

  • Page 192: Optical Data Unit (Odu) Analysis

    UX400 10G e-Manual D07-00-058P RevA00 Page 192 of 209 Section Monitoring (SM) Bytes are used for the Trail Trace Identifier (TTI), Parity (BIP-8) and the Backward Error Indicator (BEI) (also known as the Backward Incoming Alignment Error [BIAE]), Backward Defect Indicator (BDI), and Incoming Alignment Error (IAE).
  • Page 193 UX400 10G e-Manual D07-00-058P RevA00 Page 193 of 209 Reserved (RES) bytes are undefined and set aside for future applications. Path Monitoring (PM) Field is similar to the SM field described above. It contains the TTI, BIP-8, BEI, BDI, and Status (STAT) subfields.
  • Page 194 UX400 10G e-Manual D07-00-058P RevA00 Page 194 of 209 Go back to top Go back to TOC Fault Type and Fault Location (FTFL) Reporting communication channel field used to create a message spread over a 256-byte multiframe Provides the ability to send forward and backward path-level fault indications...
  • Page 195 UX400 10G e-Manual D07-00-058P RevA00 Page 195 of 209 Go back to top Go back to TOC General Communication Channels 1 and 2 (GCC1/GCC2) Fields are very similar to the GCC0 field, except that each channel is available in the ODU...

  • Page 196: Optical Payload Unit (Opu) Analysi

    UX400 10G e-Manual D07-00-058P RevA00 Page 196 of 209 Go back to top Go back to TOC 7.6.1.4 Optical Payload Unit (OPU) Analysis Payload Structure Identifier (PSI) Primary overhead field associated with the OPU A 256-byte multiframe whose first byte is defined as the Payload Type (PT). The remaining 255 bytes are currently reserved.

  • Page 197: Payload Label (Payload Structure Identifier)

    UX400 10G e-Manual D07-00-058P RevA00 Page 197 of 209 Go back to top Go back to TOC 7.6.2 Payload Label (Payload Structure Identifier) Tap the Payload Label icon to display the screen shown below. Tabs for Tx and Rx label settings are provided.

  • Page 198: Trace Identifier (Trail Trace Identifier)

    UX400 10G e-Manual D07-00-058P RevA00 Page 198 of 209 Go back to top Go back to TOC 7.6.3 Trace Identifier (Trail Trace Identifier) Tap the Trace Identifier icon to display the screen shown below. There are tabs for Tx and RX settings of the TTI.
  • Page 199 UX400 10G e-Manual D07-00-058P RevA00 Page 199 of 209 Results are available for up to six tandem connections. The counts are numbers of seconds containing the error or indication. Tandem connections and corresponding source and sink functions are defined in ITU-T G.707, G.709, and G.783.

  • Page 200: Pdh Tools

    The UX400 measures how long the AIS event remains present after the event is first recognized and will continue to measure the total disruption time in the event of multiple disruptions Repeat: When set to ON, the UX400 will continuously measure APS and keep a record of the Current, Maximum and Minimum disruption times measured.

  • Page 201: E1 Frame Words

    UX400 10G e-Manual D07-00-058P RevA00 Page 201 of 209 Go back to top Go back to TOC 7.7.2 E1 Frame Words This function requires the E1 signal to be framed. The NFAS word is used to carry information about the status of the link and to provide control signals for primary rate multiplexers.

  • Page 202: E1 Rx Data

    UX400 10G e-Manual D07-00-058P RevA00 Page 202 of 209 Go back to top Go back to TOC 7.7.3 E1 RX Data The PDH E1 RX data shows received data and captures the current timeslots. E1 RX Data Go back to top Go back to TOC...

  • Page 203: Ds1 Rx Data

    UX400 10G e-Manual D07-00-058P RevA00 Page 203 of 209 DS1 RX Data Go back to top Go back to TOC...

  • Page 204: Profiles

    UX400 10G e-Manual D07-00-058P RevA00 Page 204 of 209 7.8 Profiles Profiles can be created in any application that has a "Profiles" drop-down menu available. The PDH, SDH, OTN, Ethernet and Fiber Channel applications all have the ability to save profiles.
  • Page 205 UX400 10G e-Manual D07-00-058P RevA00 Page 205 of 209 Go back to top Go back to TOC...

  • Page 206: Warranty And Software

    Replace hardware which proves to be defective provided that the products that the customer elects to replace is returned to VeEX Inc. by the customer along with proof of purchase within thirty (30) days of the request by the customer, freight prepaid.

  • Page 207: Product Specifications

    Page 207 of 209 9.0 Product Specifications The UX400 product specifications are available for download in PDF format on the VeEX customer website. Please note that Adobe Reader version 9.0 or higher is needed to open and view the file.

  • Page 208: Certification And Declarations

    Use of this logo implies that the unit conforms to requirements of European Union and European Free Trade Association (EFTA). EN61010-1 For a copy of the CE Declaration of Conformity relating to VeEX products, please contact VeEX customer service. What is RoHS? RoHS is the acronym for Restriction of Hazardous Substances.

  • Page 209: About Veex

    Page 209 of 209 11.0 About VeEX VeEX Inc., the Verification EXperts, is an innovative designer and manufacturer of test and measurement solutions addressing numerous technologies. Global presence through a worldwide distribution channel provides uncompromised product support. Visit us online at www.veexinc.com...

Table of Contents
