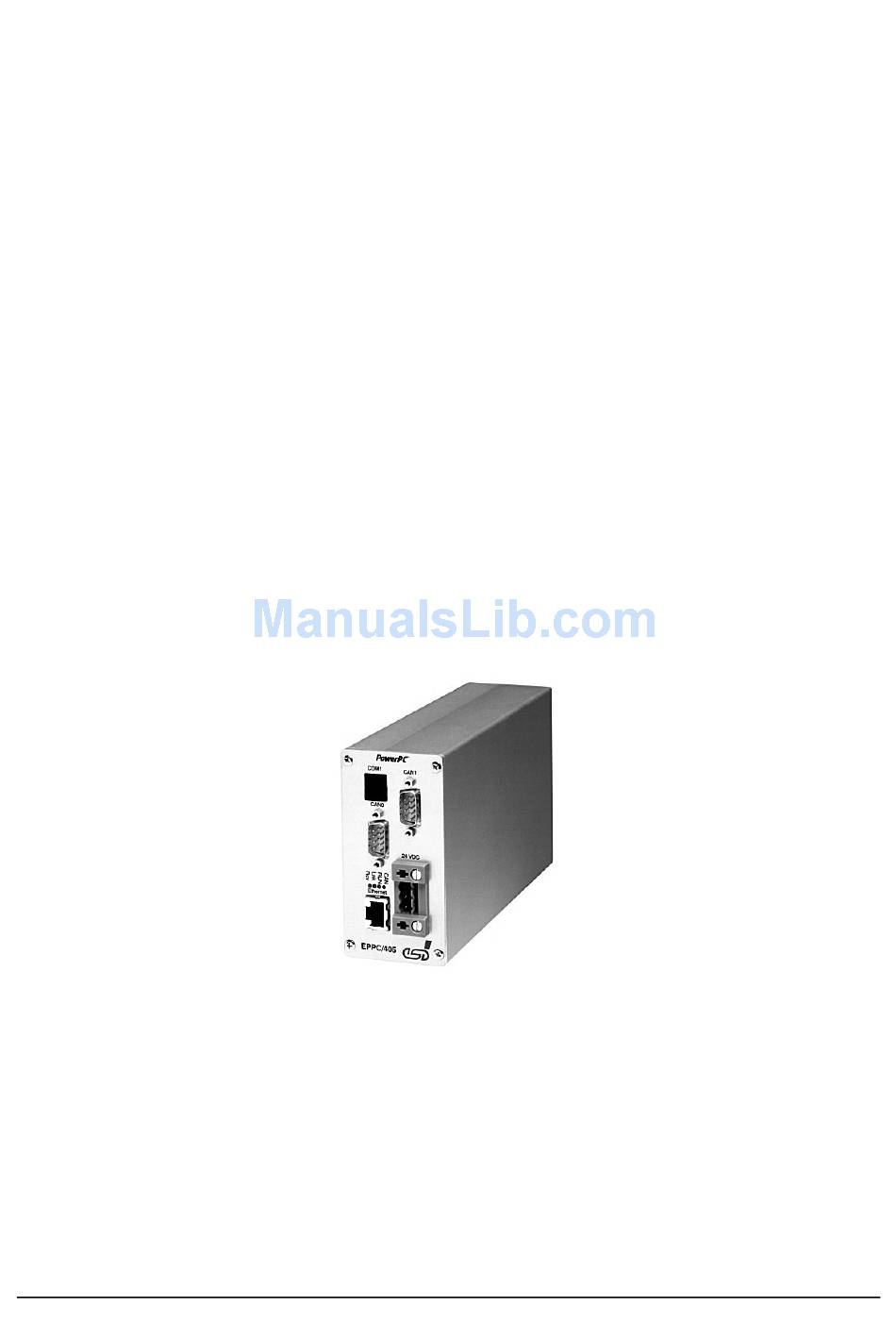

- Page 1 EPPC-405 Embedded PowerPC with CAN and ETHERNET Hardware Manual EPPC-405 Hardware Manual Rev. 1.2...
- Page 2 The changes in the document affect changes in the hardware as well as descriptions of facts only. Chapter Changes versus previous version Pin assignment of power connector has changed! Technical details are subject to change without notice. EPPC-405 Hardware Manual Rev. 1.2...
- Page 3 Vahrenwalder Str. 207 30165 Hannover Germany Phone: +49-511-372 98-0 Fax: +49-511-372 98-68 E-mail: info@esd-electronics.com Internet: www.esd-electronics.com USA / Canada: esd electronics Inc. 12 Elm Street Hatfield, MA 01038-0048 Phone: +1-800-732-8006 Fax: +1-800-732-8093 E-mail: us-sales@esd-electronics.com Internet: www.esd-electronics.us EPPC-405 Hardware Manual Rev. 1.2...
-
Page 4: Table Of Contents
1.1 Description of the EPPC-405-Computer ........ - Page 5 This page is intentionally left blank. EPPC-405 Hardware Manual Rev. 1.2...
-
Page 6: Overview
CPCI-405 and a 24 V mains adaptor. Apart from the CompactPCI-bus connection all functions of the CPCI-405 board can also be used in the EPPC-405 computer. Therefore, the included CPCI-405 manual can also be used to operate this computer. The first part of this documentation explains the features of the EPPC-405 which are not covered by the CPCI-405 documentation. -
Page 7: Front Panel View With Connector Assignment
1.2 Front Panel View with Connector Assignment Alternative: RS-232 Interface SER0 Order-No. I.2001.02: RS-232 Interface SER1 Order-No. I.2001.03: CAN Interface CAN1 CAN Interface CAN0 LED Display Power Supply 24VDC Ethernet 10/100BaseT EPPC/405 Fig. 1.2.1: Front panel view EPPC-405 Hardware Manual Rev. 1.2... -
Page 8: Dimensions For Installation
Overview 1.3 Dimensions for Installation 20 mm 72,5 mm 184 mm 55 mm 4 mm 105 mm 20 mm EPPC-405 55 mm Fig. 1.3.1: Dimensions of the EPPC-405 for installation EPPC-405 Hardware Manual Rev. 1.2... -
Page 9: Summary Of Technical Data
105 x 55 x 200 mm (without connectors and hat-rail holder) Weight 750 g Table 1.4.1: General technical data 1.4.2 Power Supply Input voltage 24 V / DC ± 10 % Power 7.2 W Connector 3-pin screw/plug connector in Combicon design Table 1.4.2: Power supply EPPC-405 Hardware Manual Rev. 1.2... -
Page 10: Serial Interface 1 (Only Order No. I.2001.02)
SJA1000 CAN-protocol CAN 2.0A/2.0B Physical interface differential, connection in accordance with ISO 11898 Transmission rate 10 kbit/s ... 1 Mbit/s Bus termination has to be set externally Connector DSUB9-female in front panel Table 1.4.4: CAN-interfaces EPPC-405 Hardware Manual Rev. 1.2... -
Page 11: Order Information
IBM PPC405GP, 200 MHz, 16 MB SDRAM, 4 I.2001.03 MB Flash, 1x RS-232, 2x CAN EPPC-405-ME English manual I.2001.21 *) If manual and product are ordered together, the manual is free of charge. Table 1.4.5: Order information EPPC-405 Hardware Manual Rev. 1.2... -
Page 12: Connector Assignment
(input) reserved reserved n.c. 9-pin female DSUB n.c..not connected The signal names are stated as seen from the terminal (PC). The data direction given in brackets is as seen from the CPCI-405 board. EPPC-405 Hardware Manual Rev. 1.2... -
Page 13: Can-Bus Interface 1
9-pin female DSUB Signal Description: CAN_L, CAN_H ... CAN-signal lines CAN_GND ... reference potential of the local CAN-physical layer shield ... potential of connector case reserved ... reserved for future applications EPPC-405 Hardware Manual Rev. 1.2... -
Page 14: Power Supply
Connector Assignment 2.3 Power Supply Shield +24 VDC EPPC/405 EPPC-405 Hardware Manual Rev. 1.2...
