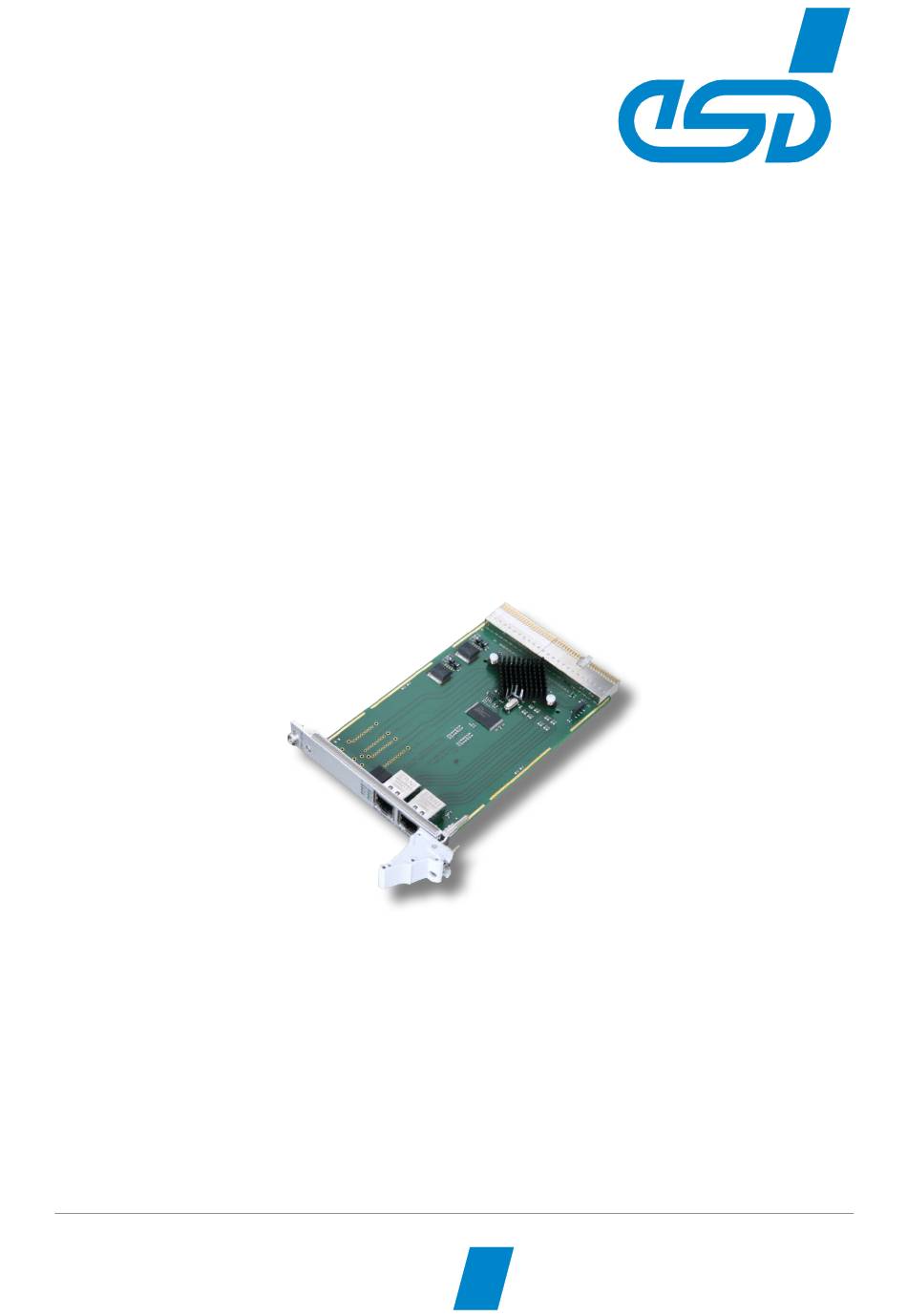

CPCI-ETH2
10/100/1000BASE-T
®
Interface for CompactPCI
Hardware Manual
to Product I.2321.02
CPCI-ETH2
Hardware Manual • Doc. No.: I.2321.21 / Rev. 1.1
Page 1 of 15
esd electronic system design gmbh
Vahrenwalder Str. 207 • 30165 Hannover • Germany
http://www.esd.eu
Phone: +49 (0) 511 3 72 98-0 • Fax: +49 (0) 511 3 72 98-68

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CPCI-ETH2 and is the answer not in the manual?

Questions and answers

Related Manuals for ESD electronic CPCI-ETH2

Summary of Contents for ESD electronic CPCI-ETH2

  • Page 1 CPCI-ETH2 Hardware Manual • Doc. No.: I.2321.21 / Rev. 1.1 Page 1 of 15 esd electronic system design gmbh Vahrenwalder Str. 207 • 30165 Hannover • Germany http://www.esd.eu Phone: +49 (0) 511 3 72 98-0 • Fax: +49 (0) 511 3 72 98-68...
  • Page 2 All rights to this documentation are reserved by esd. Distribution to third parties, and reproduction of this document in any form, whole or in part, are subject to esd's written approval. © 2015 esd electronic system design gmbh, Hannover esd electronic system design gmbh Vahrenwalder Str.
  • Page 3 Chapter Changes versus previous version Date First Englisch version 2005-07-05 The CPCI-ETH2-FX and CPCI-ETH2-MX versions are deleted, manual restructured, Safety Instructions inserted Block circuit diagram new, “Front Panel View” with LEDs and Connectors” Chapter “Hardware Installation” revised 2015-09-28 Chapter “Technical Data”, description of Fibre Optic Interface deleted...
  • Page 4 ● Do not operate the CPCI-ETH2 adjacent to heat sources and do not expose it to unnecessary thermal radiation. Ensure an ambient temperature as specified in the technical data. ● Do not use damaged or defective cables to connect the CPCI-ETH2 and follow the CAN wiring hints in chapter: "Correctly Wiring Electrically Isolated CAN Networks".

  • Page 5: Table Of Contents

    Table of contents 1. Overview............................8 Description of the CPCI-ETH2....................8 Front Panel View with LEDs and Connectors.................9 Indication........................9 Hardware Installation........................10 Technical Data..........................11 General Technical Data......................11 CompactPCI Bus........................11 Ethernet Interface........................ 12 Software Support ........................ 12 Connector Assignments......................13 4.1 Ethernet..........................
  • Page 6 Application Programming Interface Controller Area Network Central Processing Unit CAN in Automation Hardware Input/Output Least Significant Bit Most Significant Bit n.a. not applicable Operating System Software Development Kit CPCI-ETH2 Hardware Manual • Doc. No.: I.2321.21 / Rev. 1.1 Page 7 of 15...

  • Page 7: Overview

    The Ethernet interfaces for 10/100/1000BASE-T-networks are easily accessible via RJ45-sockets in the front panel. The interfaces are electrically isolated from the Ethernet controller. LEDs in the front panel indicate the status of the CPCI-ETH2. Page 8 of 15 Hardware Manual • Doc. No.: I.2321.21 / Rev. 1.1...

  • Page 8: Front Panel View With Leds And Connectors

    Speed 1000 (M) Status Ethernet 1, interface operates green LED300D Ethernet with a bit rate of 1000 Mbit/s. (at 10/100 Mbit/s LED off). Table 1: Description of LEDs CPCI-ETH2 Hardware Manual • Doc. No.: I.2321.21 / Rev. 1.1 Page 9 of 15...

  • Page 9: Hardware Installation

    (e.g. with caution label). Insert the CPCI-ETH2 board into a free CompactPCI slot. Carefully push the board until it snaps into place.

  • Page 10: Technical Data

    Board dimensions according to CompactPCI-Specification, Rev. 1.0 Connectors Connector coding Universal-Board (3.3 V or 5 V signalling voltage) not keyed Table 3: Data of the CompactPCI Bus CPCI-ETH2 Hardware Manual • Doc. No.: I.2321.21 / Rev. 1.1 Page 11 of 15...

  • Page 11: Ethernet Interface

    RJ-45-sockets in the front panel Table 4: Data of the Ethernet interface 3.4 Software Support The CPCI-ETH2-module operates with standard system drivers of Windows NT/2000, Linux, VxWorks and QNX. Page 12 of 15 Hardware Manual • Doc. No.: I.2321.21 / Rev. 1.1...

  • Page 12: Connector Assignments

    - ... reserved for future applications, do not connect! Shield... case shield, connected with the front panel of the CPCI-ETH2. Note: Cables of category CAT-5e SF/UTP or higher have to be used to grant the function in networks with 1000 Mbit/s.

  • Page 13: Eu Declaration Of Conformity

    EU Declaration of Conformity 5. EU Declaration of Conformity Page 14 of 15 Hardware Manual • Doc. No.: I.2321.21 / Rev. 1.1 CPCI-ETH2...

  • Page 14: Order Information

    6. Order Information Type Properties Order No. Dual 10/100/1000BASE-T Ethernet CPCI-ETH2 CompactPCI 3U/4HP card I.2321.02 with 2 Ethernet interfaces For detailed information about the driver availability of your special operating system, please contact our sales team. Table 5: Order information PDF Manuals Manuals are available in English, see table below.
