SMC 7.1 – Quickstart
Start up
1
Read the security advices on page 8!
Make sure that the selected mains voltage of the SMC 7.1 is according to the
2
mains voltage of your region.
Make sure that the mains switch on the rear of the SMC 7.1 is set to Off
3
(Off = O / On = I).
4 Connect the supplied power cord to the SMC 7.1 and an appropriate mains
socket outlet.
If the supplied power cord does not match your mains socket outlet, please contact your dealer.
5
Turn off all devices you wish to connect to the SMC 7.1.
Connect the outputs of your analog stereo sources to the balanced Stereo
6
Inputs of the SMC 7.1. Please use appropriate audio cables (XLR).
Connect the outputs of your analog 7.1 sources to the balanced 7.1 Inputs of the
7
SMC 7.1. Please use appropriate audio cables (DB25 with TASCAM standard on
SMC 7.1 side, for pin-out see „DB25 with Tascam standard" on page 10).
Connect the 7.1 Speaker Output to the inputs of your 7.1 power amplifier respec-
8
tively active 7.1 speaker system with appropriate audio cables (DB25 with
TASCAM standard on SMC 7.1 side, for pin-out see „DB25 with Tascam standard"
on page 10). *
Connect the Alternate Speaker Output of the SMC 7.1 to the stereo input of your
9
stereo power amplifier respectively active stereo speaker system with appro-
priate audio cables (XLR). *
Connect the Sub Out of the SMC 7.1 to the subwoofer input of your 2.1 stereo
10
speaker system with an appropriate audio cable (XLR).
Connect the Meter Out of the SMC 7.1 to the input of your metering system with
11
appropriate audio cables (1/4" mono jack).
Connect your headphone to the headphone output of the SMC 7.1.
12
Warning: Never connect a mono jack cable to the front panel stereo jack. Make sure that the stereo jack is
fully inserted, otherwise a short circuit might damage the headphone amplifier.
* Audio cables not included in the scope of delivery

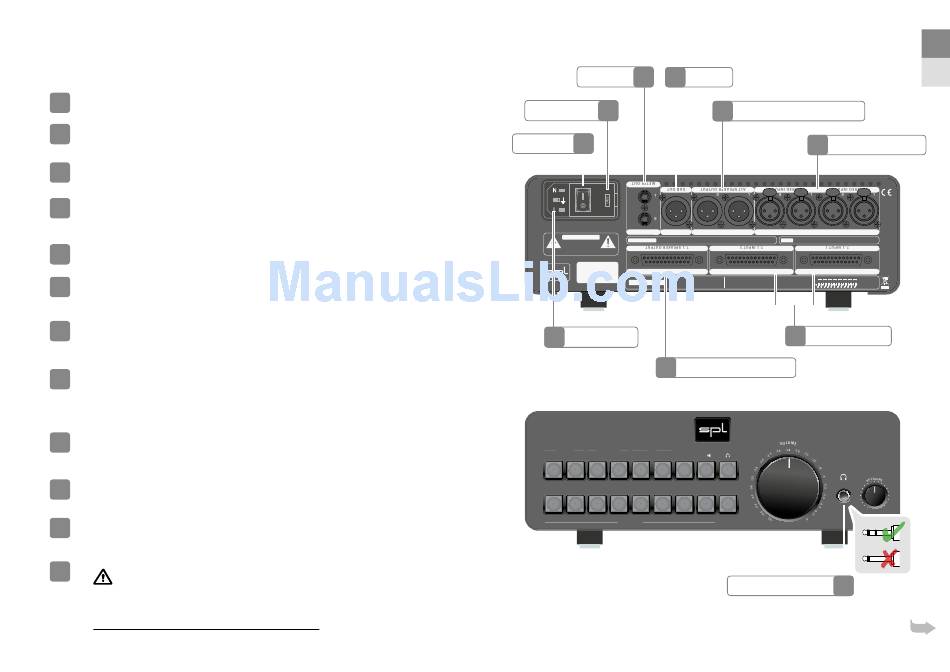

2
*
*
*
*
11 10
Meter Out Sub Out
2
Mains Voltage
3
Mains Switch
L
R
~ 115V AC / ~230V AC, 50 Hz / 60 Hz, P max. 15 W R
METER OUT SUB OUT
C A U T I O N
Voltage Selection 1. Remove Fuse Holder
RISK OF ELECTRIC SHOCK
D O N O T O P E N
AVIS: RISQUE DE CHOC ÉLECTRIQUE • NE PAS OUVRIR
Serial 7.1 SPEAKER OUTPUT
Number
XLRs: balanced
W I R I N G
1 = GND, 2 = Hot (+), 3 = Cold (-)
SMC 7.1
Made in Germany
4
Mains Connector
8
Balanced 7.1 Speaker Output
Surround Monitor Controller
7.1 Inputs Stereo Inputs Solo
1 2 1 2 In Place To C Mono L/R
L C R LFE LS RS LB
7.1 Speakers
SMC 7.1 – Quickstart
9
Balanced Alt. Speaker Outputs
6
Balanced Stereo Inputs
L R L R L
ALT SPEAKER OUTPUT STEREO INPUT 2 STEREO INPUT 1
2. Exchange Fuses 3. Flip Over 4. Reinstall Fuses 115V AC: T 630 mA L 250 V | 230V AC: T 320 mA L 250 V
7.1 INPUT 2 7.1 INPUT 1
1 2 3 4 5 6 7 8 H=Hot (+)
Meter Output: unbalanced DB25 comply with
GCHGCHGCHGCHGCH GCH GCH GCH C=Cold (–)
1 = GND, 2 = Hot (+), 3 = n.c. TASCAM Standard
13 1
G=GND
25 14
7
Balanced 7.1 Inputs
SMC 7.1
Alt
RB Mute
Standard
12
Headphone Connection
EN
DE
