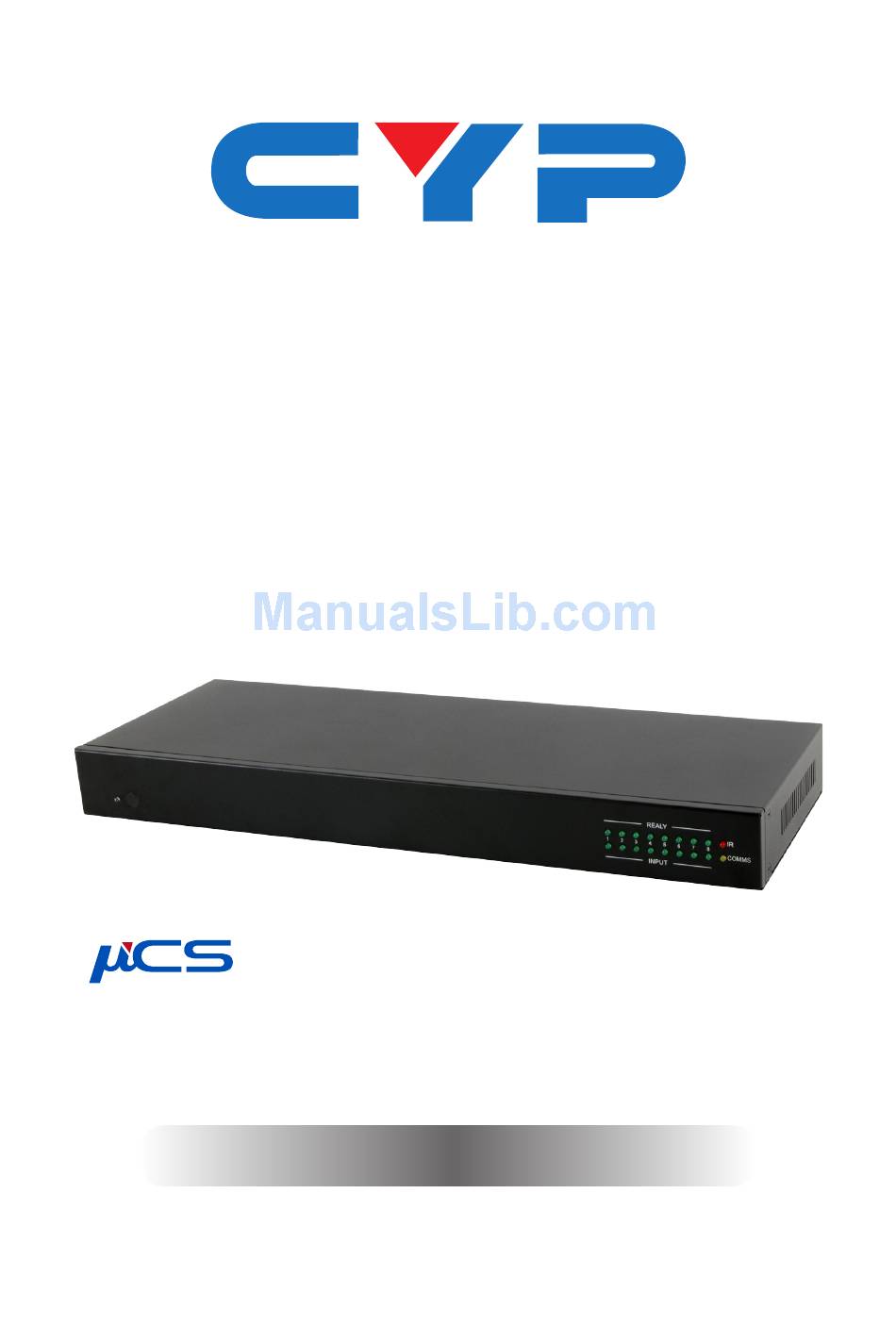

- Page 1 CDPS-CS4 Control System Operation Manual Operation Manual...
- Page 3 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
- Page 4 SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
-
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 6. Operation Controls and Functions ..2 6.1 Front Panel ........2 6.2 Rear Panel .........3 6.3 Remote Control ........4 6.4 IR Cable Pin Assignment....4 6.5 RS-232 DTE Pin Assignment ....5 6.6 RS-232 and Telnet Commands ..5 6.7 Software Application .......7... -
Page 6: Introduction
1. INTRODUCTION By entering into a new era of smart world, the trend of controlling everything with one finger is nowadays foreseen. Control System allows your dream come true by providing not only direct but also indirect control interfaces for all your devices. Direct control like IR, Relay and DC controls allow users to maintain the traditional connection control over the device whereas, indirect control like IR Learning, RS-232, Telnet/WebGUI controls allow users with computing system or APP to... -
Page 7: Operation Controls And Functions
5. FEATURES • Supports IR Learning function allows IR signal to be accepted by computing system • Supports eight inputs with voltage of 0~15V • Supports 1 IR Learning, 8 IR outputs, 8 trigger inputs, 8 Relay outputs, 2 COM ports, and 4 Ethernet ports •... -
Page 8: Rear Panel
6.2 Rear Panel RELAY OUT INFRARED OUT COM 1 COM 2 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 RESET DC 5V IRL: Connect with IR Receiver included in the package for IR signal learning. -
Page 9: Remote Control
6.3 Remote Control 1~8: Press these buttons to trigger input signal of input 1~8 for control system to activate the corresponding command or setting. 6.4 IR Cable Pin Assignment IR Blaster Power CR-157 IR Signal IR Learner IR Signal Power Grounding... -
Page 10: Rs-232 Dte Pin Assignment
6.5 RS-232 DTE Pin Assignment DATA TERMINAL EQUIPMENT Assignment Baud Rate: 4800~115200bps Data bit: 7~8 bits Parity: None, Odd, Even Flow Control: None Stop Bit: 1~2 Bits 6.6 RS-232 and Telnet Commands COMMAND DESCRIPTION PARAMETER IPCONFIG Display the current IP NONE configure SIPADDR XXX.XXX. - Page 11 COMMAND DESCRIPTION PARAMETER FADEFAULT All configure set to factory NONE default* ETH_FADEFAULT All Ethernet configure set NONE to factory HELP (?) Show command list NONE HELP N Show description of N=COMMAND NAME command RELAY N N1 Relay control N[PORT]=1~2 N1[MODE]=CLOSE/OPEN IREMIT N N1 N2 Send IR contenet N[PORT]=1~8,...
-
Page 12: Software Application
6.7 Software Application Please download the software from www.cypress.com.tw with file name CDPS V2.000 and save it in a directory where you may use it later. Connect the Control System with an active network system and open the CDPS V2.000 application from the directory in a PC/Laptop. Click on Find Devices on Network and a list of the devices connected within the network system will show up. -
Page 13: Telnet Control
6.8 Telnet Control To access the Telnet control in Windows 7, click on the 'Start' menu and type "cmd" in the Search field then press enter. Under Windows XP go to the 'Start' menu and click on "Run", type "cmd" with then press enter. Under Mac OS X, go to Go→Applications→Utilities→Terminal See below for reference. - Page 14 This will bring us into the unit which we wish to control. Type "help" to list the available commands. Note: Commands will not be executed unless followed by a carriage return. Commands are case-sensitive. If the IP is changed then the IP Address required for Telnet access will also change accordingly.
-
Page 15: Webgui Control
6.9 WebGUI Control On a PC/Laptop that is connected to an active network system, open a web browser and type device’s IP address (default setting IP: 192.168.1.50 ) on the web address entry bar. A security page will appear to ask for User and Password, please key in “admin”... - Page 16 Click on the mark to edit the command settings. Up/down arrows are to move the command up or down and button is to delete the command. Click on Insert button/Add to insert commands. Command can be set to control the Control System/SysCMD, other devices connected within the same Telnet system/Internet area, RS-232 COM ports, IR and Relay devices connected through the Relay outputs of Control System with delay time.
-
Page 18: Extension Macro
6.9.2 Extension Macro Click on 'Extension Macro' to execute/edit more Macro action up to 8 more. 6.9.3 Command Settings Click on 'Command Settings' to edit or delete commands up to 128 sets. Insert the command directly in the bottom colum of Command Edit and name the command on the top colum then click on Save Changes to store the command. -
Page 19: Network Settings
of the IR command type click on RAW HEX to ensure a successful command saving. Command under 128 characters including space can be build up to 128 commands, command over 128 characters and under 512 characters including space can be build up to 32 command in addition with 96 commands of 128 characters under. -
Page 20: System Settings
6.9.5 System Settings Click on 'System Settings' to reset the WebGUI login password and save or download the Macro settings. Reset to Default allows IP and login ID & password to be reset back to factory default. Note: Please ensure that all commands and settings have been saved before performing Reset as this procedure may restore all settings back to factory default. -
Page 21: Connection Diagram
7. CONNECTION DIAGRAM Integrated 3rd Party Control Alarm Blind Lighting Sensor Control Control Control Internet Connected RS-232 Control System Router IR Blaster IR Learner RELAY OUT INFRARED OUT 1 2 3 4 5 6 7 8 1 2 3 4 5 6 7 8 COM 1 COM 2 RESET... -
Page 22: Specifications
8. SPECIFICATIONS Input Ports 8×Triggers (Ternimal Block), 4×LAN (RJ-45), 1×IR Learner Output Ports 8×Replays (Ternimal Block), 8×IR Blasters, 2×COM (9-pin D-sub) IR Out Frequency 30~50 kHz IR Learner Frequency 30~55 kHz Baud Rate 4800~115200 bps Power Supply 5 V/2.6 A DC (US/EU standards, CE/FCC/UL certified) ESD Protection Human body model:... -
Page 23: Acronyms
9. ACRONYMS ACRONYM COMPLETE TERM Command Line Interface Graphical User Interface Internet Protocol Infrared Infrared Learning Local Area Network... - Page 24 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw...
