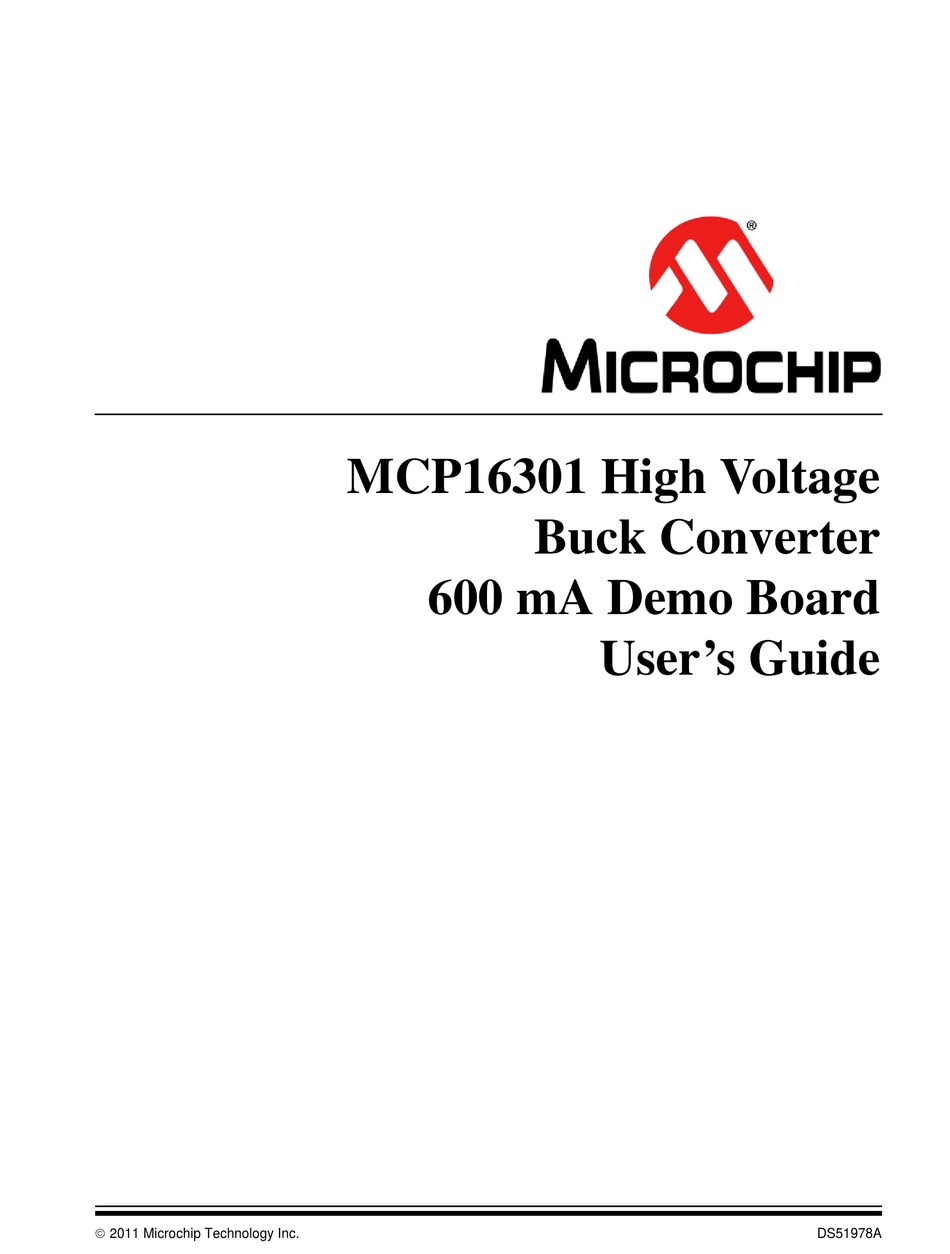

- Page 1 MCP16301 High Voltage Buck Converter 600 mA Demo Board User’s Guide 2011 Microchip Technology Inc. DS51978A...
- Page 2 TSHARC, UniWinDriver, WiperLock and ZENA are trademarks of Microchip Technology Incorporated in the U.S.A. and other countries. SQTP is a service mark of Microchip Technology Incorporated in the U.S.A. All other trademarks mentioned herein are property of their respective companies.
-
Page 3: Table Of Contents
Chapter 1. Product Overview 1.1 Introduction ..................... 9 1.2 MCP16301 Short Overview ................9 1.3 What is the MCP16301 600 mA Demo Board? ..........10 1.4 MCP16301 600 mA Demo Board Kit Contents ..........10 Chapter 2. Installation and Operation 2.1 Introduction .................... - Page 4 MCP16301 600 mA DEMO BOARD USER’S GUIDE NOTES: 2011 Microchip Technology Inc. DS51978A-page 4...
-
Page 5: Preface
• Customer Support • Document Revision History DOCUMENT LAYOUT This document describes how to use the MCP16301 600 mA Demo Board as a devel- opment tool to emulate and debug firmware on a target board. The manual layout is as follows: •... -
Page 6: Conventions Used In This Guide
MCP16301 600 mA DEMO BOARD USER’S GUIDE CONVENTIONS USED IN THIS GUIDE This manual uses the following documentation conventions: DOCUMENTATION CONVENTIONS Description Represents Examples Arial font: ® Italic characters Referenced books MPLAB IDE User’s Guide Emphasized text ...is the only compiler... -
Page 7: Recommended Reading
Preface RECOMMENDED READING This user's guide describes how to use MCP16301 600 mA Demo Board. Other useful documents are listed below. The following Microchip documents are available and recommended as supplemental reference resources. MCP16301 Data Sheet – “High Voltage Input Integrated Switch Step-Down Regulator”... - Page 8 MCP16301 600 mA DEMO BOARD USER’S GUIDE NOTES: 2011 Microchip Technology Inc. DS51978A-page 8...
-
Page 9: Chapter 1. Product Overview
MCP16301 600 mA DEMO BOARD USER’S GUIDE Chapter 1. Product Overview INTRODUCTION This chapter provides an overview of the MCP16301 600 mA Demo Board and covers the following topics: • MCP16301 Short Overview • What is the MCP16301 600 mA Demo Board? •... -
Page 10: What Is The Mcp16301 600 Ma Demo Board
WHAT IS THE MCP16301 600 mA DEMO BOARD? The MCP16301 600 mA Demo Board is designed to operate from a 4V to 30V input and regulate the output to 3.3V while delivering 600 mA of load current. Test points for input power and load are provided to demonstrate the capability of the demo board over the entire range. -
Page 11: Chapter 2. Installation And Operation
A copper via connected to the EN input can be used to turn the MCP16301 on and off – turning the device on (EN > 1.4V) when the undervoltage lockout threshold is met (VIN >... -
Page 12: Getting Started
MCP16301 600 mA Demo Board User’s Guide GETTING STARTED The MCP16301 600 mA Demo Board is fully assembled and tested to evaluate and demonstrate the MCP16301. 2.2.1 Power Input and Output Connection 2.2.1.1 POWERING THE MCP16301 600 mA DEMO BOARD The MCP16301 600 mA Demo Board is fully assembled, tested and ready to begin evaluation. -
Page 13: Appendix A. Schematic And Layouts
MCP16301 600 mA DEMO BOARD USER’S GUIDE Appendix A. Schematic and Layouts INTRODUCTION This appendix contains the following schematics and layouts for the MCP16301 600 mA Demo Board: • Board – Schematic • Board – Top Silk And Pads • Board – Top Copper And Pads •... -
Page 14: Board - Schematic
MCP16301 600 mA DEMO BOARD USER’S GUIDE BOARD – SCHEMATIC 2011 Microchip Technology Inc. DS51978A-page 14... -
Page 15: Board - Top Silk And Pads
Schematic and Layouts BOARD – TOP SILK AND PADS BOARD – TOP COPPER AND PADS 2011 Microchip Technology Inc. DS51978A-page 15... -
Page 16: Board - Bottom Copper
MCP16301 600 mA DEMO BOARD USER’S GUIDE BOARD – BOTTOM COPPER 2011 Microchip Technology Inc. DS51978A-page 16... -
Page 17: Appendix B. Bill Of Materials
MCP16301 600 mA DEMO BOARD USER’S GUIDE Appendix B. Bill of Materials TABLE B-1: BILL OF MATERIALS (BOM) Reference Description Manufacturer Part Number BUMP BUMPON Square 0.40” x 0.1” Black 3M™ SJ-5007 (Black) ® C1, C2 CAP 4.7uF 50V CERAMIC X7R 1210 10%... -
Page 18: Worldwide Sales And Service
Tel: 408-961-6444 Fax: 408-961-6445 China - Xian Tel: 86-29-8833-7252 Toronto Fax: 86-29-8833-7256 Mississauga, Ontario, Canada China - Xiamen Tel: 905-673-0699 Tel: 86-592-2388138 Fax: 905-673-6509 Fax: 86-592-2388130 China - Zhuhai Tel: 86-756-3210040 05/02/11 Fax: 86-756-3210049 2011 Microchip Technology Inc. DS51978A-page 18... - Page 19 Юридический адрес организации: 198099, г. Санкт-Петербург, ул. Калинина, дом 2, кор. 4, лит А. Фактический адрес организации: 198099, г. Санкт-Петербург, ул. Калинина, дом 2, кор. 4, лит А. ИНН 7802777764 КПП 780501001 Р/С 40702810422510004035 ФАКБ "АБСОЛЮТ БАНК" (ЗАО) в Санкт- Петербурге...
- Page 20 Отличные рекомендации на рынке, уверенность в качестве поставляемой продукции делают нас надежными партнерами для наших клиентов. «ТаймЧипс» - это: Гарантия качества поставляемой продукции; Широкий ассортимент; Минимальные сроки поставок; Техническая поддержка; Подбор комплектации; Индивидуальный подход; ...
