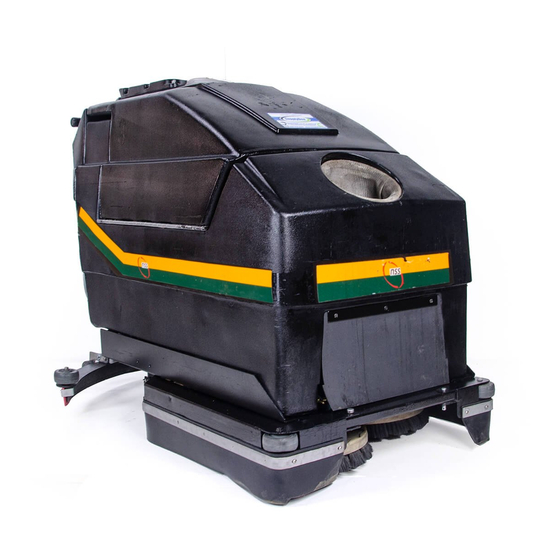

NSS WRANGLER 2625 DB Operation Manual
Hide thumbs Also See for WRANGLER 2625 DB:

Advertisement

IMPORTANT SAFETY INSTRUCTIONS

WARNING: Failure to observe these instructions can cause
personal injury to machine operator or bystanders
WARNING: Fire or explosion hazard.
NEVER operate this machine in an
explosive atmosphere (grain dust,
flammable liquids or fumes, etc.).
INTENDED USE
This machine is intended for commercial use,
scrubbing floors in an indoor environment. NSS does
not recommend using this machine for any other
purpose.
FOR SAFETY:
• ALWAYS read and understand all instructions
before operating or servicing machine.
• ALWAYS use this machine ONLY as described in
this manual.
• NEVER attempt to operate this machine unless you
have been trained in its operation.
• NEVER allow an untrained person to operate this
machine.
• NEVER attempt to operate this machine if it is not
working properly or has been damaged in any
manner.
• NEVER disconnect or modify any switches or
safety devices (circuit breaker).
• NEVER drop or insert any object into any machine
opening.
• NEVER operate this machine with any air opening
blocked. Keep all air openings free of dust, lint,
hair, etc.
• NEVER pick up anything that is burning or
smoking, such as cigarettes, matches or hot ashes.
• NEVER spray this machine with water or any
liquids.
• NEVER allow the vacuum motor or battery-
charging plug to get wet or a short may occur.
• NEVER operate this machine when the battery
charger is plugged in.
• NEVER operate this machine with the side skirt
removed.
ALL REPAIR SERVICE MUST BE PERFORMED BY AN NSS AUTHORIZED DISTRIBUTOR/
SERVICE STATION USING ONLY NSS ORIGINAL EQUIPMENT PARTS.
OPERATION MANUAL
WRANGLER 2625 DB
SAVE THESE INSTRUCTIONS
WARNING: Fire or explosion hazard.
NEVER attempt to pick up flammable or
combustible materials or use such
materials in tank.
• NEVER allow this machine to be used as a toy.
Close attention is necessary when used by or near
children.
• ALWAYS wear clean tennis shoes or "non-slip"
shoes. Leather soled shoes will become extremely
slippery when wet.
• ALWAYS keep face, fingers, hair or any other
body part or loose clothing away from any machine
opening or moving part (revolving brush, pad
driver, or vacuum motor).
• ALWAYS turn the machine off when attaching
pads or brushes.
• ALWAYS remove keys when this machine is left
unattended.
• ALWAYS be sure that the ramp is secured to the
vehicle before attempting to load/unload.
• ALWAYS use extreme caution when operating the
machine on a ramp or loading/unloading this
machine into or out of a truck/trailer. Use extreme
caution if the ramp is wet, oily, or covered with
cleaning chemicals.
• NEVER stop or turn the machine on a ramp or
incline.
• NEVER attempt to climb a grade or operate this
machine on a ramp or incline of more than
• 8 degrees.
• NEVER park or store the machine near a dock, on
ramps, near a furnace, boiler, open flame, or other
high heat source.
• NEVER allow this machine to freeze.
• NEVER expose the machine to rain, snow, or
extreme temperatures.
• NEVER store any items on this machine.
• ALWAYS store this machine indoors in a dry, cool
area.
