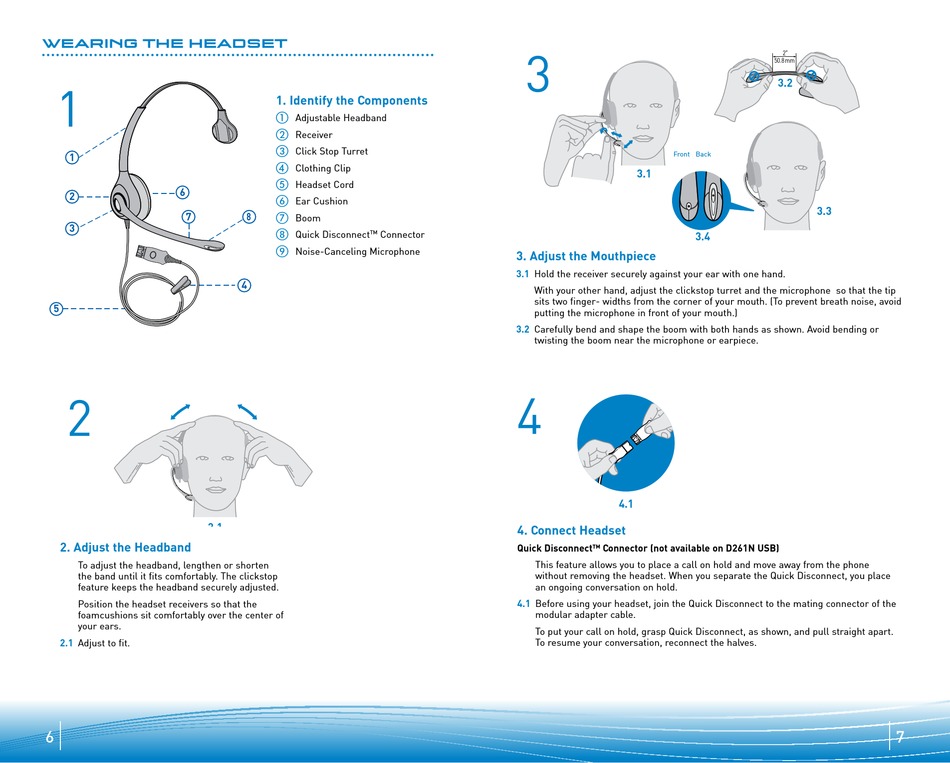

WEARING THE HEADSET

1
1
6
2
7
3
5
2
2.1
2. Adjust the Headband
To adjust the headband, lengthen or shorten
the band until it fits comfortably. The clickstop
feature keeps the headband securely adjusted.
Position the headset receivers so that the
foamcushions sit comfortably over the center of
your ears.
2.1 Adjust to fit.
6
1. Identify the Components
a Adjustable Headband
b
Receiver
c Click Stop Turret
d Clothing Clip
e
Headset Cord
f Ear Cushion
8
g Boom
h
Quick Disconnect TM Connector
i Noise-Canceling Microphone
4
0
3
Front Back
3.1
3.4
3. Adjust the Mouthpiece
3.1 Hold the receiver securely against your ear with one hand.
With your other hand, adjust the clickstop turret and the microphone so that the tip
sits two finger- widths from the corner of your mouth. (To prevent breath noise, avoid
putting the microphone in front of your mouth.)
3.2
Carefully bend and shape the boom with both hands as shown. Avoid bending or
twisting the boom near the microphone or earpiece.
4
4.1
4. Connect Headset
Quick Disconnect Connector (not available on D261N USB)
TM
This feature allows you to place a call on hold and move away from the phone
without removing the headset. When you separate the Quick Disconnect, you place
an ongoing conversation on hold.
4.1 Before using your headset, join the Quick Disconnect to the mating connector of the
modular adapter cable.
To put your call on hold, grasp Quick Disconnect, as shown, and pull straight apart.
To resume your conversation, reconnect the halves.
0
2"
50.8 mm
3.2
3.3
4.2
