Lenovo RackSwitch G8052
Product Guide
The Lenovo RackSwitch™ G8052 (as shown in the following figure) is a top-of-rack data center switch that
delivers unmatched line-rate Layer 2/3 performance at an attractive price. It has 48x 10/100/1000BASE-T
RJ-45 ports and four 10 Gigabit Ethernet SFP+ ports (it also supports 1 GbE SFP transceivers), and
includes hot-swap redundant power supplies and fans as standard, which minimizes your configuration
requirements. Unlike most rack equipment that cools from side-to-side, the G8052 has rear-to-front or
front-to-rear airflow that matches server airflow.

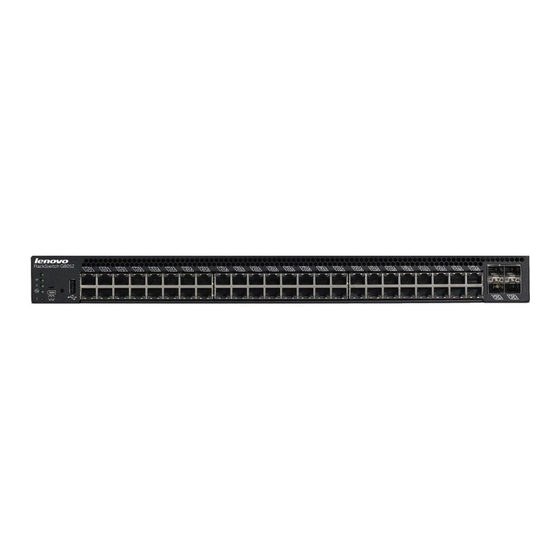

Figure 1. Lenovo RackSwitch G8052
Did you know?
The RackSwitch G8052 is designed with line-rate throughput and low latency of less than 2 microseconds.
The RackSwitch G8052 includes redundant and hot-swappable power supplies and fans.
The RackSwitch G8052 is designed specifically for the data center environment with server-matching
airflow, high-availability hardware and software features, rich Layer 2/3 functionality, and ease of
management.
The RackSwitch G8052 is SDN ready with its OpenFlow support. With OpenFlow, you can easily create
user-controlled virtual networks, optimize performance dynamically, and minimize complexity when it is
used with an OpenFlow controller.
The RackSwitch G8052 is also cloud ready with its VMready® switch-resident software that helps reduce
the complexity of configuring and managing virtual machines throughout the network, making it VM-aware.
The RackSwitch G8052 supports stacking for up to eight switches by using a single switch image and
configuration file that shares one IP address and one management interface for simplified management.
Networking Operating System software features deliver seamless, standards-based integration into
upstream switches.
Click here to check for updates
Lenovo RackSwitch G8052
1

Advertisement

   Also See for Lenovo RackSwitch G8052

   Summary of Contents for Lenovo RackSwitch G8052

  • Page 1

    VM-aware. The RackSwitch G8052 supports stacking for up to eight switches by using a single switch image and configuration file that shares one IP address and one management interface for simplified management.

  • Page 2: Key Features

    1.8 microseconds. Lower power and better cooling The RackSwitch G8052 typically uses only 130 W of power, a fraction of the power consumption of most competitive offerings. The G8052’s rear-to-front or front-to-rear cooling design reduces data center air conditioning costs by matching airflow to the server’s configuration in the rack.

  • Page 3

    Transparent networking capability With a simple configuration change to Easy Connect Mode, the RackSwitch G8052 becomes a transparent network device that is invisible to the core and eliminates network administration concerns of Spanning Tree Protocol configuration and interoperability and VLAN assignments and avoids any possible loops.

  • Page 4: System Specifications

    Two redundant hot-swap AC power supplies (IEC 320-C14 power connector) Up to four hot-swap fan assemblies (three fans come standard with the switch and provide N+1 redundancy) System specifications The following table lists the RackSwitch G8052 system specifications. Table 1. System specifications Component Specification...

  • Page 5

    715952F 7159-HC2 ASY1 The part number for the G8052 switch includes the following items: One Lenovo RackSwitch G8052 with two power supplies and three fan assemblies (rear-to-front airflow or front-to-rear airflow) Generic Rack Mount Kit (2-post) Console Cable Kit: RJ-45 (plug) to RJ-45 (plug) serial cable (1 m) Mini-USB to RJ-45 (jack) adapter cable (0.2 m) with retention clip...

  • Page 6

    Maximum Part Feature quantity Description number code supported SFP transceivers - 1 GbE Lenovo 1000BASE-T (RJ-45) SFP Transceiver (no 10/100 Mbps support) 00FE333 A5DL Lenovo 1000BASE-SX SFP Transceiver 81Y1622 3269 Lenovo 1000BASE-LX SFP Transceiver 90Y9424 A1PN SFP+ transceivers - 10 GbE...

  • Page 7

    00MN517 ASRB Lenovo 30m LC-LC OM3 MMF Cable 00MN520 ASRC SFP+ active optical cables - 10 GbE Lenovo 1m SFP+ to SFP+ Active Optical Cable 00YL634 ATYX Lenovo 3m SFP+ to SFP+ Active Optical Cable 00YL637 ATYY Lenovo 5m SFP+ to SFP+ Active Optical Cable...

  • Page 8: Software Features

    Connector 10 Gb Ethernet 10Gb SR SFP+ (46C3447) 10GBASE-SR Up to 30 m with fiber optic cables supplied by Lenovo 1/10Gb SFP+ (00MY034) (see Table 3); up to 300 m with OM3 multimode fiber or up to 400 m with OM4 multimode fiber...

  • Page 9

    VLANs) traffic classification and processing Traffic shaping and re-marking based on defined policies Eight priority queues per port for processing qualified traffic Weighted random early detection with explicit congestion notification (WRED/ECN) Control plane protection (CoPP) IPv4/IPv6 ACL metering Lenovo RackSwitch G8052...

  • Page 10

    Network Time Protocol (NTP) for switch clock synchronization Netconf (XML) Lenovo Switch Center management application (optional; sold separately) Lenovo XClarity (optional; sold separately) for discovery, inventory, monitoring and events Monitoring: Switch LEDs for port status and switch module status indication...

  • Page 11

    Table 5. Fan assembly spare options Part Feature Description number code Rear to front airflow (7159-HC1) Lenovo RackSwitch Hot-Swap, Rear-to-Front Fan Assembly 00D6071 A54K Front to rear airflow (7159-HC2) Lenovo RackSwitch Hot-Swap, Front-to-Rear Fan Assembly 00D6073 A54J Power supplies and cables...

  • Page 12: Rack Installation

    Table 6. Power supply spare options Part Feature Description number code Rear to front airflow (7159-HC1) Lenovo RackSwitch Hot-Swap, Rear-to-Front 450W Power Supply 49Y7938 A2MH Front to rear airflow (7159-HC2) Lenovo RackSwitch Hot-Swap, Front-to-Rear 450W Power Supply 49Y7937 A2MJ The G8052 switch ships standard without any AC power cables. The part numbers and feature codes to order the power cables (two power cables are required per switch) are listed in the following table.

  • Page 13: Physical Specifications

    Table 8. Rack installation options Part Feature Description number code Rear to front airflow (7159-HC1) Lenovo RackSwitch Adjustable 19" 4 Post Rail Kit 00D6185 A3KP Air Inlet Duct for 442 mm RackSwitch 00D6061 A3KR Front to rear airflow (7159-HC2) Lenovo RackSwitch Adjustable 19" 4 Post Rail Kit...

  • Page 14: Regulatory Compliance

    Data Center Advisor and Configurator Tool (DCACT; formerly known as LESC): http://lesc.lenovo.com The options that are installed in the switch assume the switch’s base warranty and any Lenovo warranty service upgrade for the switch. Regulatory compliance...

  • Page 15: Network Connectivity

    Network connectivity The following table lists the network switches with rear-to-front airflow that are offered by Lenovo that can be used in RackSwitch G8052 network connectivity solutions for System x, ThinkServer, and Flex System hosts. Table 9. Network switches (rear-to-front airflow)

  • Page 16

    Storage connectivity The following table lists the external storage systems that are currently offered by Lenovo that can be used with the RackSwitch G8052 for external NAS or iSCSI SAN storage connectivity. Table 11. External storage systems Description Part number Lenovo Storage DX8200 Series (NAS, iSCSI connectivity) Lenovo Storage DX8200D ServerSAN Entry, 8TB, 3yr SW S&S...

  • Page 17

    ^ Available only in China. ** Available only in Japan. # x represents a geo-specific letter (for example: U = North America, G = EMEA). Ask a Lenovo representative for specifics. † Available worldwide except Latin America. ‡ Available only in Latin America.

  • Page 18

    For more information, see the list of Product Guides in the Rack cabinets category: http://lenovopress.com/servers/options/racks Power distribution units The following table lists the power distribution units (PDUs) that are offered by Lenovo that can be used in RackSwitch G8052 solutions. Table 13. Power distribution units...

  • Page 19

    DPI 63a Cord (IEC 309 P+N+G) 40K9613 DPI Australian/NZ 3112 Line Cord (32A) 40K9617 DPI Korean 8305 Line Cord (30A) 40K9618 For more information, see the list of Product Guides in the Power Distribution Units category: http://lenovopress.com/servers/options/pdu Uninterruptible power supply units Lenovo RackSwitch G8052...

  • Page 20

    Uninterruptible power supply units The following table lists the uninterruptible power supply (UPS) units that are offered by Lenovo that can be used in RackSwitch G8052 solutions. Table 14. Uninterruptible power supply units Description Part number RT1.5kVA 2U Rack or Tower UPS (100-125VAC) 55941AX RT1.5kVA 2U Rack or Tower UPS (200-240VAC)

  • Page 21

    Related publications and links For more information about the RackSwitch G8052, see the following publications that are available at the RackSwitch G8052 InfoCenter: http://systemx.lenovofiles.com/help/topic/com.lenovo.rackswitch.g8052.doc/rs_g8052.html RackSwitch G8052 Installation Guide RackSwitch G8052 Application Guide RackSwitch G8052 Industry Standard CLI Command Reference Related product families...

  • Page 22

    Lenovo representative for information on the products and services currently available in your area. Any reference to a Lenovo product, program, or service is not intended to state or imply that only that Lenovo product, program, or service may be used. Any functionally equivalent product, program, or service that does not infringe any Lenovo intellectual property right may be used instead.

  • Page 23

    Trademarks Lenovo, the Lenovo logo, and For Those Who Do are trademarks or registered trademarks of Lenovo in the United States, other countries, or both. A current list of Lenovo trademarks is available on the Web at http://www3.lenovo.com/us/en/legal/copytrade/. The following terms are trademarks of Lenovo in the United States, other countries, or both:...
