Lenovo CE0128T Switch (Gigabit Ethernet)
Product Guide
The Lenovo CE0128T Switch is a 1 Gb Ethernet (GbE) switch that delivers a compact, high-density, cost-
effective GbE solution for small network environments where space and power are at a premium. Featuring
a small, 1U footprint, this switch is designed for access-layer deployments in branches, retail and
workgroup environments, and network access in larger networks.
The CE0128T Switch offers 24x 10/100/1000BASE-T ports for server, storage, and network connectivity
and 4x 1 GbE SFP uplink ports for connections to higher-layer devices.
The CE0128T Switch supports a wide range of L2 and L3 features that provide performance, availability,
security, and manageability for campus networks.
The Lenovo CE0128T Switch is shown in the following figure.

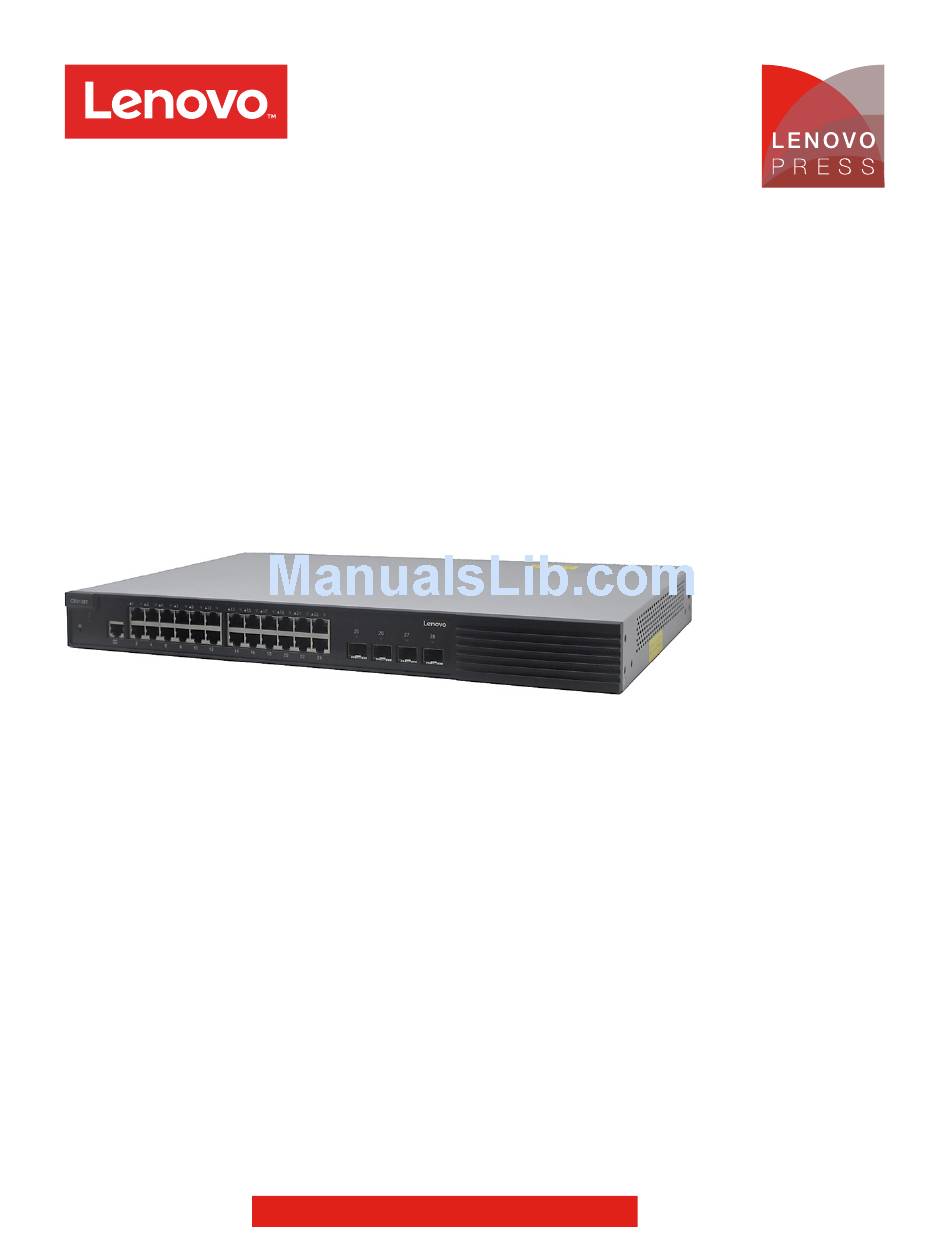

Figure 1. Lenovo CE0128T Switch
Did you know?
The CE0128T Switch is designed to deliver non-blocking, line-rate throughput.
The CE0128T Switch supports the GARP VLAN Registration Protocol (GVRP) protocol for simplifying and
automating VLAN configuration.
The CE0128T Switch supports stacking, enabling up to eight interconnected CE0128T Switch devices to
be managed as a single logical device.
The CE1028T Switch supports Zero Touch Provisioning, which enables a switch to automatically provision
itself using the resources available on the network, without manual intervention.
