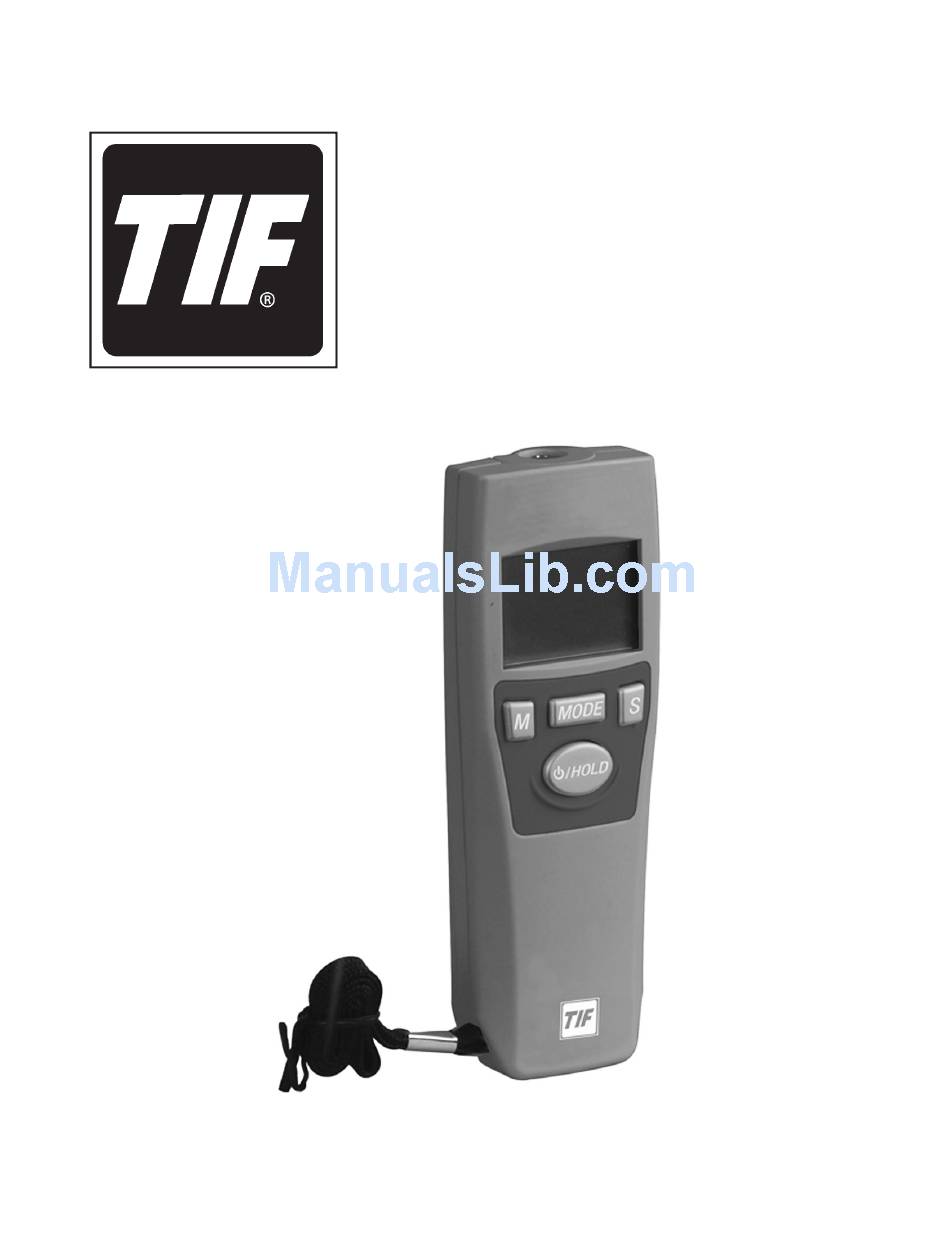

- Page 1 TIF3710 LIGHT METER Operator’s Manual...
-
Page 2: Table Of Contents
CONTENTS Safety Precautions ........1 Features ............2 Specifications ..........2 Control Panel ..........3 LCD Display ..........4 Operation ............5 Power On ..........5 Power Off ..........5 Measurement Value .......5 Main Function ........5 Max/Min/Avg Measuring Function ..6 Data Hold ..........6 Data Review ...........6 Data Store ..........6 Zero Adjust ..........7 Memory Clear ........7 UNIT Function ........8... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS WARNING: To prevent personal injury, and/or equipment damage, • Read, understand, and follow all instructions and safety precautions. • Ultraviolet lights become very hot during use. Severe burns to bare skin can result if it is touched. Always turn off the light and wait 15 minutes before removing an ultraviolet lamp. -
Page 4: Features
FEATURES The TIF3710 light meter is a mobile, hand-held device for measuring UVC irradiation. • High and Low (mW/cm or μW/cm ) measurement units • Backlit LCD display • Low-battery indicator • Min / Max / Avg measuring • Data Hold, Data Review, and Data Store functions •... -
Page 5: Control Panel
CONTROL PANEL LCD Display Memory Button Select Button Mode Button Power On/Off and Hold Button... -
Page 6: Lcd Display
LCD DISPLAY 1. Main Functions 8. MAX/MIN/AVG 9. Secondary Reading 2. Primary Reading 10. Time Units 3. Data Log 4. Auto Mode 11. Measurement Units 12. UV Type 5. Memory Review 13. Low Battery Indicator 6. Data Hold 7. Record... -
Page 7: Operation
OPERATION Power On Press button and hold for two seconds. Release button after power on. All symbols on the LCD will appear for one second. Power Off Press button and hold for two seconds. When all symbols on the LCD appear, release the button ... -
Page 8: Max/Min/Avg Measuring Function
OPERATION CONTINUED Max/Min/Avg Measuring Function There are four measuring functions. Press the ‘S’ button to change the measurement mode: None Avg. Data Hold Press the button. The value at the secondary dis- play will be held, and the LCD will show the HOLD symbol. To cancel hold mode, press the button again. -
Page 9: Zero Adjust
NOTE: When the adjust value is over the range. The Sec- ondary display will display “-Err”. Repeat the zero adjust directions, or contact your local TIF distributor. Memory Clear In ZERO mode, press the ‘M’ button to clear data points zero... -
Page 10: Unit Function
OPERATION CONTINUED UNIT Function Press the ‘S’ button to change the measurement units; μW/cm or mW/cm TIME Function Press the ‘S’ button to set a time interval for auto recording. Choose from nine time intervals: 1, 2, 5, 10, and 30 (sec- onds), or 1, 3, 5, and 10 (minutes). -
Page 11: Maintenance
MAINTENANCE Cleaning Using soap and water on a damp sponge or soft cloth, clean the housing of the meter. IMPORTANT: Do not allow mois- ture to enter the inside of the meter. Storage Store the meter in a dry environment when not in use. Battery Replacement Low-battery indicator ... - Page 12 655 Eisenhower Drive Owatonna, MN 55060 Toll Free: (800) 327-5060 Fax: (866) 287-7222 www.TIF.com Form No. 550404 Rev. B, August 4, 2014 © Bosch Automotive Service Solutions LLC...
