TIF TIF3220 Manual

Thermo-anemometer with ir thermometer

Advertisement

Quick Links

APPLICATIONS
HVAC installation, repair, diagnostics, and
optimization
Fume hood testing, installation, and verification
Ventilation system installation, servicing, and
analysis
Environmental wind and temperature testing/
analysis
Boiler rooms
Ionizer flow output monitoring
Plant/Facilities Maintenance
© 2008 SPX

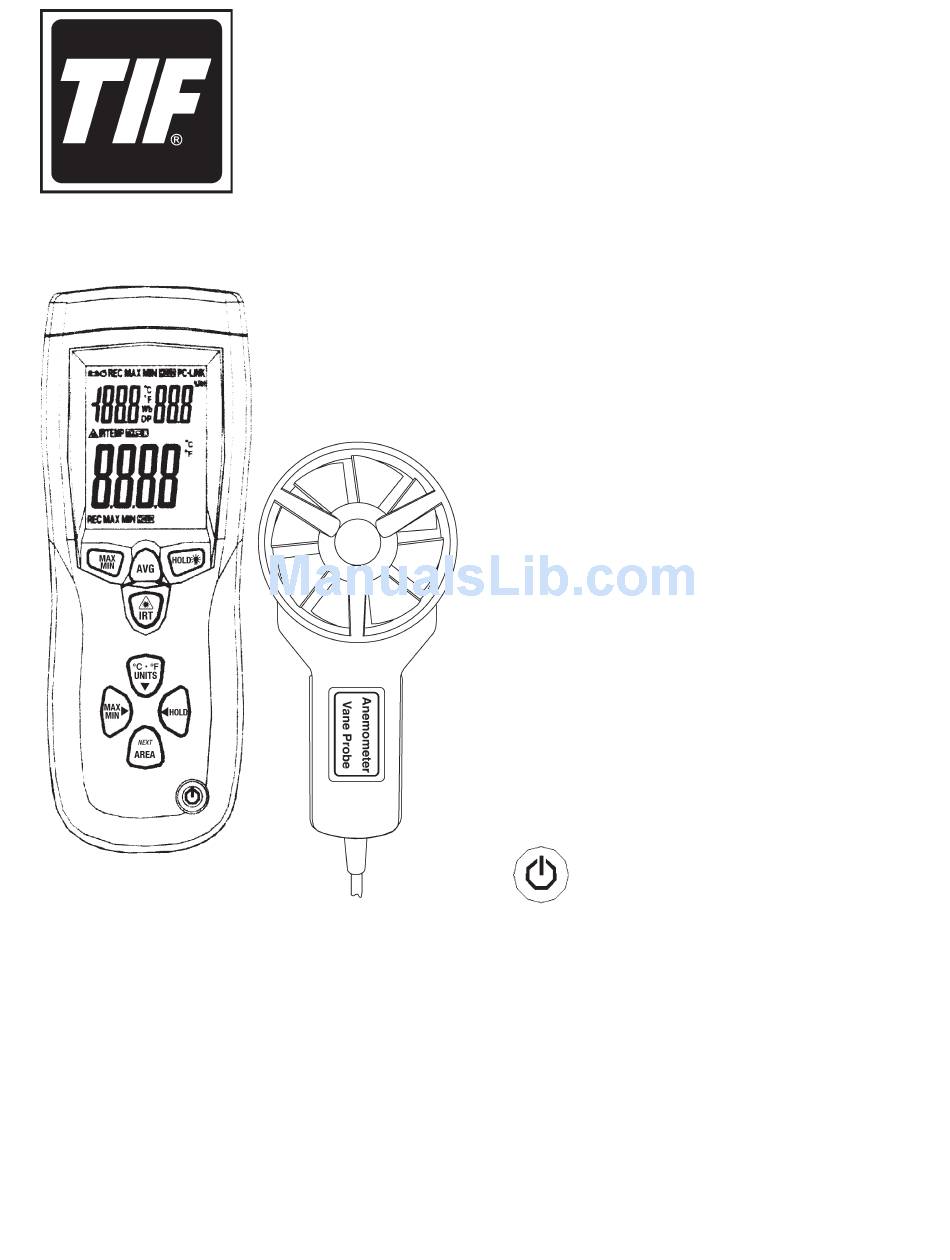

Thermo-Anemometer
with IR Thermometer
FEATURES
Simultaneous display or air flow (or velocity)
and ambient temperature.
Large backlit LCD display shows air flow (or
velocity), probe temperature, and remote
surface temperature (IR feature). Also displays
units of measurement and user alerts.
20-point averaging for air flow and velocity.
3% velocity accuracy using a low-friction ball
bearing vane wheel.
Data and MIN/MAX hold feature.
Selectable auto shutdown.
Includes a vane sensor with a 1.2m cable.
IR thermometer feature measures remote
surface temperatures to 932° F (500° C) with a
30:1 distance-to-spot ratio and laser pointer.
Up to 8 programmable dimensions (ft squared
or cm squared) can be stored in internal
memory.
KEYPAD BUTTONS
= Power ON or OFF.
IRT
= Press and hold to measure remote
surface temperature.
MAX/MIN
= Press to record and store the highest,
lowest, and continuous moving average
readings for a single point. This button
also functions as the left scroll button
when in Area mode.
UNITS
= Press to select the mode of operation.
In Flow mode, the meter displays air
volume; in Velocity mode, the meter
displays air speed. This button also
functions as the UP scroll button when
in Area mode.
TIF3220
Sheet 1 of 2

Advertisement

loading
Need help?

Need help?

Do you have a question about the TIF3220 and is the answer not in the manual?

Questions and answers

Summary of Contents for TIF TIF3220

  • Page 1 TIF3220 Thermo-Anemometer with IR Thermometer FEATURES • Simultaneous display or air flow (or velocity) and ambient temperature. • Large backlit LCD display shows air flow (or velocity), probe temperature, and remote surface temperature (IR feature). Also displays units of measurement and user alerts. • 20-point averaging for air flow and velocity. • 3% velocity accuracy using a low-friction ball bearing vane wheel. • Data and MIN/MAX hold feature. • Selectable auto shutdown. • Includes a vane sensor with a 1.2m cable. • IR thermometer feature measures remote surface temperatures to 932° F (500° C) with a 30:1 distance-to-spot ratio and laser pointer. • Up to 8 programmable dimensions (ft squared or cm squared) can be stored in internal memory.
  • Page 2 KEYPAD BUTTONS CONT’D HOLD = Press to obtain an average reading for = Press once to freeze the displayed multiple points in Flow mode or Velocity reading. Press again to unlock display. mode. Up to 20 points can be aver = Press to turn ON the backlight. Press aged. again to turn OFF. AREA = Press and hold to enter into the Area MAX/MIN (TEMPERATURE) = Press to record mode (ft or m ) in CFM (ft /min) or and store the highest and lowest readings for probe CMM (m /min) modes. When recording temperature. MAX/MIN/AVG readings for a single point, press the Area button to clear HOLD (TEMPERATURE) = Press to freeze the previous readings. displayed reading for probe temperature. Press again to unlock display.
  • Page 3 OPERATING INSTRUCTIONS MEASURING AIR VELOCITY AND AIR FLOW AREA SET 1. Press the UNITS button and select CFM or (SINGLE POINT) CMM. 1. Press to power ON the thermo-anemome- 2. Press and hold the AREA button until the unit ter. It will show a full display when first powered beeps twice. The LCD will display “AREA” indicating the unit is in the area set mode. 2. The anemometer is ready for use when VEL 3. Press the MAX/MIN button to move the radix or FLOW display in the middle of the LCD, and point. temperature displays in the upper left corner. 4. Press the HOLD button to change the position of the flashing digit. 5. Press the UNITS button to change the digit CONTINUOUS MOVING AVERAGE which is set to flash. 1. Place the vane sensor in front of the air flow source to be measured.
  • Page 4: Replacing The Battery

    “AVG” mode. 5. Connect a new 9-volt battery and place it into the battery cavity. 6. Replace the battery cover by setting it over the battery and pushing upward until it snaps into place. WARRANTY 7. Dispose of the old battery according to This product has been produced to provide un- local, state, and federal regulations. limited service. Should it become inoperable after the user has performed the recommended main- tenance, a no charge repair or replacement will be made to the original purchaser. This applies to all repairable units that have not been damaged or tampered with. The claim must be made within One Year of the date of purchase. 655 Eisenhower Drive Owatonna, MN 55060 Toll Free: (800) 327-5060 Fax: (866) 287-7222 www.TIF.com Back sheet 2 of 2 Form No. 546185 Rev. A June 20, 2008 © 2008 SPX...
