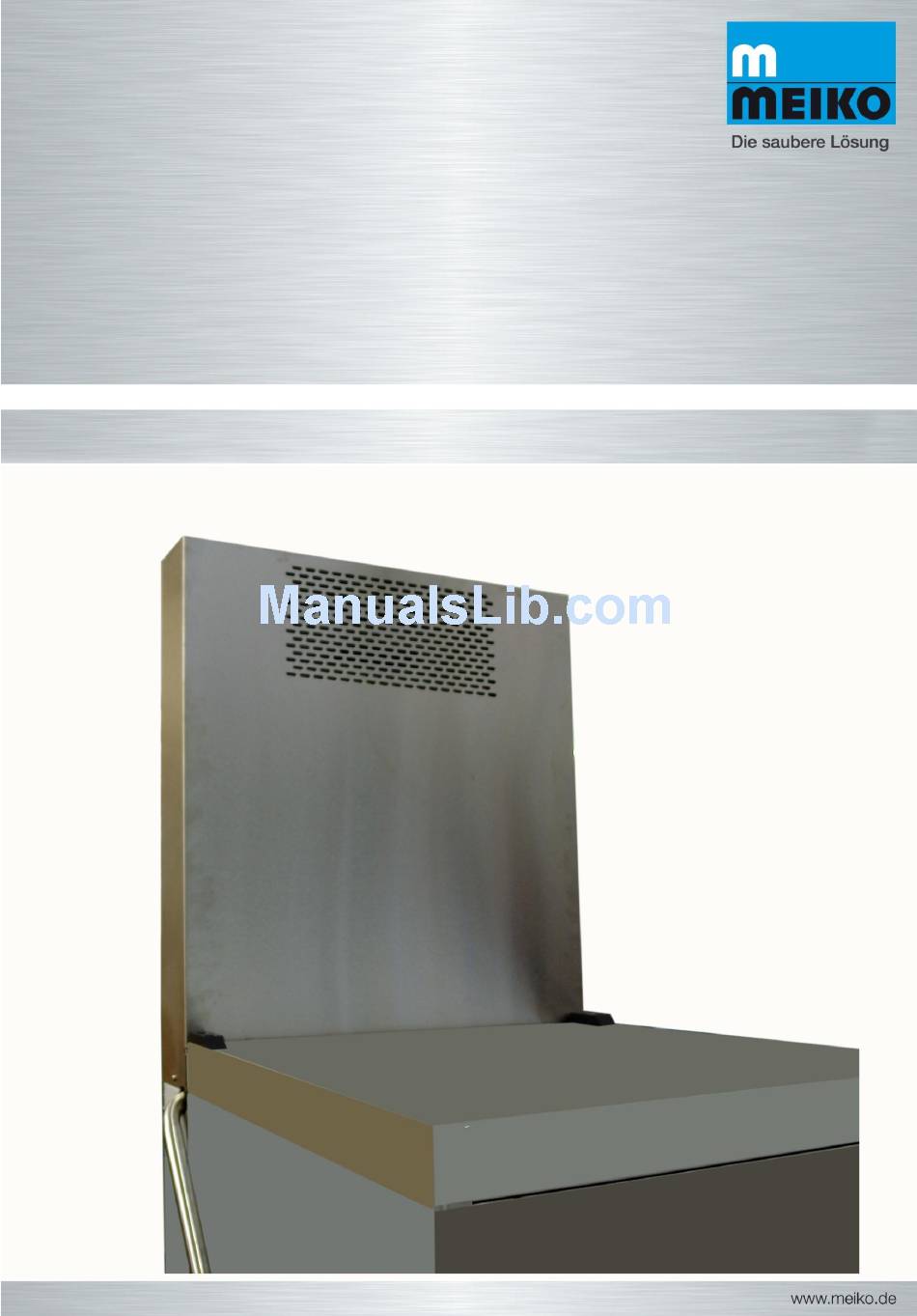

Page 1: Installation Instructions

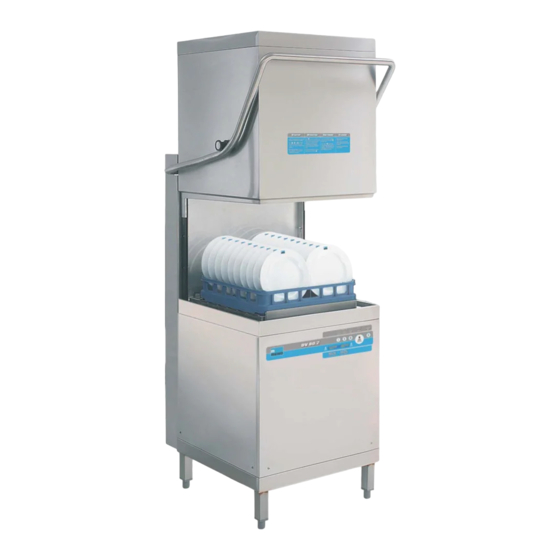

Installation instructions 9701169 AirConcept - Exhaust air heat recuperation DV 80.2 / DV 120.2 / DV 125.2 Valid from: 2012-03 Update: 2012-03-30... -
Page 2: Installation Kit
Contents Page Important information: Installation kit (9697787) Installation Exhaust air heat recuperation (For example: DV 80.2) Important information: All service and commissioning procedures should only be conducted by authorised personnel! In case of electr. conductivity of the inlet water < 100 µS/cm, the stainless steel heat exchanger available as an option must be used. - Page 3 Installation instructions AirConcept - Exhaust air heat recuperation Installation Exhaust air heat recuperation ( For example: DV 80.2) Setting up the machine. Unpack the heat exchanger and place it on the ma- chine. M5x12 M5 SS with flange M5 U washer...
- Page 4 Installation instructions AirConcept - Exhaust air heat recuperation M5x12 M5 SS M5 U washer Fit the solenoid valve using the screws provided. Connect the hose to the angled hose coupler and fas- Thread the angled bracket into the twist lock. ten in place with the spring clip.
- Page 5 Installation instructions AirConcept - Exhaust air heat recuperation Secure the connecting cable using the cable ties pro- Connect the solenoid valve. vided. Connect the fan. Connect the earth wire. Route/secure the cable properly.
- Page 6 Installation instructions AirConcept - Exhaust air heat recuperation Self-tapping screw Install the hood for the heat exchanger Fasten the hood for the heat exchanger with the screws provided. Metal clip Bolt on the cross member. Option: For machines with a rear panel, fit the metal clips.
- Page 7 Installation instructions AirConcept - Exhaust air heat recuperation Self-tapping screw Option: First secure the rear panel on the exhaust air heat recuperation with the screws provided. Then secure the machine's rear panel. Fully installed exhaust air heat recuperation...
- Page 8 Installation instructions AirConcept - Exhaust air heat recuperation...
