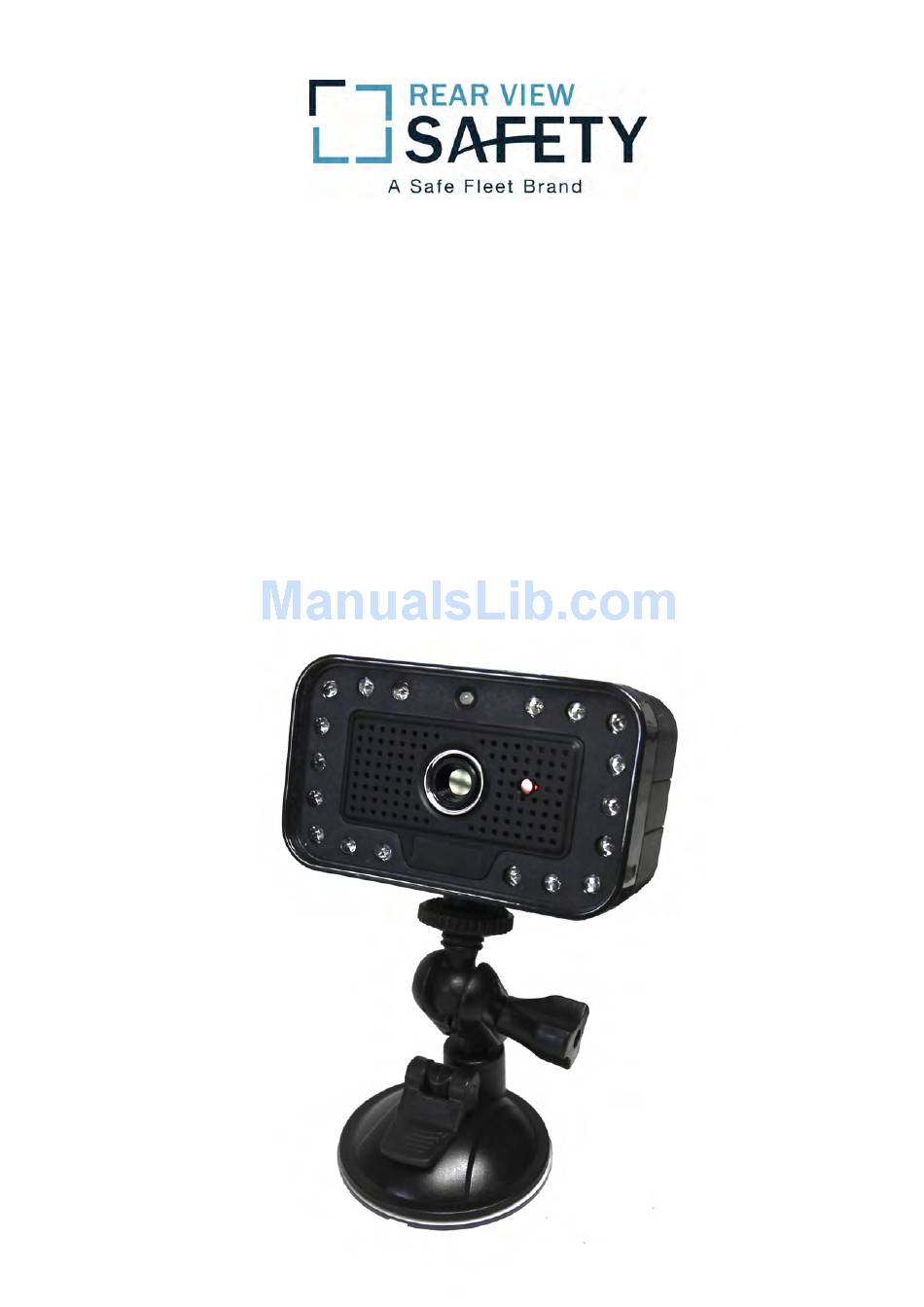

- Page 1 PROFESSIONAL DRIVER FATIGUE MONITOR RVS-350P User Manual...
-
Page 2: Product Composition
Product Composition *RVS-350P includes the host and 5 pin signal line. It can work on all types of vehicle, both 12V and 24V power supply. Caution Do not attempt to disassemble or alter any part of the equipment if you are not authorized professional ... -
Page 3: Installation
6. If the dashboard of truck and bus is low, install the RVS-350P at a higher position. The host should not be higher than the driver’s eyes and the angle between the installation location and the driver’s eyes should not exceed 30°. -
Page 4: Sensitivity Setting
If the green light is still on or flashing when the driver moves from left/right and down/up, The system is properly installed. Sensitivity Setting You can adjust the sensitivity of the RVS-350P. Every setting will quickly detect a change in the driver's eyes, however the alarming time can be adjusted. Switch DP-1.2.3.4 switch to down(off) - Page 5 'No GPS signal'. When no GPS signal is detected (e.g. in underground parking), the speed alarm will not function. On the back of RVS-350P, DIP switch 2 and 3 are used to set alarm speed by hand. When the speed alarm is set with computer software this overrides...
-
Page 6: Power Supply
RVS-350P Video Output The RVS-350P has an aviation video socket, which can output NTSC video signal (We can also customize PAL signal) Cable Connection： RVS-330P 4 pin aviation video socket Power Supply The RVS-350P power input range is 9V-32V. It works with both 12V and 24V power ... -
Page 7: Signal Matching
Using the RVS-350P output signal, confirm that the device (GPS, etc.) input interface is matched with RVS-350P output. If not, it should be matched by the conversion circuit. You may also give us the input device interface requirements. We will make the interface according to your requirements, or provide conversion circuit recommendations. -
Page 8: Alert Status
5 minutes. If you fall asleep after the system enters to the alert status, the RVS-350P alarm will be triggered. If there are large movements and the driver is talking before closing their eyes, it only gives them one or two friendly reminding alarm after your eyes close for 4-7 seconds. -
Page 9: Alarm Troubleshooting
During normal driving, the driver will be alerted up by the alarm. The RVS-350P only alarms again after 10 seconds of the first alarm. So in the test, The RVS-350P will not alarm if you simulate the fatigue state too quick after the previous alarm.
