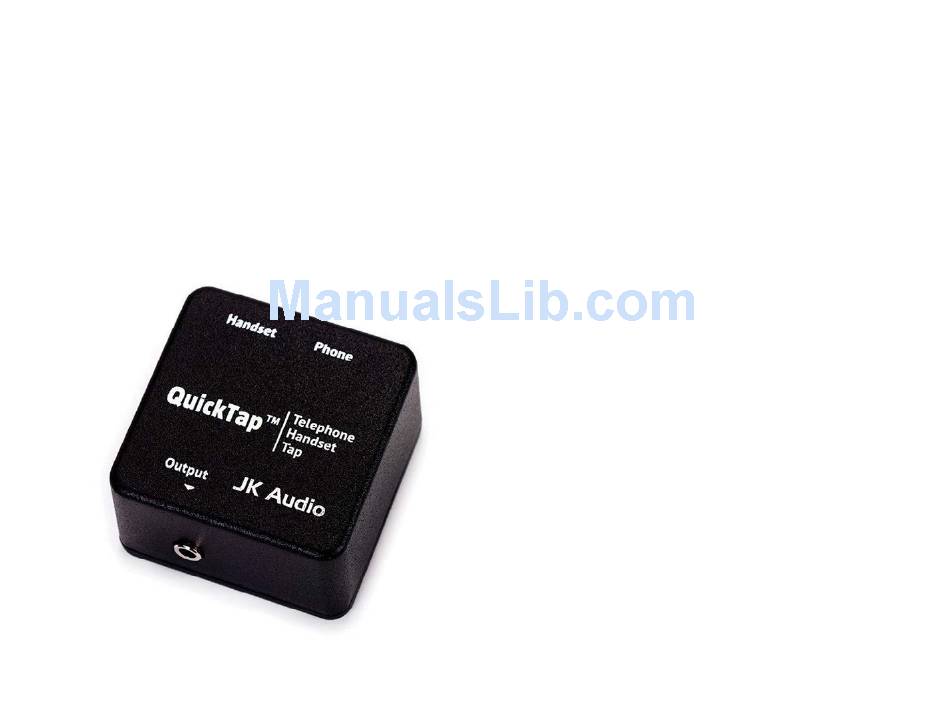

- Page 1 QuickTap ™ Telephone Handset Tap User Guide JK Audio...
- Page 2 Welcome Thank You Limited Warranty Thank you for purchasing the QuickTap is covered by a 2 year JK Audio QuickTap™. Please read this warranty to be free from defective guide for instructions on using it. workmanship and materials. To obtain...
- Page 3 Contents Overview Setup FAQs Technical Information Note: While QuickTap was designed to be very rugged and durable, it is not waterproof and care should be taken to keep the unit dry. Contents...
- Page 4 Features Works with Analog, Digital, PBX, and ISDN Telephones 1/8” (3.5mm) Mono Audio Output Use the QuickTap to Get Audio into a Sound Card or Portable Recorder Passive Design. No Battery or AC Required QuickTap Telephone Handset Tap...
- Page 5 The QuickTap does not work with cellular telephones or any telephone with a keypad in the handset.
- Page 6 Setup 00:00:00 PLAY/REC MENU QuickTap Telephone Handset Tap...
- Page 7 2. Using the black handset jumper cord that we have provided, connect the telephone jack of QuickTap to the handset jack on your telephone base. 3. Plug your handset cord, and handset, into the handset jack on QuickTap. 4. Connect your audio equipment to the line output jack on QuickTap.
- Page 8 I send a recording down the telephone line? The QuickTap is a receive only device. If you want to send recorded audio down the line, you should purchase a THAT-1, THAT-2 or a Voice Path.
- Page 9 Technical Information Specifications Line Out 1/8” (3.5mm) Mono: 600 ohms, 100 mV RMS (-16 dBu nom) Misc. Handset Connectors: RJ22 Size: 2" x 2" x 1.3" (5.1 x 5.1 x 3.3 cm) Weight: 3.4 oz Isolation Transformer 1/8" Output Handset Jack Handset Jack from Handset to Phone...
- Page 10 FCC Registration 2. Information For The Telephone Company Your new JK Audio product has been registered with the Federal Communications Upon request from your local telephone Commission (FCC). This product complies company, you are required to provide the with the standards in Part 68 of the FCC rules.
- Page 11 FCC. Your telephone company may section of the manual. make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you'll be notified by your telephone company. FCC Registration...
- Page 12 QuickTap ™ Telephone Handset Tap User Guide Version 7/27/17 JK Audio, Inc. 1311 E 6th St. Sandwich, IL 60548 United States Telephone: 815.786.2929 Toll Free: 1.800.jkaudio Fax: 815.786.8502 www.jkaudio.com © 2017 JK Audio, Inc. All rights reserved. JK Audio...
