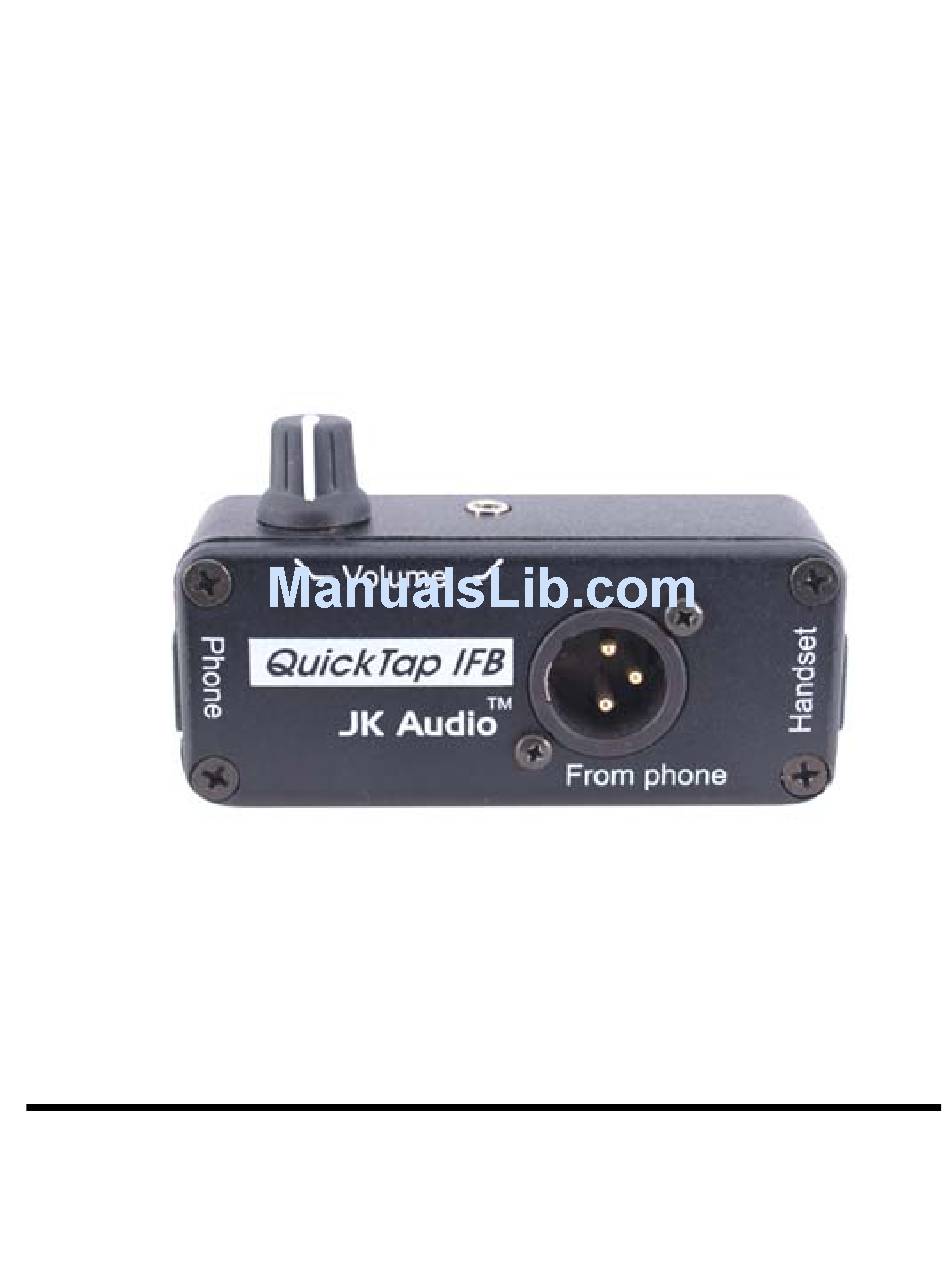

- Page 1 QuickTap IFB Telephone Handset IFBTap User Guide JK Audio...
- Page 2 Connection Install QuickTap IFB between the handset and the telephone base of your existing telephone. 1. Unplug the handset cord from your tele- phone base. 2. Using the black handset jumper cord that we have provided, connect the Phone jack of QuickTap IFB to the handset jack on your telephone base.
- Page 3 Operation The audio output jacks provide a mix of both sides of the conversation. In other words, as you talk down the handset your speech will come back on this jack mixed with the audio from the other side of the call. You do not need to connect the handset to QuickTap IFB if you only want clean audio from the phone line.
- Page 4 The QuickTap IFB is a passive device and will not power a pair of headphones. You'll need to use a JK Audio RemoteAmp with it. The Re- moteAmp will take the balanced output from the QuickTap IFB, amplify it and send it to a 1/4"...
- Page 5 Specifications Mini Output : Connector 1/8" Mono jack Output Impedance 600 ohms Output Level 100 mV RMS Isolation 1500 VRMS XLR Output: Connector Male SLR Jack Output Impedance 600 ohms Level 100 mV RMS Isolation 1500 VRMS Handset and Telephone connectors: Modular 4pin/4wire handset jacks Compatibility Note: Not all telephones are...
- Page 6 FCC Registration Your new JK Audio product has been registered with the Federal Communications Commission (FCC). This product complies with the standards in Part 68 of the FCC rules. The FCC requires us to provide the following information: 1. Connection...
- Page 7 FCC. Your telephone company may make changes in its facilities, equipment, operations or procedures that could affect the proper functioning of your JK Audio product. If such changes are planned, you will be notified. If this telephone equipment is to be used with a...
- Page 8 THERE ARE NO EXPRESSED OR IMPLIED WARRANTIES WHICH EXTEND BEYOND THE WARRANTY HERE MADE. 06/06 JK Audio, Inc. 1311 E 6th Street, Sandwich, IL 60548 USA Voice: (815) 786-2929 Toll Free: 800-JK-Audio Fax: 815-786-8502 Info@jkaudio.com www.jkaudio.com © Copyright 2006 JK Audio, Inc.
