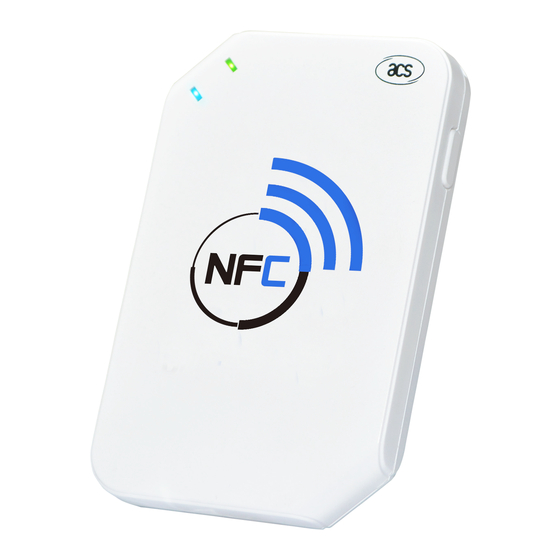

- Page 1 ACR1255 NFC Bluetooth Smart Card Reader User Manual V1.00 Name Signature Date Prepared by: Tommy Wong 2015-05-28 Reviewed by: Approved by: Subject to change without prior notice info@acs.com.hk www.acs.com.hk...
-
Page 2: Table Of Contents
Firmware .......................... 1.3. Upgradeable Feature ...................... 1.4. Bluetooth® Connectivity ...................... 1.5. Ease of Integration ....................... 2.0. Features ........................3.0. Typical Applications .................... 4.0. Technical Specifications .................. info@acs.com.hk www.acs.com.hk Version 1.00... -
Page 3: Introduction
1.5. Ease of Integration ACR1255 could easily be installed for use with any PC running on Windows® operating system because it is PC/SC and CCID compliant. Its drivers are also compatible with Linux® and Mac OS X®. With its numerous features, the ACR12255 is the perfect Bluetooth NFC reader for your smart card solution. -
Page 4: Features
Two user-controllable bi-color LEDs User-controllable buzzer Compliant with the following standards: EN60950/IEC 60950 ISO 18092 ISO 14443 VCCI PC/SC CCID Applicable under PC-linked mode Same as above Same as above PC/SC and CCID support is not applicable. info@acs.com.hk www.acs.com.hk Version 1.00... - Page 5 Bluetooth ® Microsoft WHQL ® RoHS2 REACH info@acs.com.hk www.acs.com.hk Version 1.00...
-
Page 6: Typical Applications
3.0. Typical Applications Mobile Banking & Payment e-Government e-Healthcare Network Security Access Control e-Purse & Loyalty Public Key Infrastructure info@acs.com.hk www.acs.com.hk Version 1.00... - Page 7 4.0. Driver installation Procedure The installation procedure is the same for Unified PC/SC Driver version 4.0.0.2 and above. The latest device drivers of the ACS Smart Card Readers may be downloaded from the ACS Driver Download Webpage: http://acs.com.hk/en/drivers/ To install the ACS Driver: 1.
- Page 8 4. Click Next to install the driver to the default folder located at X:\Program Files\Advanced Card Systems Ltd\ACS Unified PCSC Driver 4.0.0.2\, with X as the drive letter of you local drive. Otherwise, click Change to choose another destination folder.
- Page 9 6. Wait for the installation process to finish. 7. Once the driver installation is finished, click Finish to exit the setup wizard. info@acs.com.hk www.acs.com.hk Version 1.00...
-
Page 10: Technical Specifications
Smart Card Read/Write Speed ..106 Kbps, 212 Kbps, 424 Kbps Built-In Peripheral LED ..........2, Bi-color (Red and Blue, Red and Green,) Buzzer ..........Monotone Application Programming Interface PC/SC CT-API (through wrapper on top of PC/SC) info@acs.com.hk www.acs.com.hk Version 1.00... - Page 11 Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. 3) This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. info@acs.com.hk www.acs.com.hk Version 1.00...
