ACR1255U-J1
Bluetooth
®
NFC Reader
User Manual V1.00
Subject to change without prior notice
info@acs.com.hk
www.acs.com.hk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ACR1255U-J1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACS ACR1255U-J1

Summary of Contents for ACS ACR1255U-J1

  • Page 1 ACR1255U-J1 Bluetooth ® NFC Reader User Manual V1.00 Subject to change without prior notice info@acs.com.hk www.acs.com.hk...

  • Page 2: Table Of Contents

    Getting the ATR (Answer to reset) ................23 3.2.5. Transmitting APDU commands ................... 27 3.2.6. Executing escape command ..................30 3.2.7. Changing the Bluetooth Transmission Power ............. 32 Page 2 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 3: Introduction

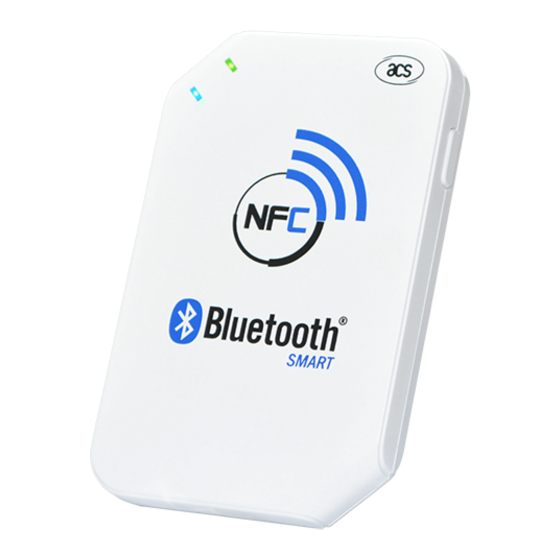

    1.0. Introduction ACR1255U-J1 Bluetooth® NFC Reader combines the latest technology in the world of smart card readers with Bluetooth connectivity. This compact and wireless smart card reader brings together sophisticated technology with fresh design to meet different requirements in various smart card-based applications using Bluetooth-enabled devices, such as smart phones and tablets.

  • Page 4: For Ios

    2.0. For iOS 2.1. Installing the application 1. Download the device library from ACS website under ACR1255U-J1 category. 2. Using the XCode application, open the BTDemo.xcodeproj file. 3. Transfer the BTDemo.xcodeproj to your mobile device by choosing your mobile device and then clicking the play button.

  • Page 5: Using The Application

    Connecting the reader 1. Turn on the Bluetooth of your iOS device by going to Settings | Bluetooth. 2. Turn on the Bluetooth of the ACR1255U-J1 reader by switching the toggle on top to Bluetooth mode. 3. Open the BT Demo application.
  • Page 6 6. A bluetooth pairing request message will be displayed. Type in 000000, and then tap Pair to continue. Page 6 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 7: Getting The Device Information

    7. You will be prompted that the pairing was successful. Tap OK. 2.2.2. Getting the device information To get the reader’s information, tap Device Information. Page 7 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 8: Getting The Battery Level

    2.2.3. Getting the battery level To get the battery level: 1. Tap Get Battery Level. 2. The battery level will be displayed. Page 8 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 9: Getting The Atr (Answer To Reset)

    Getting the ATR (Answer to reset) To get the ATR of the card: 1. Place the contactless smart card on to the ACR1255U-J1 reader. 2. Tap Use Default Key to load the default keys of the device to the application.
  • Page 10 4. You will be prompted that the authentication was successful. Tap OK. 5. Tap Enable Polling to start polling for the contactless card. Page 10 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 11 6. Tap Power On Card. 7. The card’s ATR will be displayed. Page 11 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 12 8. Tap Power Off Card. 9. Tap Disable Polling to end polling for the contactless card. Page 12 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 13: Transmitting Apdu Commands

    Transmitting APDU commands To transmit APDU command: 1. Insert the smart card into the contact card slot of the ACR1255U-J1 reader. 2. Tap Use Default Key to load the default keys of the device to the application. 3. Tap Authenticate Reader to validate device.
  • Page 14 4. Tap Transmit APDU. 5. The Response APDU will be displayed. Note: You can edit the APDU command by tapping Command APDU. Page 14 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 15: Executing Escape Command

    Executing escape command To execute an escape command: 1. Insert the smart card into the contact card slot of the ACR1255U-J1 reader. 2. Tap Use Default Key to load the default keys of the device to the application. 3. Tap Authenticate Reader to validate device.
  • Page 16 4. Tap Transmit Escape Command. 5. The Escape Response will be displayed. Note: You can edit the Escape command by tapping Escape APDU. Page 16 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 17: For Android

    3.1. Installing the application 1. Connect your mobile device to the computer. 2. In the internal storage of your device, create a folder where the ACR1255U-J1 BTdemo will be placed. 3. Download the device library from ACS website under ACR1255U-J1 category.
  • Page 18 5. Disconnect your mobile device from the computer, and then locate the BTDemo.apk using a file manager application. 6. Tap the BTDemo.apk file to start the installation process. Page 18 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 19 7. Complete the action using the Package Installer. 8. You will be prompted for hardware control access. Tap Install to proceed. 9. Once the installation is complete, open the BT Demo application. Page 19 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 20: Using The Application

    Connecting the reader 1. Turn on the Bluetooth of your Android device by going to Settings | Bluetooth. 2. Turn on the Bluetooth of the ACR1255U-J1 reader by switching the toggle on top to Bluetooth mode. 3. Open the ACS BT Demo application.

  • Page 21: Getting The Device Information

    6. You will be prompted for a pairing code. Type in 000000 and then tap OK. 3.2.2. Getting the device information To get the reader’s information, scroll down and then tap Get Device Info. Scroll up again to view the Device information displayed. Page 21 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 22: Getting The Battery Level

    3.2.3. Getting the battery level To get the battery status, tap Get Battery Level. Scroll up again to view the battery level. Page 22 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 23: Getting The Atr (Answer To Reset)

    Getting the ATR (Answer to reset) To get the ATR of the card: 1. Insert the smart card into the contact card slot of the ACR1255U-J1 reader. 2. Tap Authenticate to validate device. 3. Scroll up to see the Authentication Success message.
  • Page 24 4. Tap Start Polling. Page 24 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 25 5. Tap Power On Card. 6. Scroll up to see the ATR of the contactless card. 7. Tap Power Off Card. Page 25 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 26 8. Tap on Stop Polling. Page 26 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 27: Transmitting Apdu Commands

    3.2.5. Transmitting APDU commands To transmit APDU command: 1. Tap the contactless smart card on the ACR1255U-J1 reader. 2. Tap Authenticate to validate device. 3. Scroll up to see the Authentication Success message. Page 27 of 32 ACR1255U-J1 – User Manual info@acs.com.hk...
  • Page 28 4. Tap on Start Polling. 5. Tap Power On Card. 6. Tap Transmit APDU. Page 28 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...
  • Page 29 7. The Response APDU will be displayed. Note: You can edit the APDU command by tapping below the APDU command. Page 29 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 30: Executing Escape Command

    3.2.6. Executing escape command To execute an escape command: 1. Insert the smart card into the contact card slot of the ACR1255U-J1 reader. 2. Tap Authenticate to validate device. 3. Scroll up to see the Authentication Success message. Page 30 of 32 ACR1255U-J1 –...
  • Page 31 4. Tap Transmit Escape Command. 5. The Escape Response will be displayed. Note: You can edit the Escape command by tapping below the Escape command. Page 31 of 32 ACR1255U-J1 – User Manual info@acs.com.hk www.acs.com.hk Version 1.00...

  • Page 32: Changing The Bluetooth Transmission Power

    3.2.7. Changing the Bluetooth Transmission Power Tap Set Tx Power. Choose from the four available transmissions power for ACR1255U-J1. The following are the range of operating distances for the modes above: • -23 dBm: 3m – 5m • -6 dBm: 7m – 9m •...
