Summary of Contents for ACS ACR1281U-C2

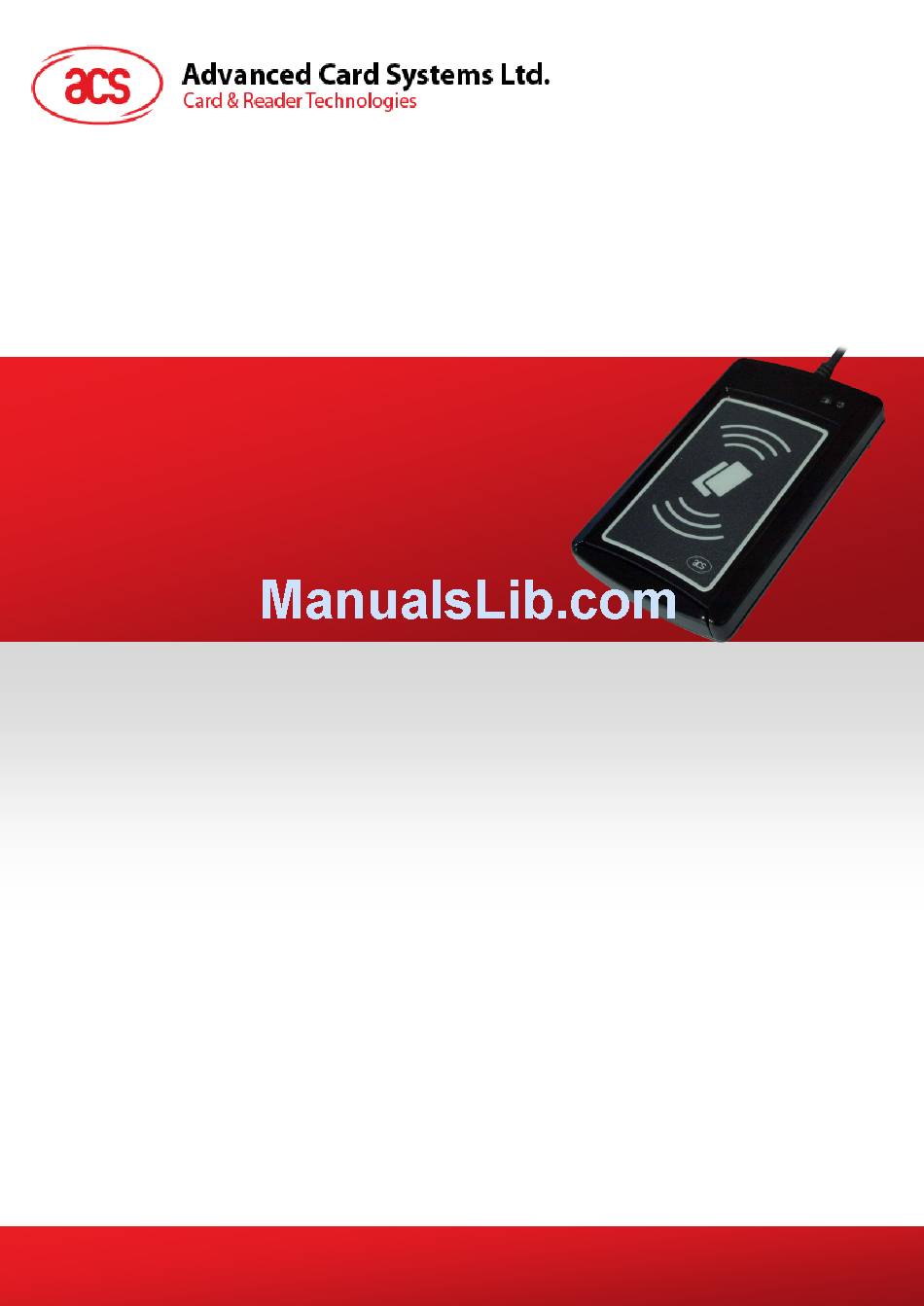

- Page 1 ACR1281U-C2 Card UID Reader Reference Manual 1.00 Subject to change without prior notice info@acs.com.hk www.acs.com.hk...
-
Page 2: Table Of Contents
Example 3 ..........................13 Appendix A. Example of Output Data Table ..............15 List of Figures Figure 1 : ACR1281U-C2 Sample Application ..................3 Figure 2 : HID Usage Table ........................7 Page 2 of 15 ACR1281U-C2 – Reference Manual info@acs.com.hk... -
Page 3: Introduction
However, its only function is to retrieve the card’s UID and display it directly in any text editor such as Notepad, Microsoft® Excel and Microsoft® Word. The ACR1281U-C2 also has an anti- collision feature that ensures only one card is accessed when multiple cards are presented at the same time. -
Page 4: Features
Supports ISO 14443 Part 4 Type A and B cards, and MIFARE® cards Built-in anti-collision feature (only one tag is accessed at any time) • Compliant with the following standards: ISO 14443 RoHS 2 Page 4 of 15 ACR1281U-C2 – Reference Manual info@acs.com.hk www.acs.com.hk Version 1.00... -
Page 5: Typical Applications
3.0. Typical Applications • e-Government • e-Banking and e-Payment • e-Healthcare • Transportation • Network Security • Access Control • Loyalty Program Page 5 of 15 ACR1281U-C2 – Reference Manual info@acs.com.hk www.acs.com.hk Version 1.00... -
Page 6: Uid Output Settings
Example: aa cc bb dd (original /actual UID order) = 01h -> Reverse order (UID Byte N, UID Byte N-1 … UID Byte 0) Example: dd bb cc aa (reverse the UID order) Page 6 of 15 ACR1281U-C2 – Reference Manual info@acs.com.hk www.acs.com.hk Version 1.00... -
Page 7: Character Between Each Uid Bytes
- p59 4.4. Current Output Settings Below are the commands used in order to check the current UID output settings saved in the EEPROM of ACR1281U-C2 UID Reader. E0 00 00 40 00 E0 00 00 41 00 Page 7 of 15 ACR1281U-C2 –... -
Page 8: Configure The Uid Using Escape Command
5.0. Configure the UID using escape command To configure the ACR1281U-C2 using the escape command: Connect the ACR1281U-C2 smart card reader to your computer. Run the PCSC Direct Command Application. Under Connection – Share Mode, select Direct and then click Connect. -
Page 9: Example 1
From "HID Usage Table," p53 - p59 = “Spacing” = Keyboard Spacebar = 2Ch = “Enter” = Keyboard Return = 28h Commands to configure: • E0 00 00 40 02 Page 9 of 15 ACR1281U-C2 – Reference Manual info@acs.com.hk www.acs.com.hk Version 1.00... - Page 10 • E0 00 00 40 02 • E0 00 00 41 02 • Display Result (UID = 34 CC F9 A6) Page 10 of 15 ACR1281U-C2 – Reference Manual info@acs.com.hk www.acs.com.hk Version 1.00...
-
Page 11: Example 2
From "HID Usage Table," p53 - p59 = “No character between UID” = FFh = “Enter” = Keyboard Return = 28h Commands to configure: • E0 00 00 40 02 20 01 Page 11 of 15 ACR1281U-C2 – Reference Manual info@acs.com.hk www.acs.com.hk Version 1.00... - Page 12 • E0 00 00 41 02 FF 28 • Display Result (UID = 34 CC F9 A6) Page 12 of 15 ACR1281U-C2 – Reference Manual info@acs.com.hk www.acs.com.hk Version 1.00...
-
Page 13: Example 3
From "HID Usage Table," p53 - p59 = “Spacing” = Keyboard Spacebar =2Ch = “Enter” = Keyboard Return = 28h Commands to configure: • E0 00 00 40 02 21 00 Page 13 of 15 ACR1281U-C2 – Reference Manual info@acs.com.hk www.acs.com.hk Version 1.00... - Page 14 • E0 00 00 41 02 • Display Result (UID = 34 CC F9 A6) Page 14 of 15 ACR1281U-C2 – Reference Manual info@acs.com.hk www.acs.com.hk Version 1.00...
-
Page 15: Appendix A. Example Of Output Data Table
4, 7, 10 Caps Lock Reverse A2 8A 89 BA A2 8A 89 BA (Default) (Default) MIFARE and MIFARE DESFire are trademarks of NXP B.V. and are used under license. Page 15 of 15 ACR1281U-C2 – Reference Manual info@acs.com.hk www.acs.com.hk Version 1.00...
