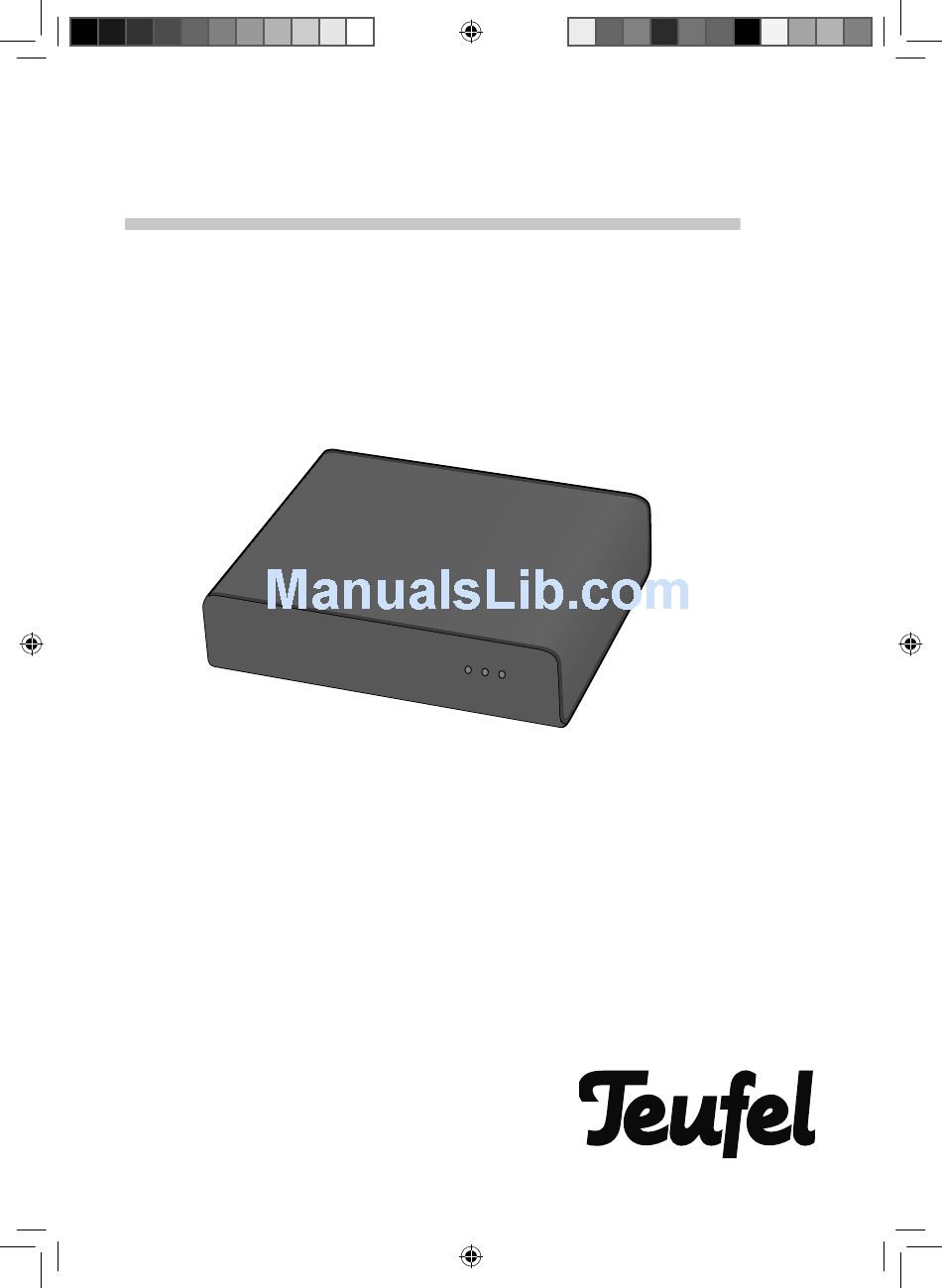

- Page 1 Technical Description and Instruction Manual Subconnect RX Subwoofer Signal Receiver 93080_GB_20150610.indd 1 93080_GB_20150610.indd 1 11.06.15 08:34 11.06.15 08:34...
-
Page 2: Table Of Contents
Troubleshooting ......11 Overview ..........6 Product contents ......6 Declaration of Conformity ....12 Checking the product contents ..6 Technical Data ........ 13 Operational controls and connections ........6 • Receiver Subconnect RX 93080_GB_20150610.indd 2 93080_GB_20150610.indd 2 11.06.15 08:34 11.06.15 08:34... -
Page 3: General Notes And Information
1. Invoice number Can be found on the sales slip (en- closed with the product) or on the order confirmation received as a PDF document, e.g. 4322543 • Receiver Subconnect RX 93080_GB_20150610.indd 3 93080_GB_20150610.indd 3 11.06.15 08:34 11.06.15 08:34... -
Page 4: For Your Safety
For Your Safety Proper use NOTICE This signal term warns you of The Subconnect RX is intended for receiving a mono subwoofer signal and potential damage. for transmitting it to the subwoofer via an RCA cable. The Subconnect TX or... -
Page 5: Explanation Of Symbols
For this reason, electrical equipment is ovens, other heat generating equip- marked with the adjacent symbol. ment such as amplifiers etc.). • Do not use the Subconnect RX in en- vironments with a risk of explosion and only in locations where wireless transmission is permitted. -
Page 6: Overview
Overview Product contents 1 x Subconnect RX 1 x mains adapter 1× RCA cable Checking the product contents • Check that all items have been deliv- ered and that nothing is damaged. • If the delivery is incomplete or has transport damages, please contact our service team (see page 3). -
Page 7: Setup/Wall Mounting
For wall installation, 2 keyhole open- NOTICE ings are located on the bottom of the If the device is subjected to Subconnect RX that can be used to warm temperatures after being hang it on 2 screws. cold (e.g. after transport), con- CAUTION densation may occur inside of it. -
Page 8: Connecting
2. Put the associated transmitter also into paring mode. For more informa- tion, please refer to the transmitter’s instruction manual. • As soon as the Subconnect RX finds a compatible transmitter, it will connect with it. The LED (4) will illuminate continu- ously in blue. -
Page 9: Automatic Connection
Automatic connection • If the Subconnect RX was already connected with a compatible trans- mitter, a connection with it will be established immediately. The LED (4) will illuminate continu- ously in blue. • If there is no transmitter nearby or if it is switched off, the Subconnect RX will look for a transmitter. -
Page 10: Cleaning & Maintenance
– Do not use caustic cleaning products, rubbing alcohol, thinners, petrol or similar un- der any circumstances. Such cleaning agents may damage the surface of the housing. • Receiver Subconnect RX 93080_GB_20150610.indd 10 93080_GB_20150610.indd 10 11.06.15 08:34 11.06.15 08:34... -
Page 11: Troubleshooting
Distance is too great Correct the location of the devices. or objects are block- ing the connection signal. The connection is not Push the pairing button (3). automatically estab- lished. • Receiver Subconnect RX 93080_GB_20150610.indd 11 93080_GB_20150610.indd 11 11.06.15 08:34 11.06.15 08:34... -
Page 12: Declaration Of Conformity
ETSI EN 301489-1 V1.9.2 ETSI EN 301489-9 V1.4.1 ETSI EN 300328 V 1.8.1: Verordnung 1275/2008 Verordnung 0278/2009 Edgar van Velzen Geschäftsführer Ausstellungsdatum / 16. März 2015 Date of issue: • Receiver Subconnect RX 93080_GB_20150610.indd 12 93080_GB_20150610.indd 12 11.06.15 08:34 11.06.15 08:34... -
Page 13: Technical Data
Mains adapter Input voltage 100 – 240 V~ 50/60 Hz Output voltage 12 V DC/830 mA You can find further technical data on our website. Technical changes reserved! • Receiver Subconnect RX 93080_GB_20150610.indd 13 93080_GB_20150610.indd 13 11.06.15 08:34 11.06.15 08:34... - Page 14 • Receiver Subconnect RX 93080_GB_20150610.indd 14 93080_GB_20150610.indd 14 11.06.15 08:34 11.06.15 08:34...
- Page 15 • Receiver Subconnect RX 93080_GB_20150610.indd 15 93080_GB_20150610.indd 15 11.06.15 08:34 11.06.15 08:34...
- Page 16 Please contact our customer service with any questions, suggestions or comments: Lautsprecher Teufel GmbH Phone: 00800 - 200 300 40 (toll-free) BIKINI Berlin Fax: +49 (0)30 - 300 930 930 Budapester Strasse 44 www.teufelaudio.com 10787 Berlin (Germany) No responsibility is assumed for the correctness of this information.
