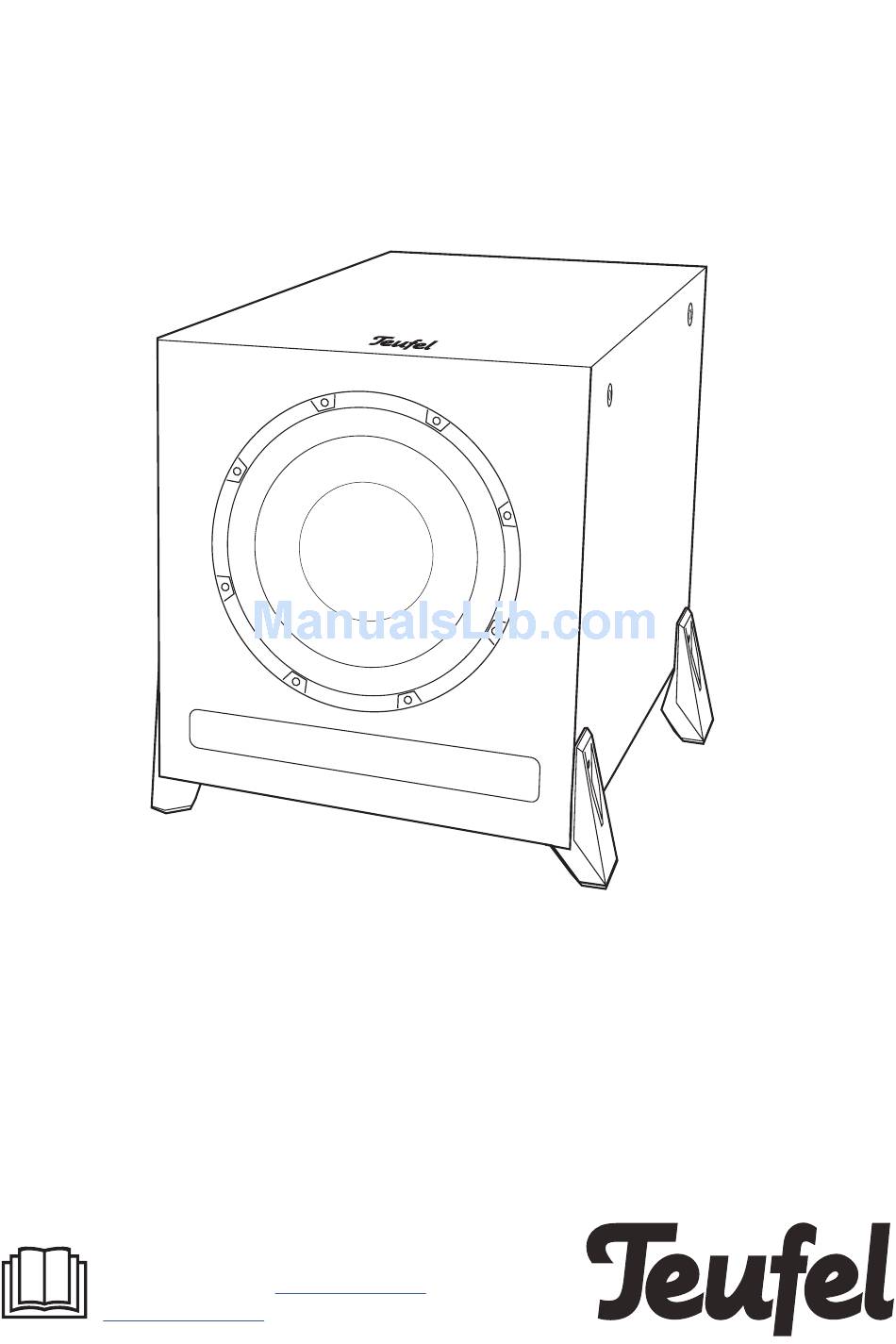

- Page 1 Technical Description and User Manual Subwoofer T 1108/1 SW T 1110/1 SW You can find an extensive user manual online at http://manual. teufelaudio.com...
- Page 2 Lautsprecher Teufel packaging. We can only accept the GmbH. return of the speakers WITH THE ORIGINAL PACKAGING.
- Page 3 Only suggestions, or complaints: in this way, can you ensure that all Lautsprecher Teufel GmbH functions are used in a safe and BIKINI Berlin reliable manner. Keep the enclosed documents in a safe place and also Budapester Straße 44...
- Page 4 Safety notes Repairs may only be carried out by an authorised specialist workshop. This chapter contains general safety Only parts that match the original notes which you should always specifications may be used. observe to protect yourself and third – Only use the accessory products parties.
- Page 5 – Do not place the subwoofer near – Never allow children to operate heat sources (e.g. heaters, ovens, electrical equipment unsupervised. other heat generating equipment Extended listening at high volumes such as amplifiers etc.). may lead to hearing loss. – Do not use the device in environ- To avoid damage to health, avoid ments where there is a risk of extended listening at high volumes.
- Page 6 Explanation of symbols Old devices must not be disposed of with household waste! Protection class II If the device is no longer Dual insulation operational, every Risk of electrical shock – consumer is required do not open the housing. by law to dispose of old Disconnect the mains cord devices separately from before changing a fuse.
-
Page 7: Unpacking
Unpacking Package contents (1) Subwoofer (2) 4 × support feet for subwoofer (3) 4 × screws for the support feet • Check that all items have been delivered and that nothing is damaged. If you find any damage, do not operate the device; instead contact our customer service department (see back side). - Page 8 Subwoofer 220-230V~50Hz 125 WATTS (10) (11) (16) (15) (14) (13) (12) (4) Mains cord (11) PHASE: Shifts the subwoofer phase by 180°. Can lead to (5) Holder for the mains cord improved sound. (6) STATUS: LED illuminates contin- (12) BASS BOOST: Adjust the sound uously with the wireless connec- of the subwoofer.
-
Page 9: Assembly And Setup
Otherwise, this may produce uncontrollable frequency rises. You can find more information in the Teufel blog at https://blog.teufe- laudio.com/front-and-down-firing- subwoofers/ Frontfire – Use one screw (3) to screw each support foot (2) onto the subwoofer according to the graphics. -
Page 10: Connecting
• “WIRELESS” – If your AV receiver supports the wireless connection with the subwoofer (you can find a list of compatible devices at https://www.teufel.de/was-passt- wozu.html) or if you use the subconnect transmitter. In case of connection via SUB IN Use a mono RCA cable (not included... -
Page 11: Use And Settings
Use and Settings Automatic activation/ Establishing a wireless deactivation connection – You can switch the mode with the If your receiver is compatible, estab- POWER switch (9): lish the cordless connection to the subwoofer like this: The subwoofer is perma- nently switched on. - Page 12 case, reduce the subwoofer level tion function, the following values are on your receiver. recommended: • Subwoofer to “On”. Configuring the sound • Crossover frequency for subwoofer pattern (cut-off frequency) to 80–150 Hz depending on the connected – With the BASS BOOST control (12), speaker system.
- Page 13 LED indicators Display Meaning STATUS (6) Illuminates in Wireless connection to the receiver estab- blue lished. Blinks slowly in Device is attempting to establish a wireless blue connection to a known receiver. Blinks quickly The device is in pairing mode and is searching in blue for a receiver ready for pairing.
-
Page 14: Troubleshooting
Troubleshooting The following advice should help you to solve problems. If this does not work, our online manual will provide help: https://manual.teufelaudio.com Problem Possible cause/solution The POWER Make sure that power is supplied. Check to make sure that LED (8) of the the mains cord is securely seated. -
Page 15: Technical Data
Technical Data Subwoofer T 1108/1 SW Operating voltage 220–240 V~ / 50 Hz Power consumption max. 125 W Dimensions with support feet (W × H × D) “Downfire” 311 × 423 × 330 mm (W × H × D) “Frontfire”... -
Page 16: Declaration Of Conformity
Declaration of Conformity Lautsprecher Teufel GmbH hereby declares that this product complies with the requirements of the directives 2014/30/EU, 2014/35/EU and 2014/53/EU to the extent they are installed and used in accord- ance with the instructions of the manufacturer. The full text of the EU declaration of conformity is available at the following Internet address: www.teufelaudio.com/declaration-of-conformity.html...
