Kewtech KEW 2200 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Data Hold Key
Mode Key
Lanyard
KEW 2200
Instruction Manual
HOLD
�
V
V
�
A
OFF
KEW 2200
digital clamp meter
COM
kewtechcorp.com
kewtechcorp.com
CAT. III
600V
1000A
V/�
CAT. II 600V
CAT. III 300V
V/ΩTerminal
COM Terminal
Current Sensor
Trigger
Function Switch
LED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KEW 2200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kewtech KEW 2200

Summary of Contents for Kewtech KEW 2200

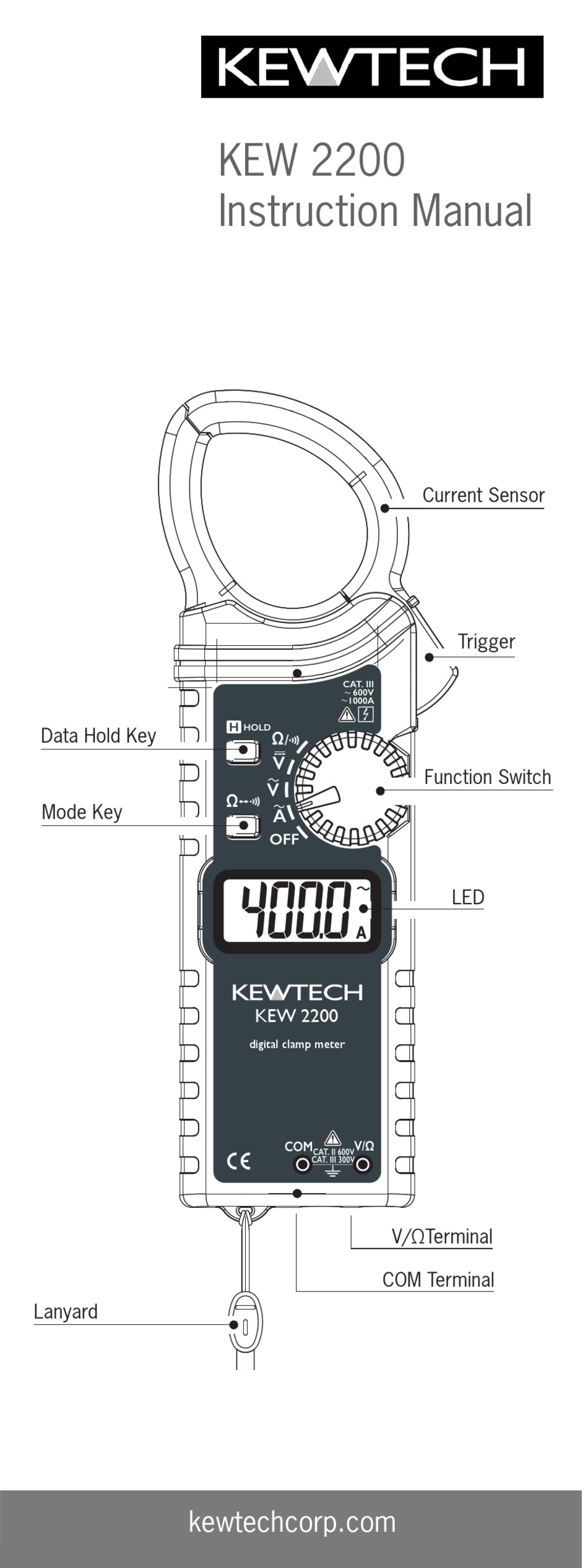

  • Page 1 KEW 2200 Instruction Manual Current Sensor Trigger CAT. III 600V 1000A HOLD Data Hold Key � Function Switch � Mode Key KEW 2200 digital clamp meter V/� CAT. II 600V CAT. III 300V V/ΩTerminal COM Terminal Lanyard kewtechcorp.com kewtechcorp.com...

  • Page 2: Specification

    Barrier of Instrument body Barrier of Test Leads WARNING Read through and understand the instructions contained in this manual before using the instrument. 1. Specification Accuracy guaranteed 100% or less of range Temperature 23 ± 5°C Humidity 45 - 75% AC A Auto Range Range Accuracy...

  • Page 3: Applicable Standards

    Resistance Auto Range / Continuity Range Accuracy 400Ω 0.0-419.9Ω 4kΩ 0.320-4.199 kΩ ±2.0%rdg±4dgt 40kΩ 3.20-41.99 kΩ 400kΩ 32.0-419.9 kΩ 4MΩ 0.320-4.199 MΩ ±4.0%rdg±4dgt 40MΩ 3.20-41.99 MΩ ±8.0%rdg±4dgt Buzzer threshold value Cont. 0.0-419.9Ω 50±30Ω Open-loop voltage <3.4V (400Ω / Cont Range) 0.7V typ (4kΩ...

  • Page 4: Other Function

    Withstand voltage AC 5320Vrms 5sec between current sensor and enclosure AC 3540Vrms 5sec between circuit and enclosure Insulation resistance >100MΩ /1000V between enclosure and electrical circuit Operating temperature and humidity range 0 to 40°C 85%RH or less (no condensation) Storage temperature and humidity range -20 to 60°C 85%RH or less (no condensation) Power source DC3V×2 / R03/LR03 (AAA) ×2...
  • Page 5 (Dia. 33mm max.) under test. Incorrect Correct Correct Incorrect KEW 2200 digital clamp meter KEW 2200 digital clamp meter NOTE Measurement accuracy is guaranteed when the measured object is placed at the centre (zone A) of the Current Sensor.
  • Page 6 4. AC V/DC V Measurement DANGER 600V Never make measurement on a circuit in which voltage over 600V exists. Black test lead Red test lead AC V DC V KEW 2200 KEW 2200 digital clamp meter digital clamp meter Black(-) Red(+) kewtechcorp.com...
  • Page 7 5. Resistance (Continuity) Measurement WARNING Never use the instrument on an energized circuit. Test lead Test lead Continuity Resistance Press / Press ♪ KEW 2200 KEW 2200 digital clamp meter digital clamp meter Beeps when less than 50 ±30Ω. kewtechcorp.com...

  • Page 8: Safety Warnings

    6. Safety Warnings This instrument has been designed, manufactured and tested according to IEC 61010: Safety requirements for Electronic Measuring apparatus, and delivered in the best condition after having passed final inspection. This instruction manual contains warnings and safety rules which must be observed by the user to ensure safe operation of the instrument and retain it in a safe condition.
  • Page 9 Marks listed below are used on this instrument. User must refer to the manual. Instrument with double or reinforced insulation Indicates that this instrument can clamp on bare conductors when measuring a voltage corresponding to the applicable measurement category, which is marked next to this symbol. Ground (Earth) This instrument is subject to WEEE Directive (2002/96/EC).
  • Page 10 • Do not exceed the maximum allowable input of any measuring range. • Never open the Battery cover during a measurement. • To avoid electrical shock by touching the equipment under test or its surroundings, be sure to wear insulated protective gear. •...

  • Page 11: Battery Replacement

    instead of 0 when short-circuiting the test leads. However, these phenomena doesn’t affect measurement results. • This instrument isn’t dust & waterproof. • Keep away from dust and water. • Be sure to power off the instrument after use. • When the instrument will not be in use for a long period, place it in storage after removing the batteries.

  • Page 12: Re-Calibration Service

    Kewtech's Two Year Warranty enhances the customers' legal rights/ it covers all manufacturing defects for a two year period but Kewtech reserves the right to exclude abuse or accidental damage. To register your free guarantee simply go to kewtechcorp.com - the link is on the home page.
