Page 1: Table Of Contents
CONTENTS Panel Introduction Remote control function Turn on/off Home screen Radio Function Disc Function Play SD/external memory device BT Function External input operation Wallpaper GPS Navigation Function Other Functions Settings SWC setting Sound setting Time setting Wiring Diagram Trouble shooting... -
Page 2: Panel Introduction

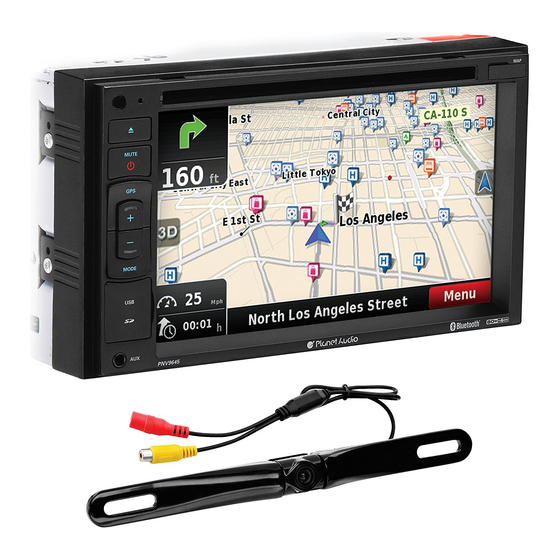

Panel Introduction 1.PWR/MUTE button Press this button will turn on power, during working longer press this button will turn off power. Press MUTE button to close volume output. 2.GPS button Insert GPS card,the unit will play the files automatically. 3.MODE button When the unit is power on,Repeat press this button can switch to different function mode as following picture. - Page 3 6.VOL button Rotate this button will adjust volume level. 7.MAP slot Map card slot, insert the map card to provide the route of auxiliary GPS navigation. (Eject disc) When there is a disc inside the unit, press the button can eject the disc. 9.Disk load slot Opening for disks to enter or retreat.
-
Page 4: Remote Control Function
Remote control function 7. 7. VOL ( )/ VOL- ( Press this button to increase or decrease volume level. 8. 8. SEL butt Press this button to choose sound feature. 9. 9. LOUD/REJECT butt Press this button to startup LOUD function. 10.BAND button In radio mode, press this button to choose band. - Page 5 28. MENU but 18. AUDIO button Press button to back to the main menu. In DVD mode, press this button to switch language of dialogue. In VCD mode, press this button to choose left BATTERY CHANGE track, right track,and stereo. When control distance of remote control becomes shorter or no function, please change 19.
-
Page 6: Turn On/Off
Turn on/off When the ignition switch is put in ACC or ON position, Press open key on the front panel to turn on the unit. After the host starts, hold open key for 3 seconds , the host will turn off. Home screen 】... -
Page 7: Disc Function
Disc Function 2. Sound effect 】 icon can switch sound effect Touch【 1. Play/eject disc menu. Play disc 3.Last song play Insert the disc into the disc slot with the printing 】 icon can choose last song 】 Touch【 surface up, system will detect the disc and playing. -
Page 8: Bt Function
View answered calls ① open phone's BT ② Scan BT and search for bluetooth pairing View dialed calls name " Planet Audio PNV9645 ",then connect it. Delete one call record ③ there will be a prompt message on the screen, Phone book then input password “0000”, press OK button to... -
Page 9: External Input Operation
External input operation Connect the video input plug with external video input jack, and connect the audio input plug with external audio input jack. 】icon on main interface to access external input interface. Touch【 Wallpaper In setting menu/main menu, touch wallpaper icon can enter wallpaper setting interface. -
Page 10: Gps Navigation Function
GPS Navigation Function 1. Navigation Function Operation 】icon in main menu can enter below interface. Touch【 For detailed operation of navigation function, see “Navigation Operation Manual”. 2. Receiving signal error When the satellite signals can be normally received, the error of standard GPS shall be about 7 meters, Driving on parallel sections,there shall be error even the product has auto-correct function. -
Page 11: Settings
Settings 【 】 In any mode, touch icon can switch Settings interface. Touch 【 】 icon can set function's switch; up and down sliding can enter next page. ◆Brightness 】 icon can adjust screen's brightness. Left and right sliding【 ◆ Factory settings 】... -
Page 12: Swc Setting
SWC setting In setting menu, touch 【 】icon enter SWC setting interface. 【 】 Click the function button that need to be set, as below picture: When function is Illuminated, Press and Hold the corresponding button on the vehicle. The “K2” icon will illuminate. -
Page 13: Sound Setting
Sound setting 】 icon can enter below menu: Touch【 】 icon can set function's switch. Touch【 】 icon can set BT default volume/unit start default volume. Touch【 ◆EQ Touch【 】 icon can enter below menu: 】icon to switch the EQ modes among EQ OFF—POP—ROCK— Up and down Slide the【... -
Page 14: Wiring Diagram
Park the car in a safe place, Put Cannot watch image It's not allowed to watch the car stall in “P” position, pull during driving image during driving up the hand brake Choose Planet Audio products if you’re looking for a quality sound.
