EHT-707

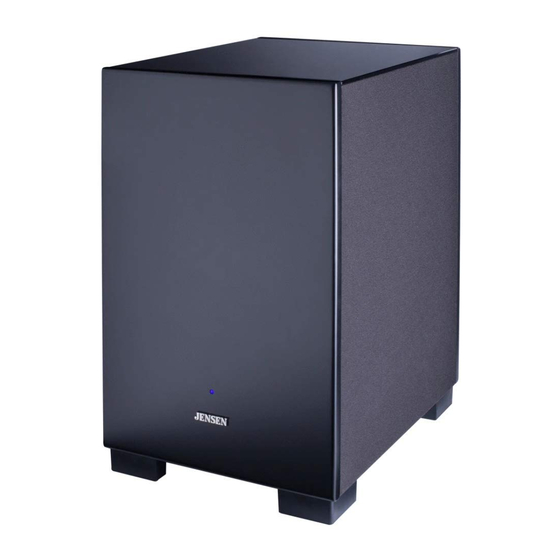

Your JENSEN EHT-707
An extremely Powerful Active Subwoofer
with a fast, Heavy Duty 10" "monster" driver
powered by an on-board 160 Watt RMS amplifier.
Sit-on-Floor or build-into-Cabinet:
response can vary as Subwoofer frequencies are mainly non-directional. This being the case Sit
On Floor can locate anywhere in the room - on display or even behind the couch, If building
into Cabinet, sitting on floor with cabinet built around your EHT-707 around will provide best
results and avoid cabinet vibration, otherwise be sure to allow for these following clearances.
80
1. Sit on Floor will perform better than In-Cabinet.
1. Sit on Floor will perform better than In-Cabinet.
2. All clearance dimensions are minimum. The more the better.
2. All clearance dimensions are Minimum. The more the better.
3. Must have at least 100mm at rear as amplifier will generate heat.
3. Must have at least 100mm at rear as amplifier will generate heat.
4. For In-Cabinet Laying down use rubber mat/pad for EHT-707 to sit on. This will
4. For In-Cabinet Laying down use rubber pad/s underneath to avoid "walking".
Subwoofer amplifier features.
LED
on front panel is Purple when active and Red when on standby. Standby mode, like on
a TV draws next to no power.
is
In-Cabinet
Laying down
80mm
Tips
With different room positioning, Bass
80
80
In-Cabinet
Upright
80mm
80
80
