Congratulations on investing in one of JENSEN's finest Subwoofer
Systems. You will find this information valuable for the

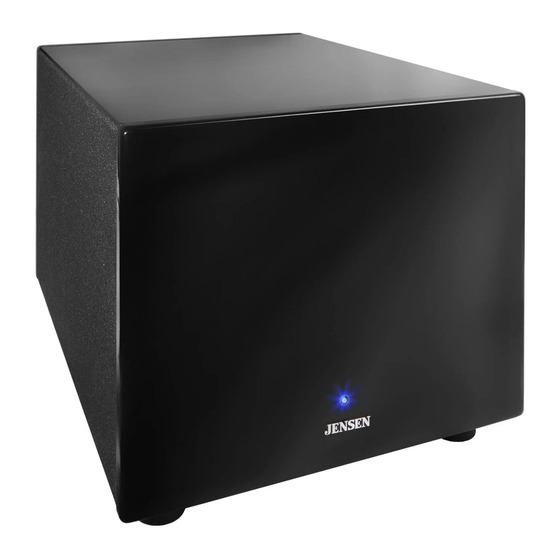

Your JENSEN X-165
Heavy Duty Sub driver powered by an on-board 160 Watt RMS amplifier. You may string
additional X-165 subwoofers to your X-165 if so desired by connecting to the "Line Output"
section of your X-165's amplifier (see "For Big Bass Lovers" section below).
Sit on Floor or build into Cabinetry:
response can vary as Subwoofer frequencies are mainly non-directional. On Floor: Use any
location within room as Sub-Bass is non-directional. Inbuilt: As per diagram but be sure to allow
20mm (minimum) clearance on sides/rear and 140mm (minimum) on top. Cupboard internals to be
at least 650(H)x 430(W)x 390(D).
Fit 4 pcs Rubber
Acoustic Blocks
(supplied) to Gloss
Panel and stand unit up.
X-165
160 Watt Powered Subwoofer
long term enjoyment of your X-165.
is an integrated Active Subwoofer System with a single 10"
Dimensions
650
min.
Port
Woofer
20
Internal dimensions to
be at least 650 (H)
x 430(W)x 390(D)
+ door)
With different room positioning, Bass
Internal
(mm)
390 min.
Plus door
430
min.
Door must
transparent in
Port area. This can be open weave
timber, rattan, metal or cloth. Black
"Acoustic cloth" can be ordered at
info@bdimports.com.au or
on (03)9846 3996 Mon-Fri.
140mm
20mm
be acoustically
front of Woofer and
