Replacing the Hard Disk Drive

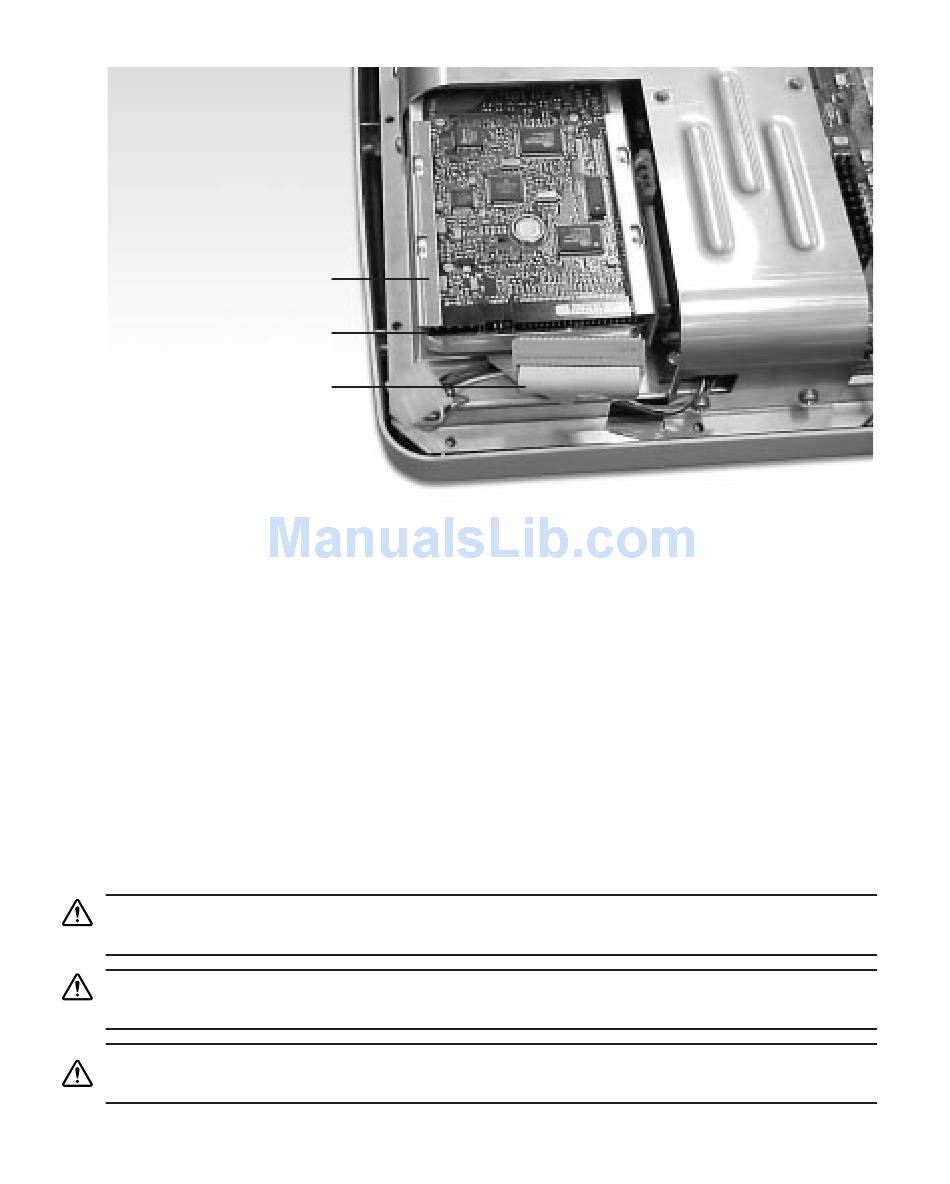

HDD mounting location
HDD Power
HDD Interface Cable
Figure 10
Removing the existing hard disk
1. Remove the back housing as above.
2. Locate the hard disk.
3. Remove the four screws that secure the hard disk to the hard disk cage.
4. Gently detach the hard disk power and I/O cable from the hard disk.
5. Slide the hard disk out of the cage.
Installing the new hard disk
1. Slide the hard disk into the cage so its four bottom-mount screws face upward.
2. Using the supplied 8-32 x 3 ⁄ " Phillips head screws, attach the hard disk to the hard disk cage.
8
3. Gently plug the I/O cable into the slotted I/O jack on the hard disk.
4. Gently plug the power cable into the hard disk power jack.
5. Replace the back cover before you power up the unit.
You will need a Phillips screwdriver with a #2 magnetic tip to complete this
process.
Static sensitive equipment.
Use proper grounding procedures while working inside the Clean Screen II.
To prevent damage to the Clean Screen II ensure correct orientation of the
I/O cable before plugging it into the I/O jack on the hard disk.
9
Chapter Three: Hardware Installation and Replacement
